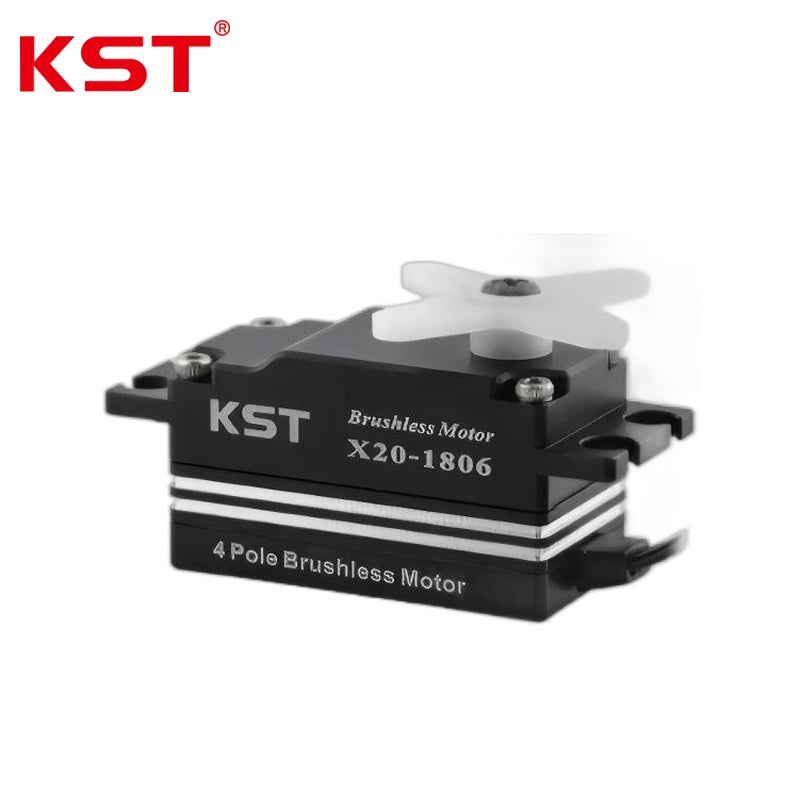

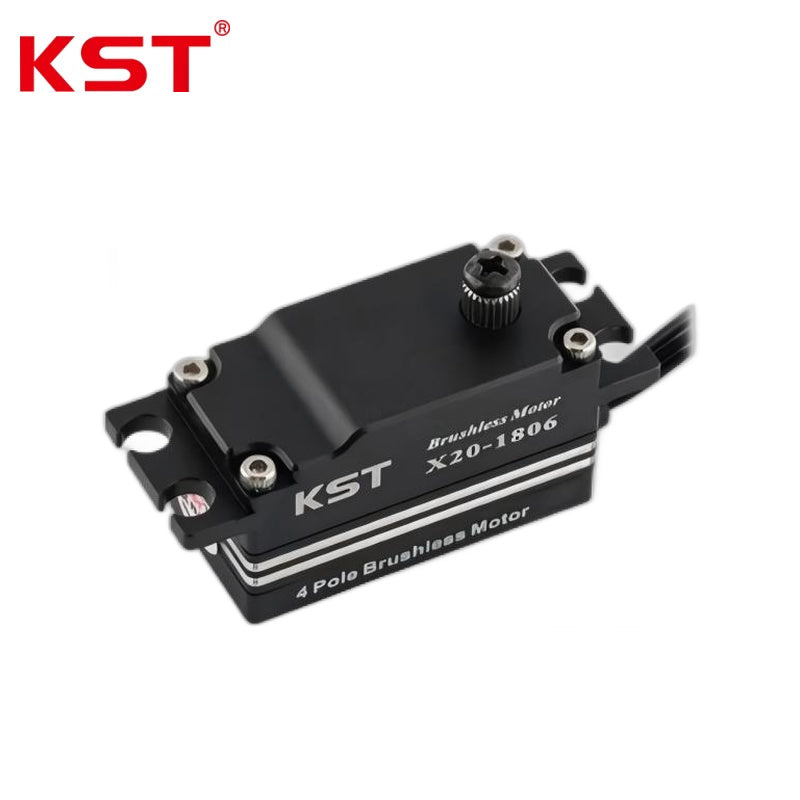

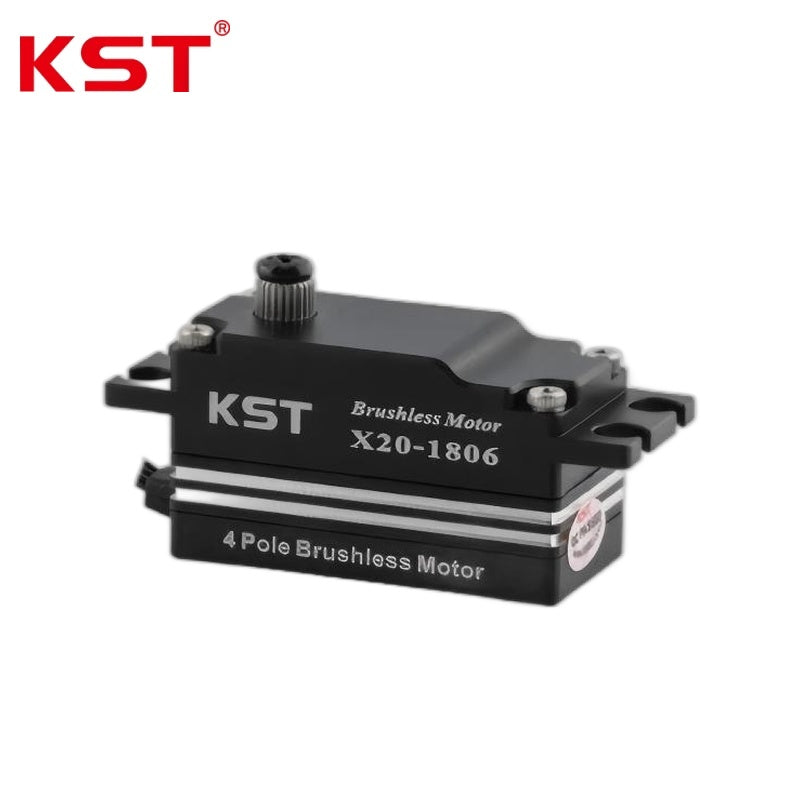

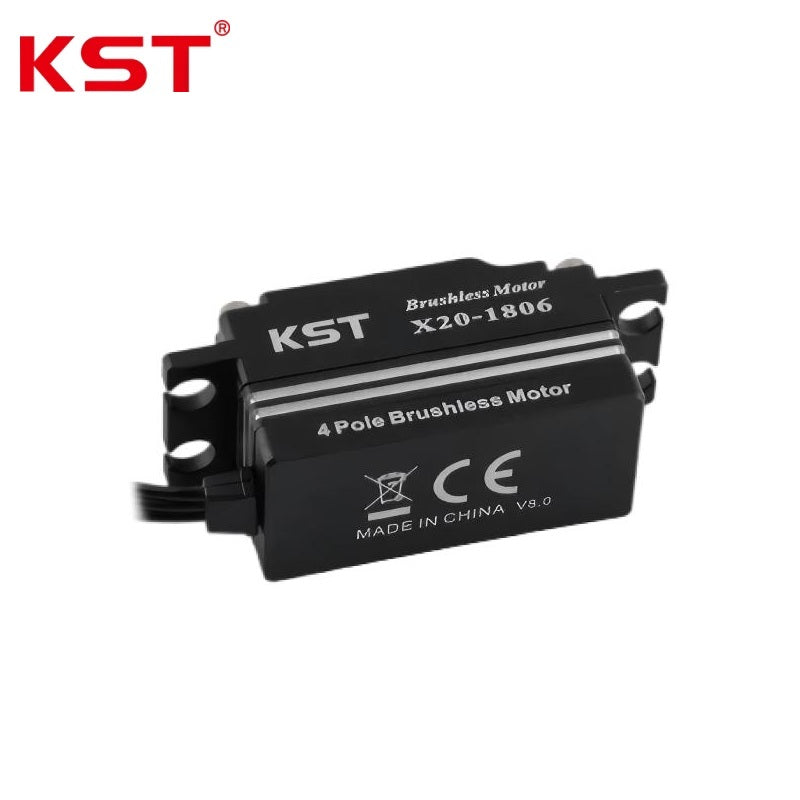

KST X20-1806 Servo Motor

$99.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC 7.4 V
Operating Voltage Range DC 6.0 V - 8.4 V
Stall Torque 14 kgf.cm @ 6.0V; 16 kgf.cm @ 7.4V; 18 kgf.cm @ 8.4V
Operating Speed (60deg Rotation) 0.08s @ 6.0V; 0.07s @ 7.4V; 0.06s @ 8.4V
Start Current 4.0A @ 6.0V; 4.8A @ 7.4V; 5.8A @ 8.4V
Working Frequency 1520 us / 333 Hz
Control Specifications:
Default Travel Angle +/-100deg (200deg Total)
Control Signal Voltage Level High: Min. 3.3V, Max. 5.0V; Low: Min. 0.0V, Max. 1.5V
Control Pulse Length Range 500 us - 2500 us
Position Pulse widths (-100 / 0 / +100 deg) 500 us / 1500 us / 2500 us
Soft Start / Programmable Support Yes / Yes
Internal Characteristics:
Motor Type 4-Pole Brushless DC Motor
Gear Set Material Hardened Steel
Position Sensor Type Contactless
Ball Bearing Configuration 2BB (2 Ball Bearings)
Physical & Environmental:
Housing (Case) Material Aluminum Alloy
Case Dimensions 40.5 mm x 20 mm x 23.1 mm +/- 0.2 mm
Weight 50 g +/- 10%
Protection / Temperature IP65 / -20 deg C - +65 deg C
