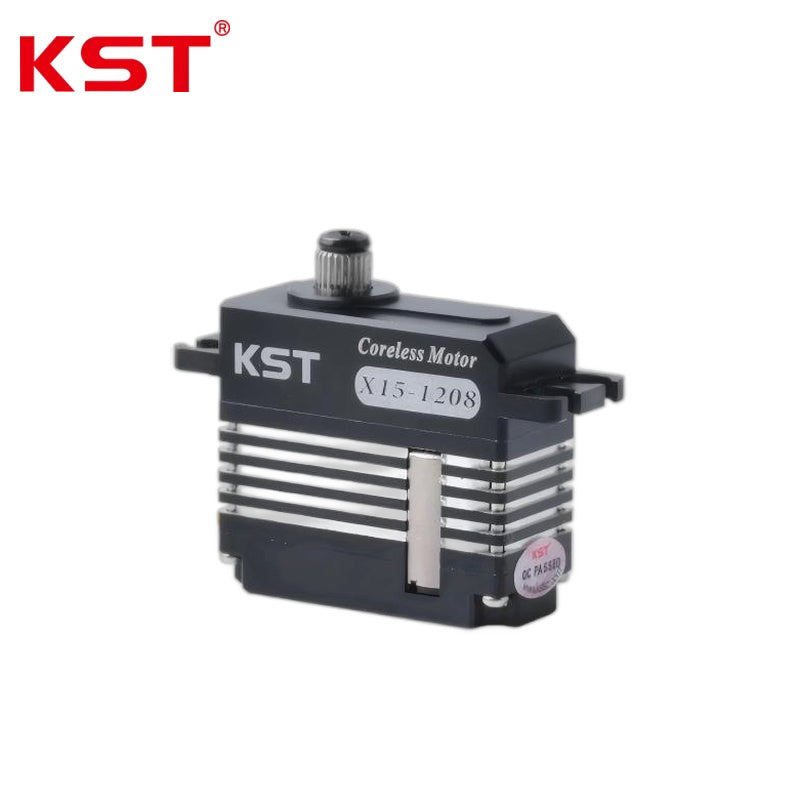

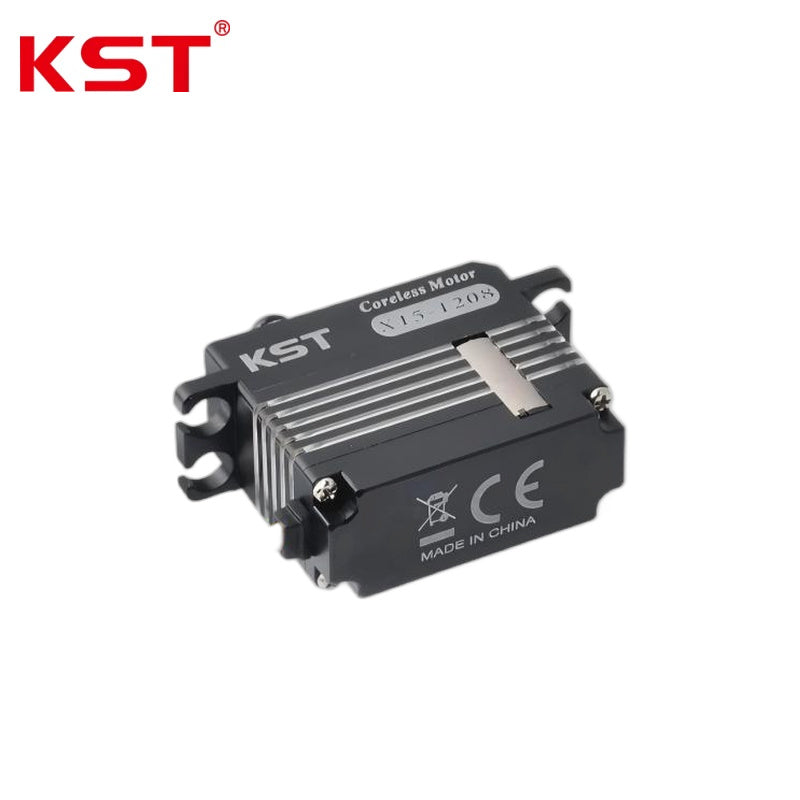

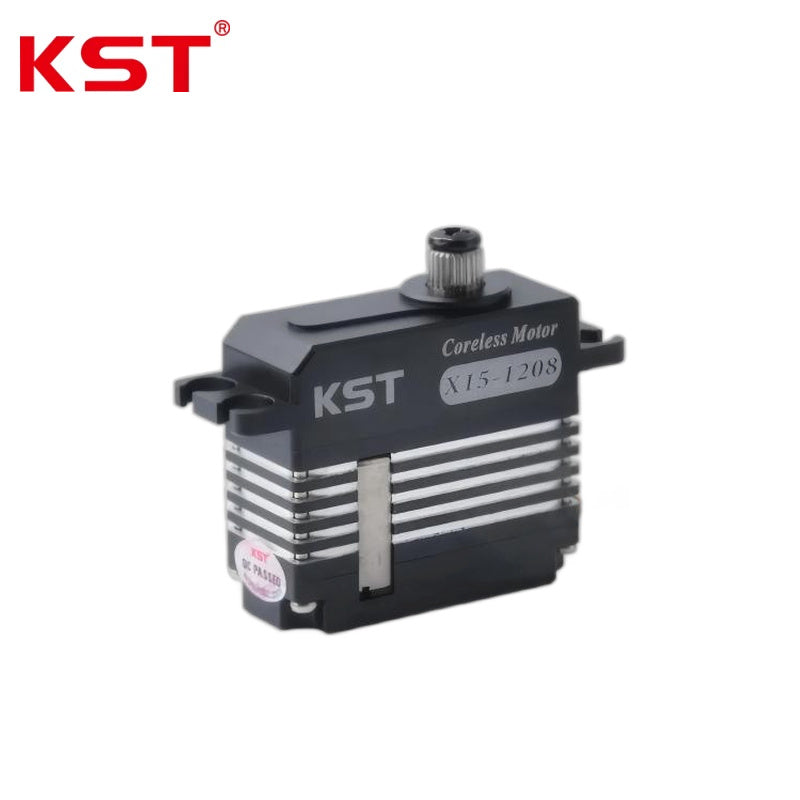

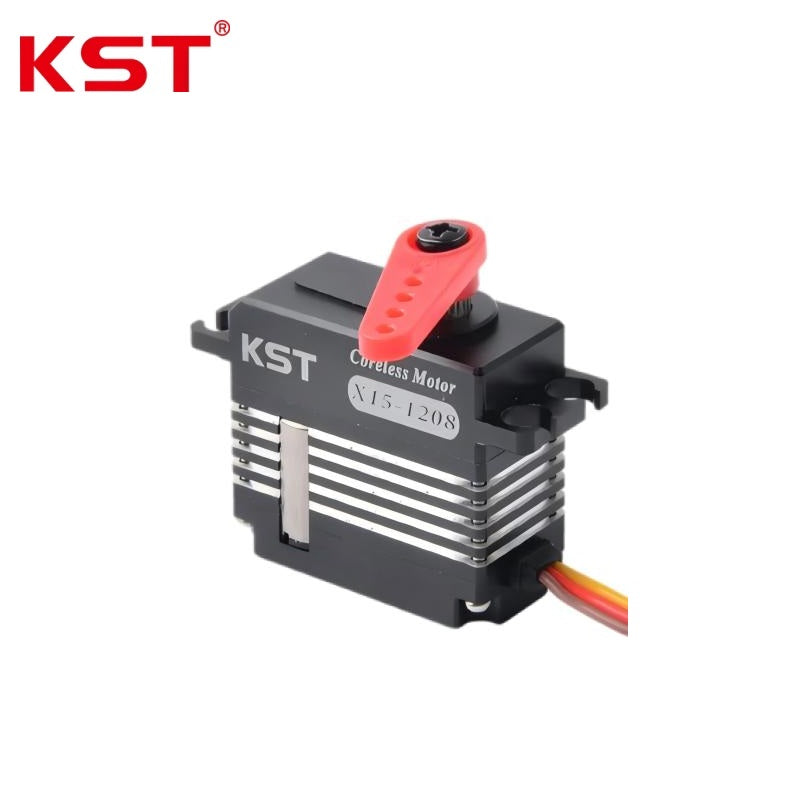

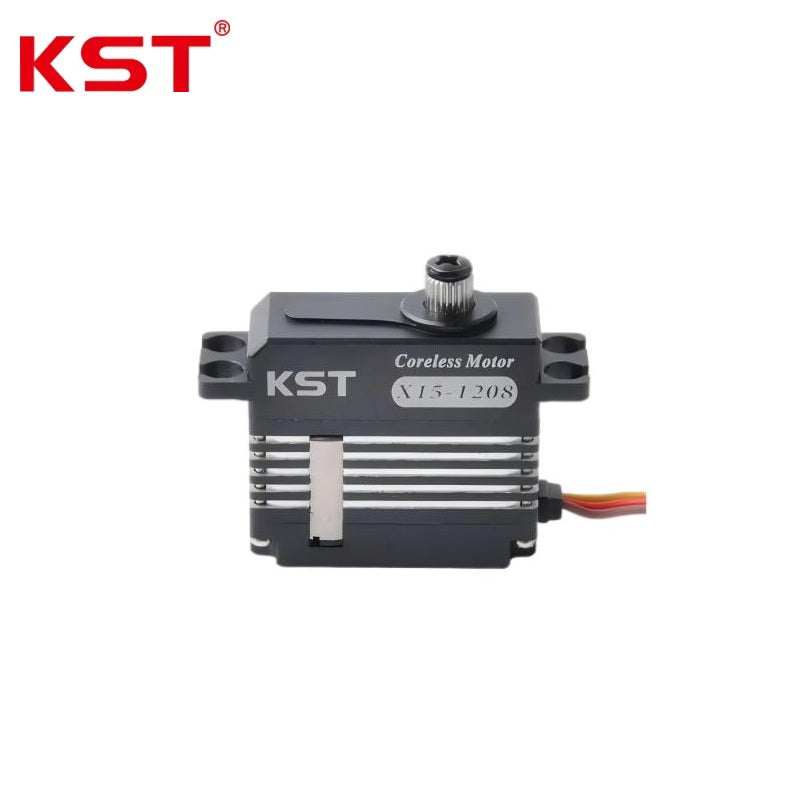

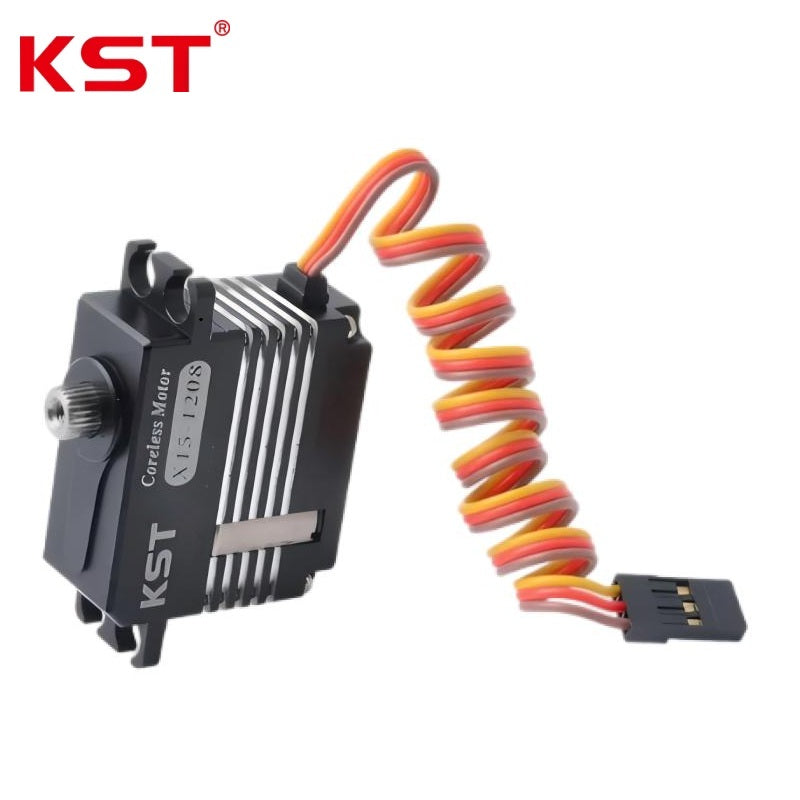

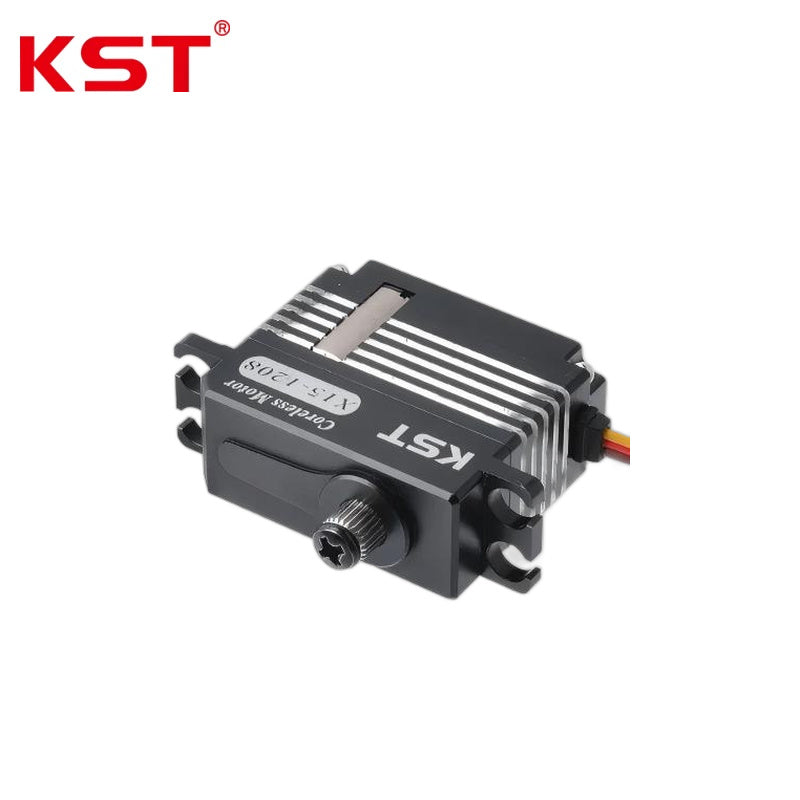

KST X15-1208 Servo Motor

$84.99

Version

X15-1208

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4V
Voltage Range	DC 6.0V - 8.4V
Torque	9.8 kgf.cm @ 6.0V; 12.0 kgf.cm @ 7.4V; 13.5 kgf.cm @ 8.4V
Speed (60deg Rotation)	0.10 sec @ 6.0V; 0.08 sec @ 7.4V; 0.07 sec @ 8.4V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/-50deg (100deg Total)
Soft Start / Programmable Support	Programmable / Yes
Control Signal Voltage	HIGH: min. 3.3V, max. 5.0V; LOW: min. 0.0V, max. 1.5V
Control Pulse Width Range	900 us - 2100 us
Position Command Pulse Width (-50 / 0 / +50 deg)	1000 us / 1500 us / 2000 us
Internal Characteristics:
Motor Type	Coreless DC Motor
Gear Set Material	Hardened Steel
Position Sensor	Potentiometer
Physical & Environmental:
Housing Material	Aluminum Alloy
Housing Dimensions	35.5 mm x 15 mm x 32.5 mm +/- 0.2 mm
Weight	40 g +/- 10%
Operating Temperature Range	-10 deg C - +65 deg C
