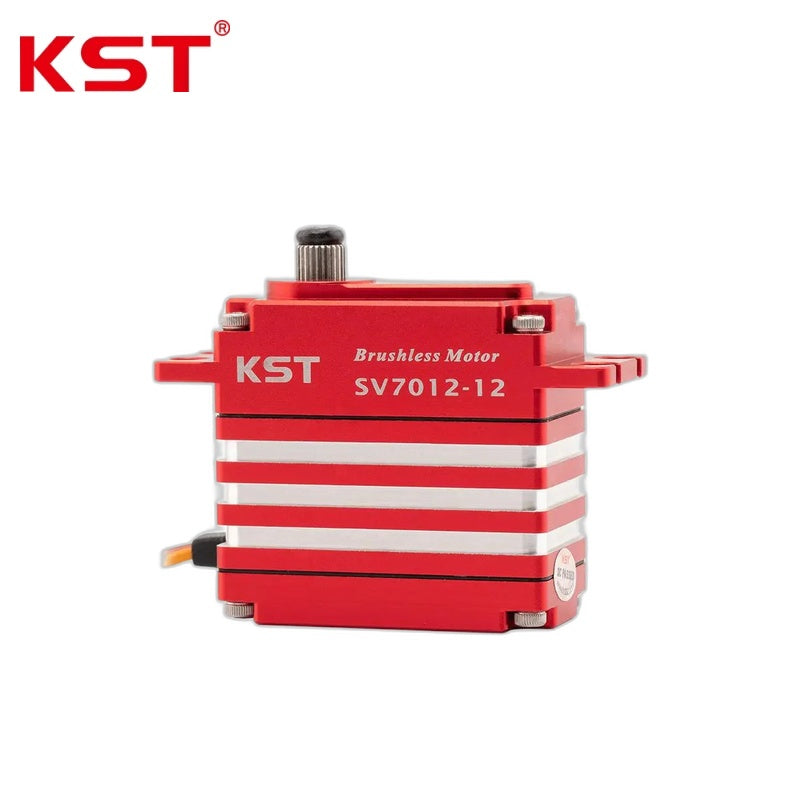

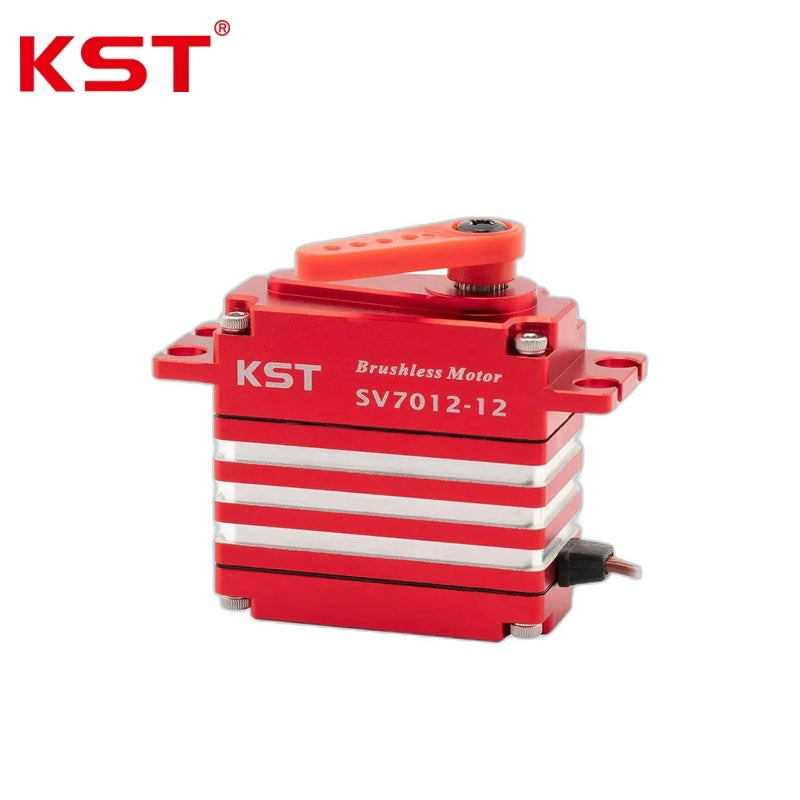

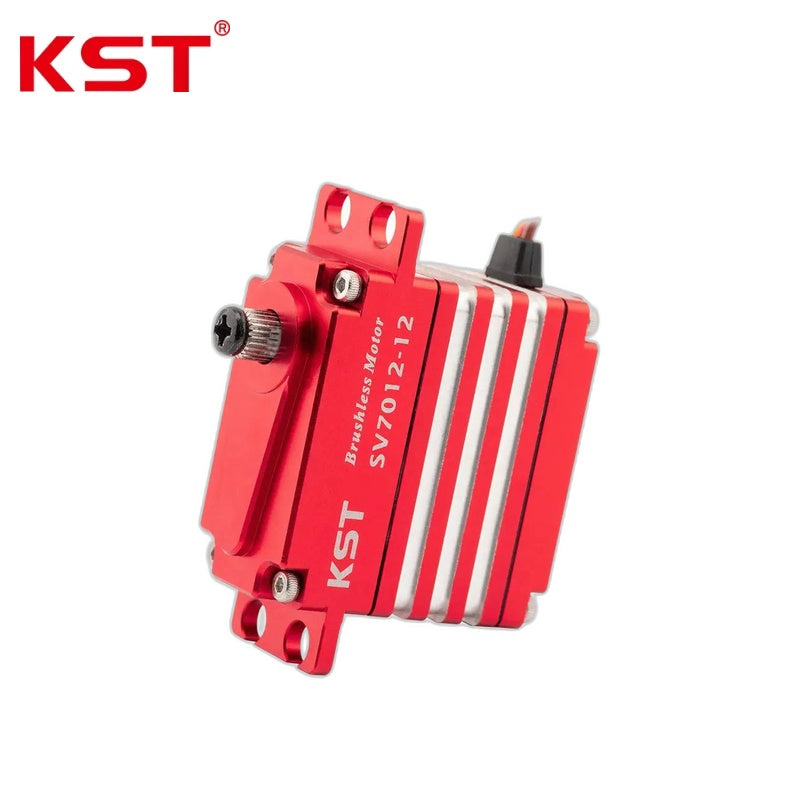

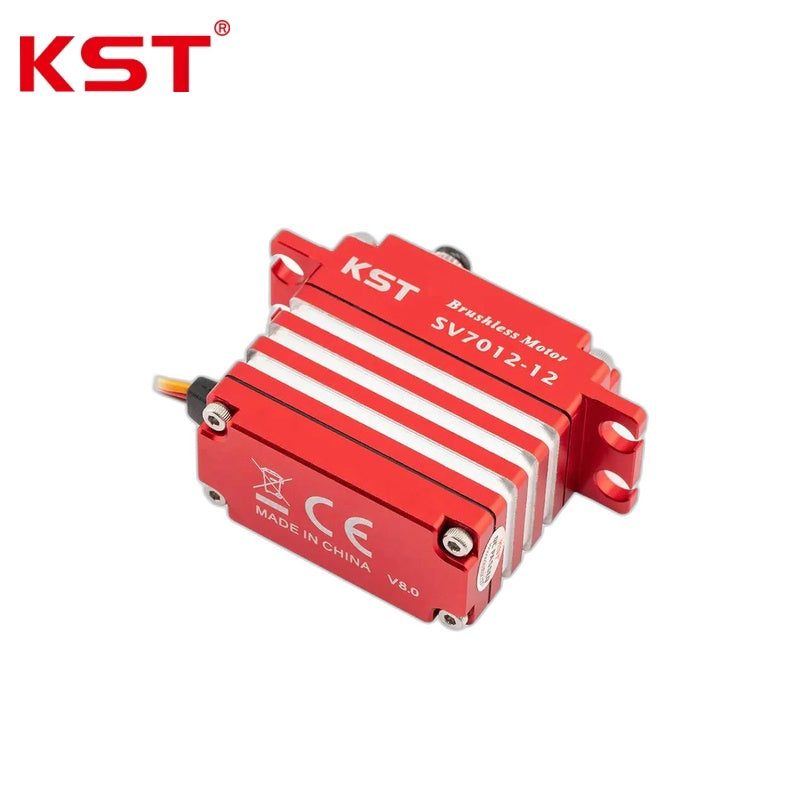

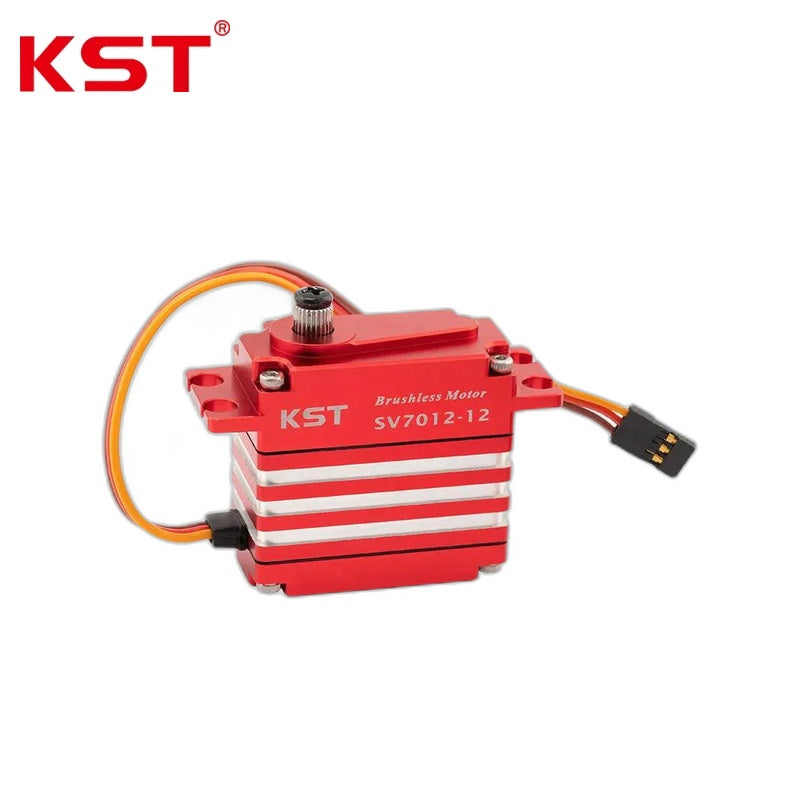

KST SV7012-12 Servo Motor
Regular price
$179.99
Unit price
KST SV7012-12 Servo Motor - SV7012-12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST SV7012-12 Servo Motor
Regular price
$179.99
Unit price
KST SV7012-12 Servo Motor - SV7012-12 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC12.0V |
| Operating Voltage Range | DC8.40V ~ 13.0V |
| Stalling Torque | 55Kgf.cm @8.40V; 70Kgf.cm @12.0V; 75Kgf.cm @13.0V |
| No-load Rotational Speed | 0.16sec/60deg @8.40V; 0.12sec/60deg @12.0V; 0.10sec/60deg @13.0V |
| Control Specifications: | |
| Working Frequency | 1520us / 333Hz |
| Default Total Travel Angle | +/-100deg (Total Swing Angle: 200deg) |
| Control Signal Voltage | HIGH Level: Min.3.3V, Max.5.0V; LOW Level: Min.0.0V, Max.1.5V |
| Control Pulse Width Range | 500us ~ 2500us |
| Position-Pulse Width Correspondence | 500us -> -100deg; 1500us -> 0deg; 2500us -> +100deg |
| Internal Characteristics: | |
| Soft Start Function | Programmable |
| Programmable Configuration | Yes |
| Motor Type | 4-Pole Brushless DC Motor |
| Gear Train Material | Hardened Steel |
| Position Feedback Sensor | Contactless Type |
| Ball Bearing Configuration | 6BB |
| Physical & Environmental: | |
| Operating Ambient Temperature Range | -10deg C ~ +65deg C |
| Housing Material | Aluminum Alloy |
| Outer Housing Dimension | 40x20x40mm+/-0.2mm |
| Net Weight | 75g+/-10% |
