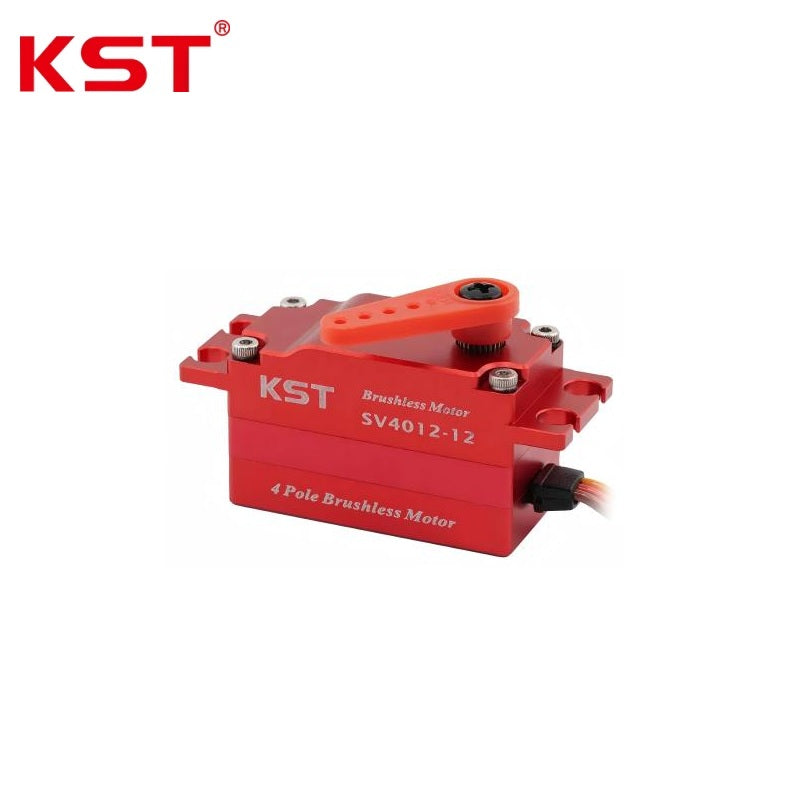

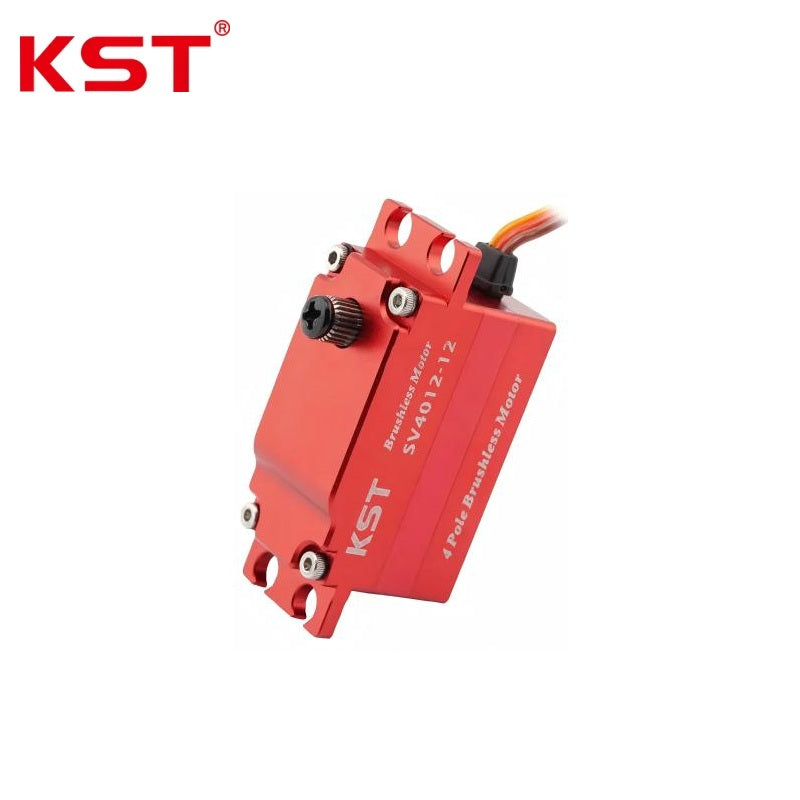

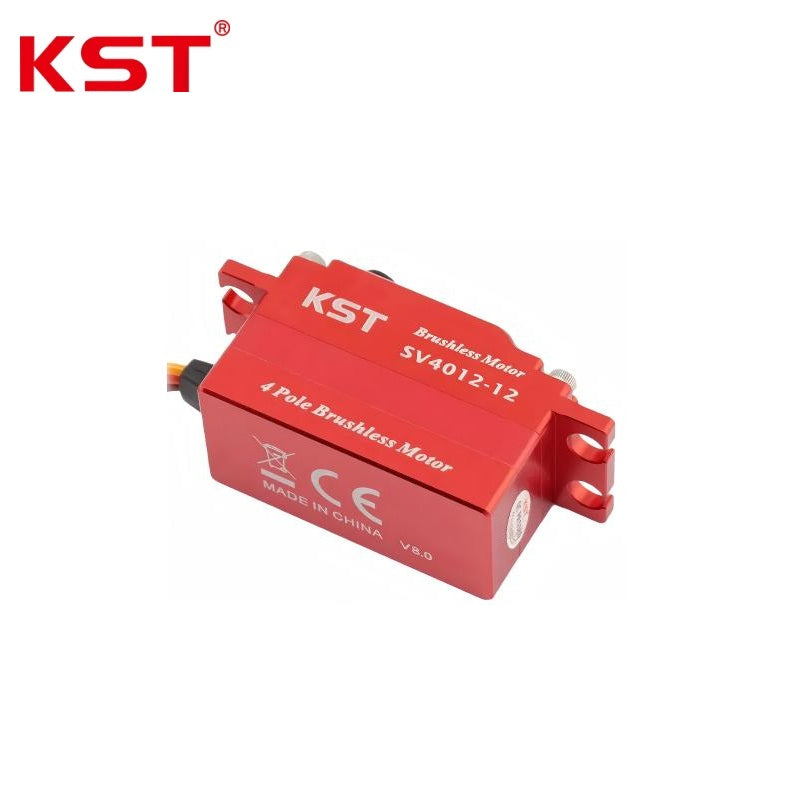

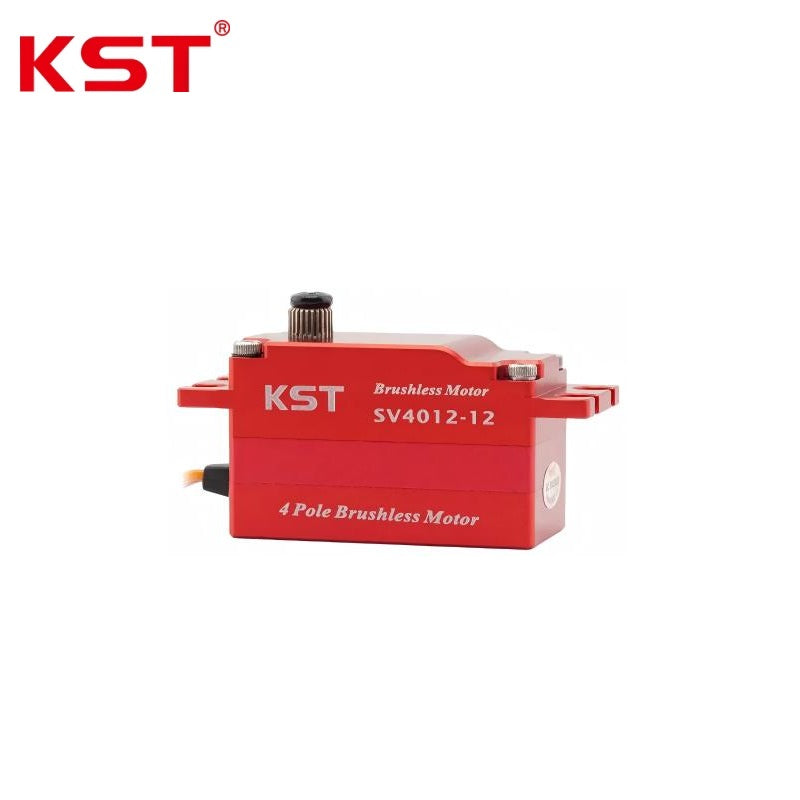

KST SV4012-12 Servo Motor

$99.99

Version

SV4012-12

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC12.0V
Operating Voltage Range	DC8.40V ~ 13.0V
Output Torque @ 8.40V	35.0 Kgf.cm
Output Torque @ 12.0V	40.0 Kgf.cm
Output Torque @ 13.0V	42.0 Kgf.cm
Rotating Speed @ 8.40V	0.16 sec/60deg
Rotating Speed @ 12.0V	0.12 sec/60deg
Rotating Speed @ 13.0V	0.10 sec/60deg
Starting Current @ 8.40V	2.79 A
Starting Current @ 12.0V	3.65 A
Starting Current @ 13.0V	4.05 A
Control Specifications:
Working Frequency	1520 us / 333 Hz
Default Mechanical Travel Angle	+/-100deg (Total travel: 200deg)
High-level Control Signal Voltage	Min.3.3V, Max.5.0V
Low-level Control Signal Voltage	Min.0.0V, Max.1.5V
Valid Control Pulse Width Range	500 us ~ 2500 us
Position-Pulse Mapping (-100deg / 0deg / +100deg)	500 us / 1500 us / 2500 us
Internal Characteristics:
Soft Start Function	Programmable
Function Programmability	Yes
Internal Motor Type	4-pole Brushless DC Motor
Transmission Gear Material	Hardened Steel
Position Feedback Sensor	Potentiometer
Bearing Configuration	2BB (Double Ball Bearing)
Physical & Environmental:
Operating Ambient Temperature Range	-20deg C ~ +65deg C
Housing Case Material	Aluminum Alloy
Overall Case Dimension	40.5x20x25.5 mm +/-0.2 mm
Net Weight	50 g +/-10%
