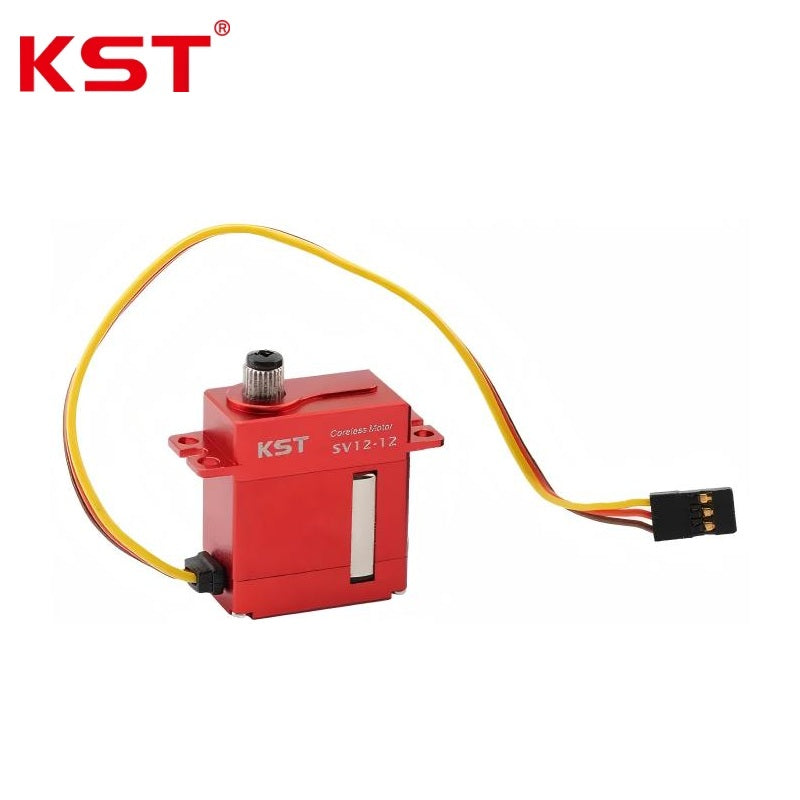

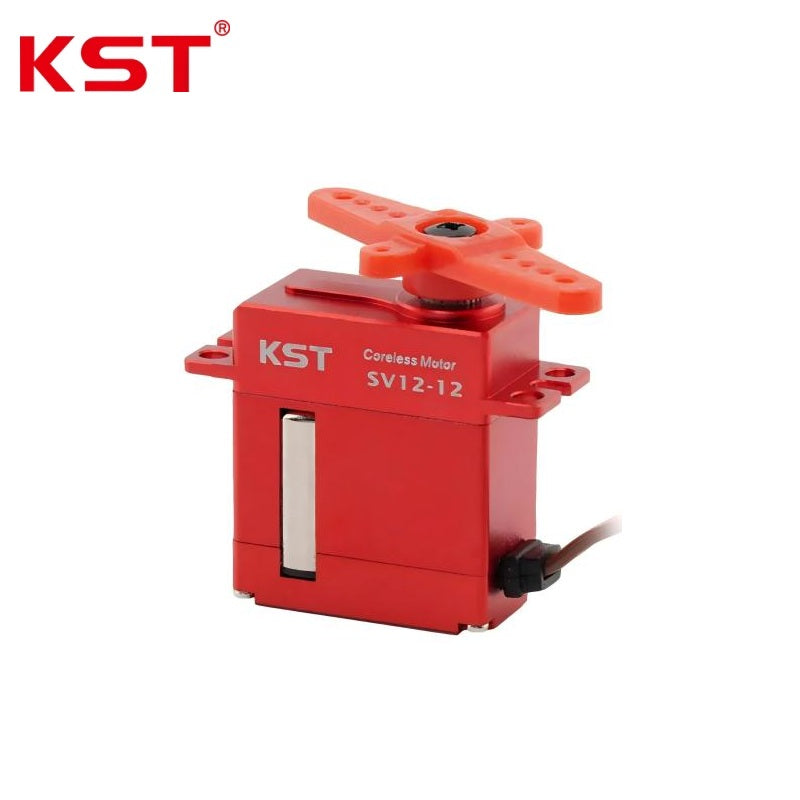

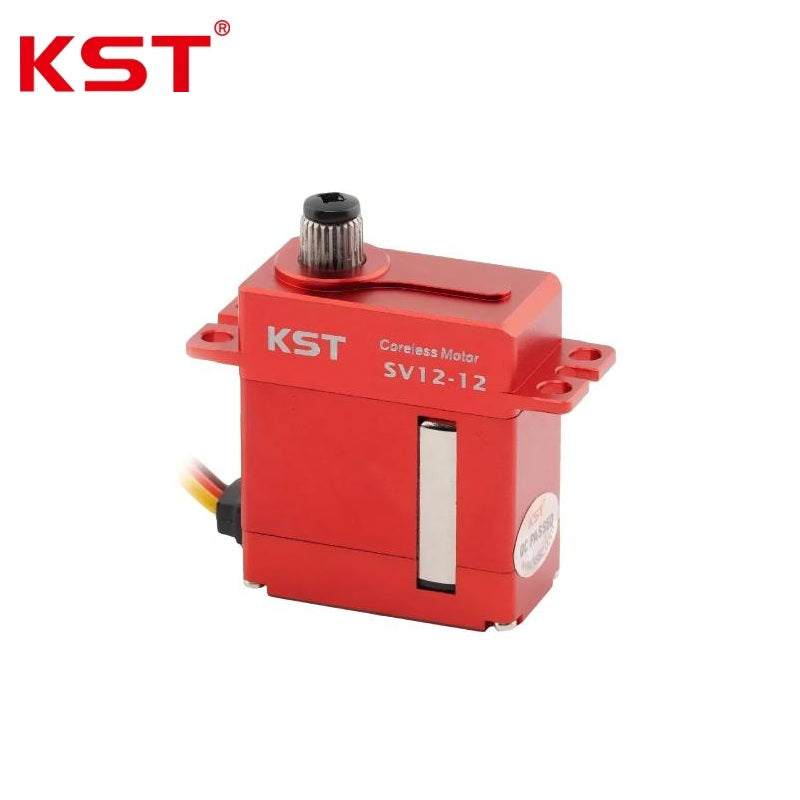

KST SV12-12 Servo Motor
Regular price
$44.99
Unit price
KST SV12-12 Servo Motor - SV12-12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST SV12-12 Servo Motor
Regular price
$44.99
Unit price
KST SV12-12 Servo Motor - SV12-12 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC12.0V |
| Operating Voltage Range | DC8.40V ~ DC12.0V |
| Output Torque | 6.5Kgf.cm @8.40V; 8.0Kgf.cm @12.0V; 9.0Kgf.cm @13.0V |
| Rotational Speed | 0.15sec/60deg @8.40V; 0.11sec/60deg @12.0V; 0.10sec/60deg @13.0V |
| Control Specifications: | |
| Working Frequency | 1520us / 333Hz |
| Default Rotation Travel Angle | +/-70deg, total travel angle: 140deg |
| Control Signal Voltage | HIGH level: Min.3.3V, Max.5.0V; LOW level: Min.0.0V, Max.1.5V |
| Valid Control Pulse Width | 800us ~ 2200us |
| Calibrated Pulse Width for Specified Angular Position (-50deg/0deg/+50deg) | 1000us(-50deg) / 1500us(0deg) / 2000us(+50deg) |
| Internal Characteristics: | |
| Soft Start Function | Programmable |
| Function Programmability | Yes |
| Driving Motor Type | Coreless DC Motor |
| Gear Assembly Material | Hardened Steel |
| Position Feedback Sensor | Potentiometer |
| Physical & Environmental: | |
| Operating Ambient Temperature Range | -10deg C ~ +65deg C |
| Housing Material | Aluminum Alloy |
| Overall Housing Dimension | 23mmx12mmx27mm+/-0.2mm |
| Net Weight | 20g+/-10% |
