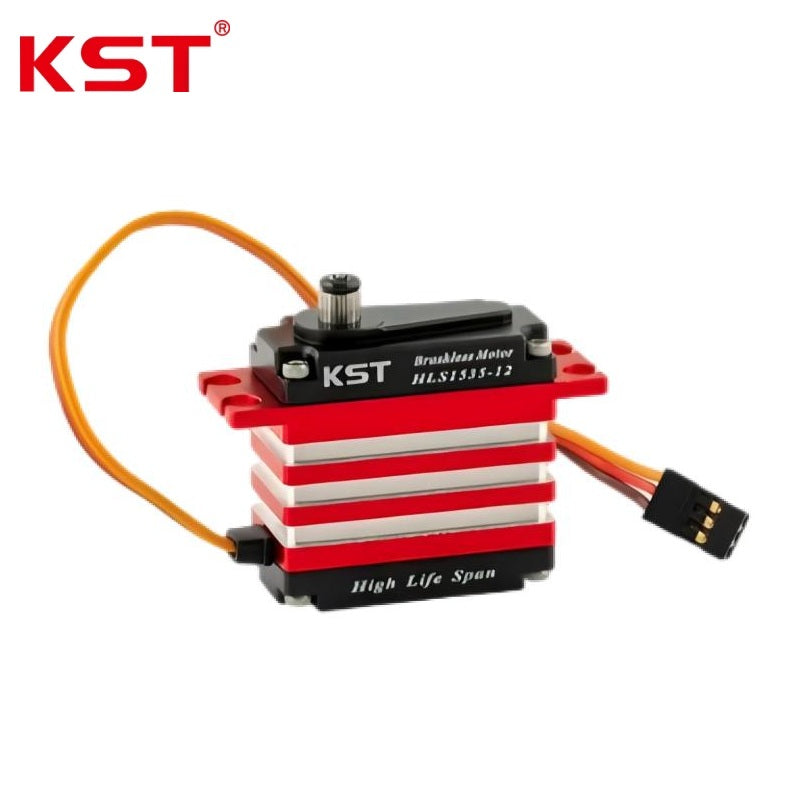

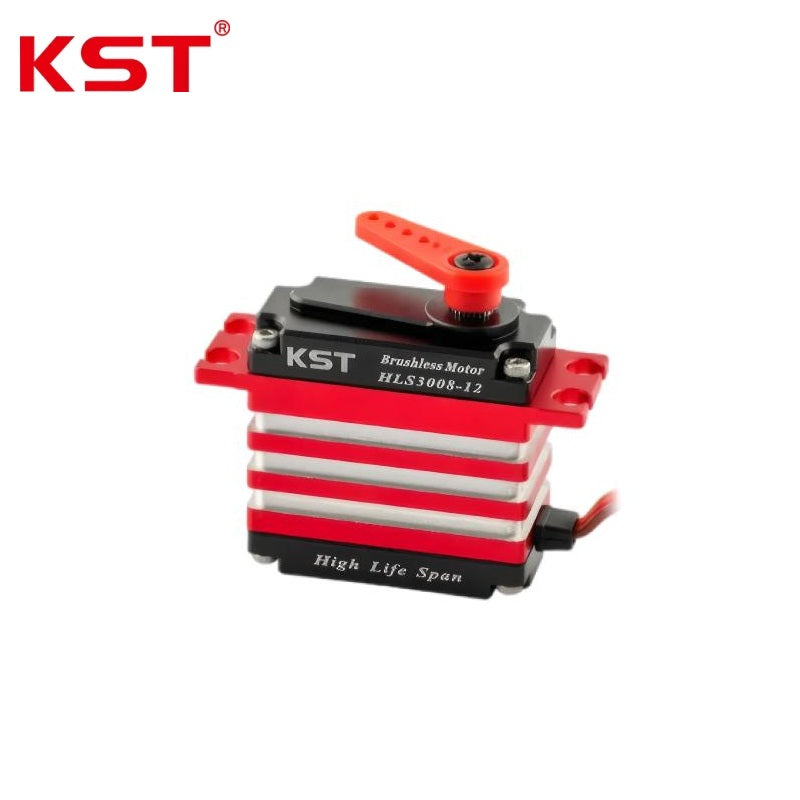

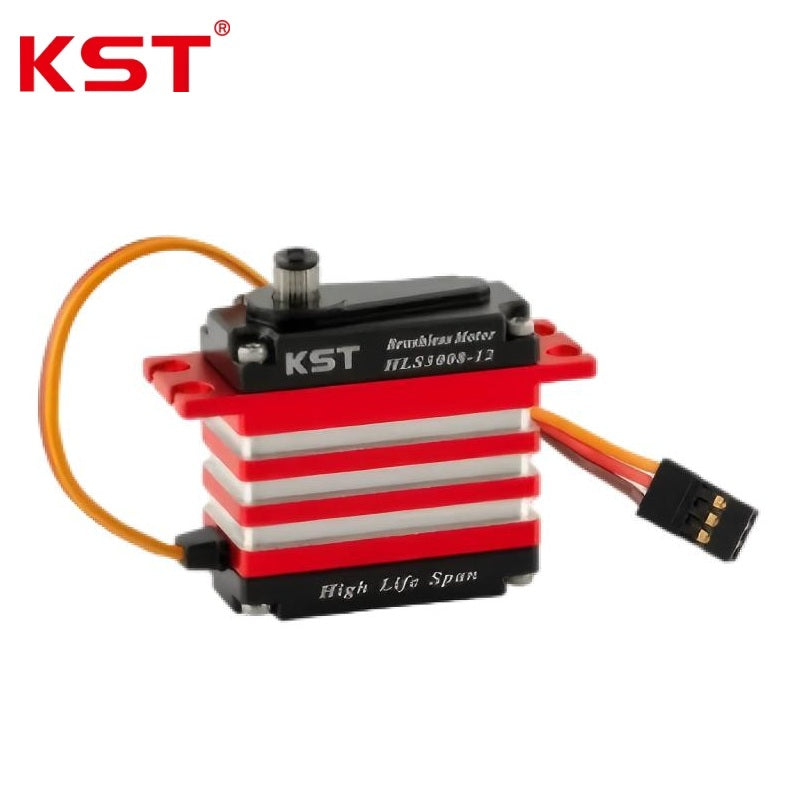

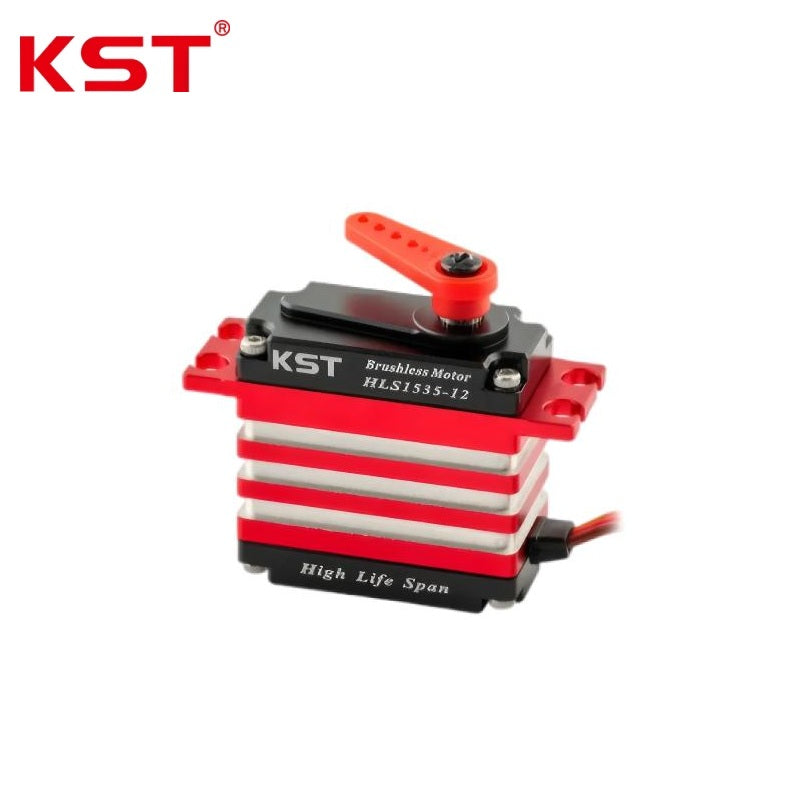

KST 12V HLS Combo Servo Motor Kit

$549.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value (HLS3008-12 / HLS1535-12)
Performance & Electrical Ratings:
Rated Voltage DC 12V
Operating Voltage Range DC 8.0V - 13.0V
Stall Torque HLS3008: 25-32 kgf.cm / HLS1535: 12-16 kgf.cm
Operating Speed (60deg Rotation) HLS3008: 0.11-0.07s / HLS1535: 0.05-0.03s
Working Frequency 760 us / 560 Hz
Control Specifications:
Signal Voltage (TTL Level) HIGH: Min 3.3V, Max 5.0V; LOW: Min 0.0V, Max 1.5V
Control Pulse Width Range 450 us - 1050 us
Internal Characteristics:
Motor Type Brushless DC (BLDC) Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Ball Bearing Quantity 6 BB
Physical & Environmental:
Housing Material Aluminum Alloy
Housing Dimensions 40 mm x 20 mm x 40 mm +/- 0.2 mm
Weight 72 g +/- 10%
Operating Temperature Range -20 to +65 deg C
