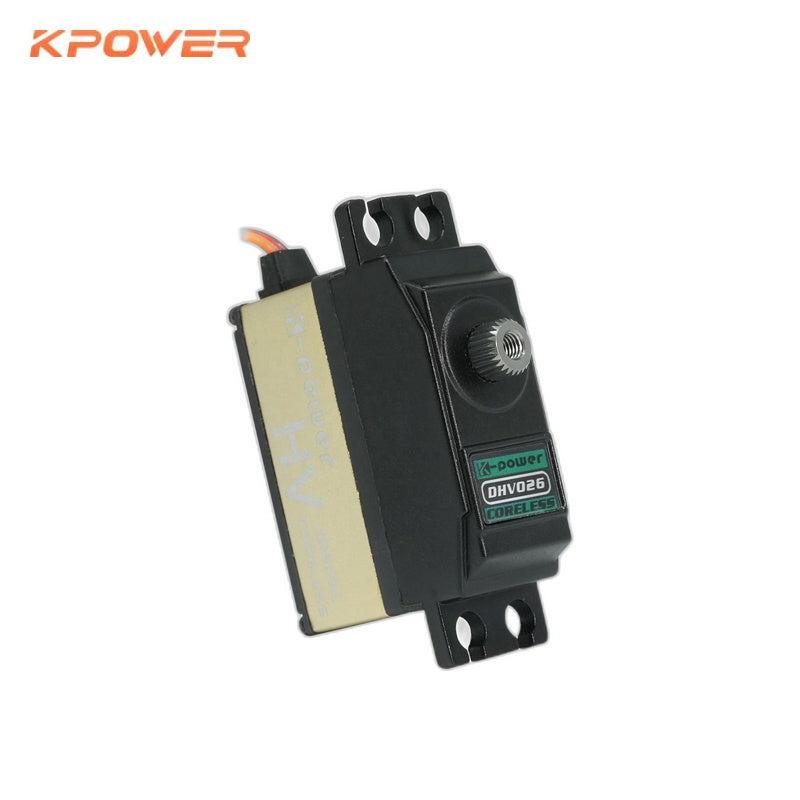

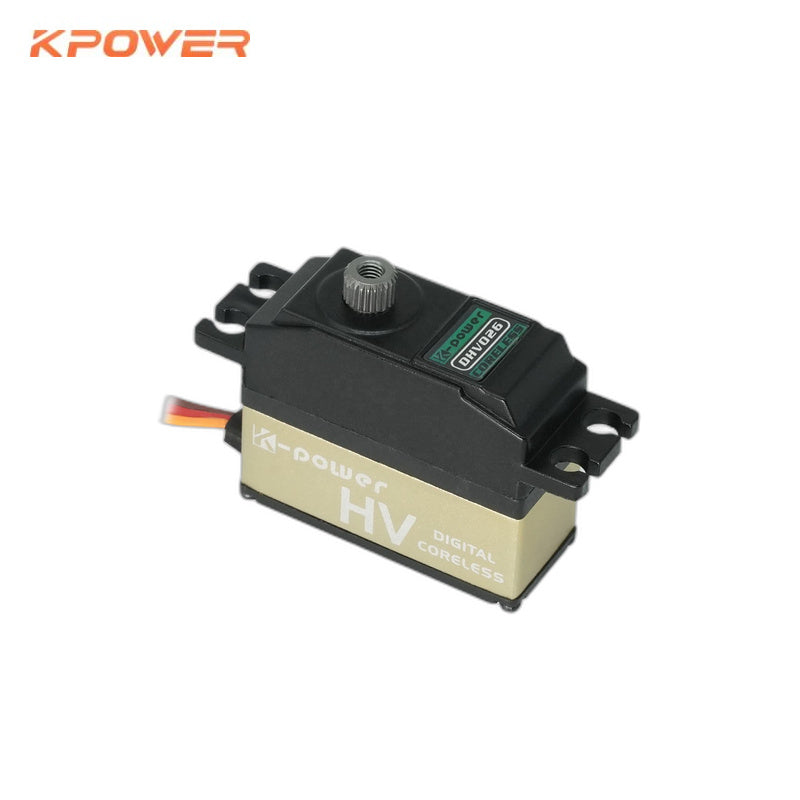

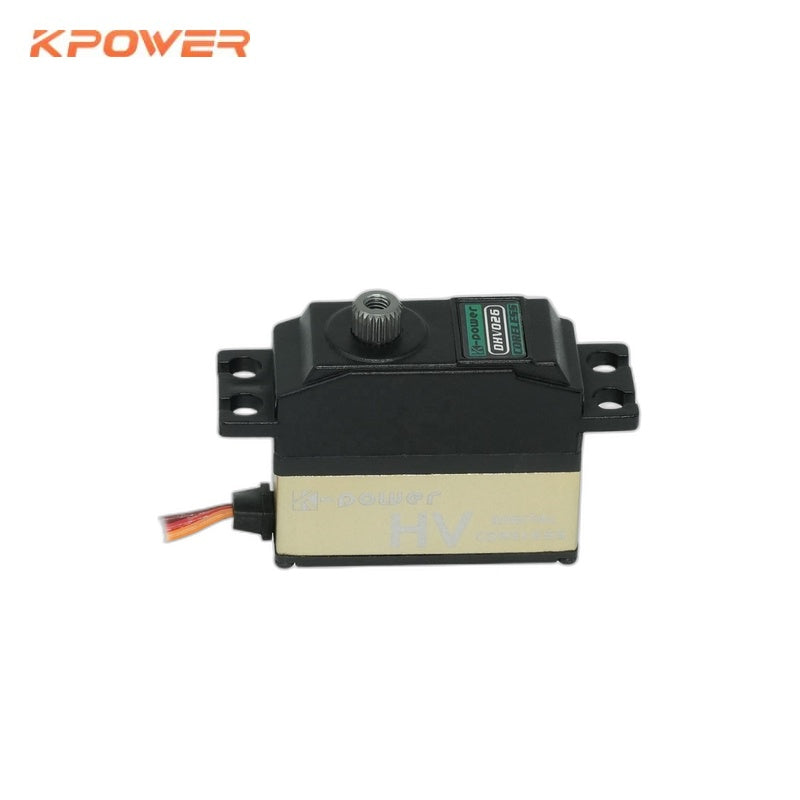

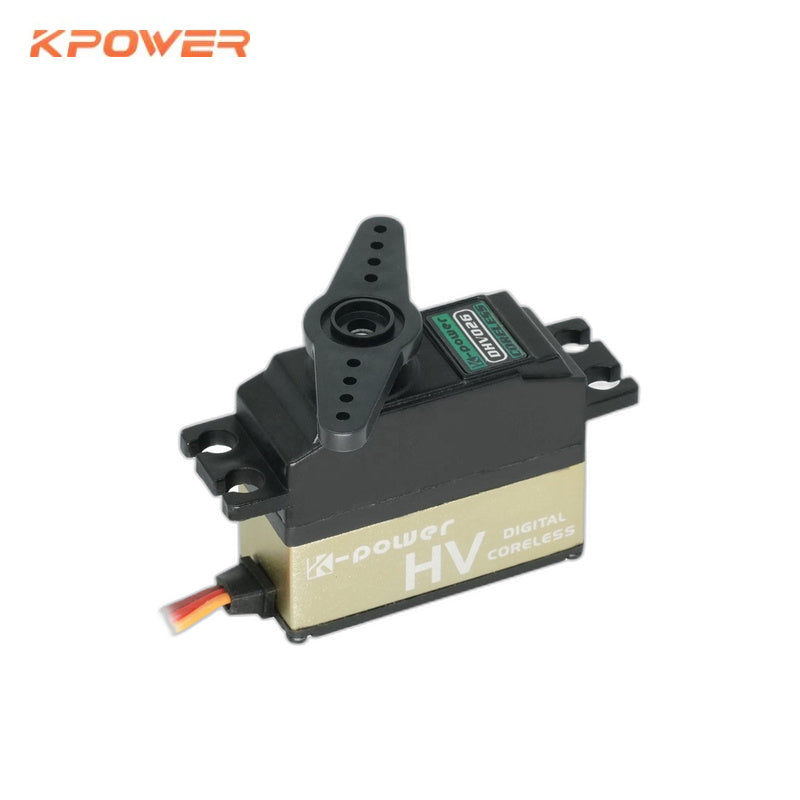

Kpower DHV026 Servo Motor
Regular price
$25.00
Unit price
Kpower DHV026 Servo Motor - DHV026 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower DHV026 Servo Motor
Regular price
$25.00
Unit price
Kpower DHV026 Servo Motor - DHV026 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Stall Torque | 5.5 kg |
| Rated Torque | 1.5 kg |
| No-load Speed | 0.11 s |
| Weight | 28 g |
| Dimension | 35.8 × 15 × 29 mm |
| Travel Angle Range | 120° (Customizable) |
| Operating Voltage | 4.8 ~ 8.4 V |
| Horn Gear Spline | 25T φ5.79 mm |
| Gear Material | Metal |
| Motor | Coreless Motor |
| Protocol | PWM | TTL | RS-485 |
| No-load Current | 2000 mA |
| Position Sensor | Potentiometer |
| Case Material | Plastics + Aluminum Alloy |
| Ball Bearing | 2BB |
| Working Frequency | 50 ~ 333 Hz |
| Operating Temperature | -10 ~ 50°C |
| IP Rating | IP42 |
