ChangingTek Robotics | SKU:

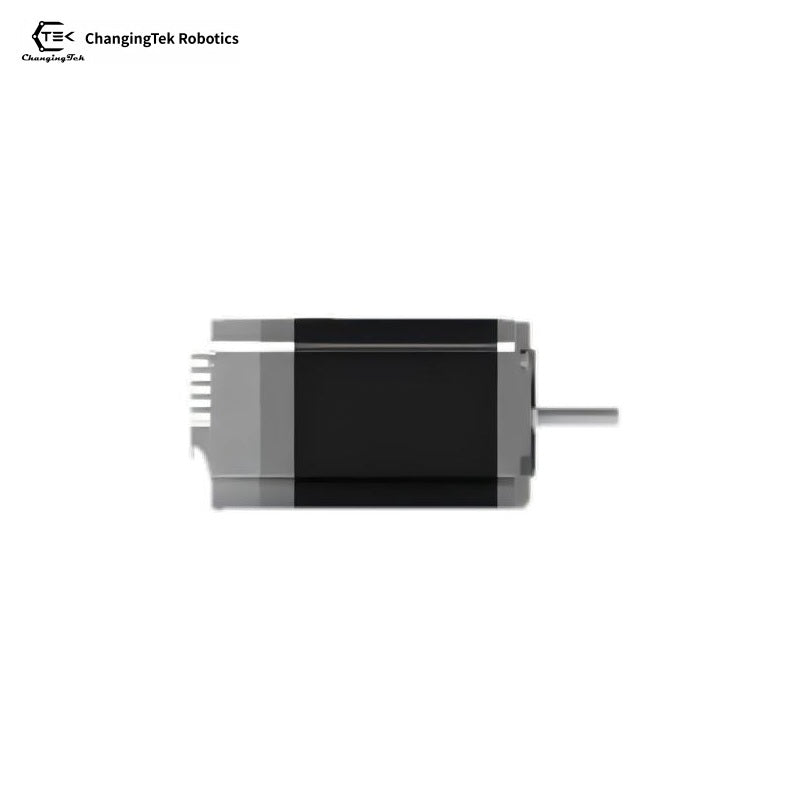

ChangingTek Robotics CTSM57 Servo Motor
Regular price
$410.00
Unit price
ChangingTek Robotics CTSM57 Servo Motor - CTSM57 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ChangingTek Robotics CTSM57 Servo Motor
Regular priceFrom
$410.00
Unit price
ChangingTek Robotics CTSM57 Servo Motor - CTSM57 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Mechanical & Motion: | |
| Model | CTSM57 |
| Body Length | 82 +/- 1 mm |
| Rated Torque | 1.8 N·m |
| Number of Phases | 2-Phase |
| Electrical Specifications: | |
| Input Voltage | 24-48 V DC |
| Peak Current | 6 A |
| Encoder | Integrated (Included) |
| Control & Logic: | |
| Operating Mode | Position Mode, Trapezoidal Acceleration/Deceleration |
| Control Mode | Command Mode |
| Microstep Resolution | 81 |
| Communication Interfaces | RS485, expandable with I/O, CAN, USART, TCP, RS232 |
| Environmental: | |
| Operating Environment | Temperature: -5 deg C ~ 65 deg C; Relative Humidity: 10%RH ~ 85%RH |
