3DMAKERPRO | SKU:

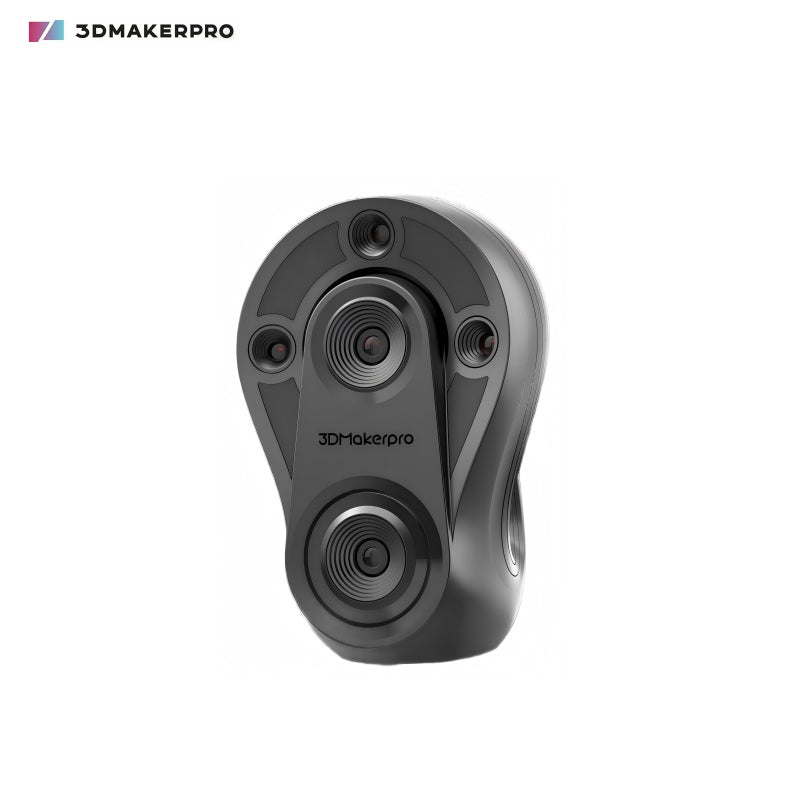

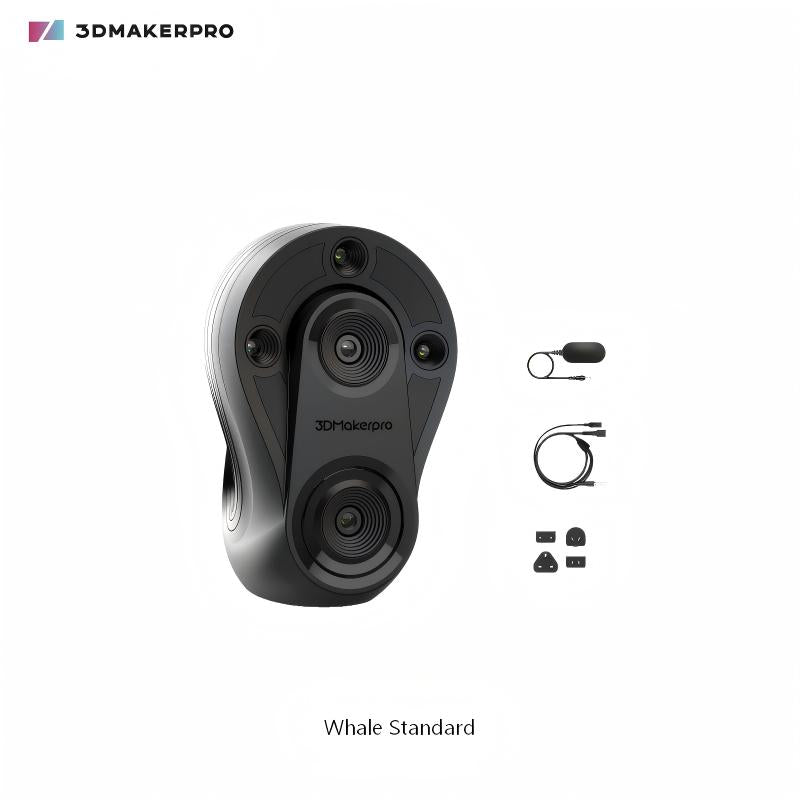

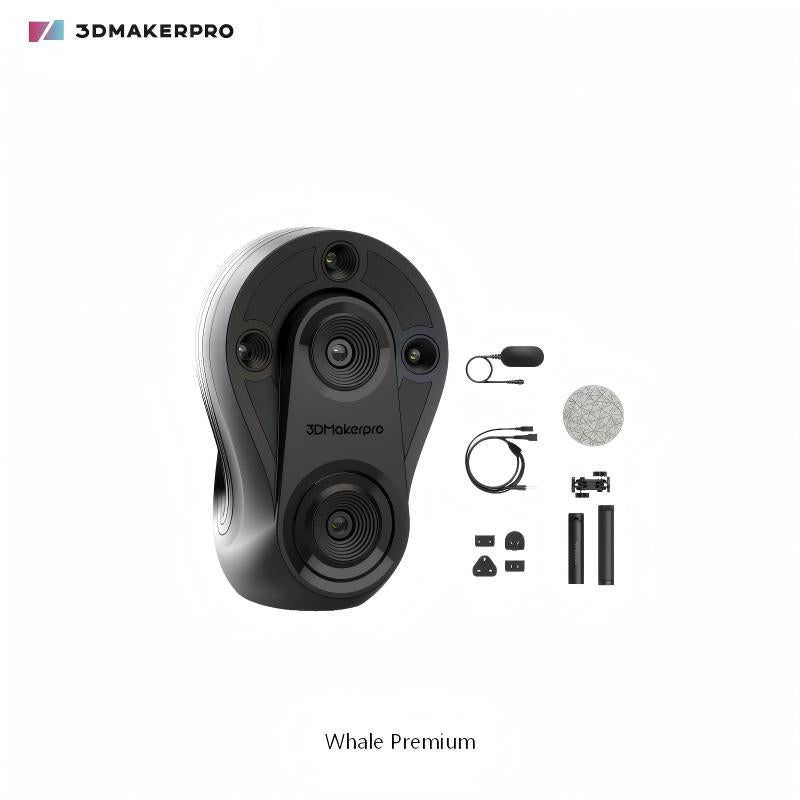

3DMakerpro Whale 3D Scanner
Regular price
$7,199.00
Unit price
3DMakerpro Whale 3D Scanner - Standard / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
3DMakerpro Whale 3D Scanner
Regular priceFrom
$7,199.00
Unit price
3DMakerpro Whale 3D Scanner - Standard / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Accuracy | 0.1mm(macro core) 0.05mm(micro core) |
| Frame rate | 10 fps |
| Work Distance | 650±250mm(macro core) 300±100mm(micro core) |
| Resolution | 0.5mm(macro core) 0.2mm(micro core) |
| Single Capture Range |
536×371mm(macro core) 300×200mm(micro core) |
|
Light Source
|
NIR/LED
|
| Color | 24-bit |
| Dimensions | 230×148×188mm |
| Weight | ≤1500g |
| Output | OBJ/STL/ASC/PLY |
| Compatible System | Win10/11 MacOS 11/12(Support M1) |
