Xense Robotics | SKU:

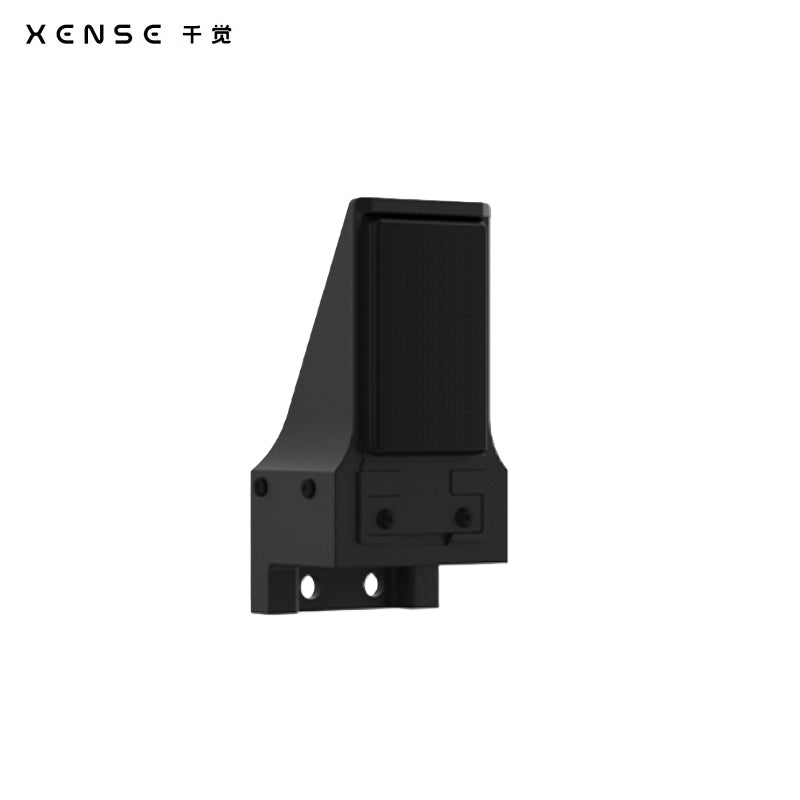

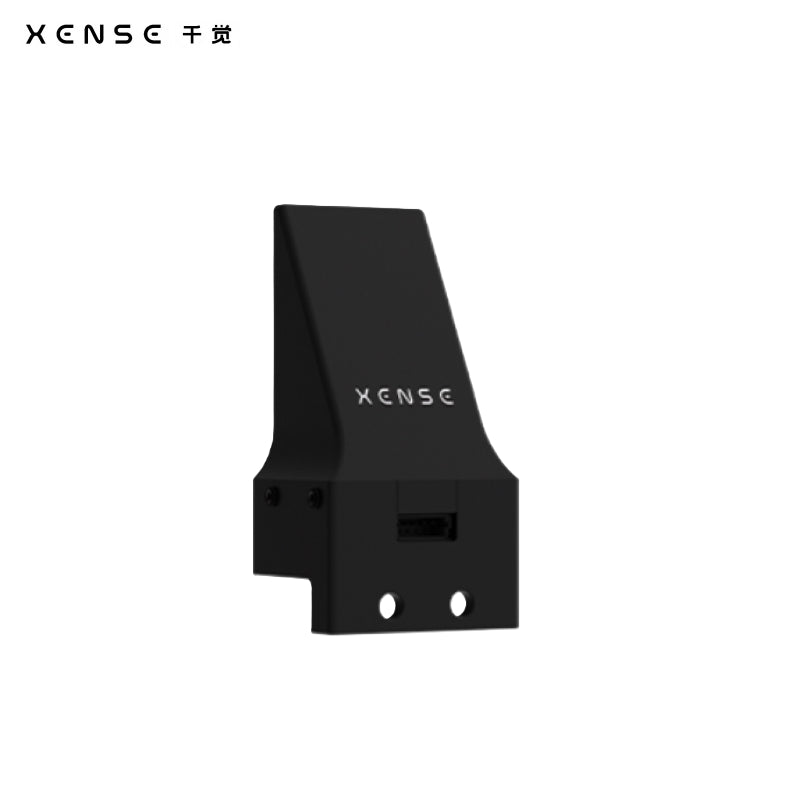

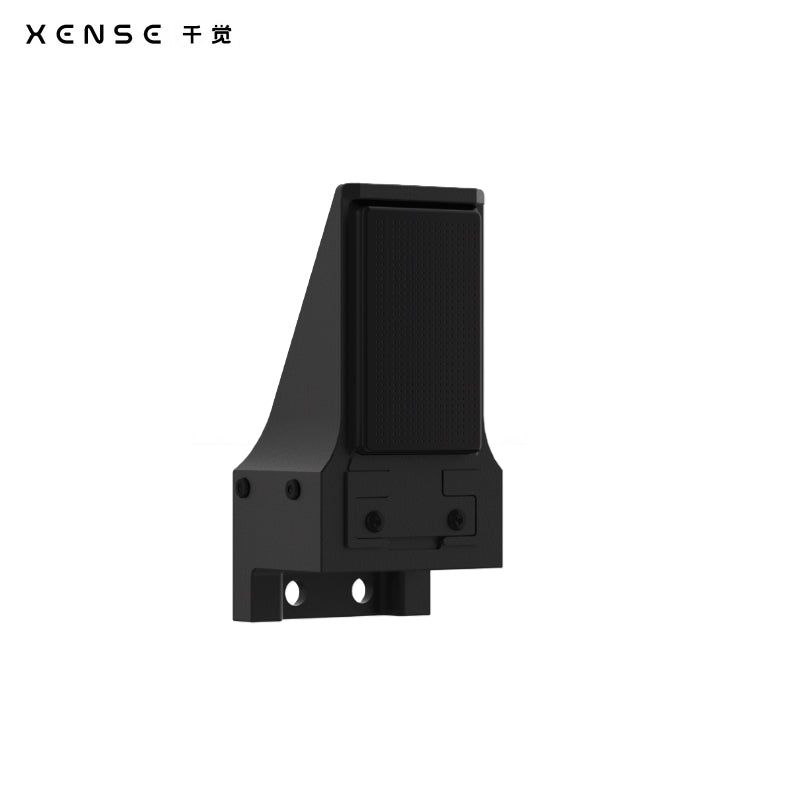

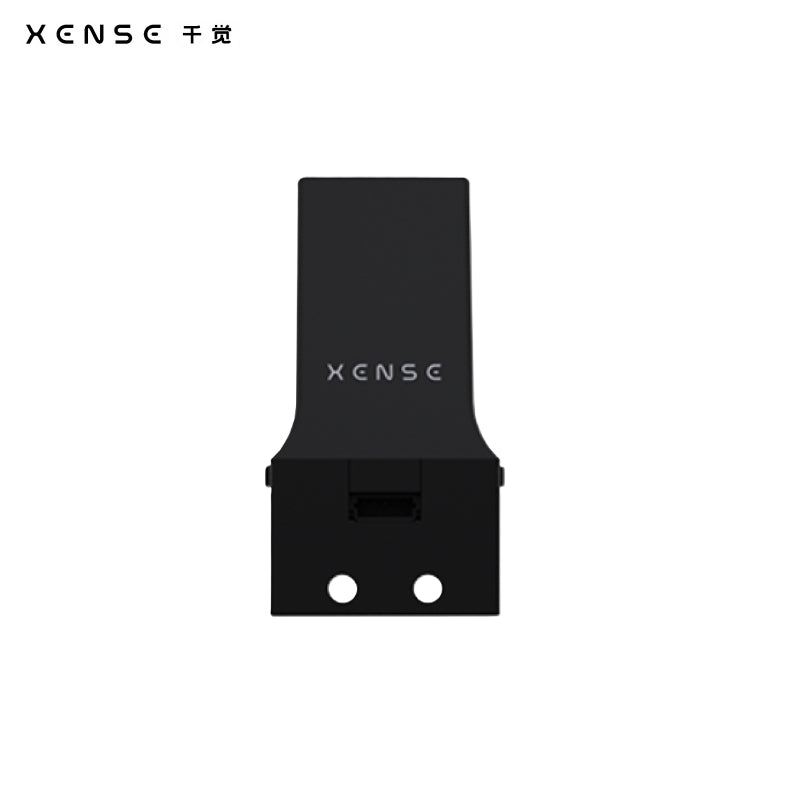

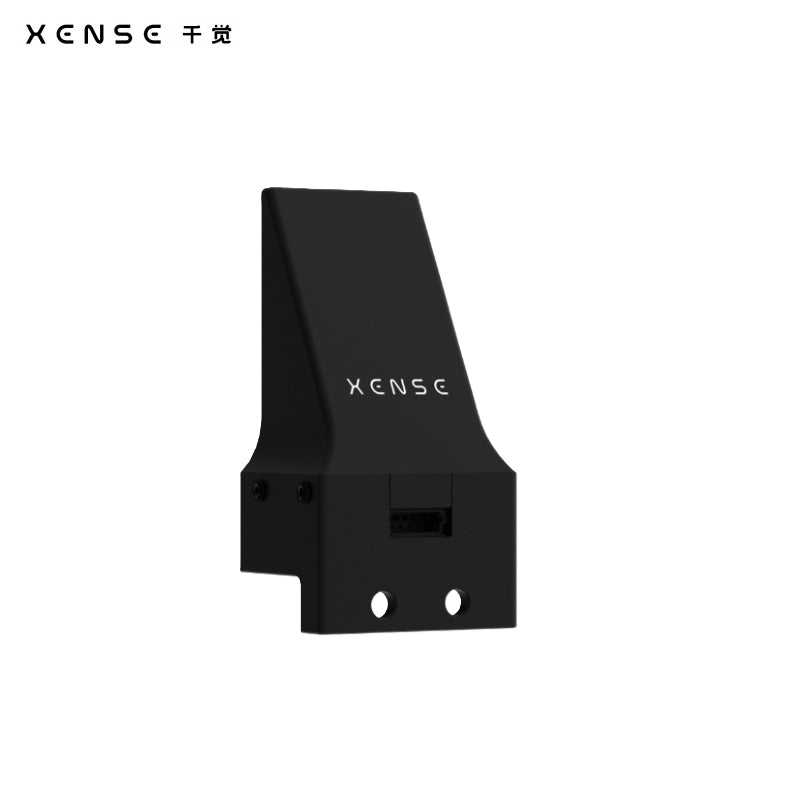

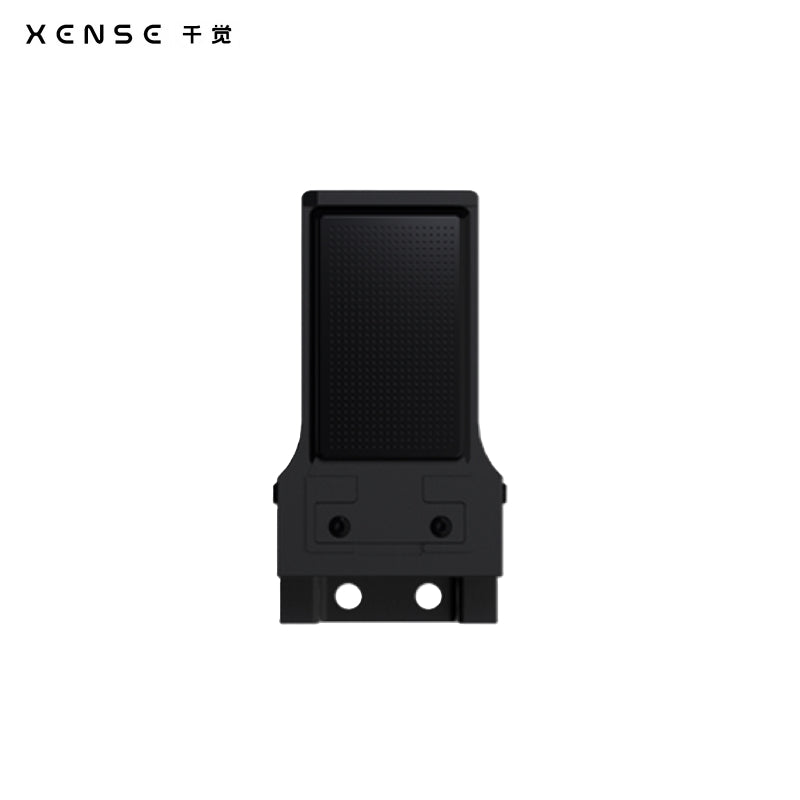

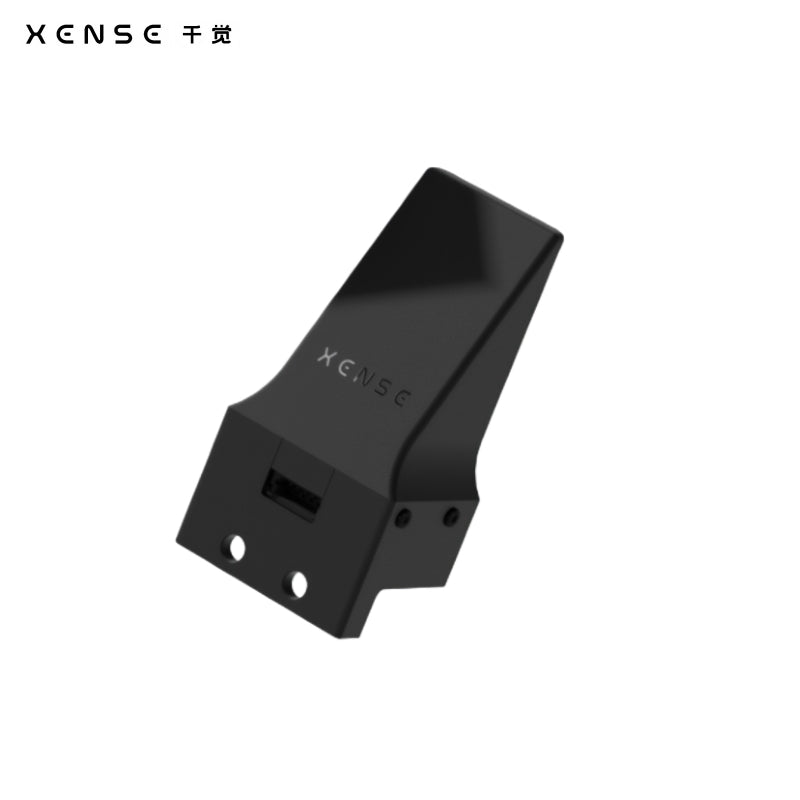

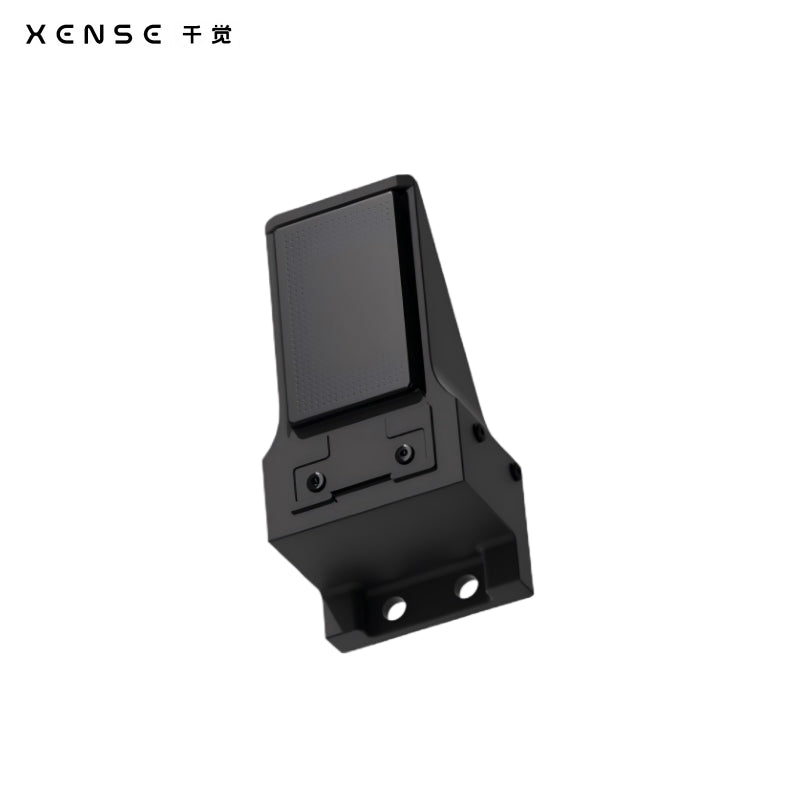

Xense Robotics Photon Tactile Sensor
Regular price
$625.00
Unit price
Xense Robotics Photon Tactile Sensor - Photon is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Xense Robotics Photon Tactile Sensor
Regular price
$625.00
Unit price
Xense Robotics Photon Tactile Sensor - Photon is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Flexible Layer Thickness | 2–5 mm |
| Dimensions (Length × Width × Height) | 52.8 × 27 × 22 mm |
| Supply Voltage | 5 V |
| Sampling Frequency | 30–150 Hz* |
| Power Consumption | 0.6 W |
| Resultant Force Accuracy | 0.02 N* |
| Sensing Area | 17.5 (H) × 29.5 (V) mm |
| Marker Density | 120 /cm² |
| Spatial Resolution | 0.03 mm |
| Communication Protocol | UVC |
| Deformation Field Accuracy | 0.06 mm |
| Sensing Modalities | 3D Surface Measurement, Texture Recognition, 6-DoF Force, 3D Distributed Force, Slip Detection, Motion Tracking |
