OLEI | SKU:

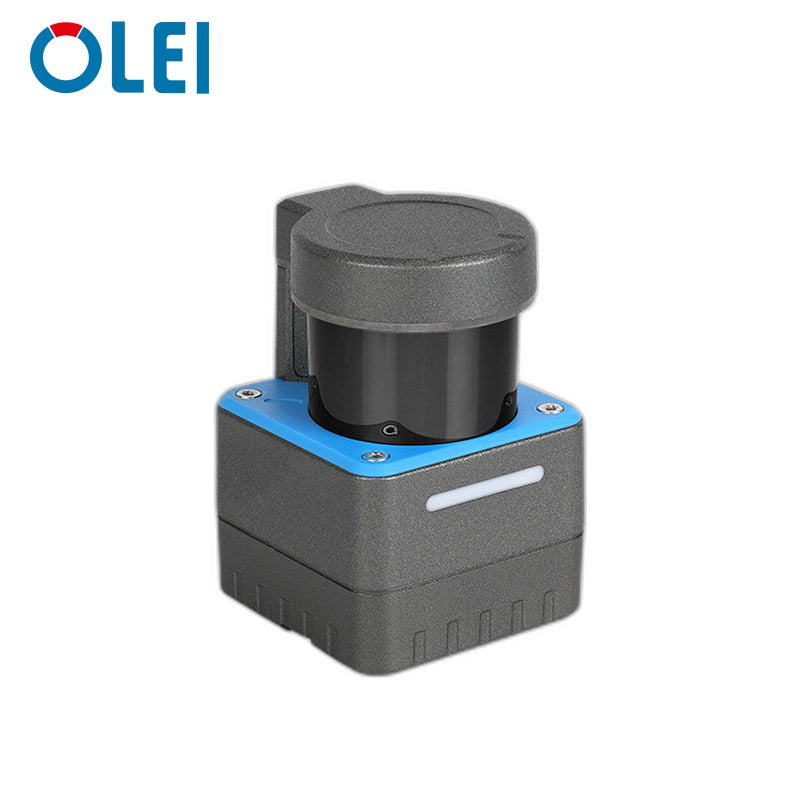

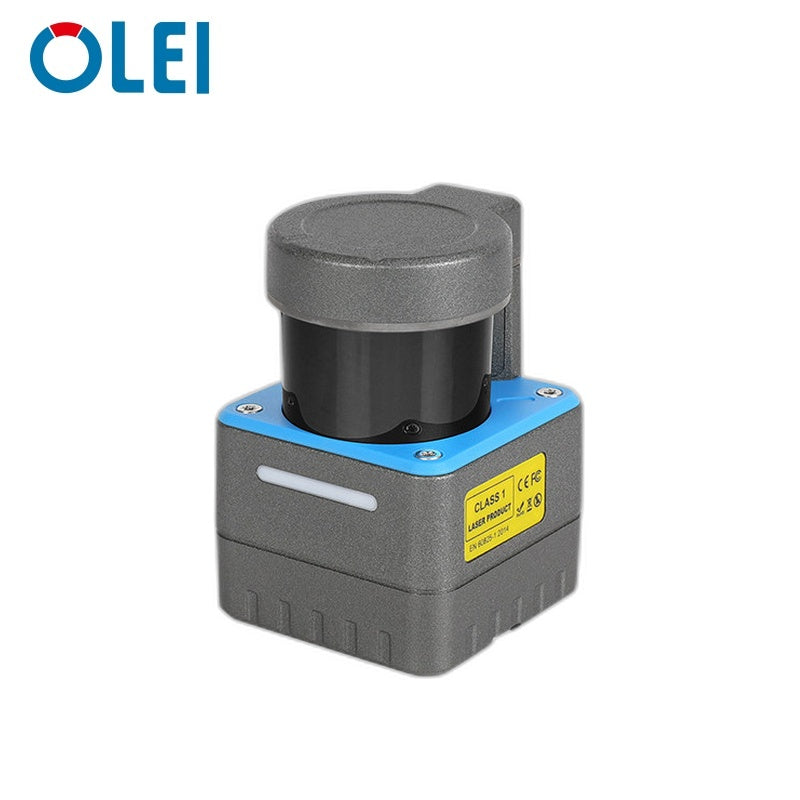

OLEI LR-1BS5 LiDAR
Regular price
$720.00
Unit price
OLEI LR-1BS5 LiDAR - LR-1BS5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OLEI LR-1BS5 LiDAR
Regular price
$720.00
Unit price
OLEI LR-1BS5 LiDAR - LR-1BS5 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Laser wavelength | 905 ± 20 nm |
| Laser safety level | Class 1 (IEC 60825-1:2014) |
| Laser channels | 1 |
| Field of view (horizontal) | 270° |
| Beam divergence | longitudinal 5.8 mrad, transversal 0.58 mrad |
| Scanning frequency | 10 ~ 25 Hz |
| Angle resolution (horizontal) | 0.225° |
| Measurement range | 0.2~2m @4% reflectivity 0.2~8m @10% reflectivity 0.2~25m @80% reflectivity 0.2~25m @reflector |
| Distance resolution | 1 mm |
| Accuracy | Common targets: Absolute Accuracy: <±20mm Reflector: Absolute Accuracy: <±40mm Repeat accuracy: ≤20mm |
| Ethernet connection | 100 Mbps Ethernet |
| Signal strength | 0-60000 |
| Scanning rate | 16K ~ 40K pts |

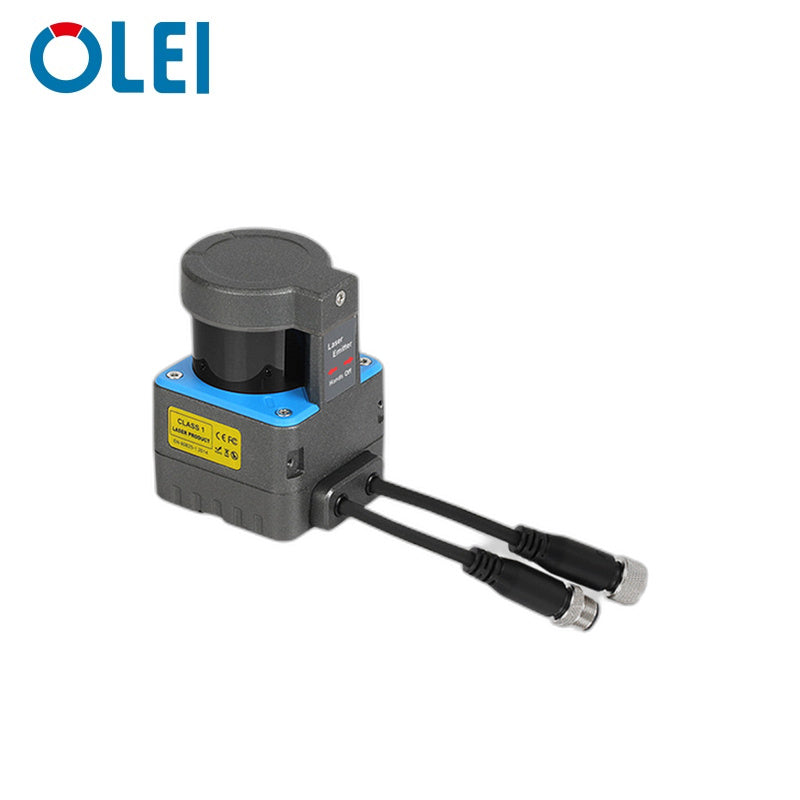

| Connection | 5 cores cable with 5Pin M12 connector, Code A, Male, 0.25m (POWER) 4 cores cable with 4Pin M12 connector, Code D, Female, 0.25m (LAN) |
| Horizontal error (horizontal angle) | ≤ ±1° |
| Switching outputs | 1 |
| Mechanical dimensions | 60 × 60 × 85 mm |
| Power consumption @25°C | 5 W |
| Operating voltage | 12~24 VDC |
| Weight | 450 g |
| Degree of protection | IP65 or optional |
| Operating temperature | -10 ~ +50 °C |
| Storage temperature | -30 ~ +70 °C |
| Air humidity | <95% RH |
| Indicator status | RGB × 4 |
| Ambient light limit | <80000 Lux |
| Mounting | Bottom / Back |
| EMC | IEC61000-6-2:2016-08 / IEC61000-6-3:2006-07 |
| Vibration resistance | IEC60068-2-6:2007 |
| Shock resistance | IEC60068-2-27:2008 |
| Basic software | OLAMViewer / ROS driver |
