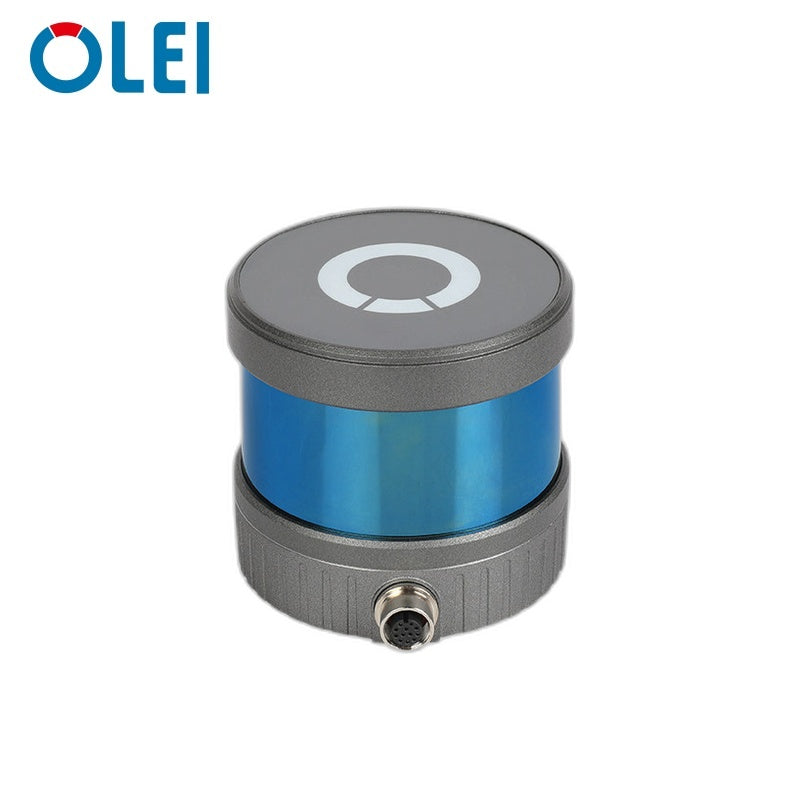

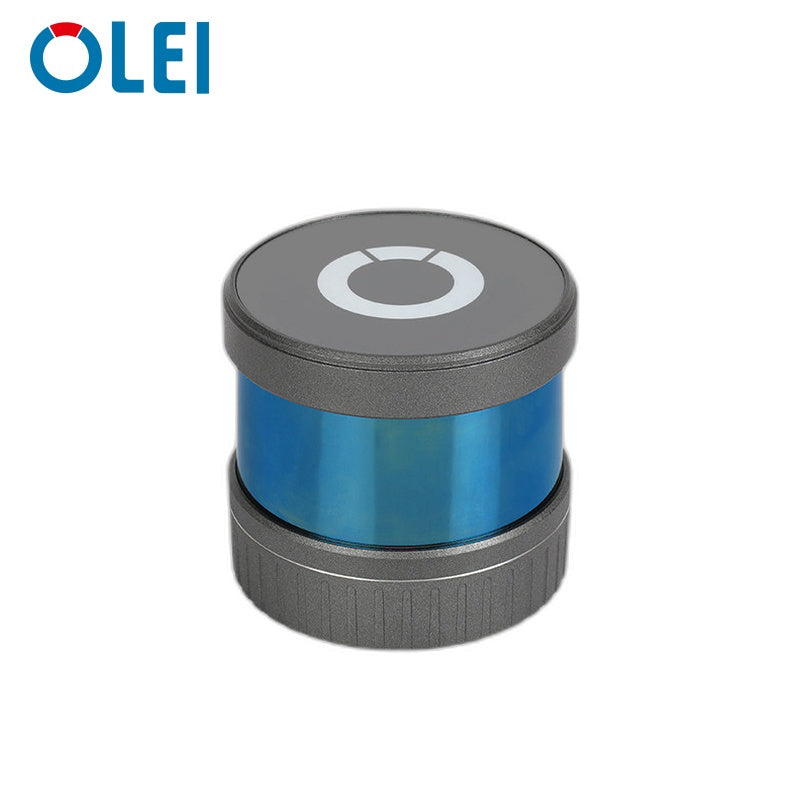

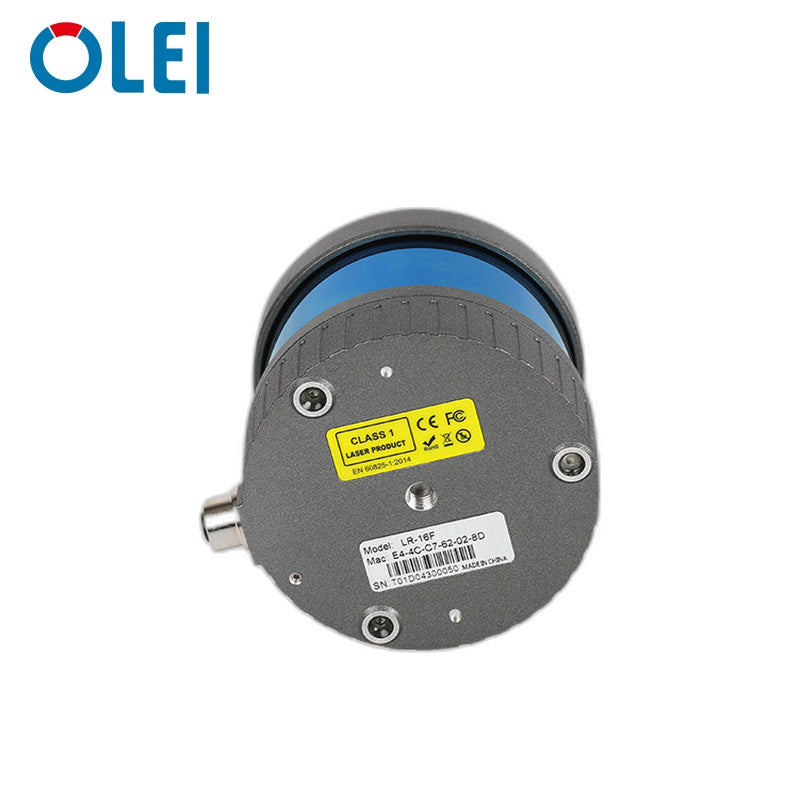

OLEI LR-16F LiDAR

$2,500.00

Version

LR-16F

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Laser wavelength	905 nm
Laser safety level	Class 1 (IEC 60825-1:2014)
Laser channels	16
Returns	Single (Strongest, first)
Field of View (Vertical)	-15° ~ +15°
Field of View (Horizontal)	360°
Beam divergence	longitudinal 9 mrad, transversal 3 mrad
Angle resolution (vertical)	2° (No 0° Line) ±0.1°
Angle resolution (horizontal)	0.18° ±10% @10Hz
Scanning frequency	5 Hz or 10 Hz
Distance resolution	2 mm
Accuracy	Absolute Accuracy: ≤±5cm, Repeat accuracy: ≤±3cm
Measurement range	0.5~45m @10% reflectivity 0.5~100m @80% reflectivity 0.5~100m @reflector
Signal strength	0-255
Ethernet connection	100 Mbps Ethernet
UDP packets contain	Distances, Calibrated Reflectivities, Rotation Angles, Synchronized Time Stamps
Scanning rate	~310,000 pts
Connection	12 pin A-Coded Socket (with Interface Box)
Mechanical dimensions	97 × 85.2 mm
Power consumption @25°C	≤10 W
Weight	~800 g
Degree of protection	IP66
Operating temperature	-10 ~ 50 °C
Storage temperature	-20 ~ 60 °C
Air humidity	95% RH (non-condensing)
Ambient light limit	<80000 Lux
Operating voltage	12~30 VDC
Mounting	Bottom
EMC	IEC 61000-6-2:2016-08 / IEC 61000-6-3:2006-07
Vibration resistance	IEC 60068-2-6:2007
Shock resistance	IEC 60068-2-27:2008
Basic software	OLAMViewer, ROS driver
GPS	Yes
