OLEI | SKU:

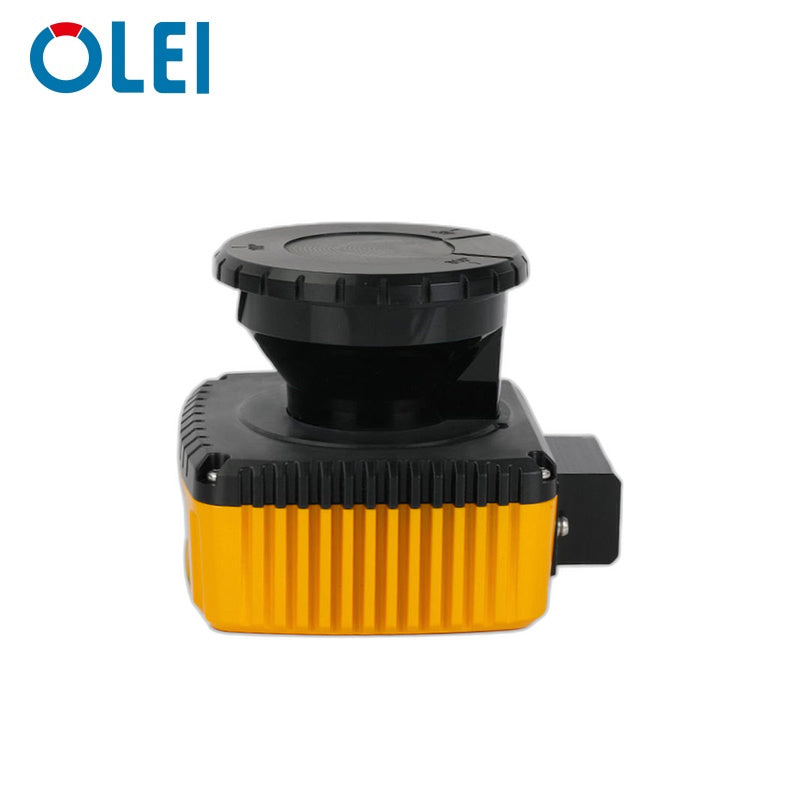

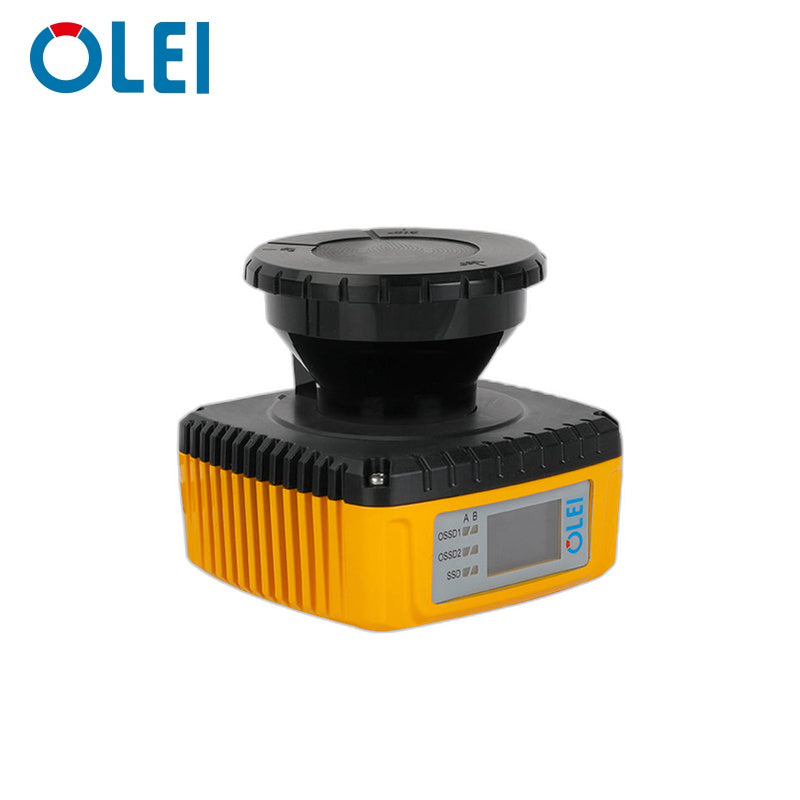

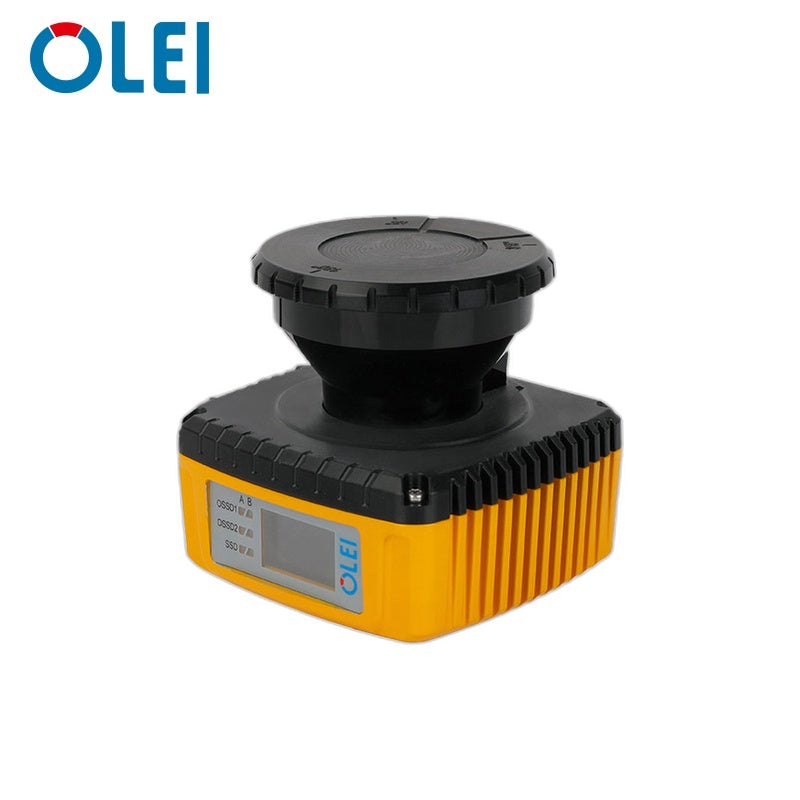

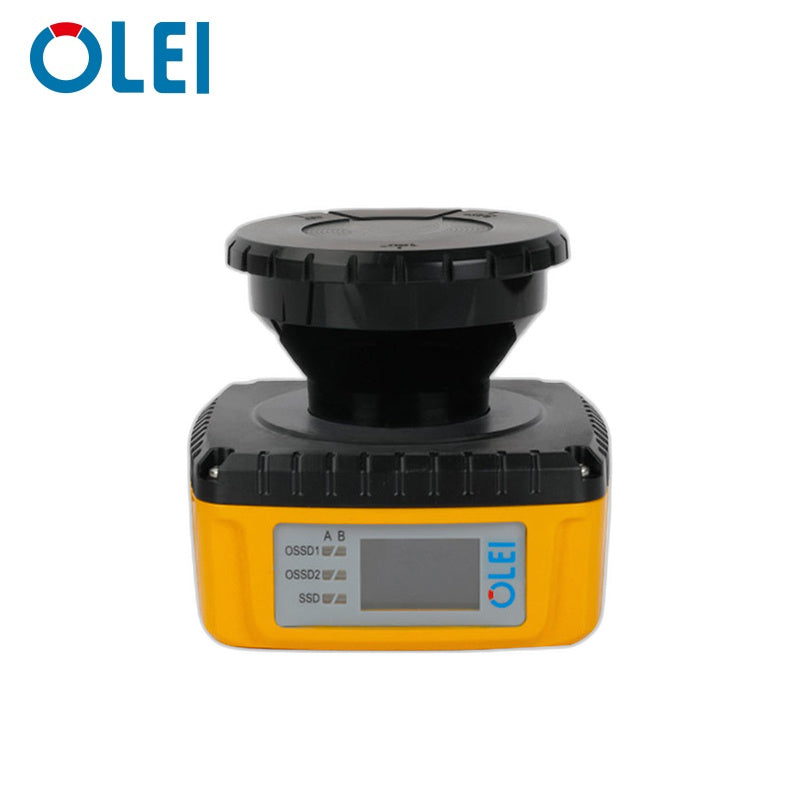

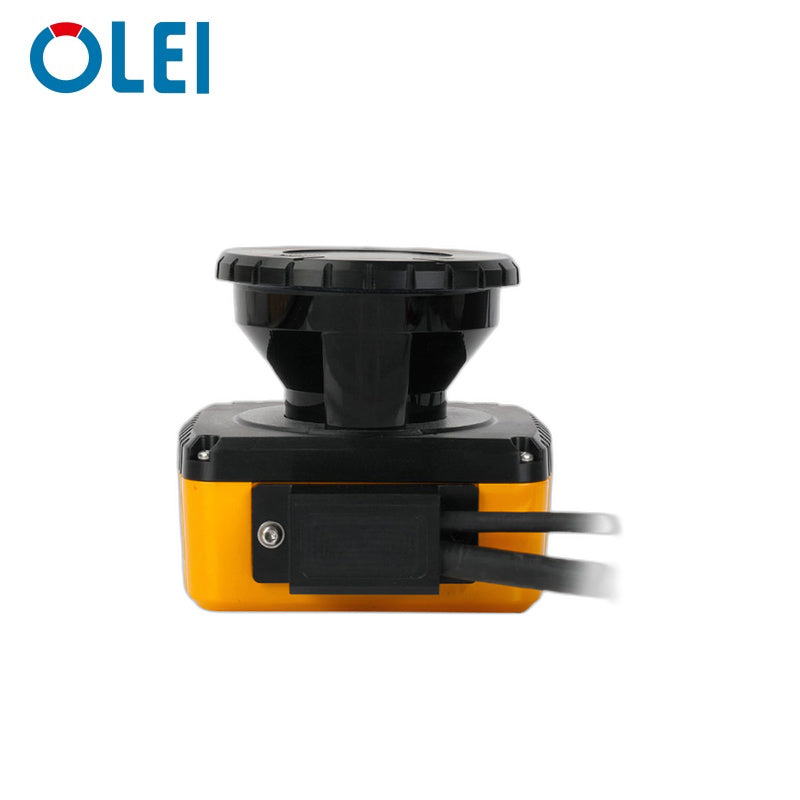

OLEI GS1-5 LiDAR
Regular price
$2,250.00
Unit price
OLEI GS1-5 LiDAR - GS1-5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OLEI GS1-5 LiDAR
Regular price
$2,250.00
Unit price
OLEI GS1-5 LiDAR - GS1-5 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Scope of protection | ≤5m @ 2% Reflectivity |
| Measuring range | ≤40m @80% Reflectivity |
| Number of protected regions | 64 groups |
| Number of secure regions | 128 units |
| Monitoring case | ≤2 |
| Scan angle | 270° |
| Accuracy | Typical: ±30mm |
| Protection area resolution (configurable) | 20mm, 30mm, 40mm, 50mm, 75mm, 150mm |
| Angular resolution | 0.167° |
| Response time | The fastest response time is ≤70ms |
| Multisampling | 2~16 |
| Scan cycle time | 30ms |
| Generally necessary protective field supplement | 65mm |
| Protection class | III |
| Rated Voltage | 24 V DC (-30%~+20%) |
| Power consumption | ≤6W (no load) |
| Type | Type 3 (IEC61496) |
| Safety integrity level | SIL 2 (IEC61508/IEC62061) |
| Category | Cat.3 (ISO13849) |
| Performance level | PL d (ISO13849) |
| Communication mode | CANopen safety, Ethernet |
| CAN output | 1 group |
| OSSD | 2 groups |
| Configuration method | Safety config tool |
| Display device | Color LCD screen, LED light |
| Mechanical dimensions | 115mm × 100mm × 90mm |
| Weight | 850g |
| Enclosure protection class | IP65 |
| Material | Aluminum case, Window cover: PC |
| Connecting cables | LAN Cable: 0.3m, I/O&Power Cable: 2m |
| Installation method | Upright, reverse, and side mounting (optional bracket) |
| Operating temperature / Storage temperature | -10°C ~ +50°C / -25°C ~ +70°C |
| Air humidity | 95%RH, no condensation |
| Ambient light | ≤3k Lux (ambient light source directly into the scanning plane) |
| Vibration resistance | IEC 60068-2-6 / IEC 60068-2-64 / IEC 60721-3-5 / IEC TR 60721-4-5 / IEC 61496-3 5M1 (IEC 60721-3-5) Sine vibration + random vibration |
| Shock resistance | IEC 60068-2-27 / IEC 60721-3-5 / IEC TR 60721-4-5 / IEC 61496-3 5M1 (IEC 60721-3-5) single impact + durable impact |
| Altitude | ≤2300m |
| Electromagnetic compatibility | Comply with IEC61496-1, IEC61000-6-2, IEC61000-6-3 |
| Light type | Pulsed laser diode |
| Laser safety level | Class 1 |
| Laser wavelength | 905nm |
| Detectable reflectance | 1.8% ~ high reflectivity |
| Areas with limited detection capability | ≤50mm (50mm area in front of optical window cover) |
