OCServo

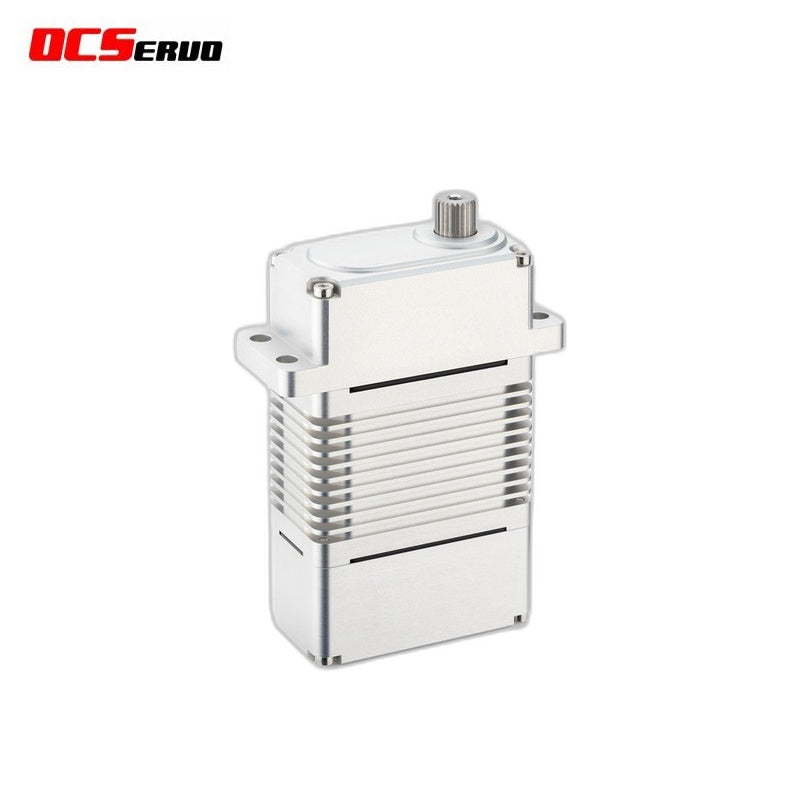

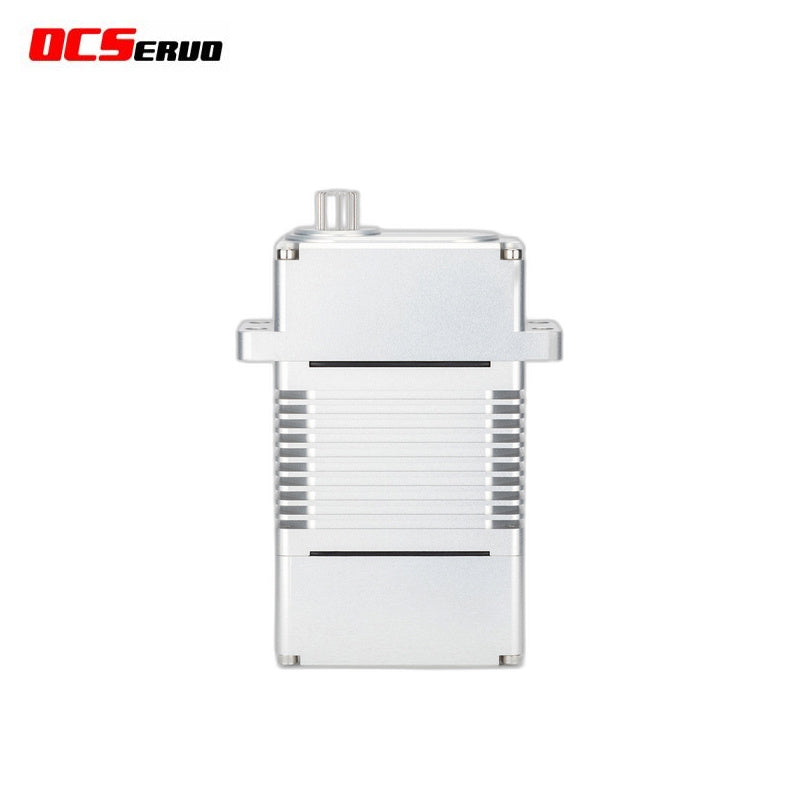

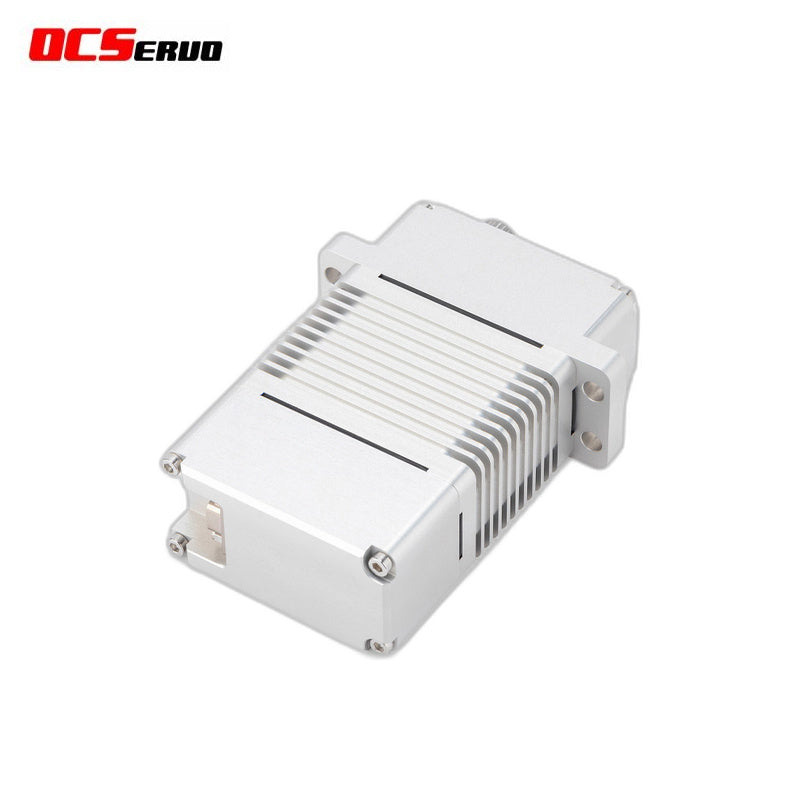

OCServo OCS-D4001 Servo Motor

$910.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Product Name 30V400kg-cm BLS Servo
Item No. OCS-D4001
Storage Temperature Range -30°C ~ 70°C
Operating Temperature Range -30°C ~ 65°C
Test Temperature 25°C ± 5°C
Test Humidity 65% ± 10%
Size (mm) 68 × 35 × 120
Weight (g) 610
Gear Type Steel Gear
Limit Angle -
Bearings 6 Ball bearings
Output Spline 25T - Φ11.8mm
Horn Type 7075-Aluminium CNC
Case Material 7075-Aluminium CNC
Connector Wire J30J-9TJ (Need to purchase separately)
Motor Type BLS motor
Waterproof Performance Yes
Operating Voltage 24V / 28V / 30V
No load speed (sec/60°) 24V: 0.28; 28V: 0.20; 30V: 0.16
Running current (at no load) (mA) 24V: 200; 28V: 300; 30V: 400
Stall torque (kg·cm) 24V: 320; 28V: 360; 30V: 390
Rated torque (kg·cm) 24V: 115; 28V: 133; 30V: 145
Rated current (A) 24V: 1.9; 28V: 2.0; 30V: 2.3
Stall current (A) 24V: <5; 28V: <6.5; 30V: <7
Idle current (mA) 60 (all voltages)
Command Type PWM or CAN or 480
Amplifier Type Digital Controller
Pulse Width Range 500~2500 μsec (customizable)
Neutral Position 1500 μsec (customizable)
Running Degree 180° (when 500~2500 μsec) customizable
Dead Band Width 3 μsec
Rotating Direction CCW (when 1000~2000 μsec) customizable
