OCServo

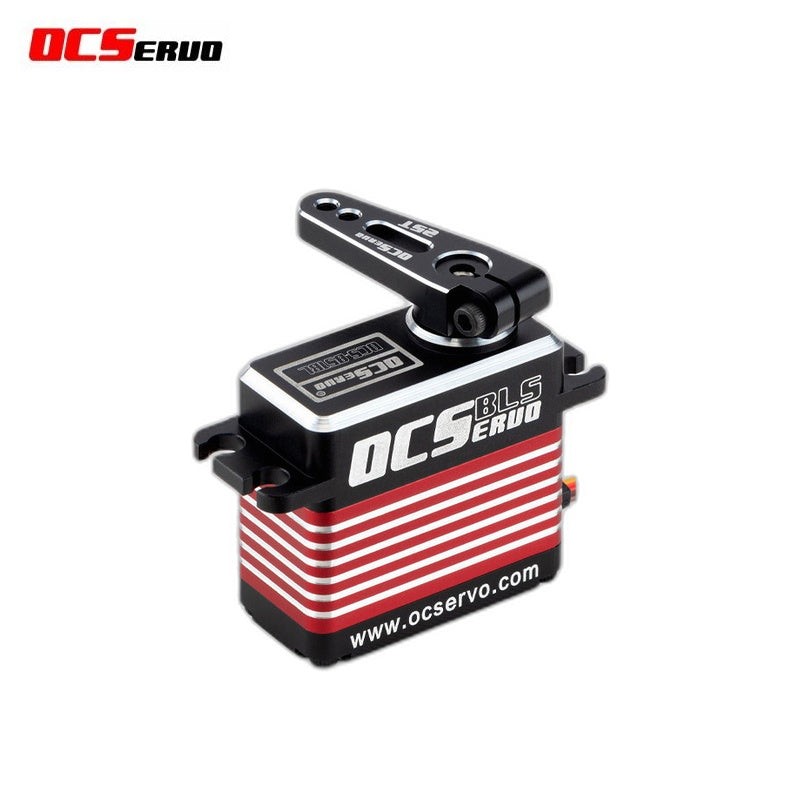

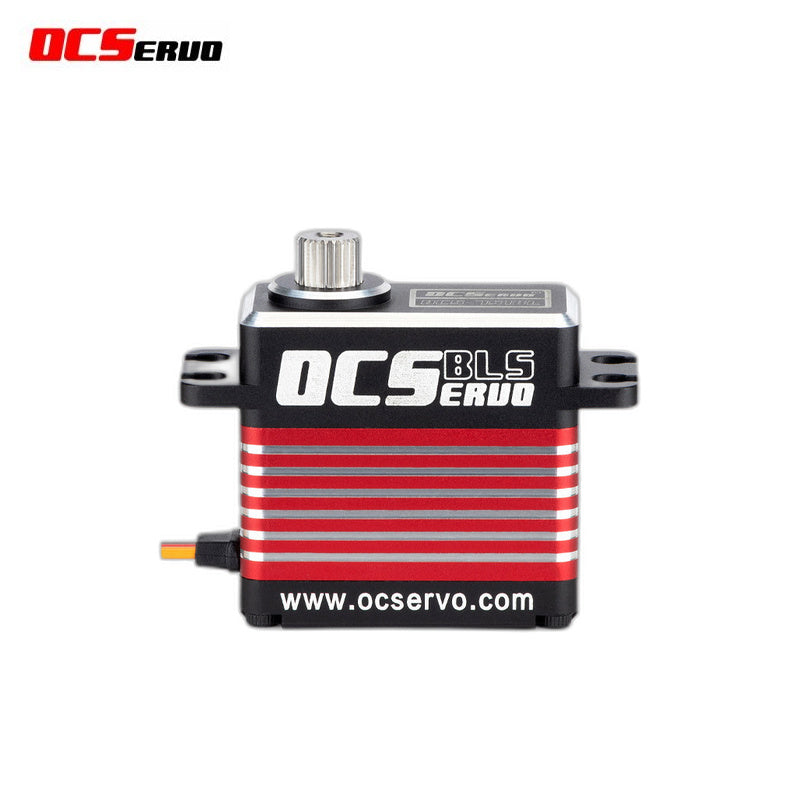

OCServo OCS-851BL Servo Motor

$145.00
Version
Type

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Product Name 16.8V85kg-cm High Voltage BLS Digital Servo
Item No. OCS-851BL
Storage Temperature Range -20°C ~ 70°C
Operating Temperature Range -15°C ~ 65°C
Test Temperature 25°C ± 5°C
Test Humidity 65% ± 10%
Size (mm) 20 × 40 × 42.6
Weight (g) 92 (excluding accessory)
Gear Type Stainless Steel
Limit Angle No
Bearings 2 Ball bearings

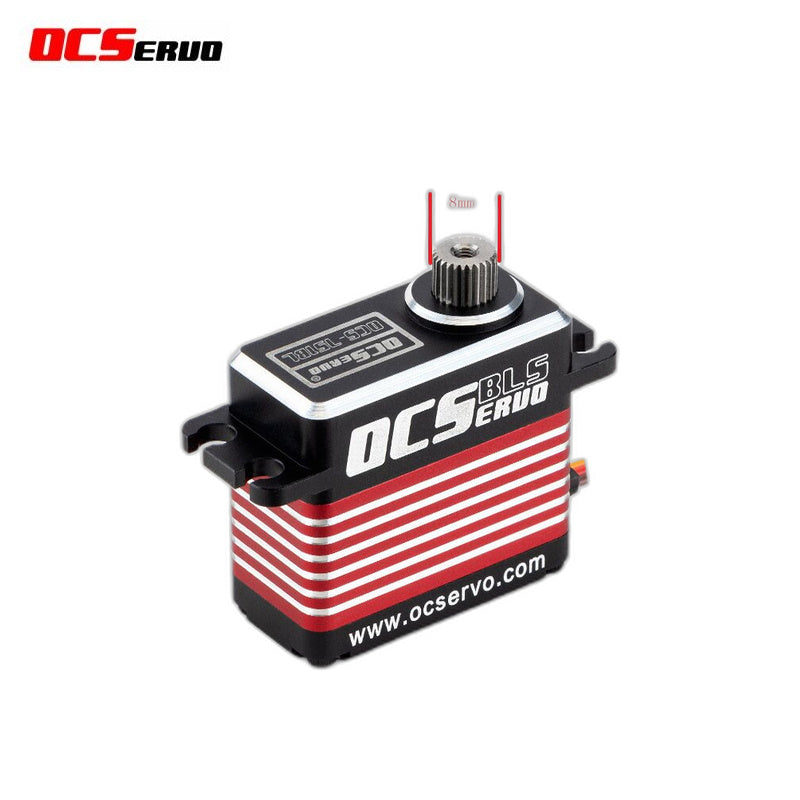

Output Spline 25T - φ7.96mm
Horn Type 7075 Aluminium CNC
Case Material Aluminium CNC
Connector Wire 300 mm
Motor Type Brushless motor
Waterproof Performance Yes
Operating Voltage 8.4V / 12.0V / 16.8V
No load speed (sec/60°) 8.4V: 0.17; 12.0V: 0.14; 16.8V: 0.11
Running current (at no load) (mA) 8.4V: 320; 12.0V: 370; 16.8V: 440
Peak stall torque (kg·cm) 8.4V: 42; 12.0V: 60; 16.8V: 85
Stall current (A) 8.4V: 4.0; 12.0V: 5.0; 16.8V: 6.0
Rated torque (kg·cm) 8.4V: 15; 12.0V: 21; 16.8V: 30
Rated current (A) 8.4V: 1.0; 12.0V: 1.2; 16.8V: 1.6
Command Signal PWM OR 485 OR CAN
Amplifier Type Digital Controller
Pulse Width Range 800~2200 μsec (customizable)
Neutral Position 1500 μsec
Running Degree 90° (when 1000~2000 μsec) customizable
Dead Band Width 2 μsec
Rotating Direction CCW (when 1000~2000 μsec) customizable
