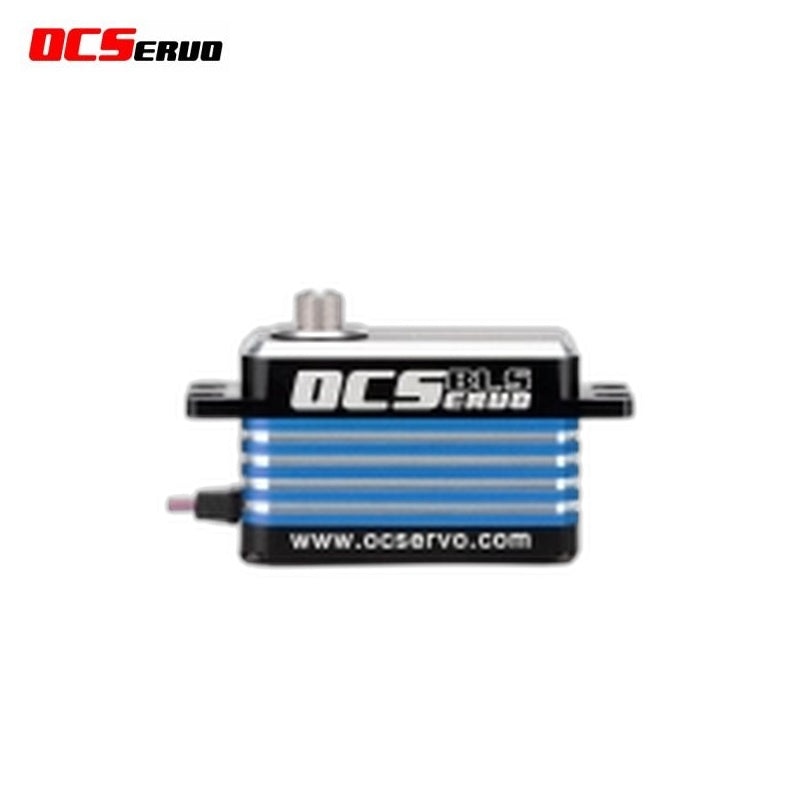

OCServo OCS-4009 Servo Motor
Regular price
$105.00
Unit price
OCServo OCS-4009 Servo Motor - OCS-2507 / CAN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OCServo OCS-4009 Servo Motor
Regular priceFrom
$105.00
Unit price
OCServo OCS-4009 Servo Motor - OCS-2507 / CAN is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | 2507 | 4009 | ||
|---|---|---|---|---|
| Operating Voltage | 6.0V | 8.4V | 6.0V | 8.4V |
| Torque (kg·cm) | 17.5 | 25.0 | 25 | 40 |
| Speed (sec/60°) | 0.12 | 0.07 | 0.14 | 0.09 |
| Voltage Range (V DC) | 6.0 ~ 8.4 | 6.0 ~ 8.4 | ||
| Weight (g) | 65 | 65 | ||
| Bearing | Ball bearing x2 | Ball bearing x2 | ||
| Motor | Brushless motor | Brushless motor | ||
| Gear | Steel | Steel | ||
| Size (mm) | 41 × 20.5 × 28.5 | 41 × 20.5 × 28.5 | ||
