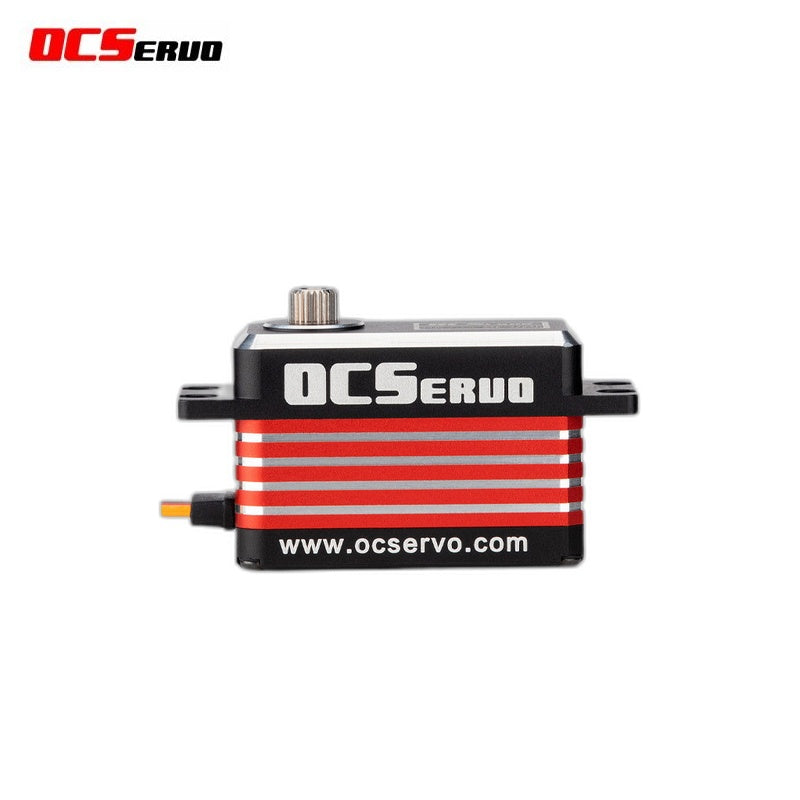

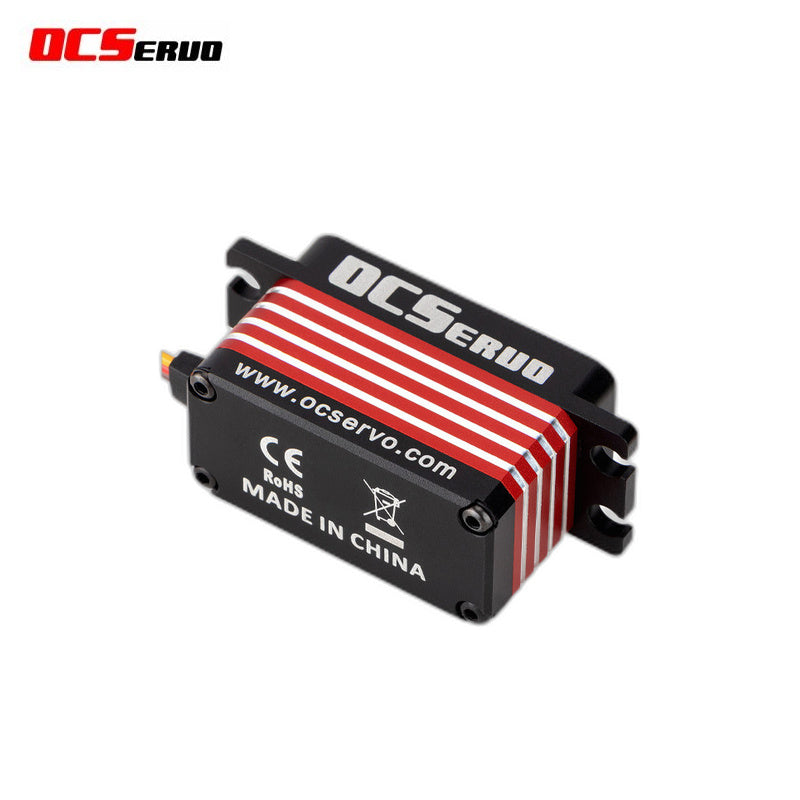

OCServo OCS-352HV Servo Motor

$60.00

Version

OCS-352HV

Type

No metal rocker arm Equipped with a 24mm 7075 metal rocker arm Equipped with a 45mm 7075 metal rocker arm

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Product Name	8.4V35kg-cm High Voltage BL Servo
Item No.	OCS-352HV
Storage Temperature Range	-20°C ~ 70°C
Operating Temperature Range	-15°C ~ 65°C
Test Temperature	25°C ± 5°C
Test Humidity	65% ± 10%
Size (mm)	41 × 20.5 × 28
Weight (g)	67 (excluding accessory)
Gear Type	Stainless Steel
Limit Angle	No
Bearings	2 Ball bearings
Output Spline	25T - Φ5.96mm
Horn Type	Plastic POM
Case Material	Aluminium CNC
Connector Wire	300mm 3P
Motor Type	Coreless motor
Waterproof Performance	Splash-proof
Operating Voltage	6.0V / 7.4V / 8.4V
No load speed (sec/60°)	6V: 0.14; 7.4V: 0.12; 8.4V: 0.10
Running current (at no load) (mA)	6V: 190; 7.4V: 220; 8.4V: 250
Peak stall torque (kg·cm)	6V: 27; 7.4V: 31; 8.4V: 35
Stall current (A)	6V: 3.5; 7.4V: 4.0; 8.4V: 5.0
Command Signal	PWM
Amplifier Type	Digital Controller
Pulse Width Range	800 ~ 2200 μsec (Customization available)
Neutral Position	1500 μsec
Running Degree	90° (when 1000~2000 μsec) Customization available
Dead Band Width	2 μsec
Rotating Direction	CCW (when 1000~2000 μsec)
