HiPNUC | SKU:

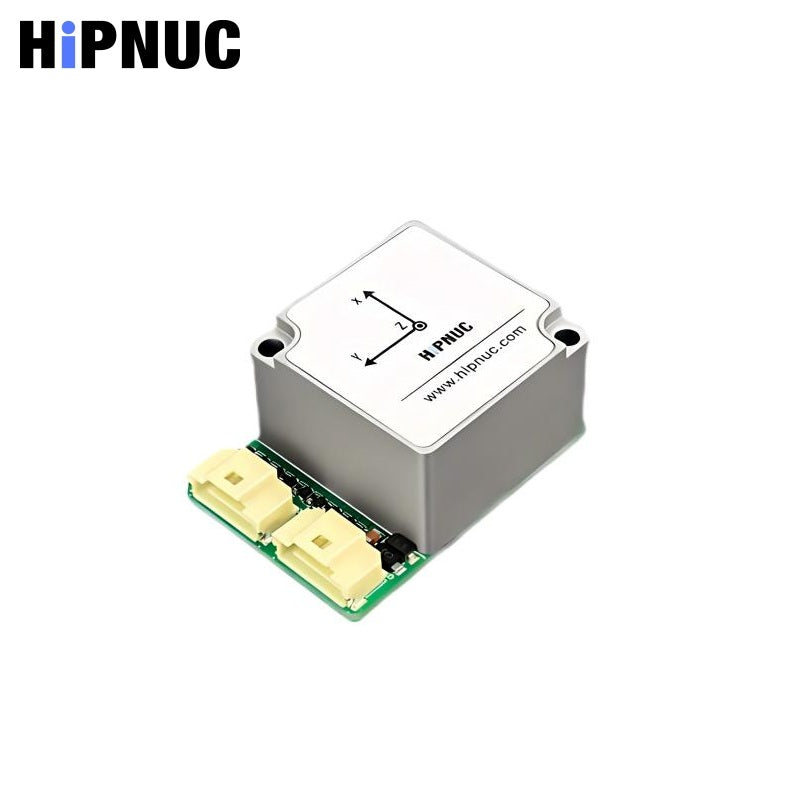

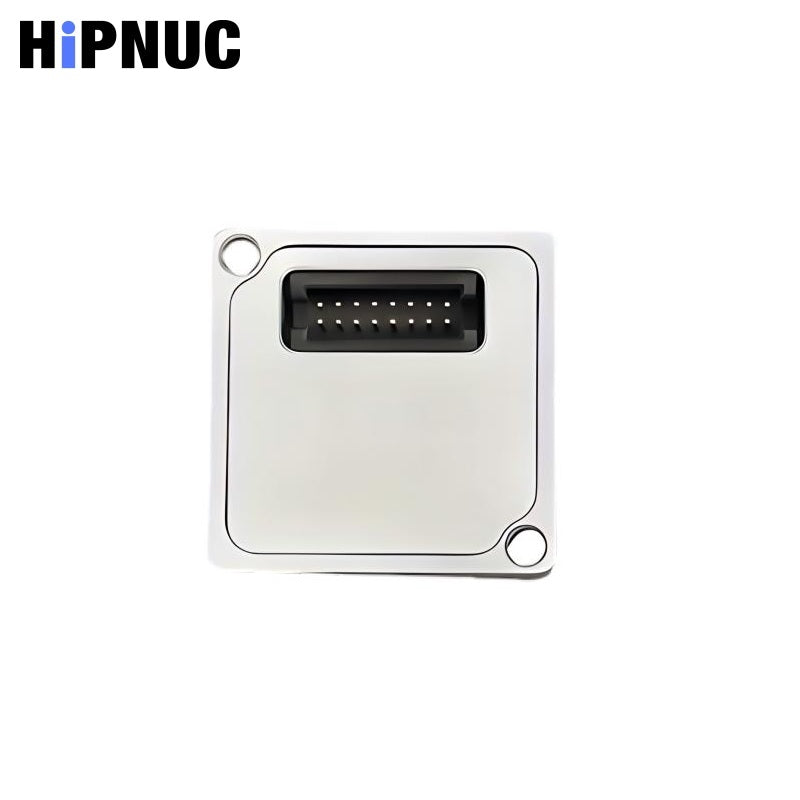

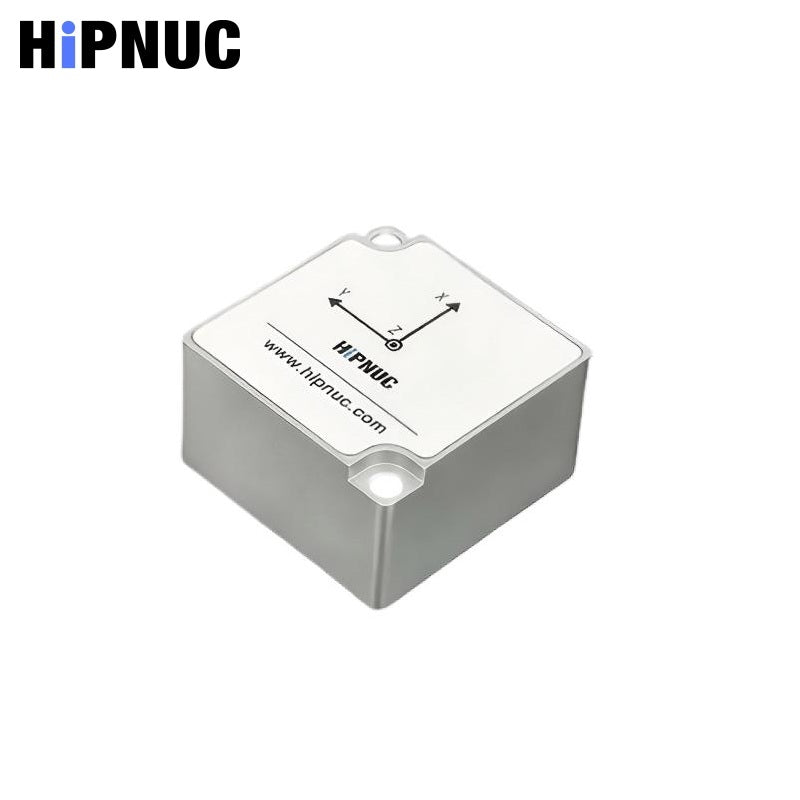

HiPNUC HI71M Sensor
Regular price
$13,600.00
Unit price
HiPNUC HI71M Sensor - HI71M4-MI0-000 IMU/VRU/MRU/AHRS/INS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HiPNUC HI71M Sensor
Regular price
$13,600.00
Unit price
HiPNUC HI71M Sensor - HI71M4-MI0-000 IMU/VRU/MRU/AHRS/INS is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Magnetometer: | |
| Measurement Range | 20 Gauss |
| Noise | 450 nT |
| Linearity | 20 μT |
| Barometer: | |
| Measurement Range | 300 ~ 1200 hPa |
| Resolution | 0.006 hPa |
| Accuracy | ±0.06 hPa |
| Fusion Performance: | |
| Pitch / Roll Accuracy | 0.05° (Nom) / 0.1° (Max) |
| Pitch / Roll Resolution | 0.01° |
| Heading (VRU/MRU) | 0.2° (Nom) / 0.3° (Max) |
| Heading (AHRS) | 0.5° (Nom) / 2° (Max) |
| Heading Resolution | 0.01° |
| Startup Time (IMU/VRU) | 2 s |
| Startup Time (MRU, Static) | 60 s |
| Startup Time (MRU, Marine) | 180 s |
| Heave Accuracy | 5 cm / 5% |
| Heave Period Range | 1 ~ 10 s |
