HiPNUC

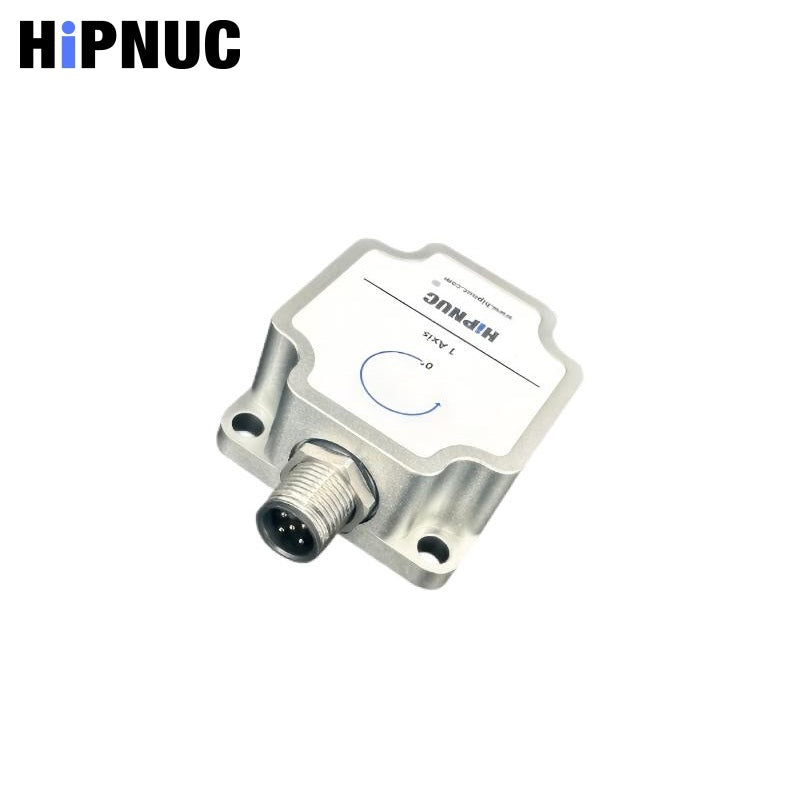

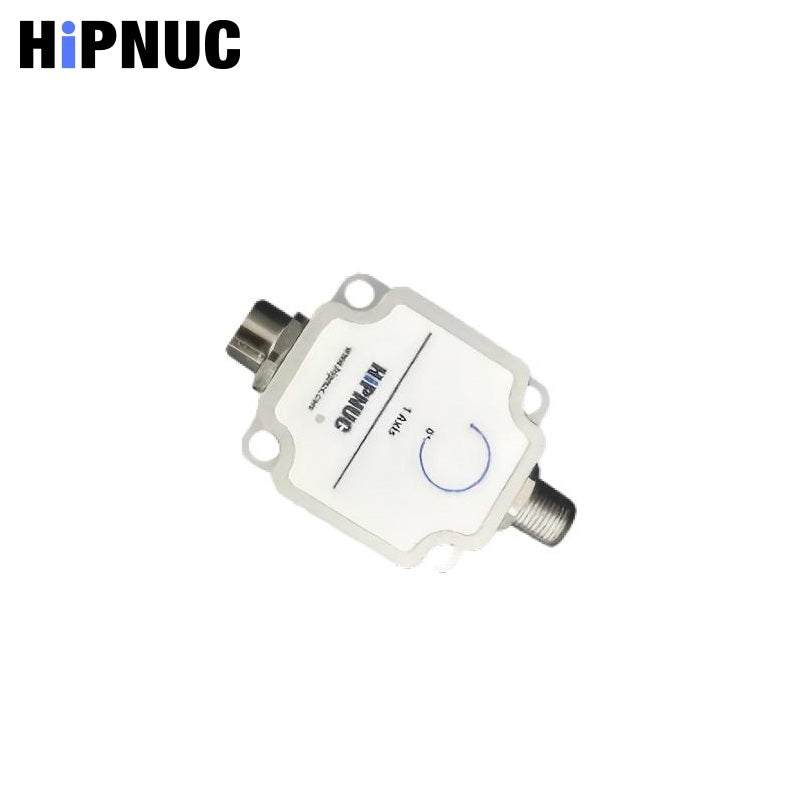

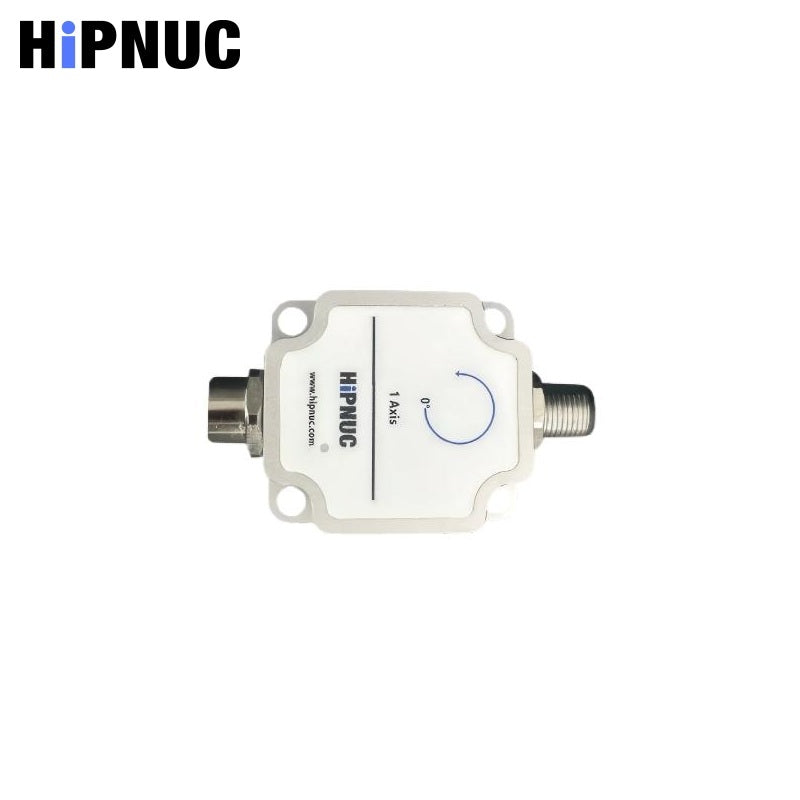

HiPNUC HI50M Sensor

$600.00
Version
Mode information
Range information

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
General Specifications:
Input Voltage 7 - 48 V
Power Consumption ≤ 300 mW
Operating Temperature -40 ℃ ~ 85 ℃
Start-up Time ≤ 2 s
Sensor Measurement Range:
Gyroscope Measurement Range 125 ~ 2000 °/s (Nominal: 2000 °/s)
Accelerometer Measurement Range 3 ~ 24 g (Nominal: 12 g)
Measurement Configuration:
Measurement Range (1D) 0 - 360°
Measurement Range (2D) X ±180°, Y ±88°
Mounting Orientation (1D) Vertical
Mounting Orientation (2D) Vertical / Horizontal
Accuracy & Stability:
Dynamic Accuracy (1D/2D) 0.3°
Temperature Effect (X, Y, -40~85℃) ≤ 0.008 °/℃ (Better than 0.008 °/℃)
