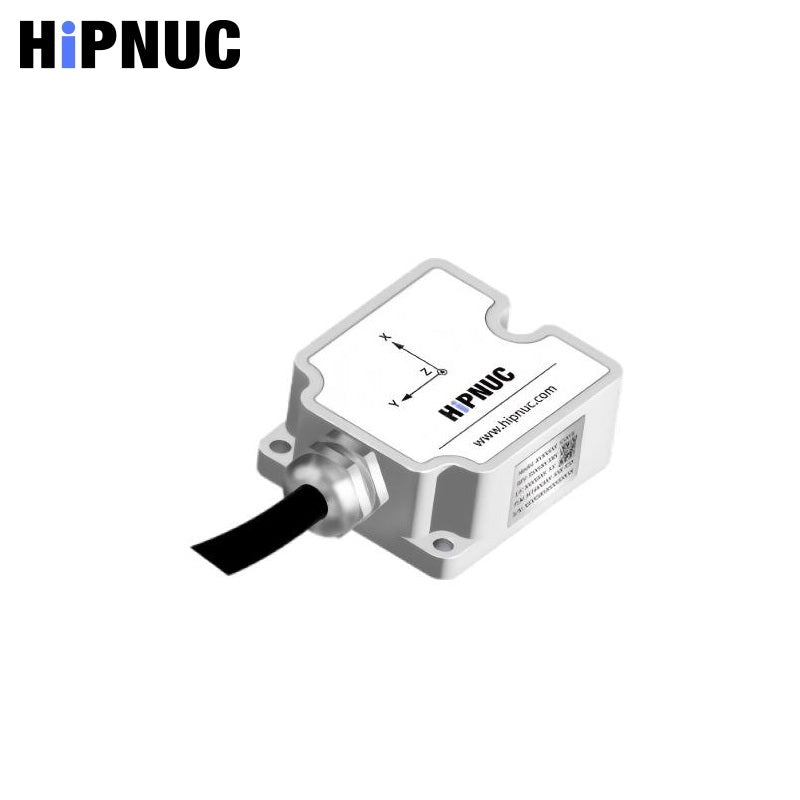

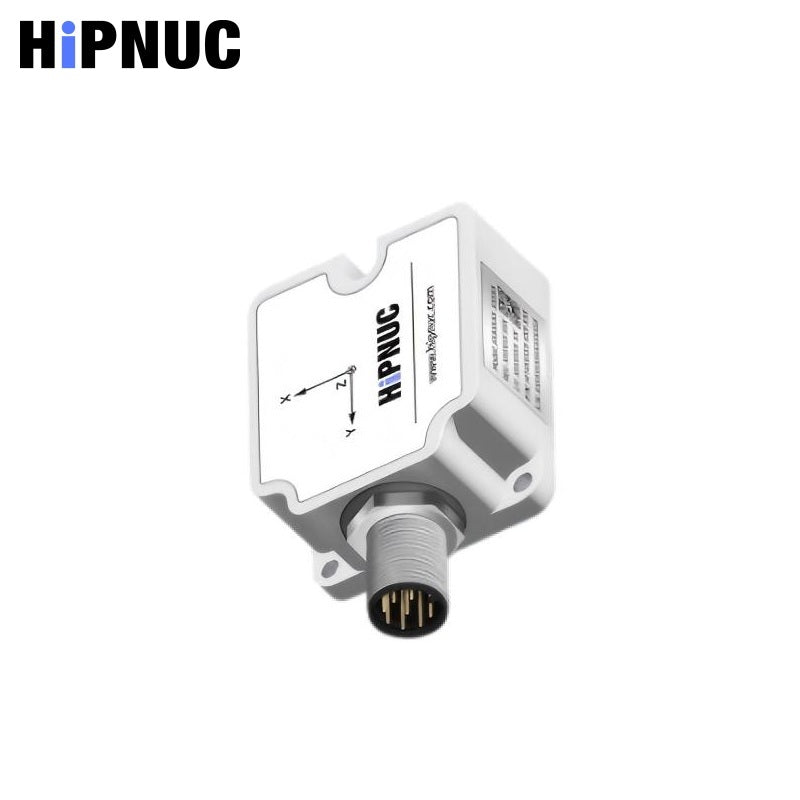

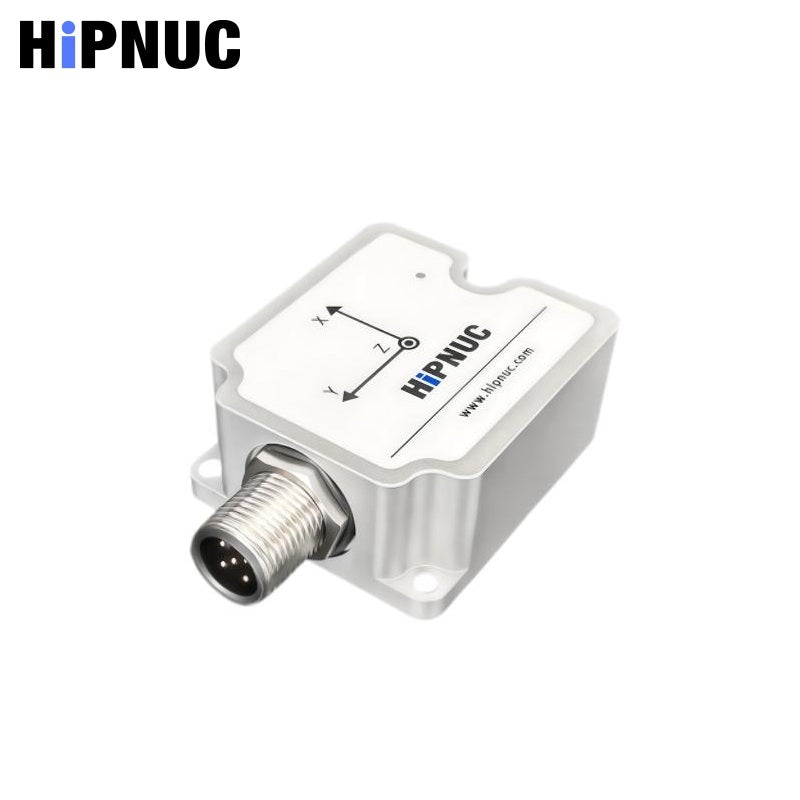

HiPNUC HI14M Sensor

$165.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Gyroscope:
Full-Scale Range ±250°/s, ±500°/s, ±1000°/s, ±2000°/s (Default: ±2000°/s)
Resolution 16 bit
Scale Factor Error <600 ppm / 850 ppm
Nonlinearity ±0.05 %FS
Noise Density 0.014 °/s/√Hz
   3dB Bandwidth 80 Hz (Min) ~ 200 Hz (Max)
   Zero-Rate Output ±0.1 °/s / ±0.2 °/s
Sampling Rate 1000 Hz
Bias Instability X: 2.5°/h / 4°/h; Y: 3.2°/h / 5.5°/h; Z: 3°/h / 5.5°/h
Bias Stability X: 10°/h / 14°/h; Y: 13°/h / 17°/h; Z: 10°/h / 13°/h
Bias Repeatability X: 20°/h / 36°/h; Y: 36°/h / 61°/h; Z: 16°/h / 25°/h
   Angle Random Walk X: 0.55°/√h / 1.1°/√h; Y: 0.82°/√h / 1.2°/√h; Z: 0.47°/√h / 0.7°/√h
Bias Variation Over Full Temperature Range 0.07 °/s / 0.15 °/s
Acceleration Sensitivity 0.05 °/s/g
Accelerometer:
Full-Scale Range ±3g, ±6g, ±12g, ±24g (Default: ±12g)
Resolution 16 bit
Initial Zero Bias 1 mg / 2 mg
Nonlinearity ±0.01 %FS
Noise Density 0.16 mg/√Hz (Typ) / 0.2 mg/√Hz (Max)
3dB Bandwidth 90 Hz (Min) ~ 200 Hz (Max)
Sampling Rate 1000 Hz
Bias Instability X: 0.021 mg / 0.035 mg; Y: 0.032 mg / 0.065 mg; Z: 0.023 mg / 0.03 mg
Bias Stability X: 0.068 mg / 0.1 mg; Y: 0.09 mg / 0.19 mg; Z: 0.07 mg / 0.1 mg
Bias Repeatability X: 0.22 mg / 0.4 mg; Y: 0.15 mg / 0.21 mg; Z: 0.12 mg / 0.2 mg
Velocity Random Walk 0.09 m/s/√h / 0.11 m/s/√h
Bias Variation Over Full Temperature Range 2 mg / 5 mg
Magnetometer:
Full-Scale Range ±2000 μT
Noise 0.19 μT / 0.45 μT
Nonlinearity ±10 μT / ±20 μT
Temperature Sensor:
Measurement Range -40℃ ~ 85℃
Bias Error ±5℃
Fusion Accuracy - Attitude Angle Accuracy:
Pitch/Roll 0.15° / 0.2°
Pitch/Roll 0.2° / 0.3°
Heading Angle 2° / 3°
Heading Static Drift 0.15° / 0.2°
Heading Dynamic Drift ±10° / ±10°
Heading Rotation Error 0.2° / 0.3°
