HAITAI

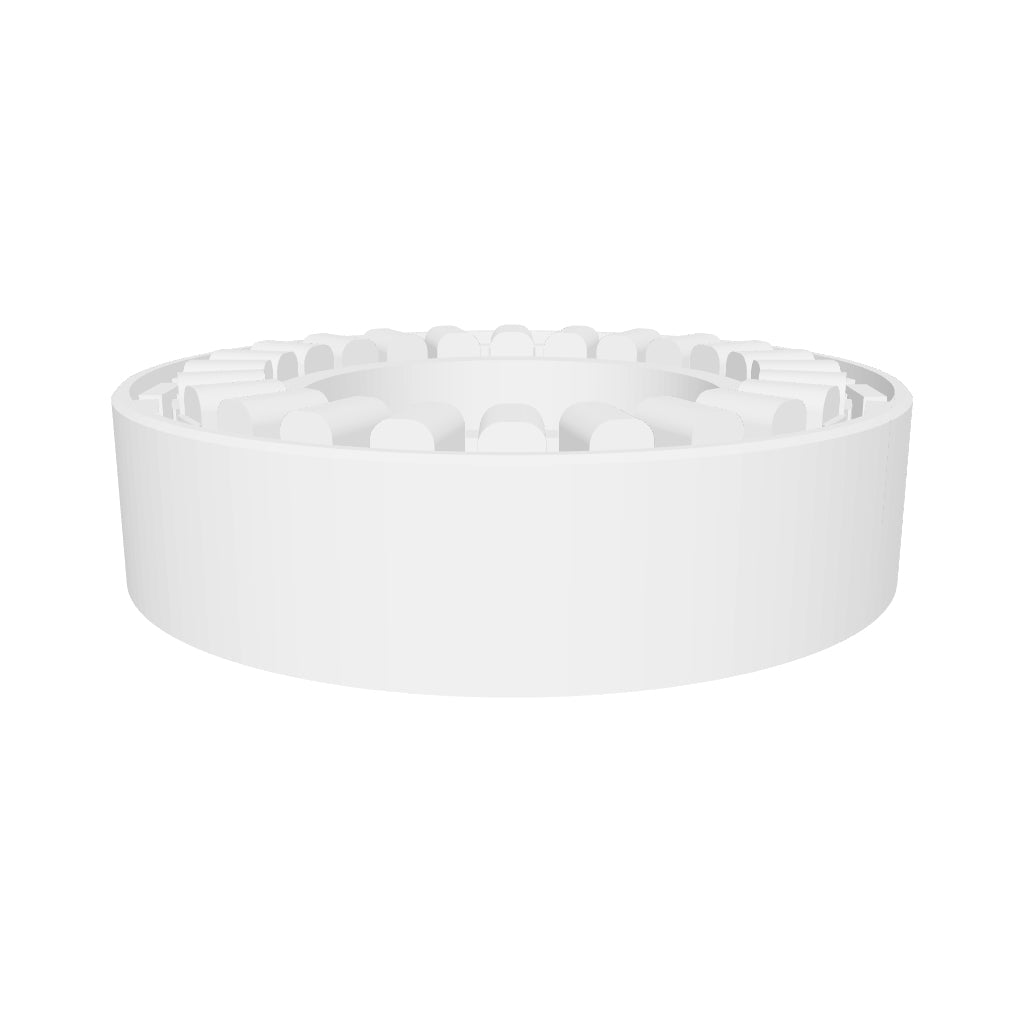

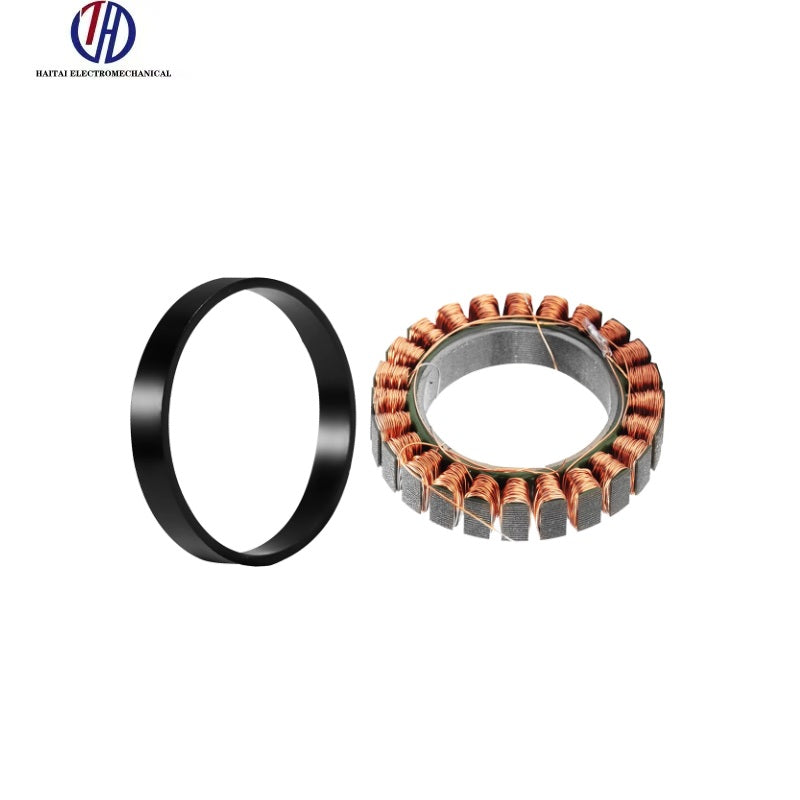

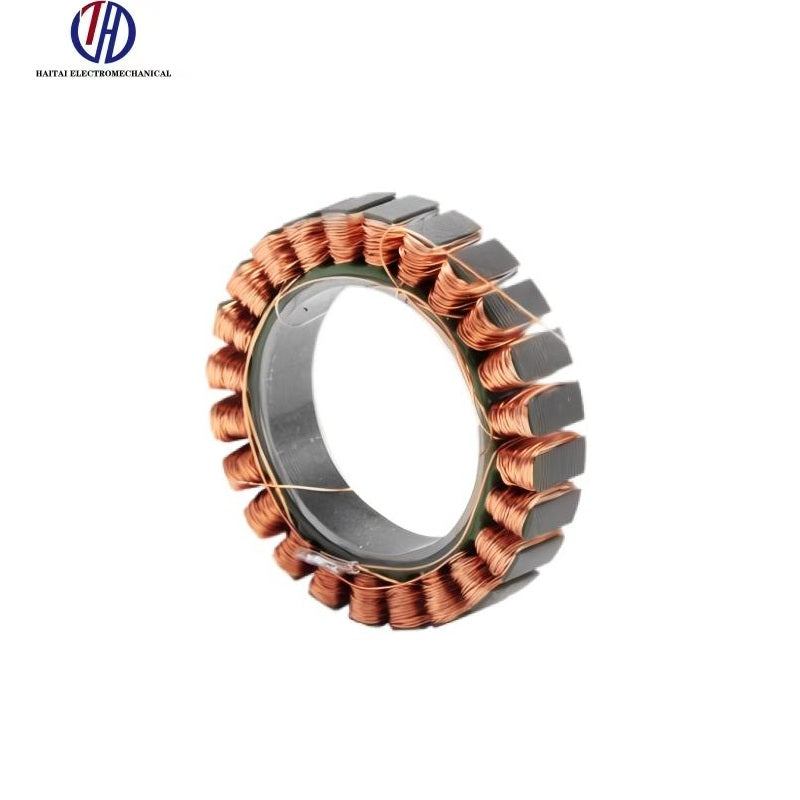

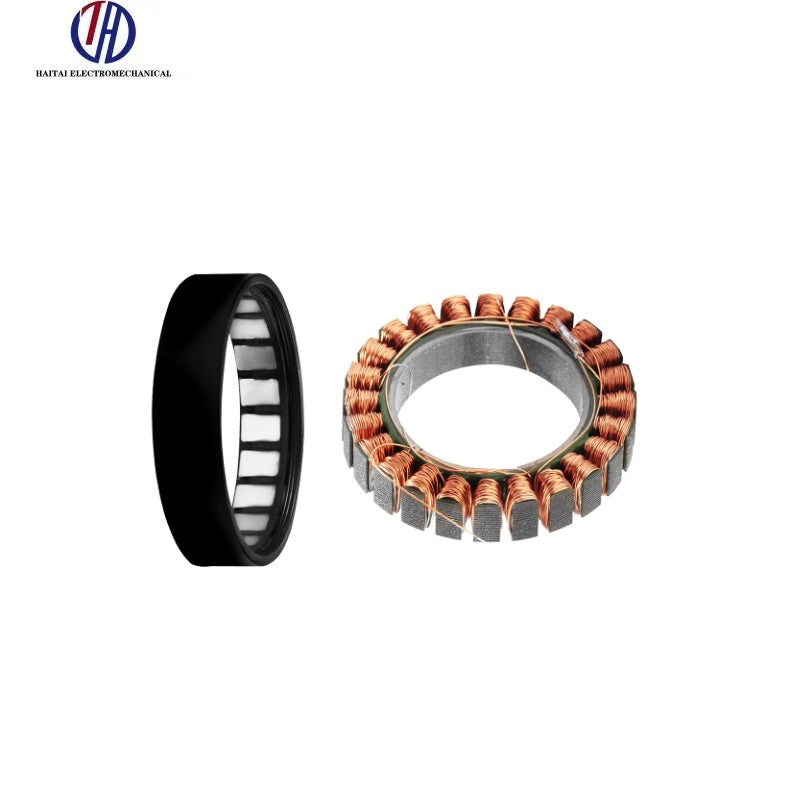

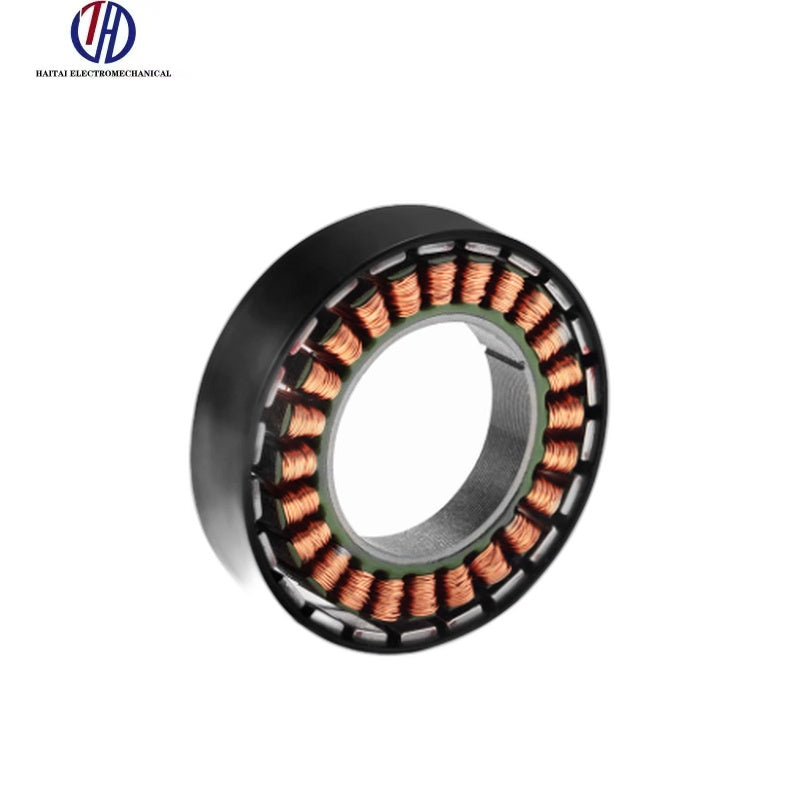

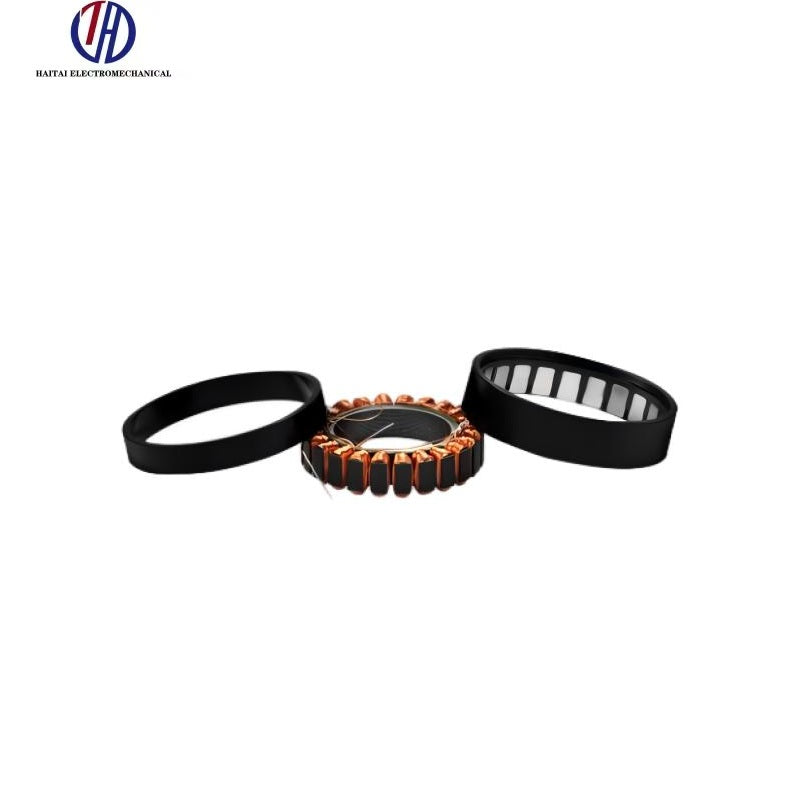

HAITAI WK3505 Motor

$30.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value (WK3505H / WK3505CH)
Nominal Ratings:
Nominal Voltage 12 V / 12 V
Nominal Current 1.1 A / 1.1 A
Nominal Torque 0.09 N.m / 0.05 N.m
Nominal Speed 467 rpm / 467 rpm
Stall & Limit Performance:
Stall Torque 0.15 N.m / 0.08 N.m
Stall Current 1.9 A / 1.9 A
Maximum Speed 1610 rpm / 1610 rpm
Internal Characteristics:
Winding Turns of Motor 40 T / 40 T
Phase-to-Phase Resistance 6.56 Ohm / 6.56 Ohm
Phase-to-Phase Inductance 1.27 mH / 1.27 mH
Speed Constant 134 rpm/V / 134 rpm/V
Torque Constant 0.08 N.m/A / 0.04 N.m/A
Rotor Inertia 51 g.cm2 / 20 g.cm2
Number of Pole Pairs 11 Pairs / 11 Pairs
Physical & Environmental:
Motor Dimensions Phi 40 x 9.5 mm / Phi 38.4 x 9 mm
Stator Inner Diameter 22 mm / 22 mm
Weight 32 g / 24 g
Operating Temperature Range -20 ~ +80 deg C
Maximum Demagnetization Temperature 120 deg C
