HAITAI | SKU:

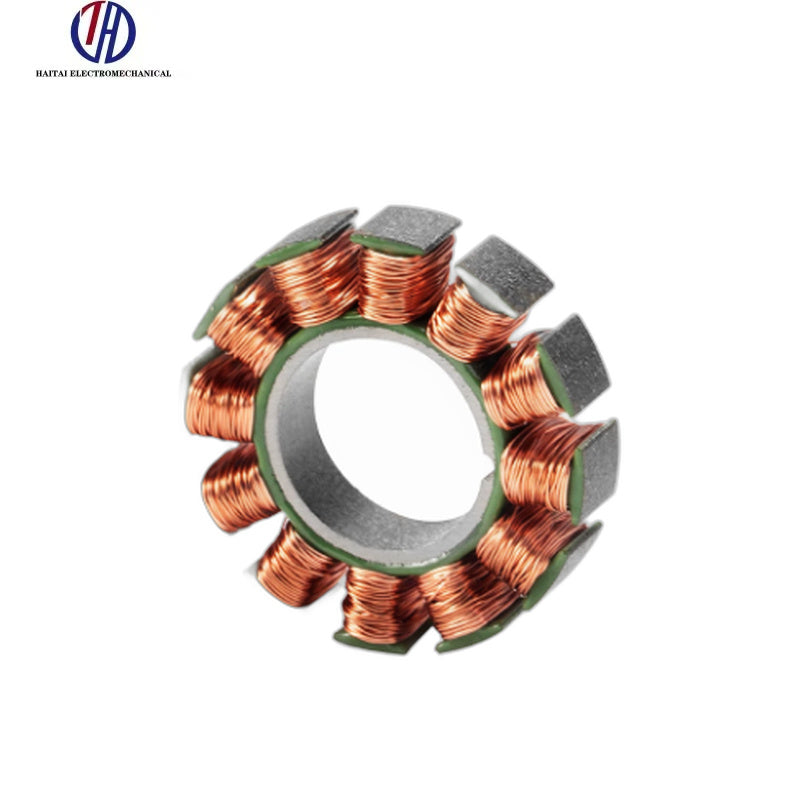

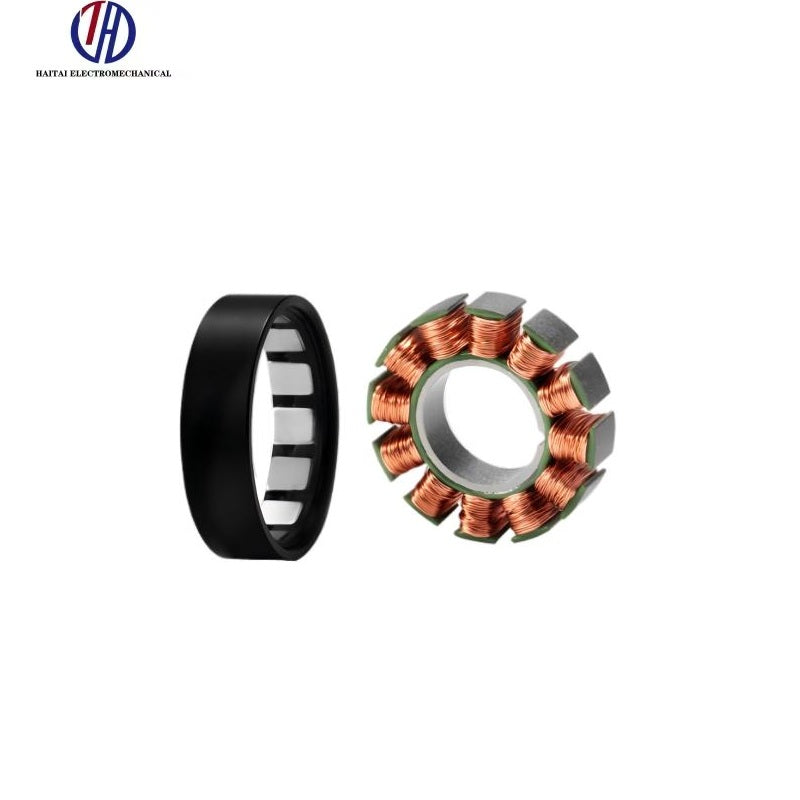

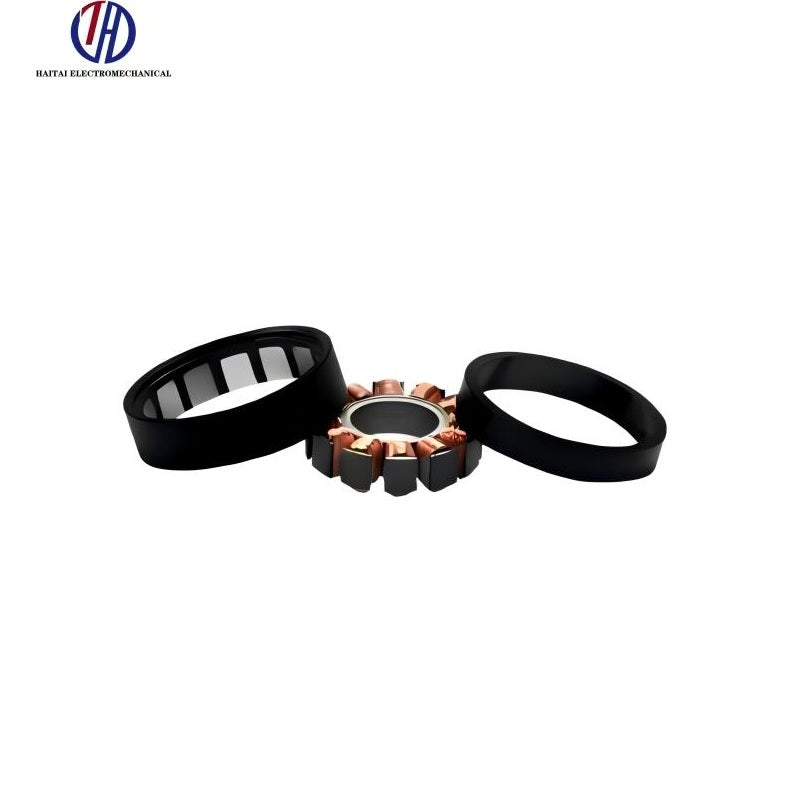

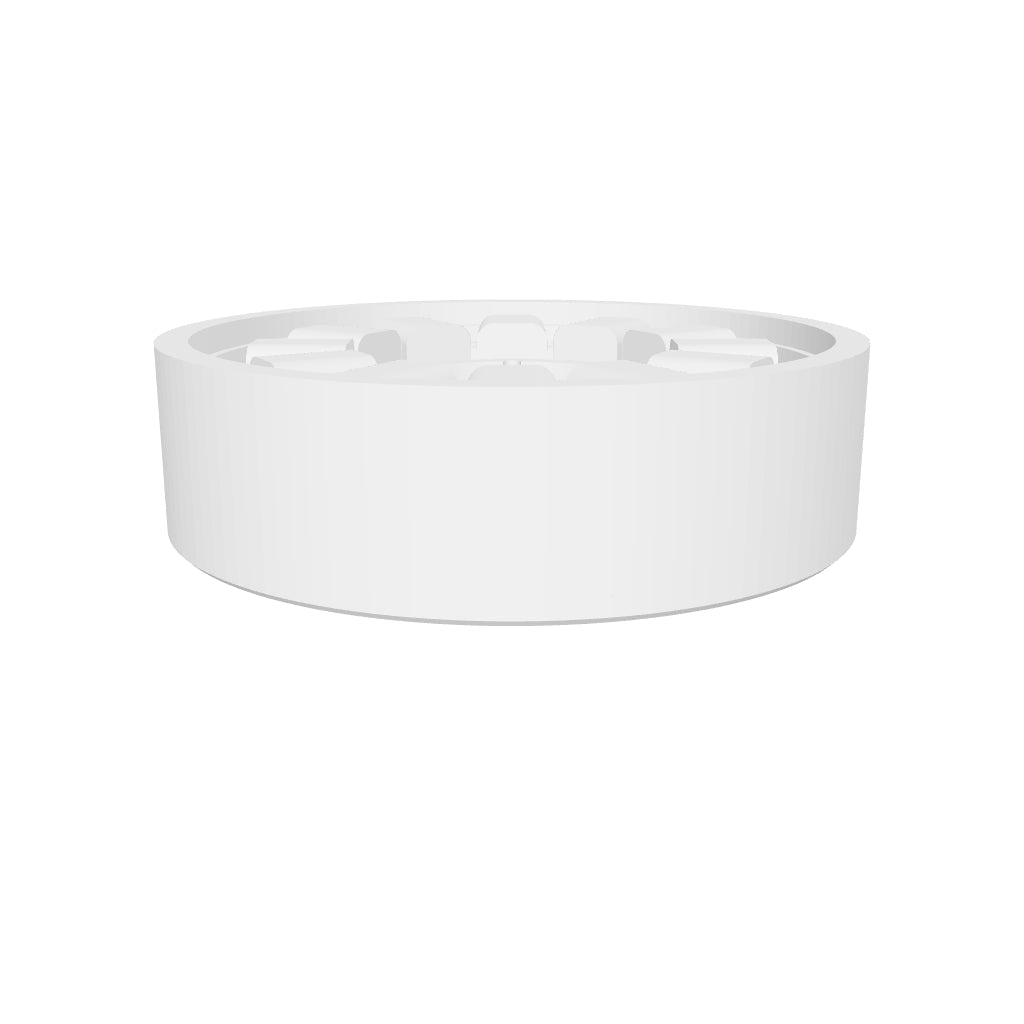

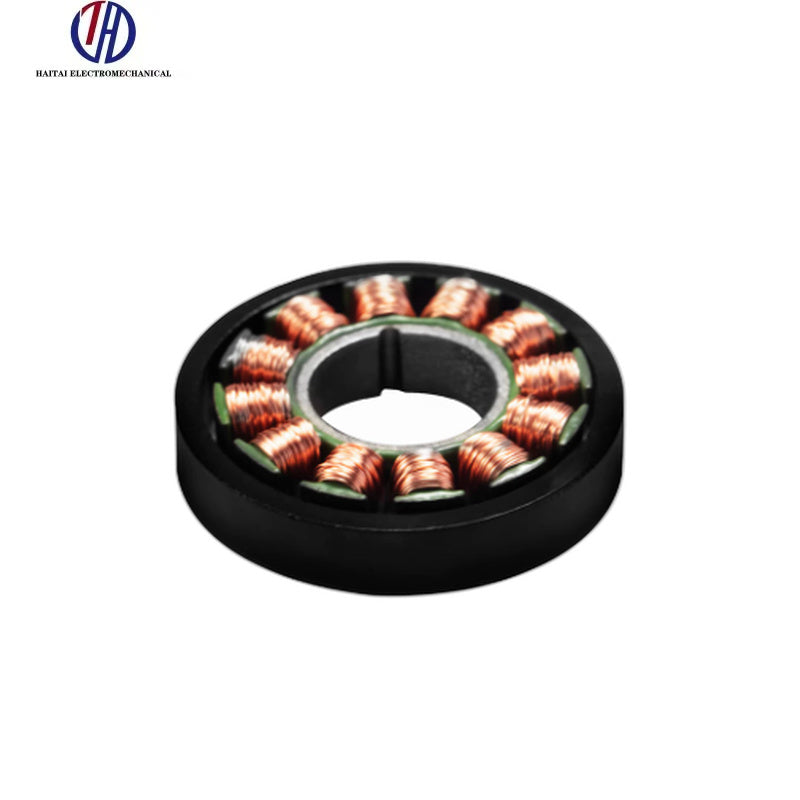

HAITAI WK2806 Motor
Regular price
$30.00
Unit price

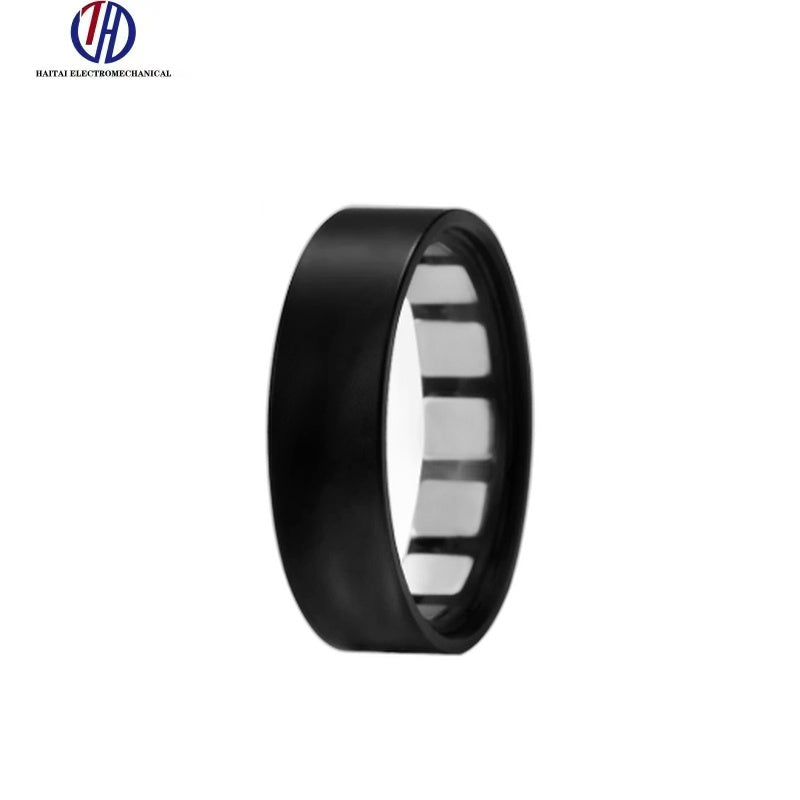

HAITAI WK2806 Motor - WK2806CH Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI WK2806 Motor
Regular price
$30.00
Unit price
HAITAI WK2806 Motor - WK2806CH Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value (WK2806H / WK2806CH) |
|---|---|
| Nominal Ratings: | |
| Nominal Voltage (V) | 12 / 12 |
| Nominal Current (A) | 0.81 / 0.81 |
| Nominal Torque (N.m) | 0.06 / 0.03 |
| Nominal Speed (rpm) | 950 / 950 |
| Stall & Limit Performance: | |
| Stall Torque (N.m) | 0.09 / 0.05 |
| Stall Current (A) | 1.22 / 1.22 |
| Maximum Speed (rpm) | 2335 / 2335 |
| Internal Characteristics: | |
| Winding Turns (T) | 60 / 60 |
| Phase-to-Phase Resistance (Ohm) | 5.13 / 5.13 |
| Phase-to-Phase Inductance (mH) | 1.64 / 1.64 |
| Speed Constant (rpm/V) | 195 / 195 |
| Torque Constant (N.m/A) | 0.07 / 0.04 |
| Rotor Inertia (g.cm2) | 36 / 19 |
| Number of Pole Pairs | 7 / 7 |
| Physical & Environmental: | |
| Motor Dimensions (mm) | Phi 34.6 x 9.4 / Phi 34.6 x 6.2 |
| Stator Inner Diameter (mm) | 14 / 14 |
| Motor Weight (g) | 26 / 22 |
| Operating Temperature Range (deg C) | -20 ~ +80 / -20 ~ +80 |
| Maximum Demagnetization Temperature (deg C) | 120 / 120 |
