HAITAI | SKU:

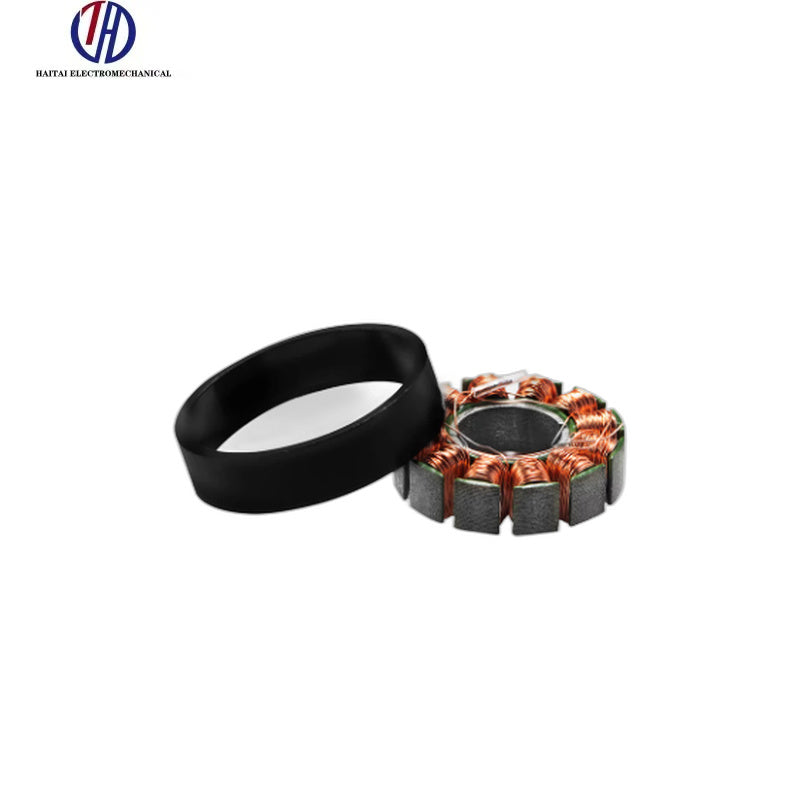

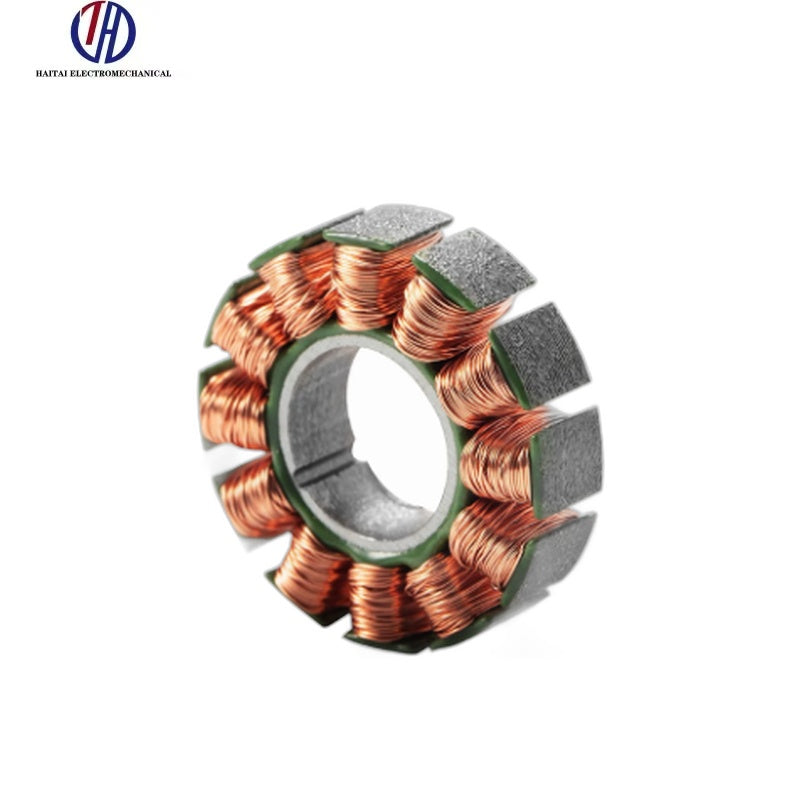

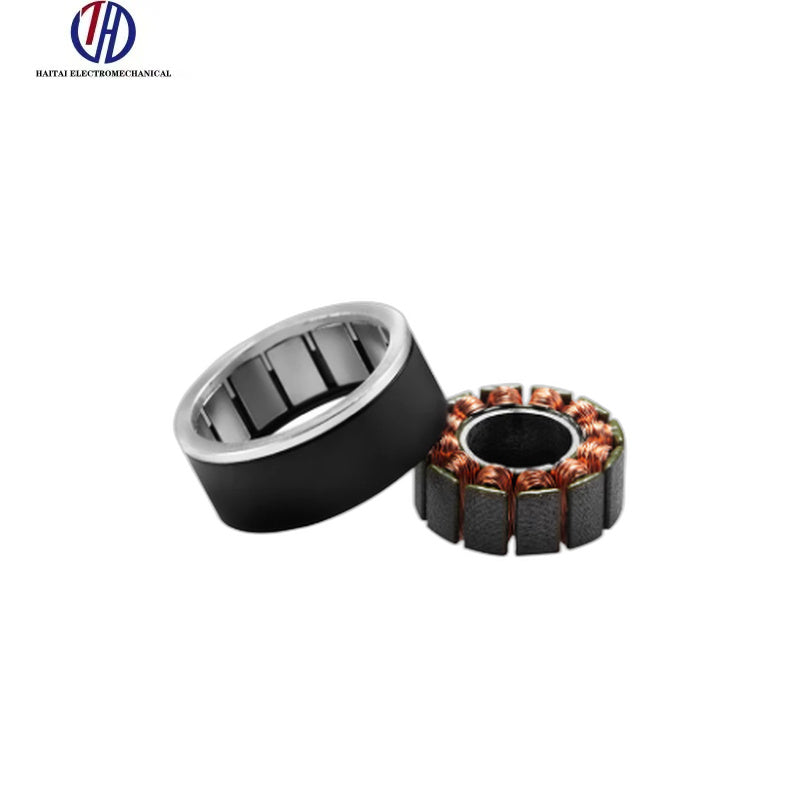

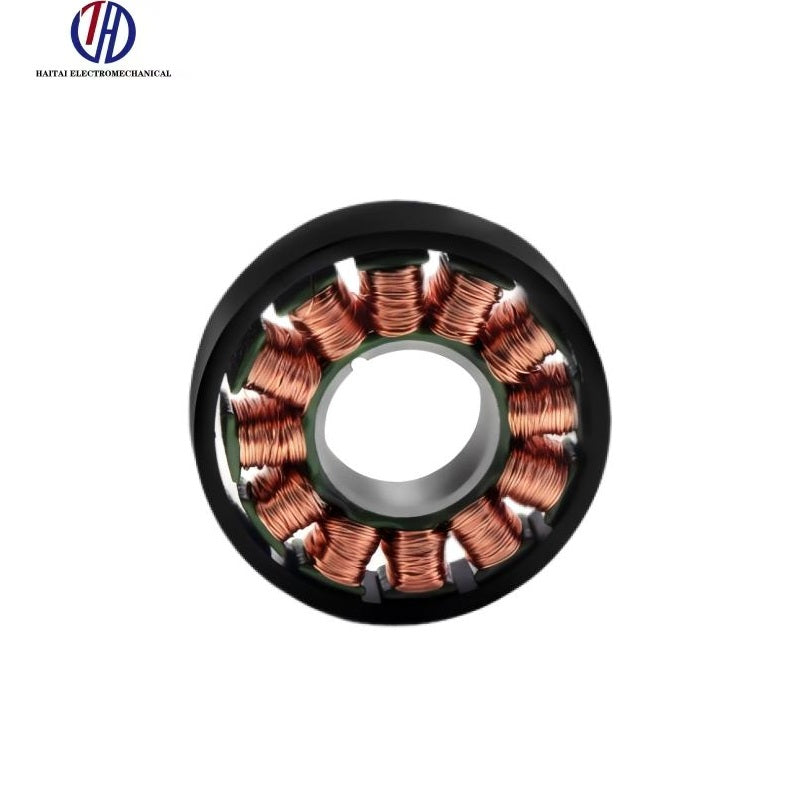

HAITAI WK2205 Motor
Regular price
$30.00
Unit price

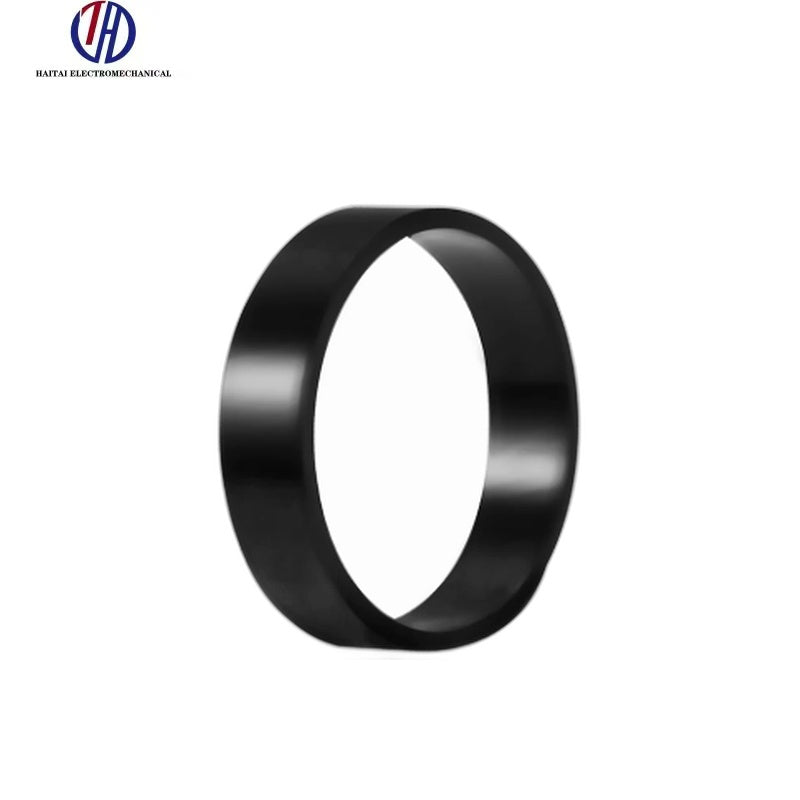

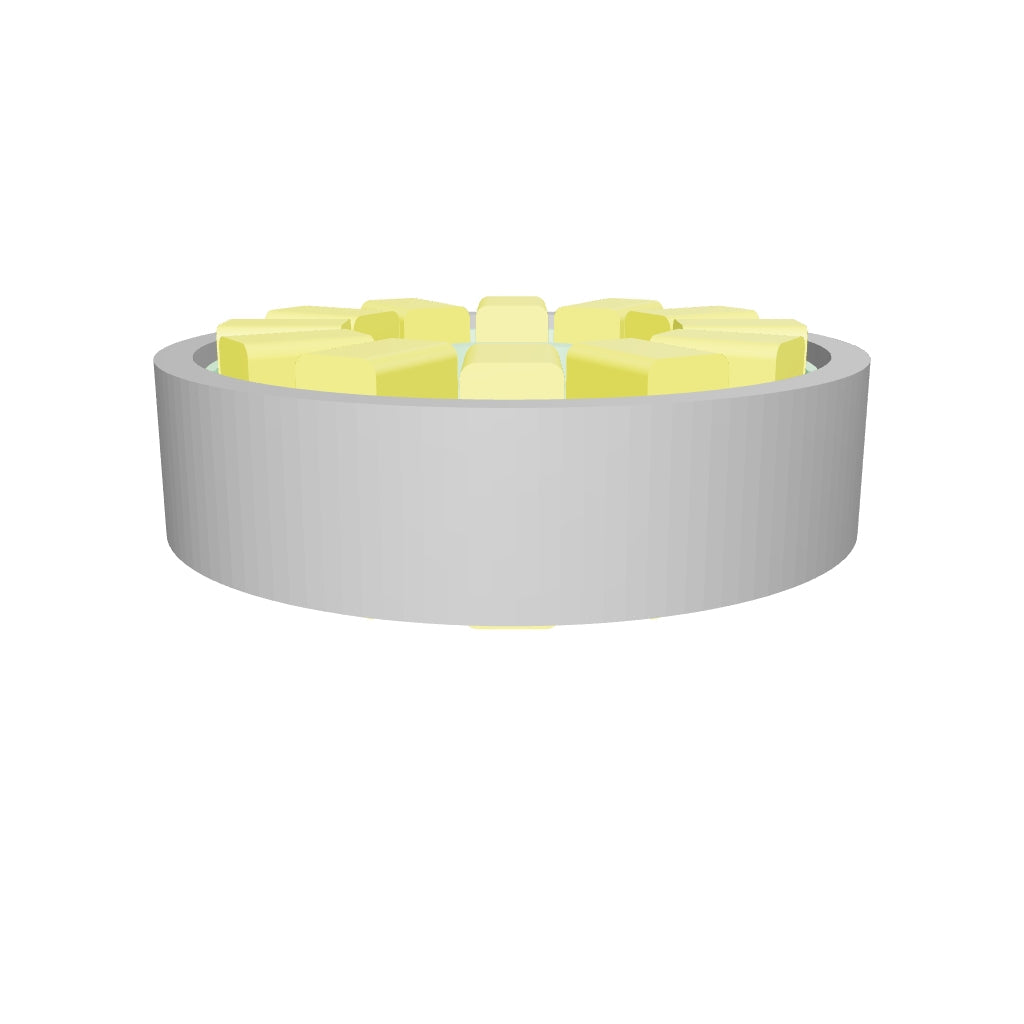

HAITAI WK2205 Motor - WK2205H Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI WK2205 Motor
Regular price
$30.00
Unit price
HAITAI WK2205 Motor - WK2205H Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value (WK2205H / WK2205CH) |
|---|---|
| Nominal Ratings: | |
| Nominal Voltage | 12 V / 12 V |
| Nominal Current | 0.66 A / 0.66 A |
| Nominal Torque | 0.04 N.m / 0.02 N.m |
| Nominal Speed | 792 rpm / 792 rpm |
| Stall & Limit Performance: | |
| Stall Torque | 0.12 N.m / 0.06 N.m |
| Stall Current | 1 A / 1 A |
| Max Speed | 5630 rpm / 5630 rpm |
| Internal Characteristics: | |
| Winding Turns | 65 T / 65 T |
| Phase-to-Phase Resistance | 7.4 Ohm / 7.4 Ohm |
| Phase-to-Phase Inductance | 1.68 mH / 1.68 mH |
| Speed Constant | 469 rpm/V / 469 rpm/V |
| Torque Constant | 0.12 N.m/A / 0.06 N.m/A |
| Rotor Inertia | 9 g.cm2 / 5 g.cm2 |
| Pole Pairs | 7 Pairs / 7 Pairs |
| Physical & Environmental: | |
| Motor Size | Phi 26.3 x 9 mm / Phi 25.3 x 6.2 mm |
| Stator Inner Diameter | 10 mm / 10 mm |
| Motor Weight | 14 g / 12 g |
| Working Temperature Range | -20 ~ +80 deg C |
| Max Demagnetization Temperature | 120 deg C |
