HAITAI | SKU:

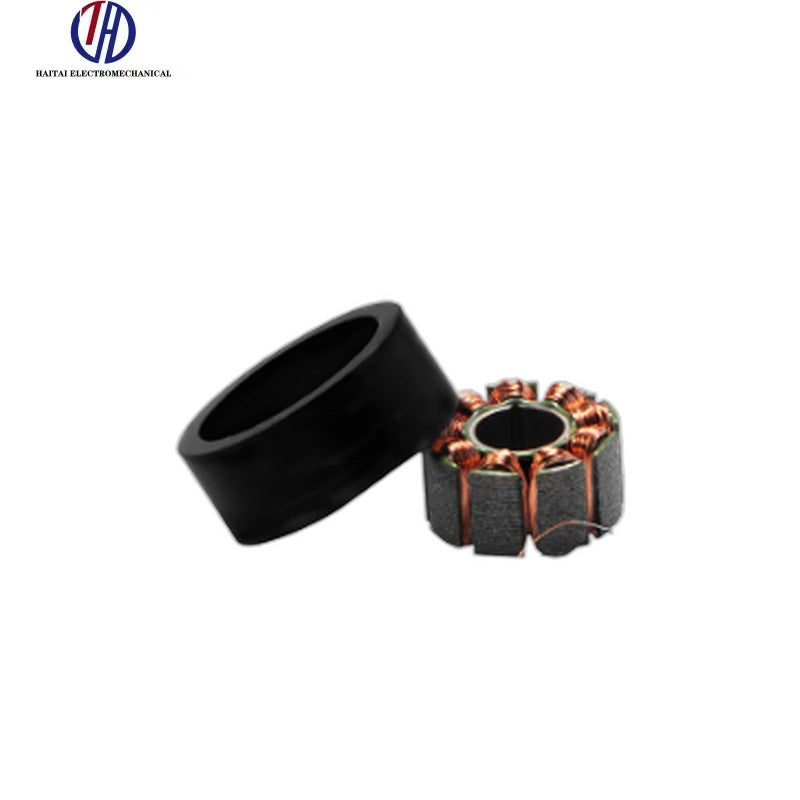

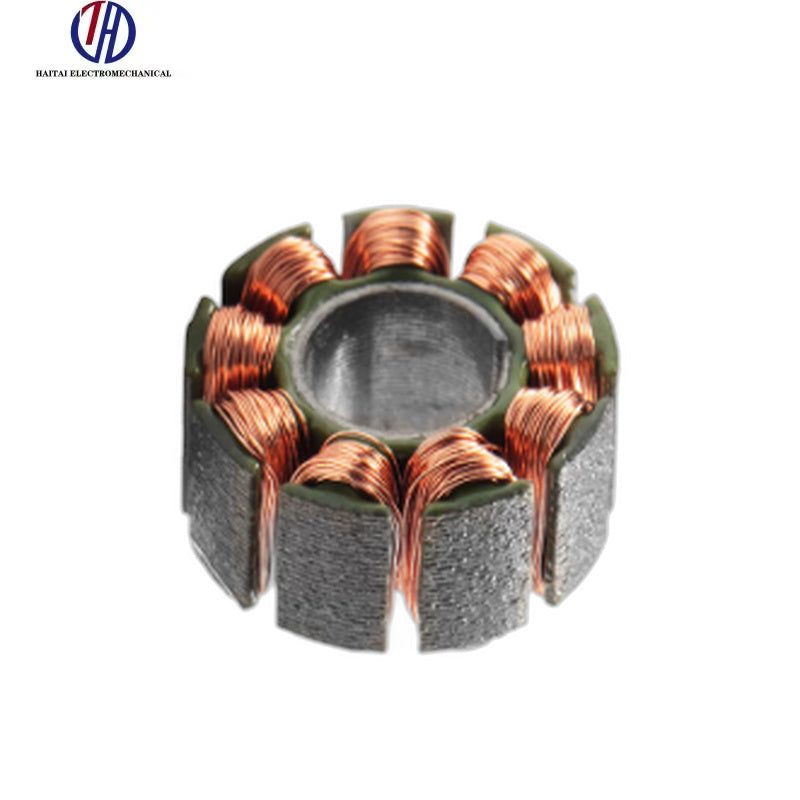

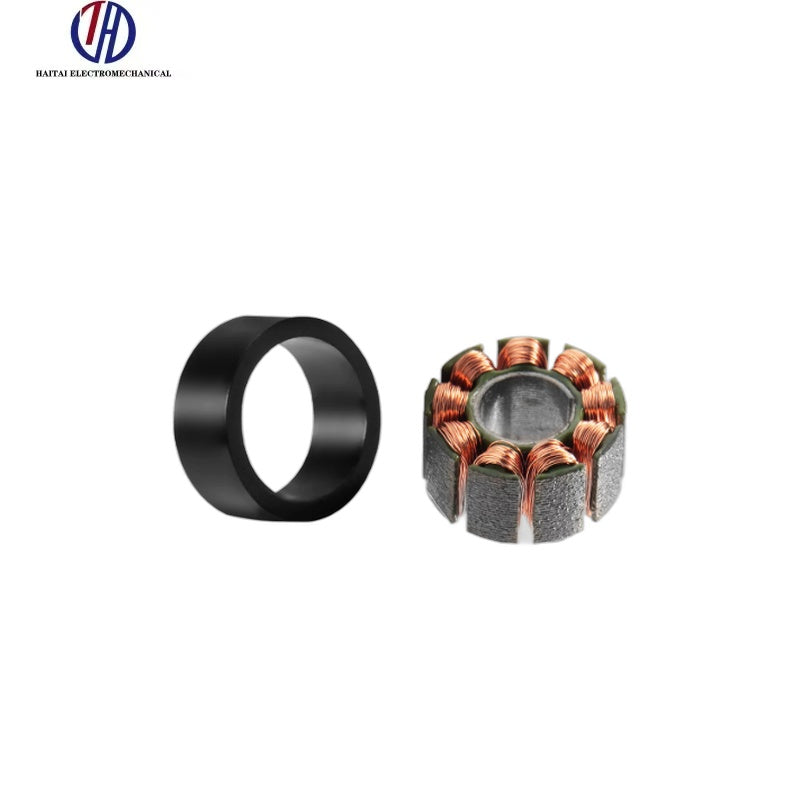

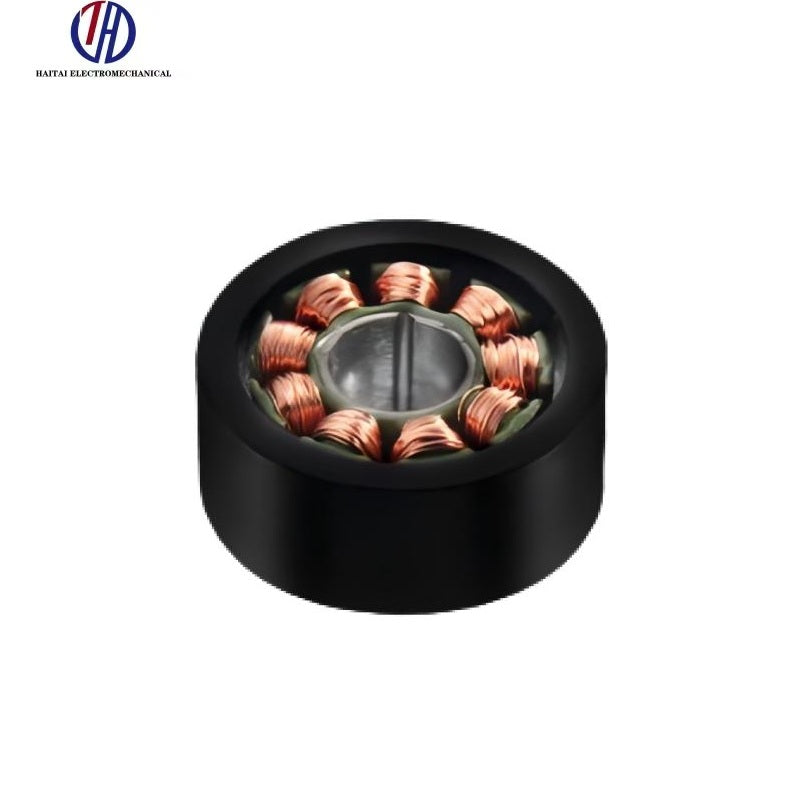

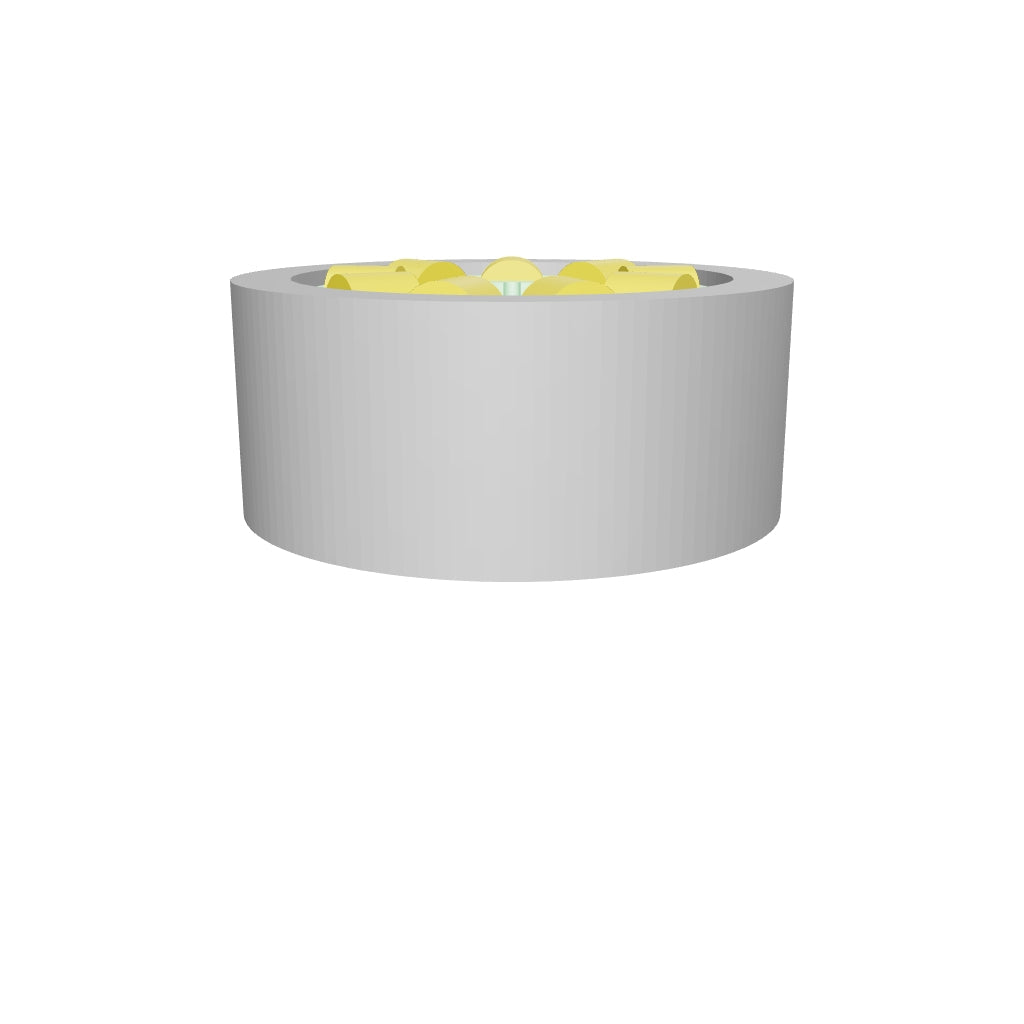

HAITAI WK1105 Motor
Regular price
$25.00
Unit price

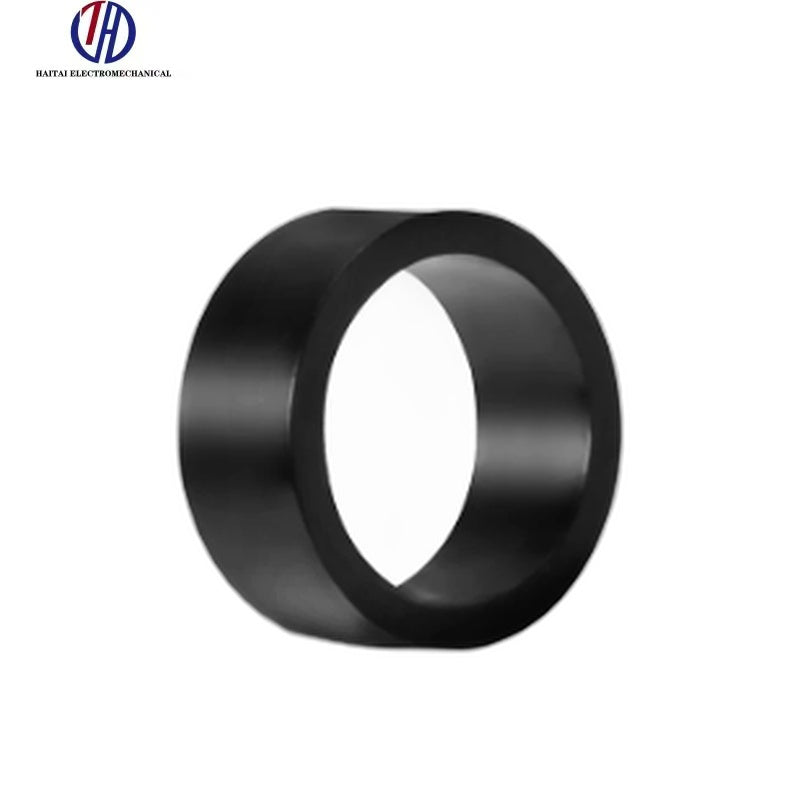

HAITAI WK1105 Motor - WK1105CH Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI WK1105 Motor
Regular price
$25.00
Unit price
HAITAI WK1105 Motor - WK1105CH Magnetic Ring Rotor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Ratings: | |
| Nominal Voltage | 12 V |
| Nominal Current | 0.59 A |
| Nominal Torque | 0.01 N.m |
| Nominal Speed | 850 rpm |
| Stall & Limit Performance: | |
| Stall Torque | 0.01 N.m |
| Stall Current | 0.92 A |
| Max Speed | 18057 rpm |
| Internal Characteristics: | |
| Winding Turns of Motor | 50 T |
| Phase-to-Phase Resistance | 12.5 Ohm |
| Phase-to-Phase Inductance | 1.15 mH |
| Speed Constant | 1505 rpm/V |
| Torque Constant | 0.01 N.m/A |
| Rotor Inertia | 1 g.cm2 |
| Number of Pole Pairs | 6 Pairs |
| Physical & Environmental: | |
| Motor Size | Phi 14.9 x 6.25 mm |
| Inner Diameter of the Stator | 5 mm |
| Weight | 6 g |
| Working Temperature Range | -20 ~ +80 deg C |
| Maximum Demagnetization Temperature | 120 deg C |
