HAITAI | SKU:

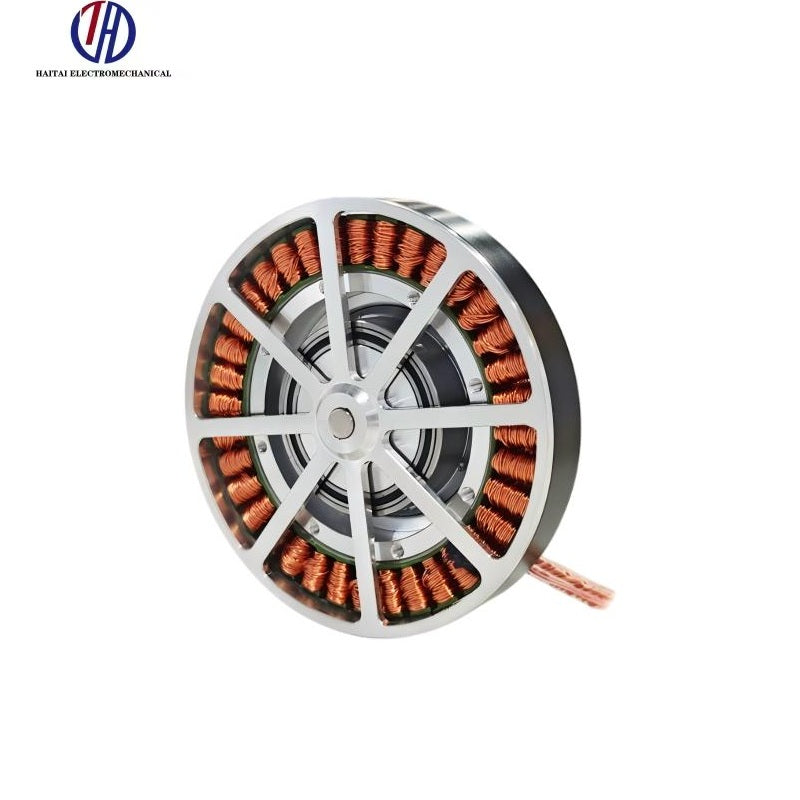

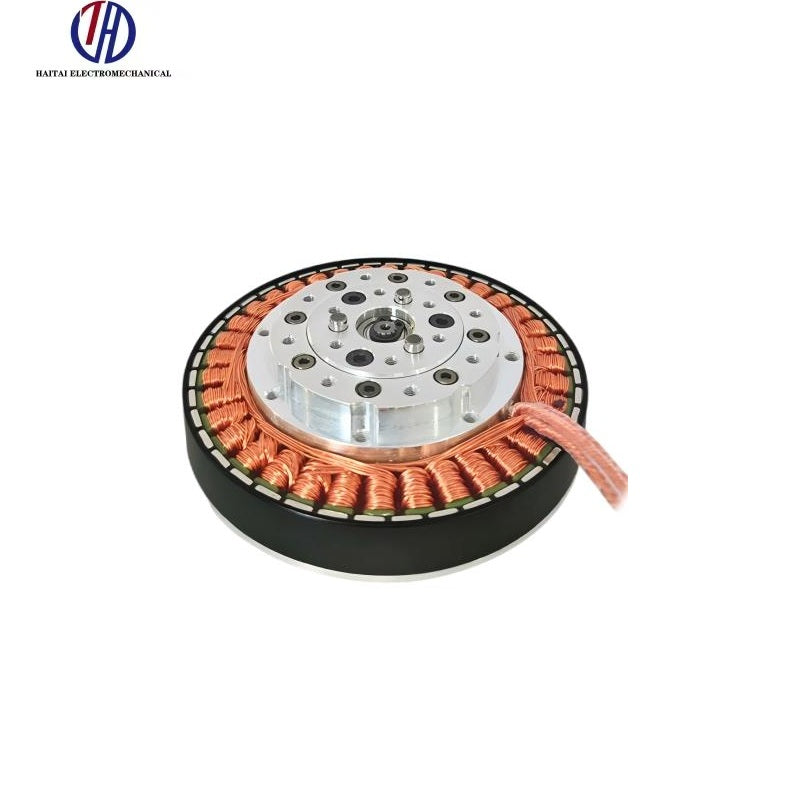

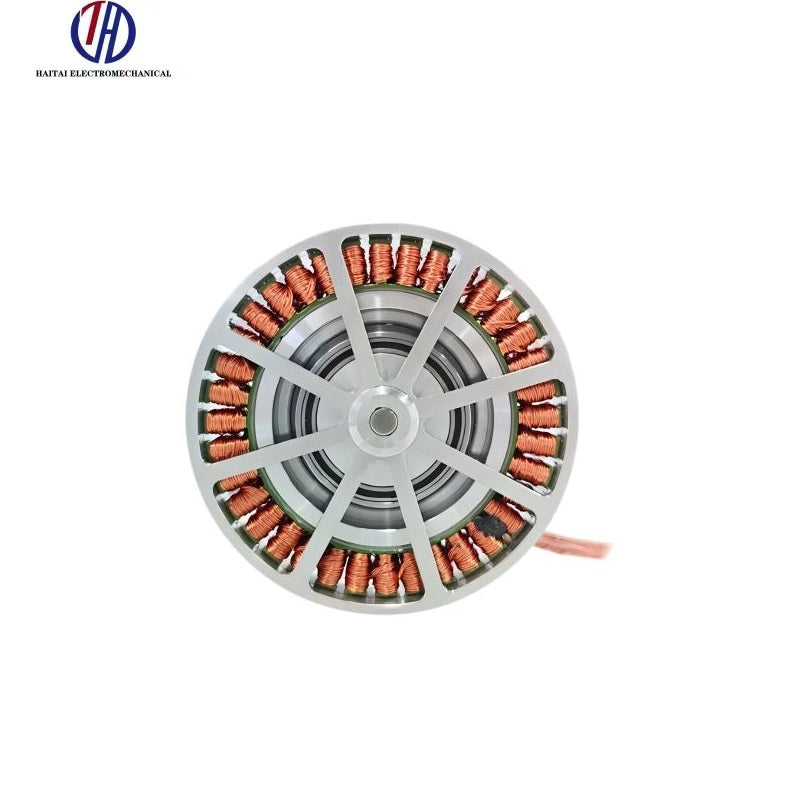

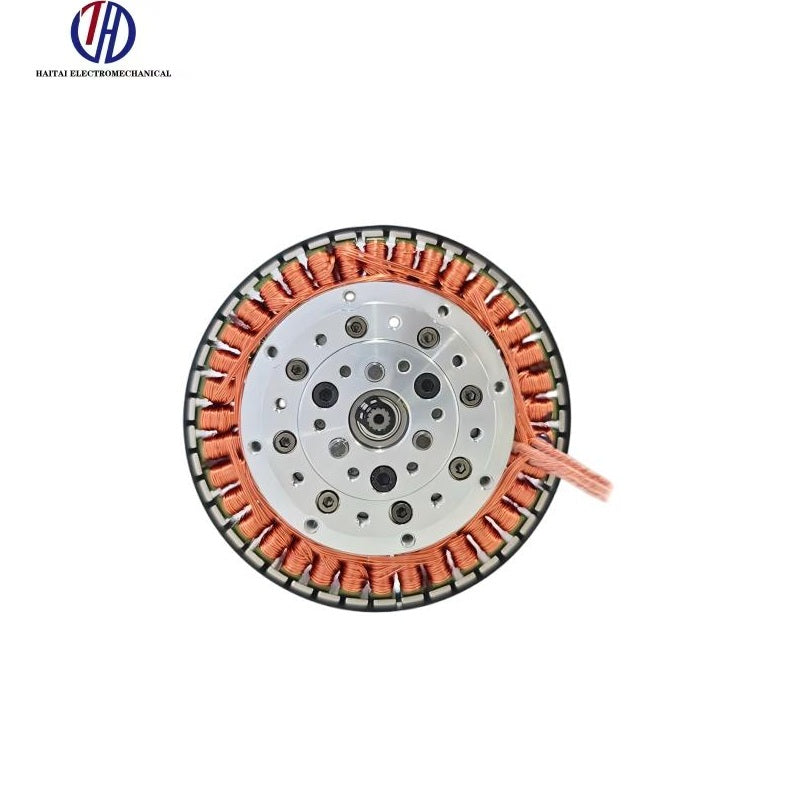

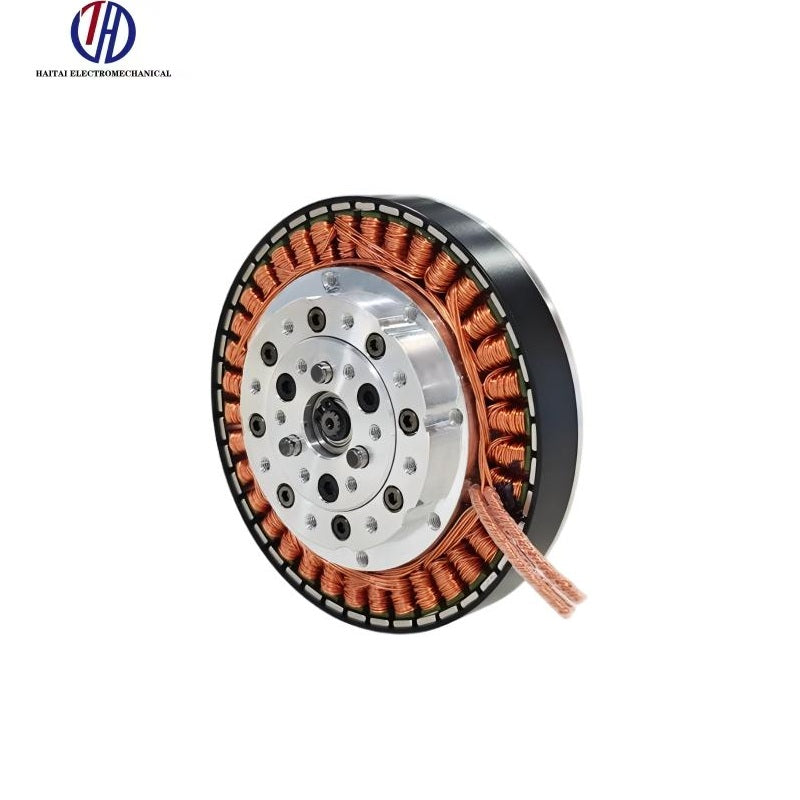

HAITAI HWG8108-J8 Motor
Regular price
$125.00
Unit price
HAITAI HWG8108-J8 Motor - HWG8108-J8 (Motor Without Casing + Planetary Gearbox) / No Drive is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI HWG8108-J8 Motor
Regular priceFrom
$125.00
Unit price
HAITAI HWG8108-J8 Motor - HWG8108-J8 (Motor Without Casing + Planetary Gearbox) / No Drive is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance Ratings: | |
| Voltage Range | 12 ~ 48 V (Test: 24 V) |
| Rated Power | 410 W |
| Rated Torque | 10.2 N.m |
| Peak Torque (Stall Torque) | 24.78 N.m |
| Rated Output Speed (after Reduction) | 288 RPM |
| Max Output Speed (after Reduction) | 390 RPM |
| Rated / Peak Current | 17.1 A / > 60 A |
| Gearbox & Mechanical: | |
| Gear Ratio | 1:8 |
| Gearbox Type | Planetary |
| Reducer Gear Material | Steel |
| Reducer Gear Backlash | 15 arcmin |
| Max Axial / Radial Load | 225 N / 900 N |
| Internal Characteristics: | |
| Phase-to-Phase Resistance / Inductance | 0.06 Ohm / 0.03 mH |
| Speed / Torque Constant | 16.25 rpm/V / 0.6 N.m/A |
| Number of Pole Pairs | 21 pairs |
| Physical & Environmental: | |
| Motor Dimensions (without Driver) | Phi 87 x 25.5 mm |
| Motor Weight (without Driver) | 327.3 g |
| IP Rating | IP54 |
| Operating Temperature Range | -20~+65 deg C |
