HAITAI | SKU:

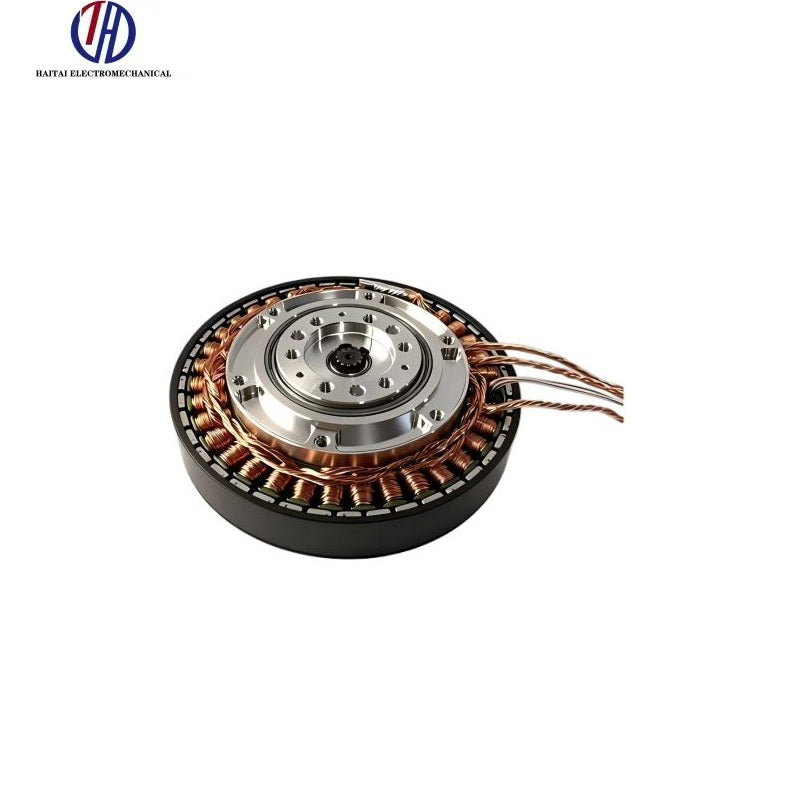

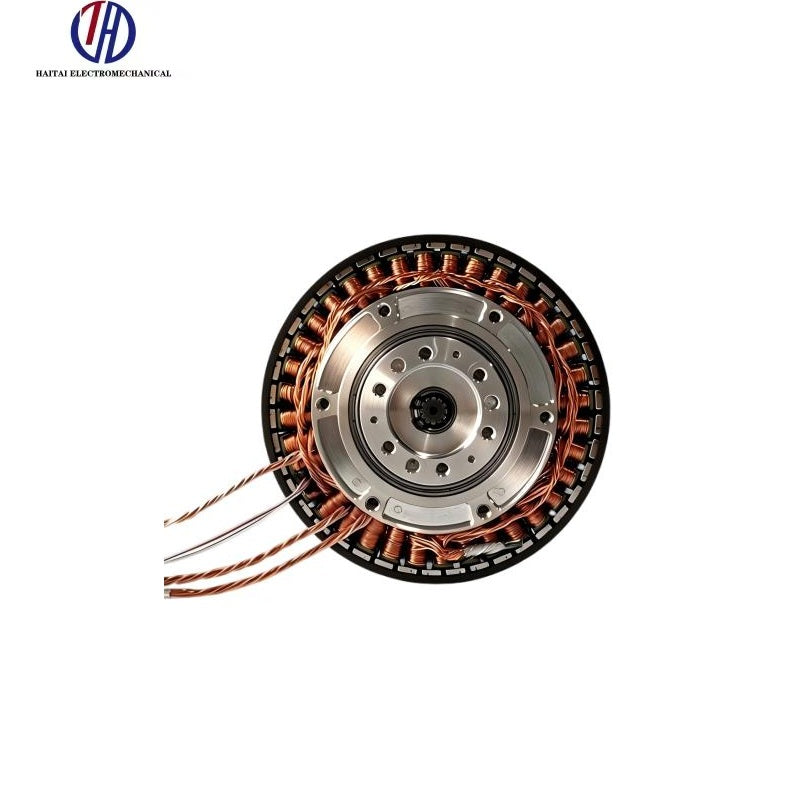

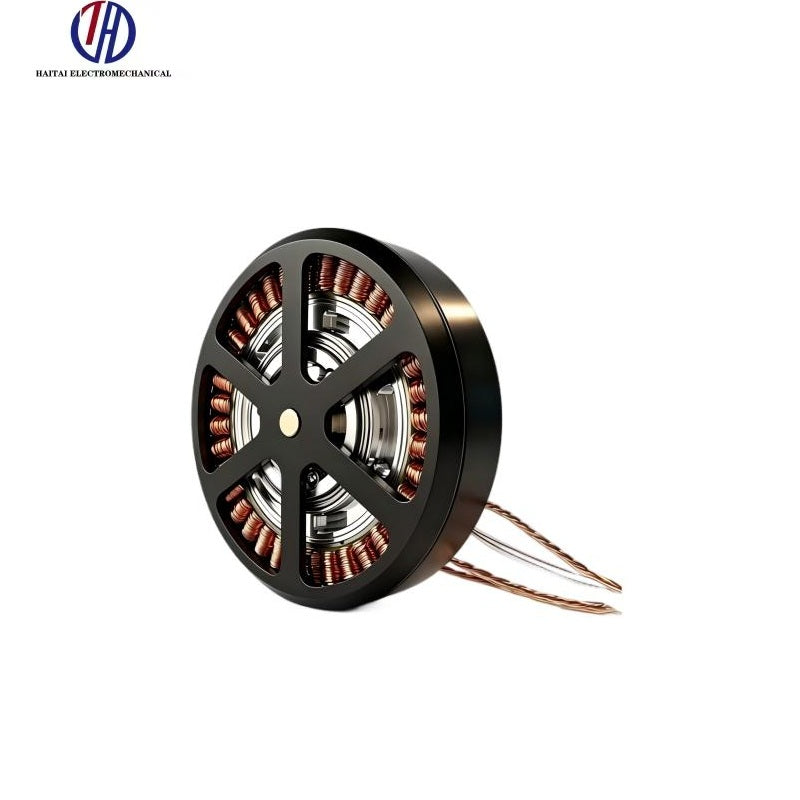

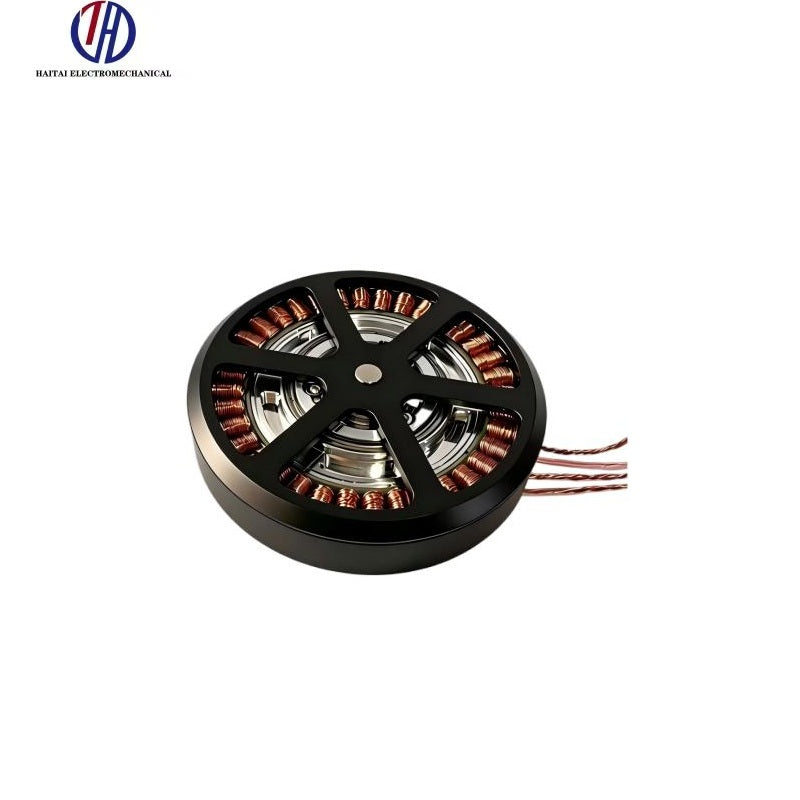

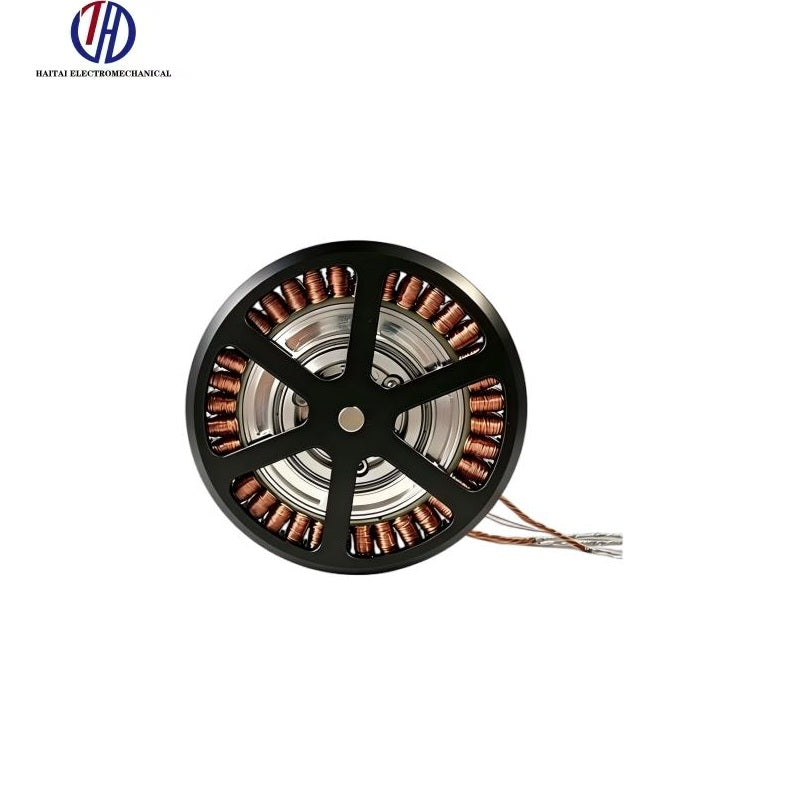

HAITAI HWG7010-J12.5 Motor
Regular price
$150.00
Unit price
HAITAI HWG7010-J12.5 Motor - HWG7010-J12.5 (Motor Without Housing + Reducer) / No Drive is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI HWG7010-J12.5 Motor
Regular priceFrom
$150.00
Unit price
HAITAI HWG7010-J12.5 Motor - HWG7010-J12.5 (Motor Without Housing + Reducer) / No Drive is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance Ratings: | |
| Voltage Range (V) | 12 ~ 48 (Rated: 24 V) |
| Rated Power (W) | 171 |
| Rated Torque (N.m) | 15.8 |
| Stall Torque (Peak Torque) (N.m) | 41.5 |
| Rated Speed after Reduction (RPM) | 146 |
| Max Speed after Reduction (RPM) | 200 |
| Rated / Stall Current (A) | 14 / > 60 |
| Gearbox & Mechanical: | |
| Gear Ratio | 1:12.5 |
| Reducer Type | Planetary |
| Reducer Gear Material | STEEL |
| Reducer Gear Backlash (arcmin) | 15 |
| Max. Axial / Radial Load (N) | 225 / 900 |
| Internal Characteristics: | |
| Line Winding Resistance / Inductance | 0.153 Ohm / 0.0597 mH |
| Speed / Torque Constant | 8.33 rpm/V / 1.65 N.m/A |
| Number of Pole Pairs (Pairs) | 21 |
| Physical & Environmental: | |
| Motor Dimensions (without Driver) (mm) | Phi 73.2 x 23.6 |
| Motor Weight (without Driver) (g) | 300 |
| IP Protection Grade | IP54 |
| Working Temperature Range (deg C) | -20 ~ +65 |
