HAITAI | SKU:

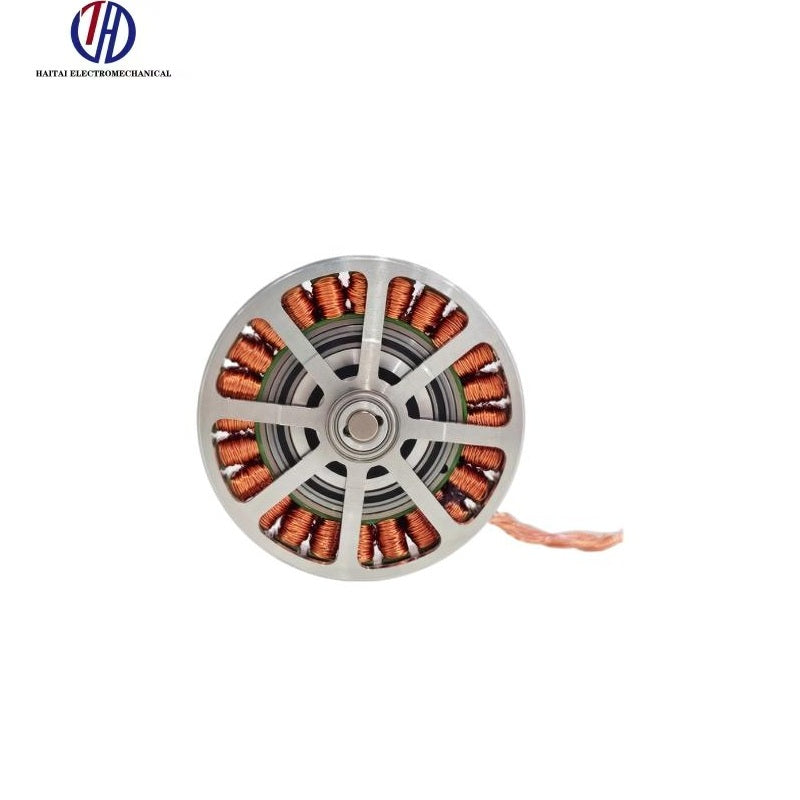

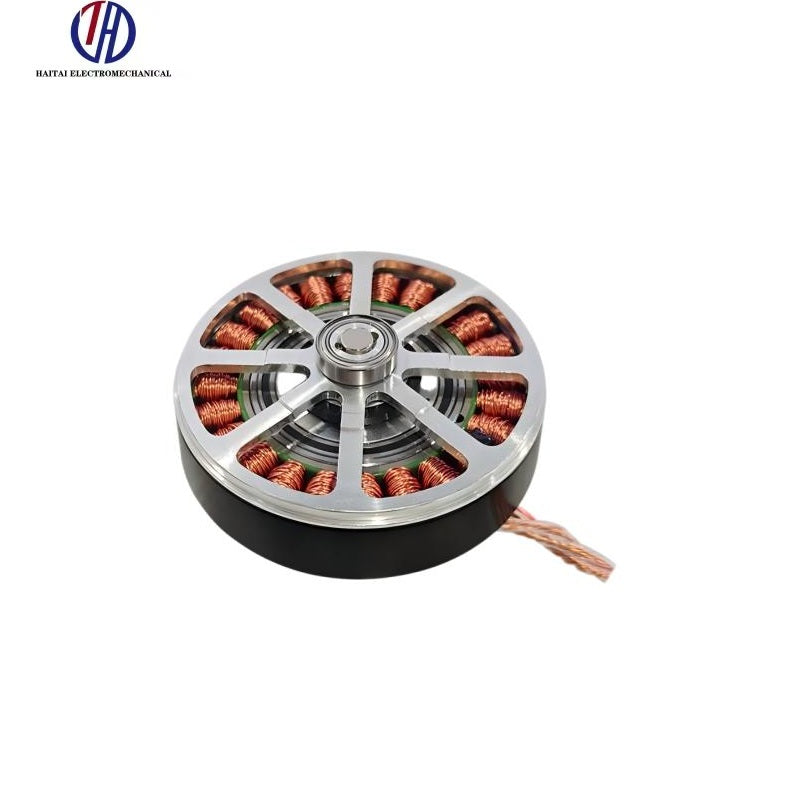

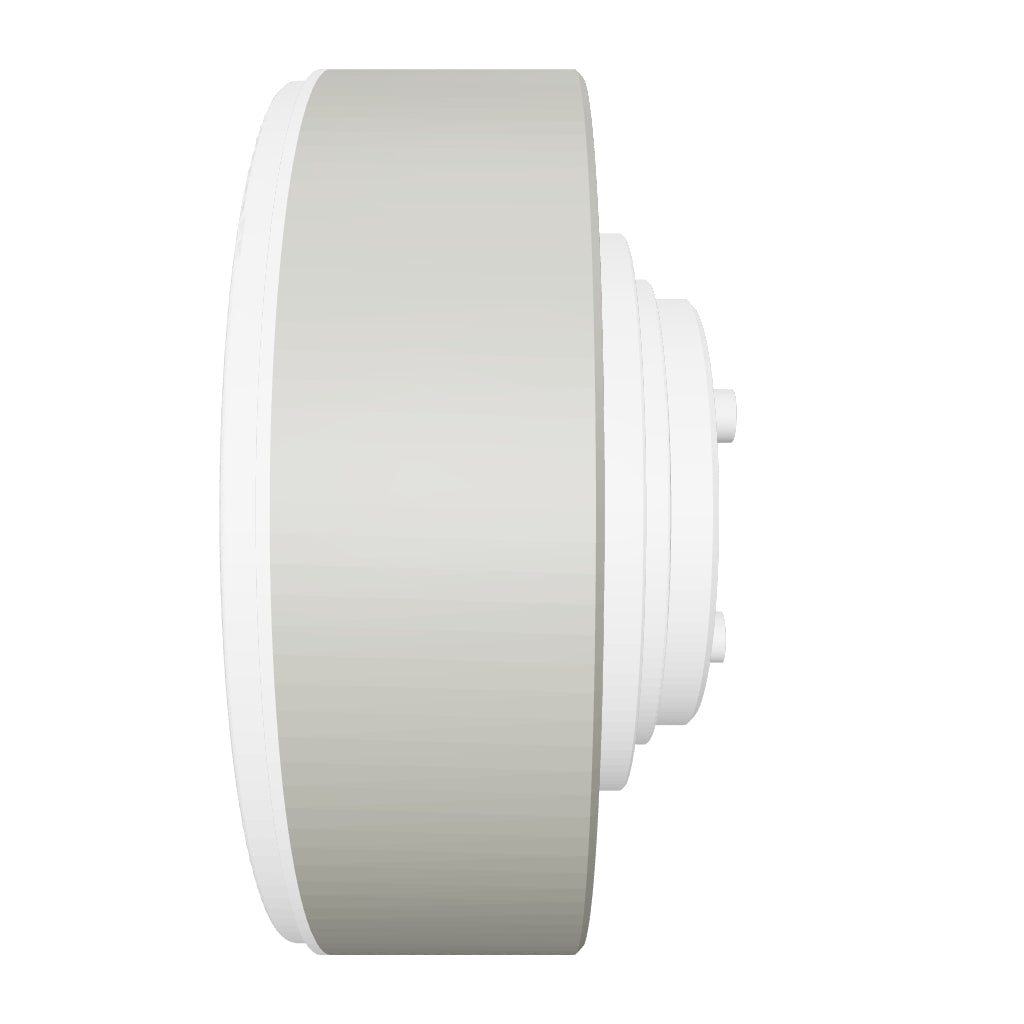

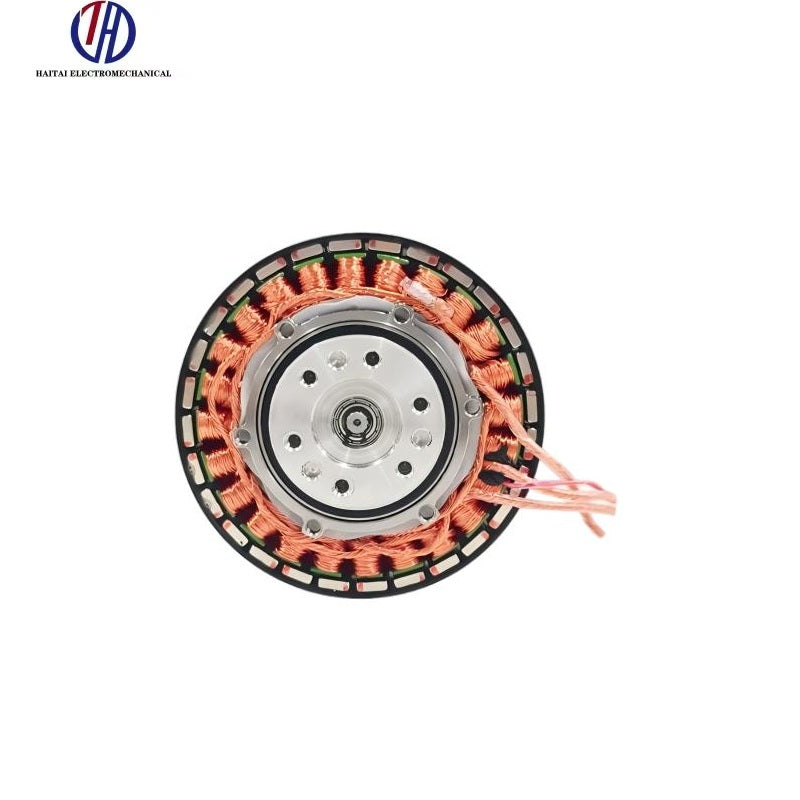

HAITAI HWG6015-J8 Motor
Regular price
$110.00
Unit price
HAITAI HWG6015-J8 Motor - HWG6015-J8 (Motor Without Housing + Reducer) / No Driver is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI HWG6015-J8 Motor
Regular priceFrom
$110.00
Unit price
HAITAI HWG6015-J8 Motor - HWG6015-J8 (Motor Without Housing + Reducer) / No Driver is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance Ratings: | |
| Test Voltage (V) | 24 |
| Rated Power (W) | 334 |
| Rated Torque (N.m) | 9.00 |
| Peak Torque (N.m) | 27.04 |
| Rated Speed after Reduction (RPM) | 271.7 |
| Max Speed after Reduction (RPM) | 377 |
| Rated / Peak Current (A) | 13.90 / >30 |
| Gearbox & Mechanical: | |
| Gear Ratio | 1:8 |
| Gear Type | Planetary |
| Reducer Gear Material | STEEL |
| Reducer Gear Backlash | 15 arcmin |
| Max. Axial / Radial Load (N) | 225 / 900 |
| Internal Characteristics: | |
| Phase-to-Phase Resistance / Inductance | 0.085 Ohm / 0.0437 mH |
| Speed / Torque Constant | 15.71 rpm/V / 0.64 N.m/A |
| Winding Method / Pole Pairs | Y / 14 Pairs |
| Physical & Environmental: | |
| Dimensions (without Driver, mm) | Phi 67.5 x 30 |
| Motor Weight (without Driver, g) | 322.9 |
| Protection Grade | IP54 |
| Working Temperature (deg C) | -20 ~ +65 |
