HAITAI | SKU:

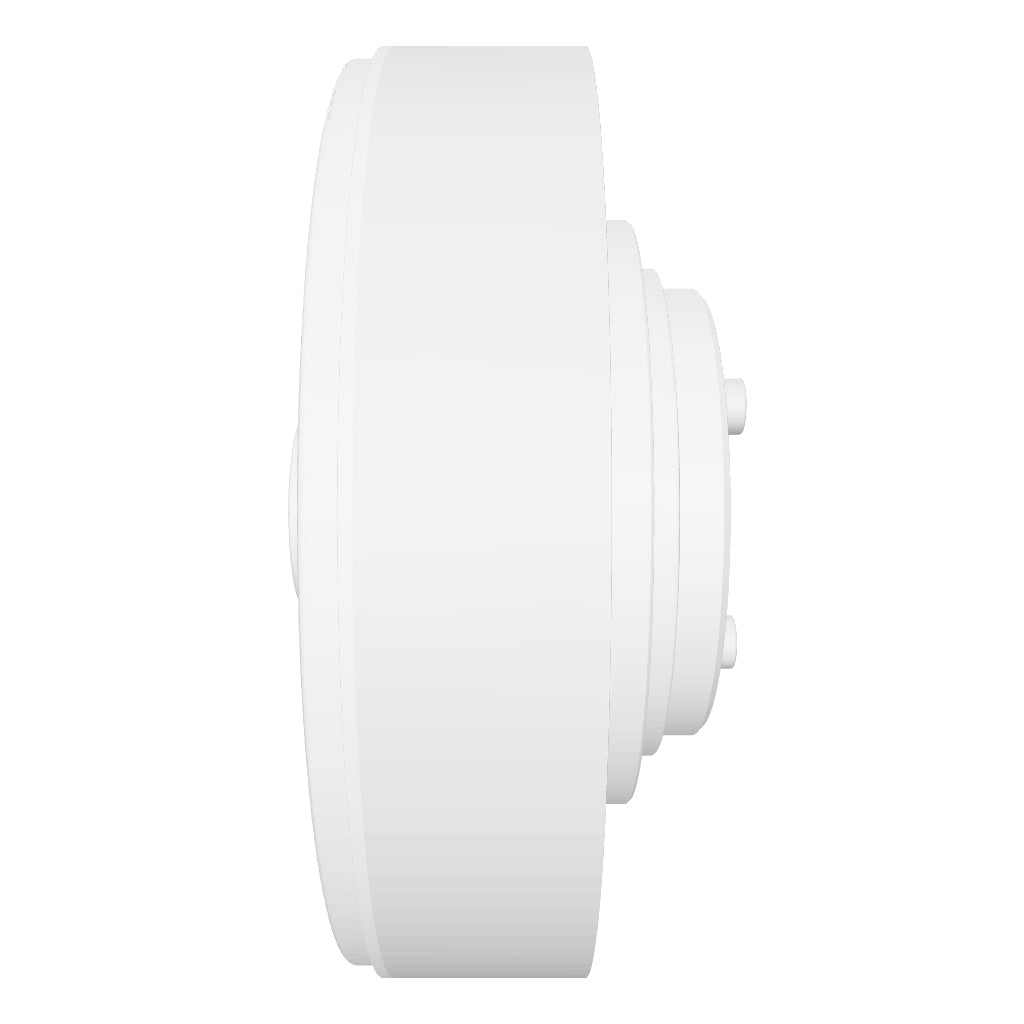

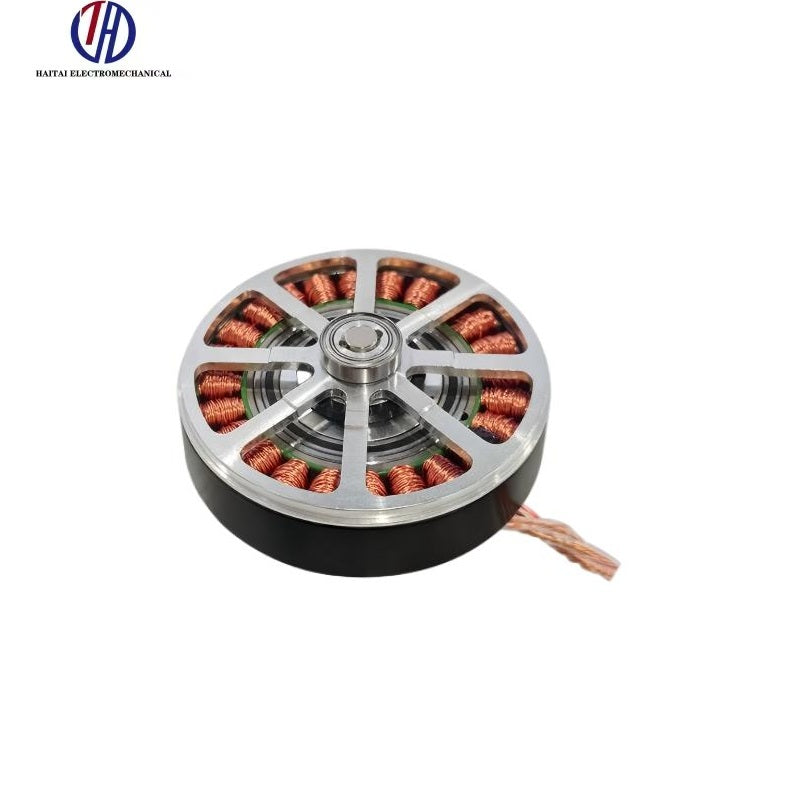

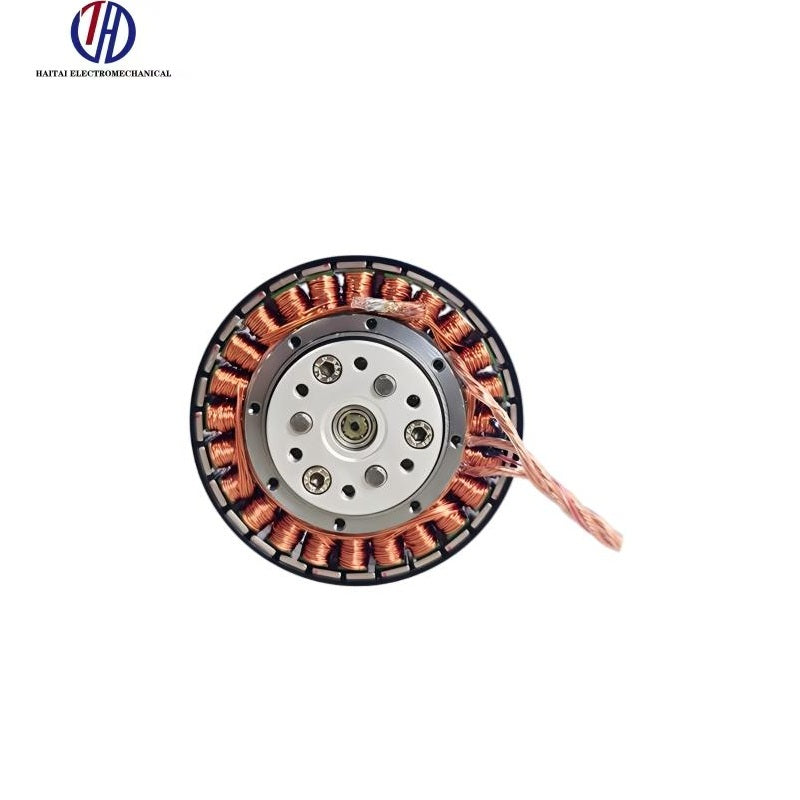

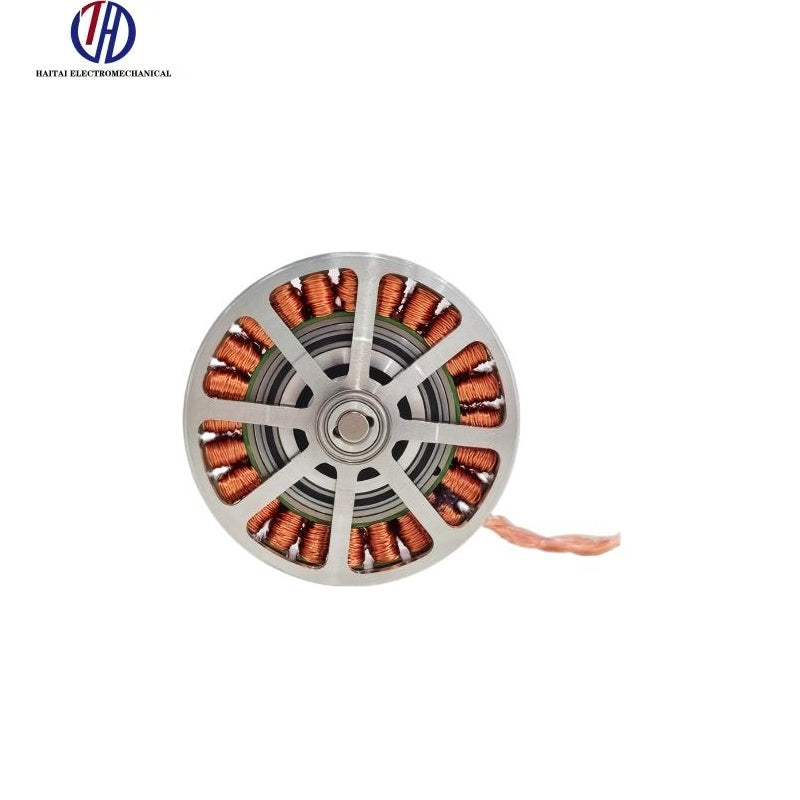

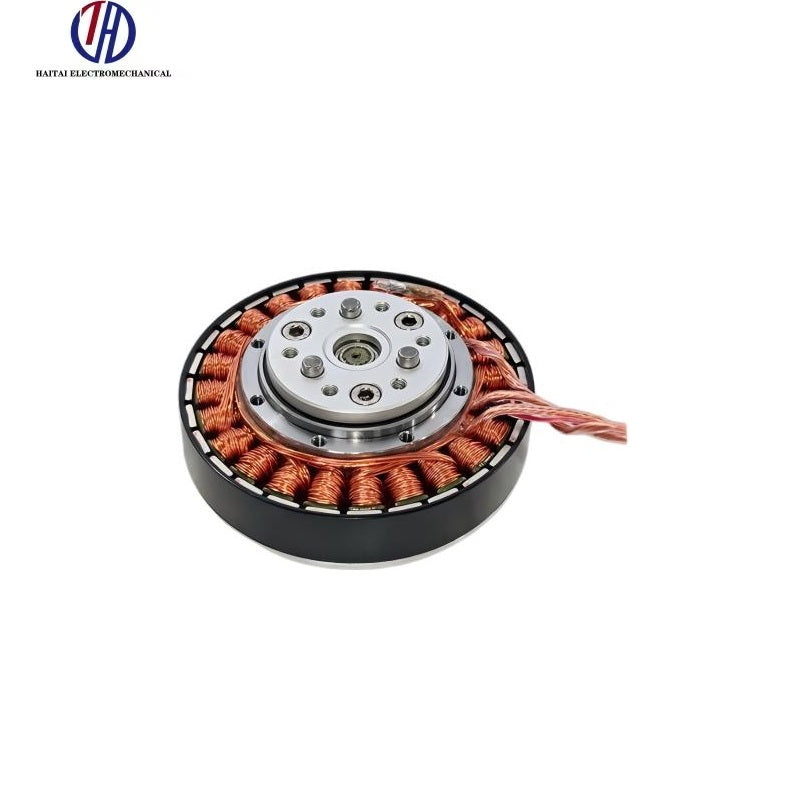

HAITAI HWG6010-J8 Motor
Regular price
$70.00
Unit price
HAITAI HWG6010-J8 Motor - HWG6010-J8 (Motor Without Housing + Reducer) / No Drive is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI HWG6010-J8 Motor
Regular priceFrom
$70.00
Unit price
HAITAI HWG6010-J8 Motor - HWG6010-J8 (Motor Without Housing + Reducer) / No Drive is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance Ratings: | |
| Voltage Range | 12 ~ 48 V (Test: 24 V) |
| Rated Power | 295 W |
| Rated Torque | 5.68 N.m |
| Peak Torque (Stall Torque) | 16.89 N.m |
| Rated Speed after Reduction | 383 RPM |
| Max. Speed after Reduction | 520 RPM |
| Rated / Peak Current | 12.30 A / > 30 A |
| Gearbox & Mechanical: | |
| Gear Ratio | 1:8 |
| Gearbox Type | Planetary |
| Reducer Gear Material | Steel |
| Reducer Gear Backlash | 15 arcmin |
| Max. Axial / Radial Load | 225 N / 900 N |
| Internal Characteristics: | |
| Phase-to-Phase Resistance / Inductance | 0.85 Ohm / 0.04 mH |
| Speed / Torque Constant | 21.67 rpm/V / 0.39 N.m/A |
| Number of Pole Pairs | 14 pairs |
| Physical & Environmental: | |
| Motor Dimensions (without Driver) | Ø67.5 x 30.5 mm |
| Motor Weight (without Driver) | 260.5 g |
| Ingress Protection (IP) Rating | IP54 |
| Operating Temperature Range | -20 ~ +65 deg C |
