HAITAI

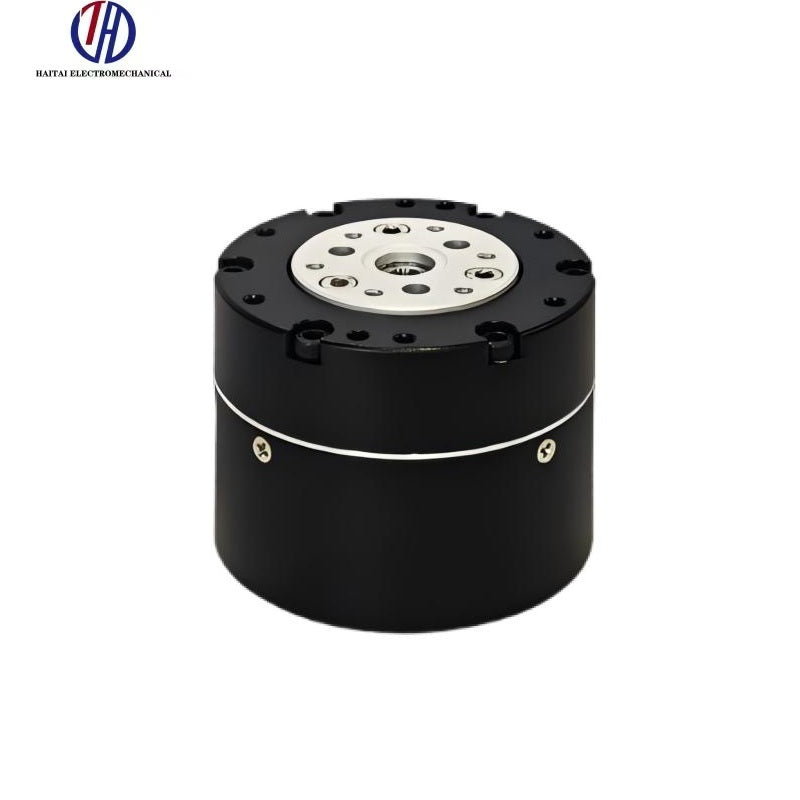

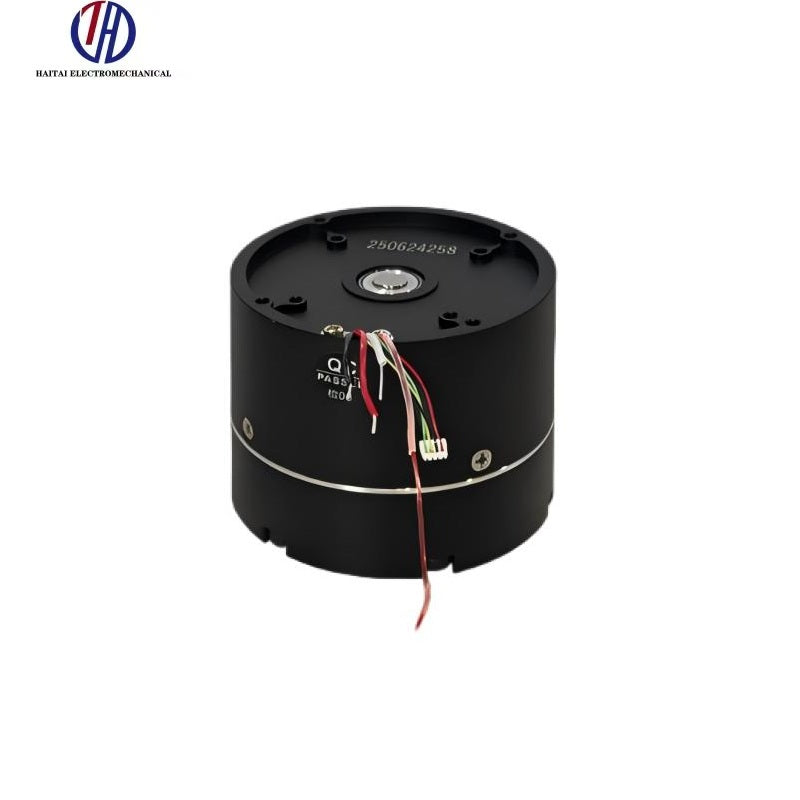

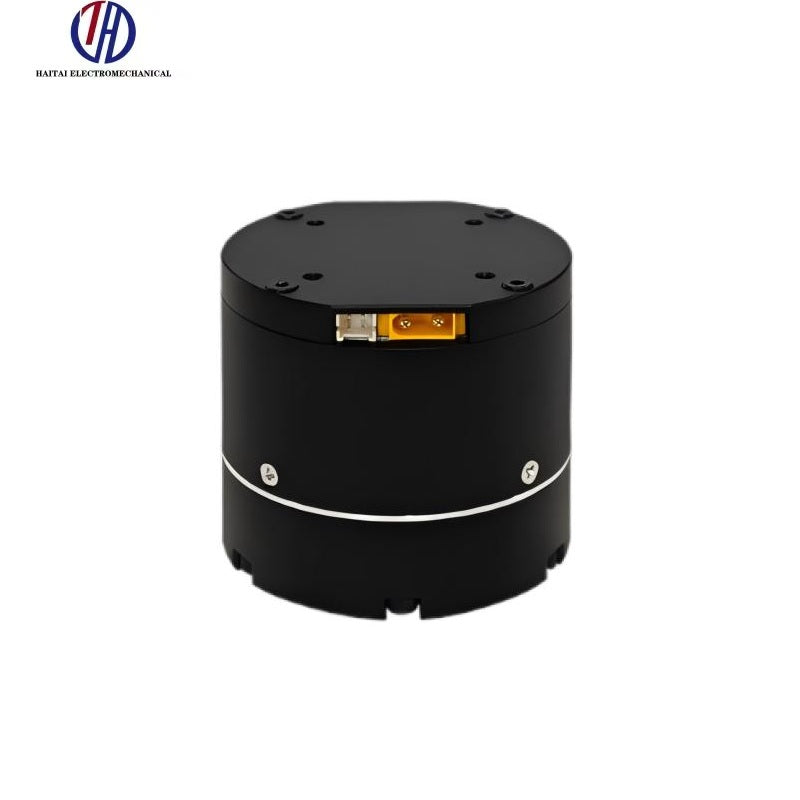

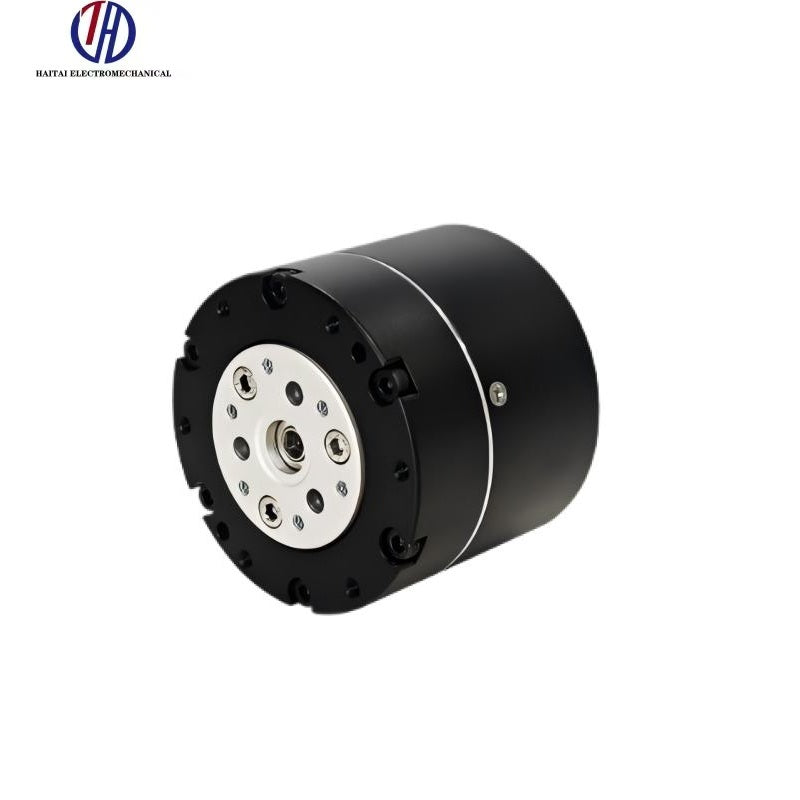

HAITAI HT4310-J40-2E Motor

$160.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Nominal Ratings:
Nominal Voltage 24 V
Power 89 W
Nominal Torque 8.5 N.m
Stall Torque 30.59 N.m
Nominal Speed after Reduction 70 RPM
Max Speed after Reduction 86 RPM
Nominal Current 3.7 A
Stall Current 17.1 A
Gearbox & Mechanical:
Gear Ratio 40:1
Gearbox Type Planetary
Reducer Gear Material STEEL
Reducer Gear Backlash 15 arcmin
Motor Weight (with Driver) 364.5 g
Motor Dimensions (with Driver) OD 57 x 56 mm
Max Axial / Radial Load 125 N / 500 N
Internal Characteristics:
Phase-to-Phase Resistance / Inductance 0.27 Ohm / 0.8 mH
Speed / Torque Constant 3.58 rpm/V / 1.79 N.m/A
On-board Encoder Resolution 14 Bit
Number of Pole Pairs 14 Pairs
Electrical & Environmental:
Driver Model / Communication ZY3.02 / CAN & RS485
Voltage Range 12~40 V
Motor Protection Grade IP54
Working Temperature Range -20~+80 deg C
Noise Level < 60 dB
Second Encoder / Brake Support YES / Custom Support
