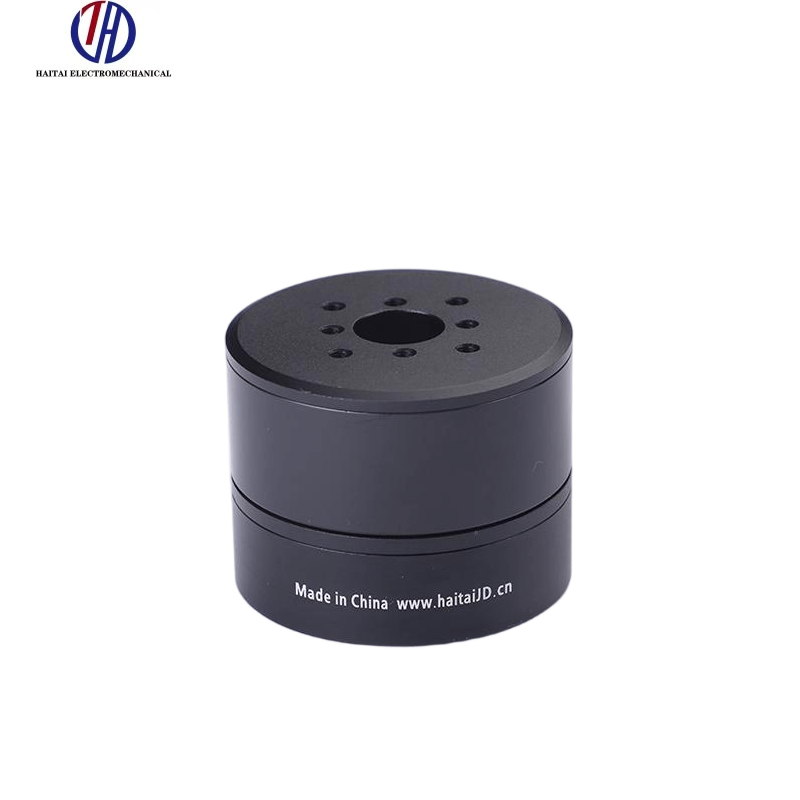

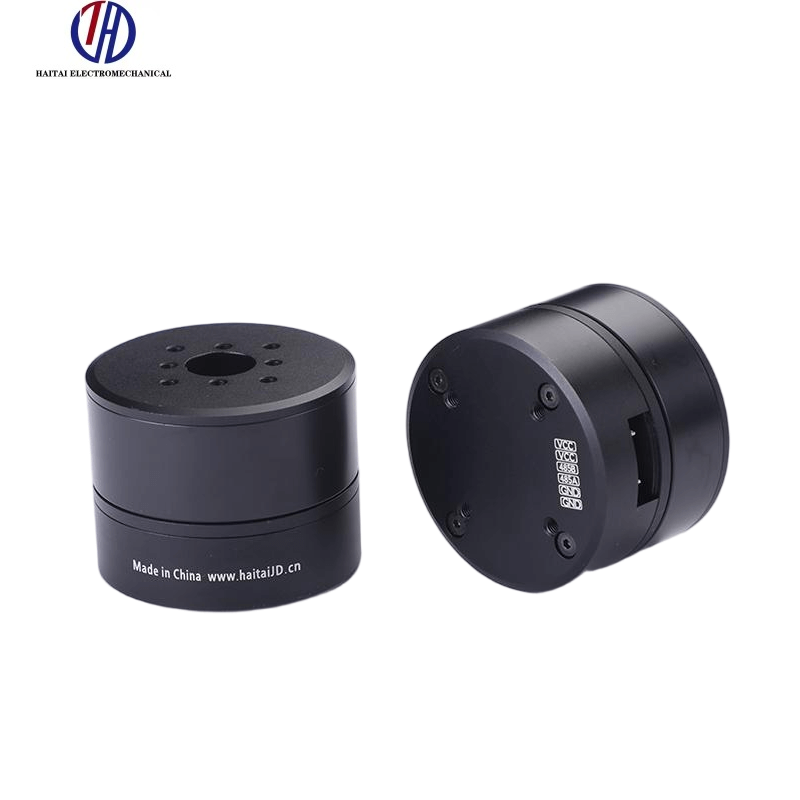

HAITAI HT-S-4310 Motor

$100.00

Version

HT-S-4310 Inculde Driver (RS485)

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Turns	60
Wire Diameter*Strands	0.21mm
Nominal Voltage	24V
Nominal Current	0.97A
Nominal Torque	0.25N.M
Nominal Speed	600rpm
Max No-load Speed	1090rpm
Stall Torque	0.37N.M
Stall Current	1.8A
Line Resistance	11.2Ω
Wiring Connection	Y
Phase to Phase Inductance	5.32mH
Speed Constant	29rpm/v
Torque Constant	0.3N.M/A
Rotor Inertia	202gcm^2
Number of Pole Pairs	14Pairs
Motor Weight	150g

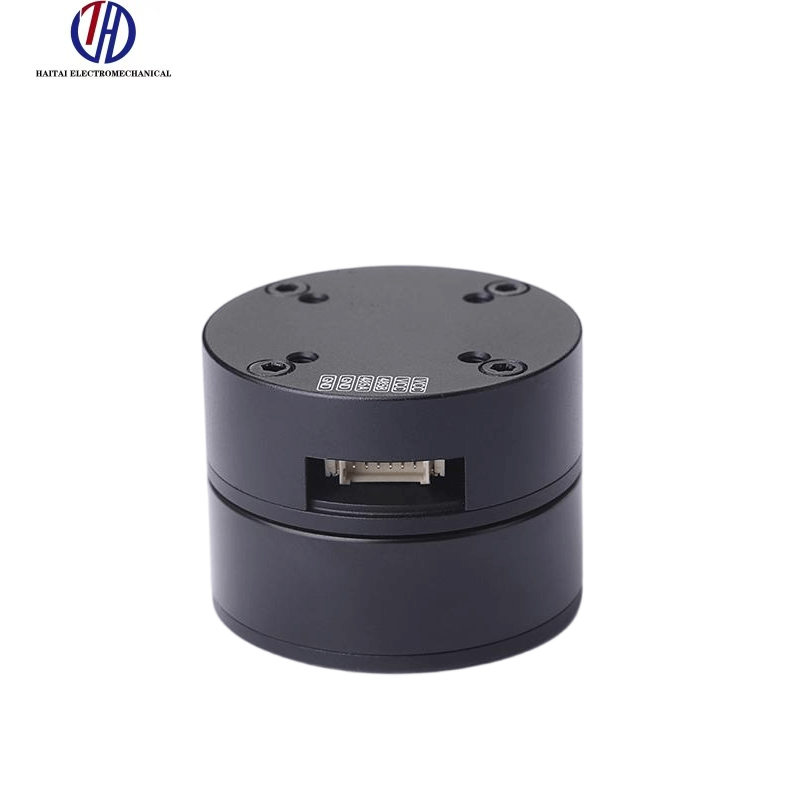

Connector	ZH1.25/6Pin
Drive Input Voltage Range	12-24V
Drive Current Range	0.01-1.8A
Communication	RS485
Encoder Resolution	14-bit/0.022°
Control Modes	Torque Mode (Open Loop) Speed Mode Position Mode
Working Temperature	-40°C to 85°C
Max Demagnetize Temperature	120°C
