ENVO EM-HA-60 Motor
Regular price
$630.00
Unit price
ENVO EM-HA-60 Motor - EM-HA-60 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

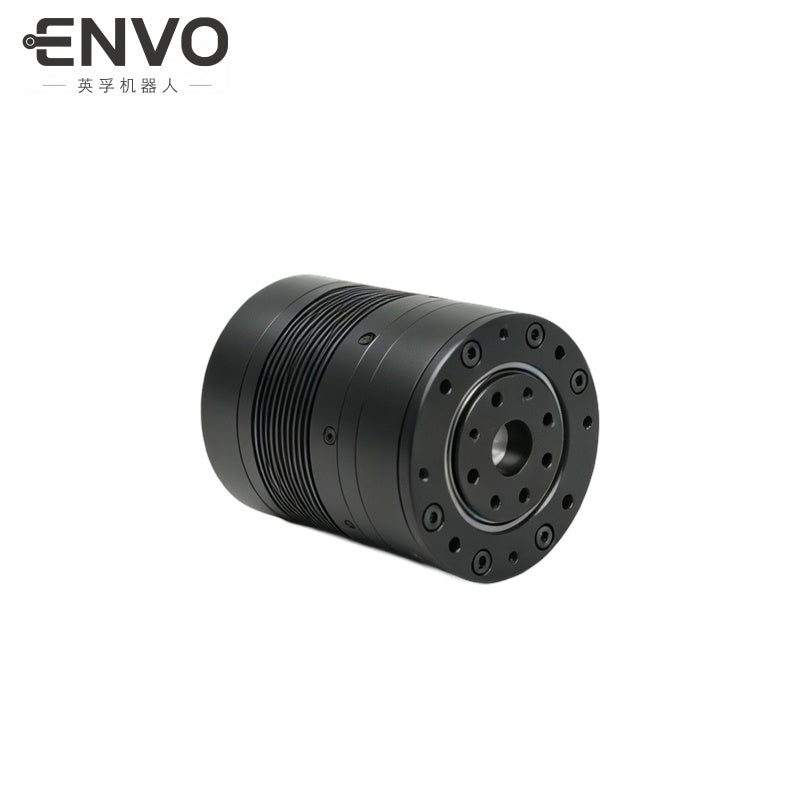

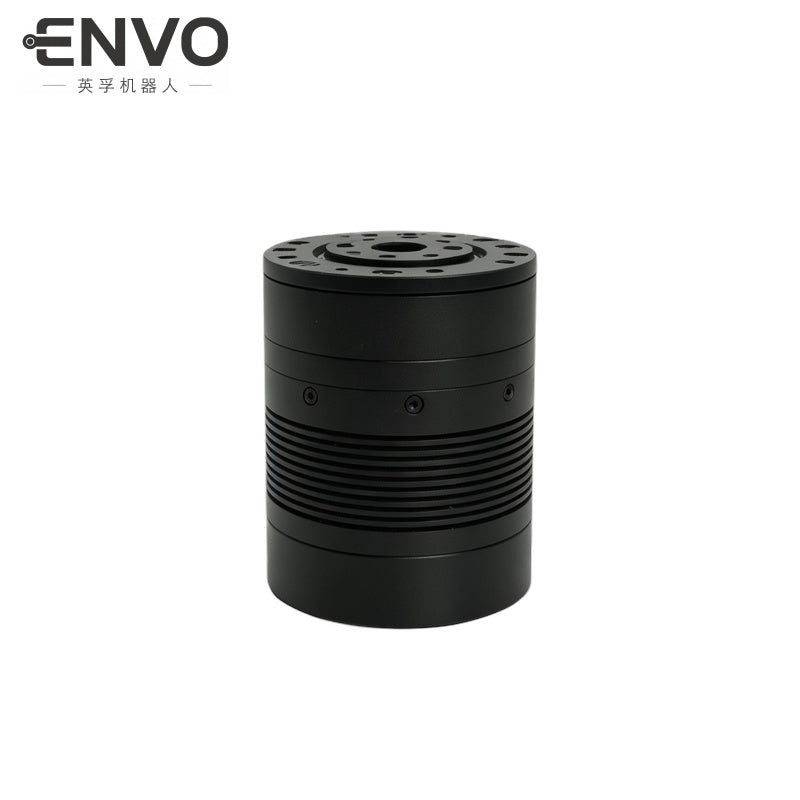

ENVO EM-HA-60 Motor
Regular price
$630.00
Unit price
ENVO EM-HA-60 Motor - EM-HA-60 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Module Model | HA-60 |
| Reduction Ratio | 100 |
| Reducer Backlash | 0.33 arcmin |
| Input Voltage | 48 V |
| Operating Voltage Range | 16–58 V |
| Rated Current | 4 Arms |
| Peak Current | 12 Arms |
| Rated Torque | 15.7 N·m |
| Peak Torque | 35.7 N·m |
| Rated Speed | 20 rpm |
| Maximum Speed | 45 rpm |
| Dimensions (Outer Diameter × Axial Length) | Φ60 × 74 mm |
| Weight | 530 g |
