ENVO | SKU:

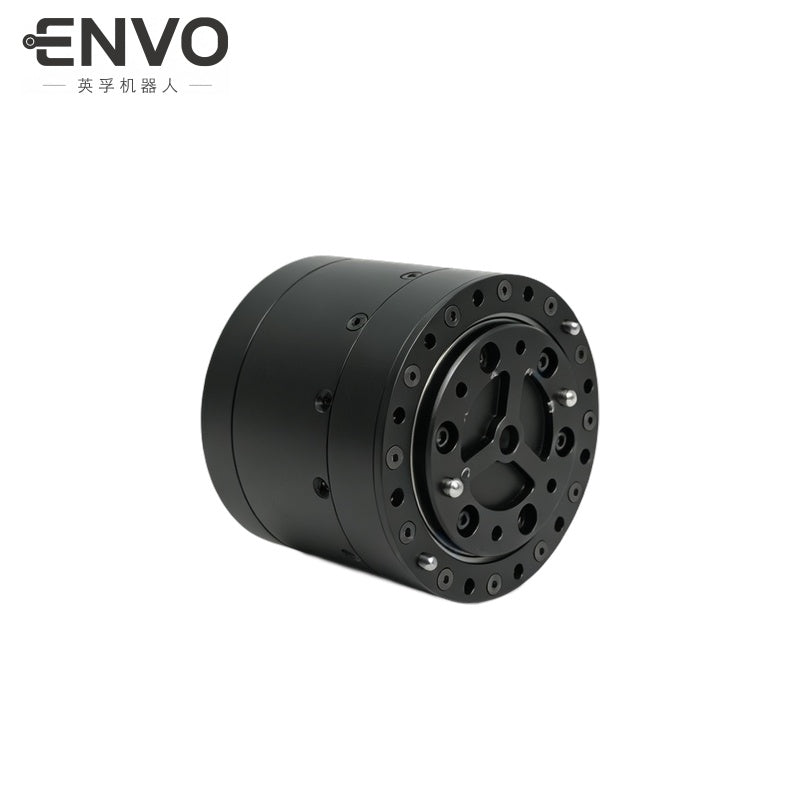

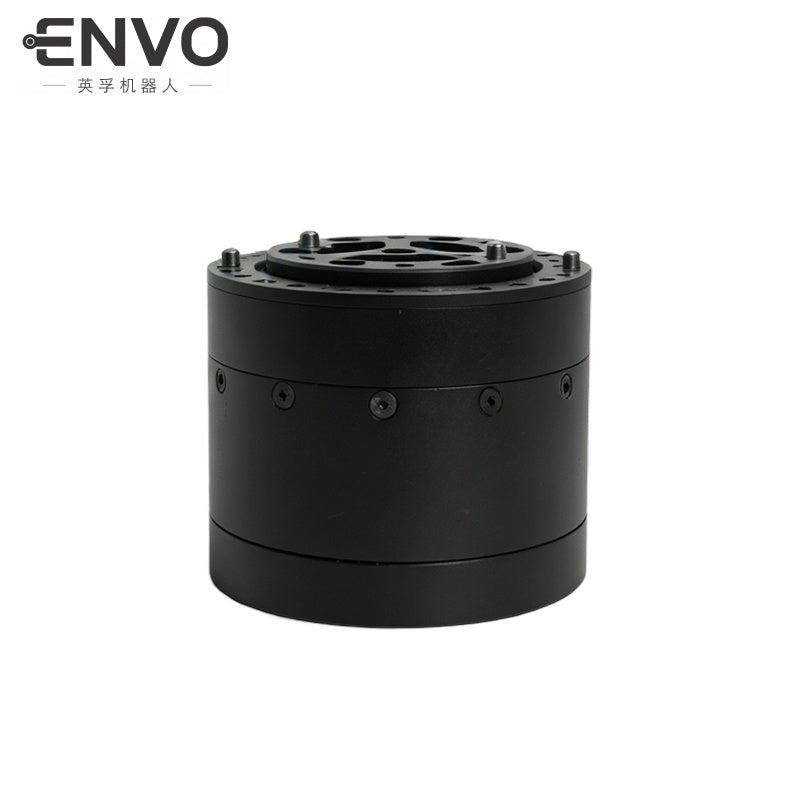

ENVO EM-CA-89 Motor
Regular price
$880.00
Unit price
ENVO EM-CA-89 Motor - EM-CA-89 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ENVO EM-CA-89 Motor
Regular price
$880.00
Unit price
ENVO EM-CA-89 Motor - EM-CA-89 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Module Model | CA-89 |
| Reduction Ratio | 29 |
| Reducer Backlash | 6 arcmin |
| Input Voltage | 48 V |
| Operating Voltage Range | 24–55 V |
| Rated Current | 6.6 A RMS |
| Peak Current | 19.5 A RMS |
| Rated Torque | 25 N·m |
| Peak Torque | 95 N·m |
| Rated Speed | 83 rpm |
| Maximum Speed | 101 rpm |
| Dimensions (Outer Diameter × Axial Length) | Φ89 × 76.5 mm |
| Weight | 1320 g |
