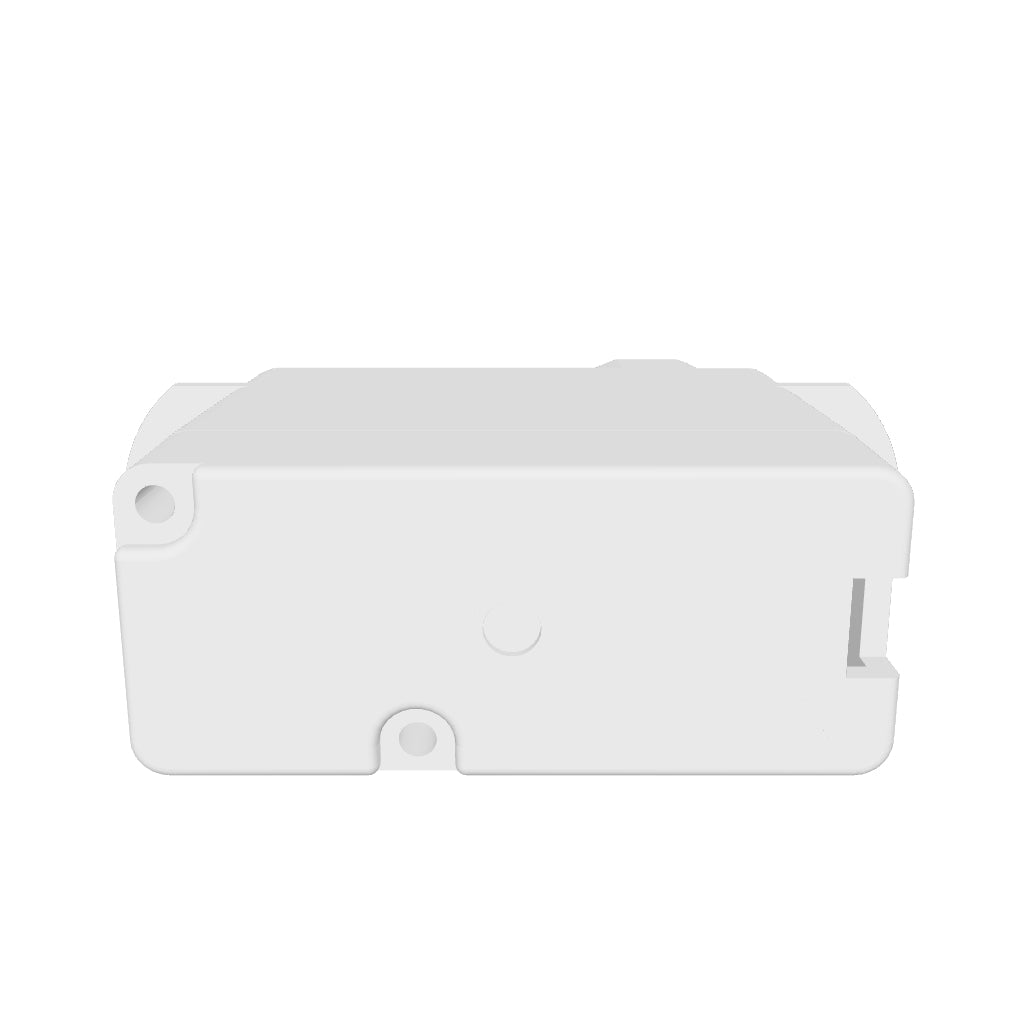

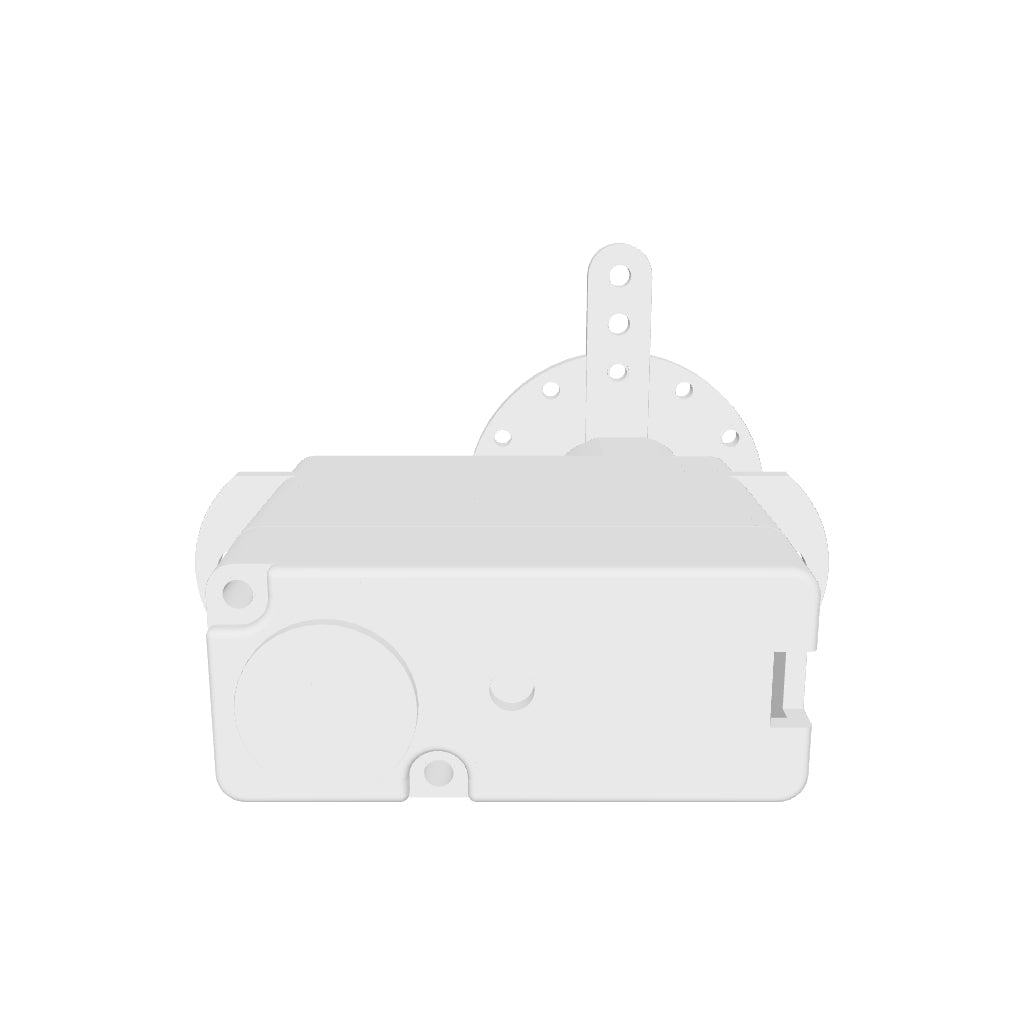

DSpower DS-S001 Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information




Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value
Model DS-S001 DS-S001M
Operating Voltage 3.7 – 4.2 V DC 3.7 – 4.2 V DC
No Load Speed ≤0.12 sec/60° at 3.7V (REF.) ≤0.10 sec/60° at 4.2V (STD.) ≤0.09 sec/60° at 4.2V
Static Current ≤10 mA -
Stall Current ≤330 mA at 3.7V (REF.)
≤380 mA at 4.2V (STD.)		 ≤550 mA at 4.2V
Stall Torque ≥0.4 kgf·cm at 3.7V (REF.) ≥0.45 kgf·cm at 4.2V (STD.) ≥0.5 kgf·cm at 4.2V
Pulse Width Range 700 – 2300 μs 1000 μs – 2000 μs
Rotating Direction CCW (1000 ~ 2000 μs) -
Operating Travel Angle 145° ± 10° 90° ± 10° (1000 ~ 2000 μs)
Mechanical Limit Angle 360° -
Weight 3.7 ± 0.2 g 6.0 ± 1 g
Case Material ABS -
Gear Set Material Plastic gear -
Motor Type Coreless motor -
Communication Interface PWM -
Output Shaft 28T / Φ3.90 mm -
Backlash ≤1° -
L&R Angle Deviation - ≤6°
