DSpower

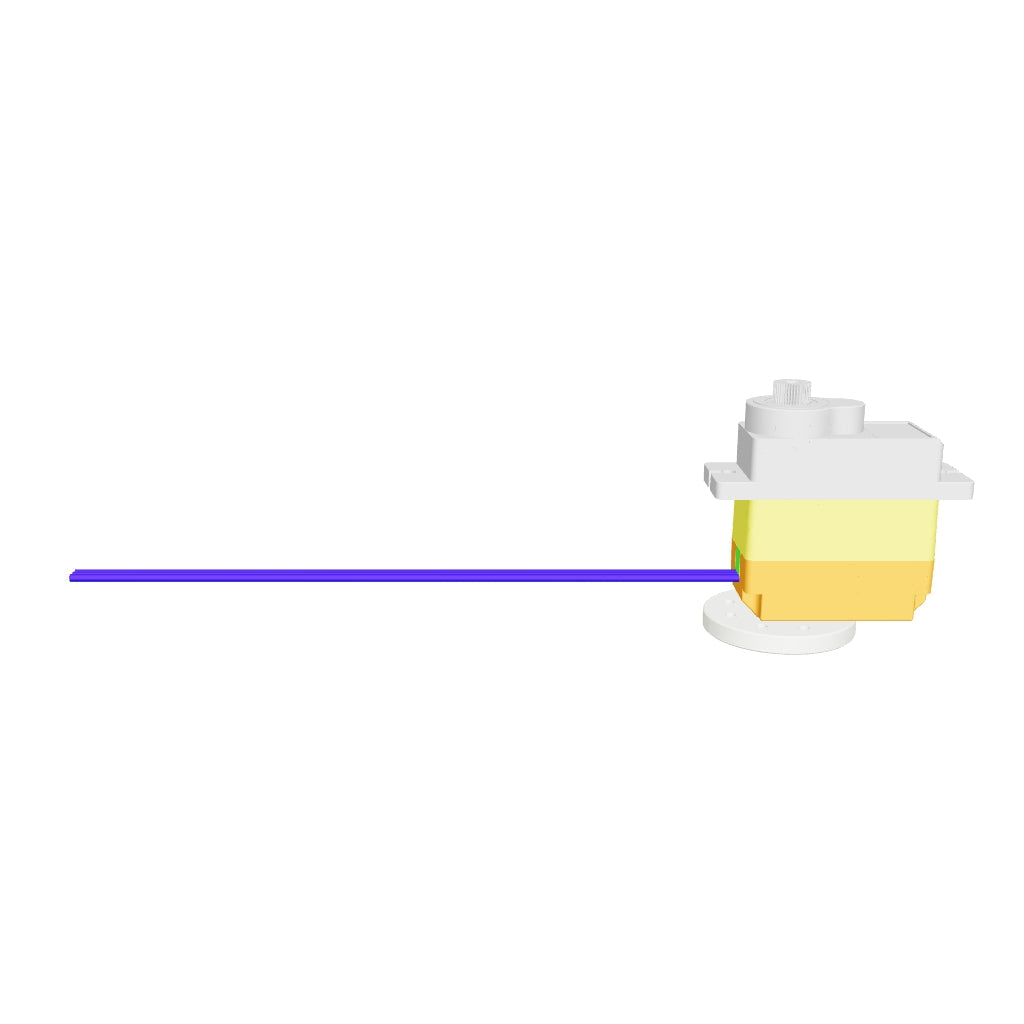

DSpower DS-R047 Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 7.4 ~ 8.4 V DC
Static Current ≤20 mA
Stall Current ≤1.5 A at 7.4 V
Stall Torque ≥1.8 kgf·cm at 7.4 V
Rotating Direction CCW (500~2500 µs)
No-load Speed ≤0.05 sec/60° at 7.4 V
Pulse Width Range 500 µs ~ 2500 µs
Operating Travel Angle 280° ±10°
L&R Angle Deviation ≤7°
Weight 11 ±0.5 g
Communication Interface PWM
Output Shaft Ø4.85 mm × 40T
Backlash ≤1.5°

DSpower DS-R047 Servo Motor.pdf
