DSpower

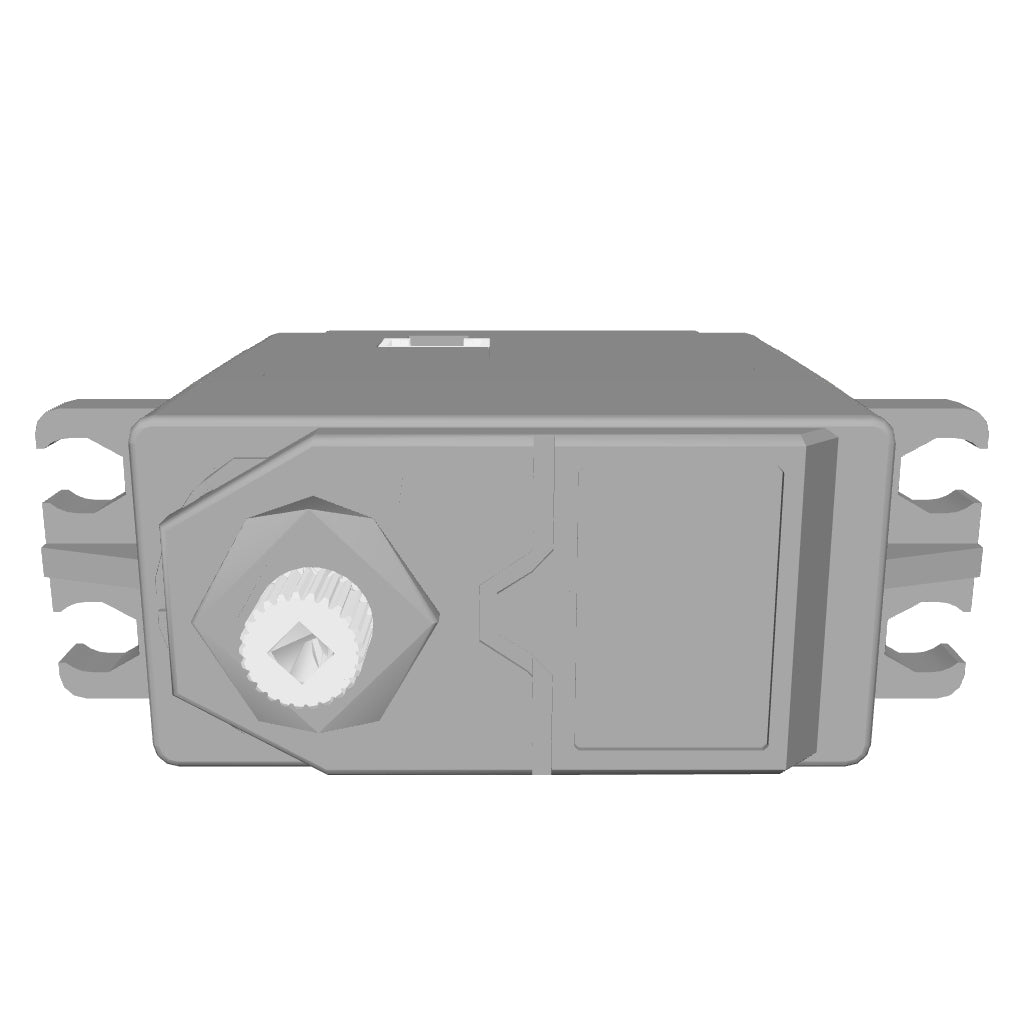

DSpower DS-R003B Servo Motor

$35.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value
MODLE DS-R003B (25KG) DS-R003B (35KG)
Operating Voltage 6.0 – 8.4 V DC 6.0 – 8.4 V DC
No Load Speed ≤0.16 sec/60° ≤0.12 sec/60°
No Load Current ≤200 mA at 6V -
Rated Torque 8.0 kgf -
Stall Current ≤5.0 A ≤5.0 A
Stall Torque ≥25.0 kgf·cm ≥35.0 kgf·cm
Rotating Direction CW / CCW (500 ~ 2500 μs) CW / CCW (500 ~ 2500 μs)
Pulse Width Range 500 – 2500 μs 500 ~ 2500 μs
Operating Travel Angle 180° ± 10° 180° ± 10°
Mechanical Limit Angle 360° 360°
Weight 21 ± 1 g 66 g
Case Material ABS Aluminium alloy + PA66
Gear Set Material - Metal
Communication Interface PWM PWM
Motor Type Core motor -
Dead Zone Width - Ø6.0 × 25T
Housing Material ABS -

DSpower DS-R003B Servo Motor.pdf
