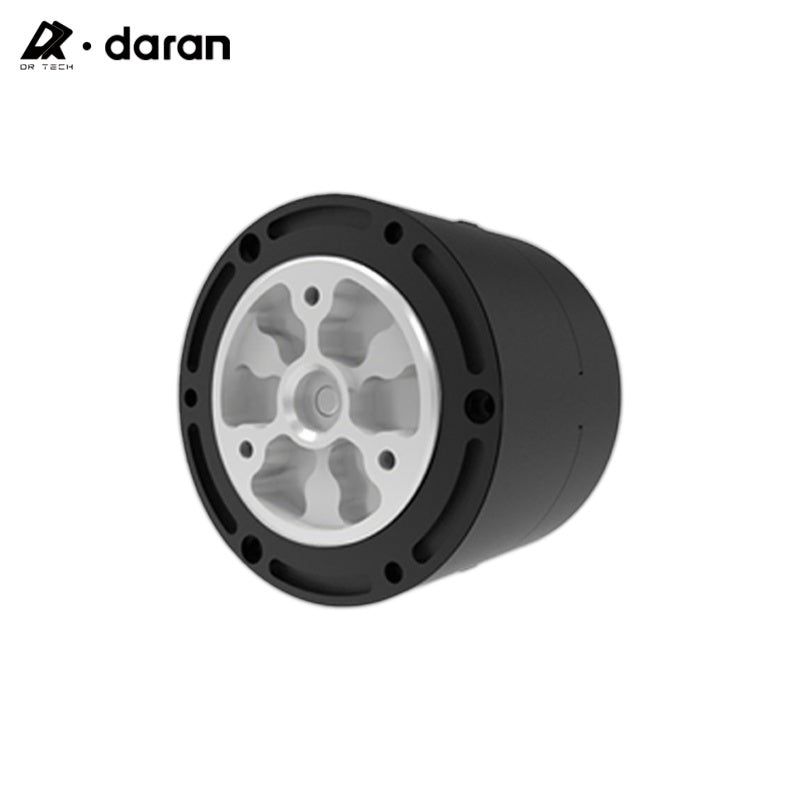

Daran PDA-01 Motor
Regular price
$160.00
Unit price
Daran PDA-01 Motor - PDA-01 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PDA-01 |
| Rated Voltage (V) | 24 |
| Voltage Range (V) | 24-48 |
| Rated Power (W) | — |
| Rated Torque (Nm) | 1 |
| Stall Torque (Nm) | 3 |
| Speed @24V (rpm) | 337 |
| Speed @36V (rpm) | 524 |
| Speed @48V (rpm) | 714 |
| Rated Current (A) | 2 |
| Stall Current (A) | 5 |
| Rotor Inertia (g·cm²) | 4.92 |
| Reduction Ratio | 10:1 |
| Weight (g) | 183 |
| Diameter × Length (mm) | 53 × 41 |
| Max Axial Load (N) | 300 |
| Max Radial Load (N) | 500 |
| Gearbox Type | Planetary Gearbox |
| Communication Bus Interface | CAN |
| Special Features | Absolute angle control, relative/step angle control, speed control, torque control, assist control, adaptive angle control, impedance control, emergency stop, angle readback/real-time feedback, speed readback/real-time feedback, torque readback/real-time feedback, PID parameter setting, power-loss zero position memory (dual encoder effect) |
