CubeMars | SKU:

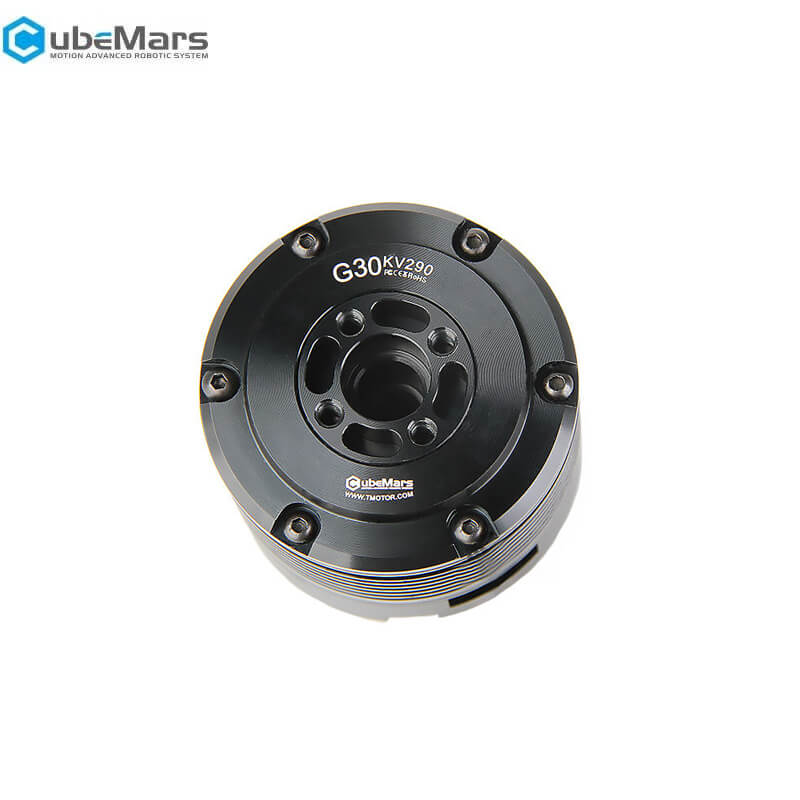

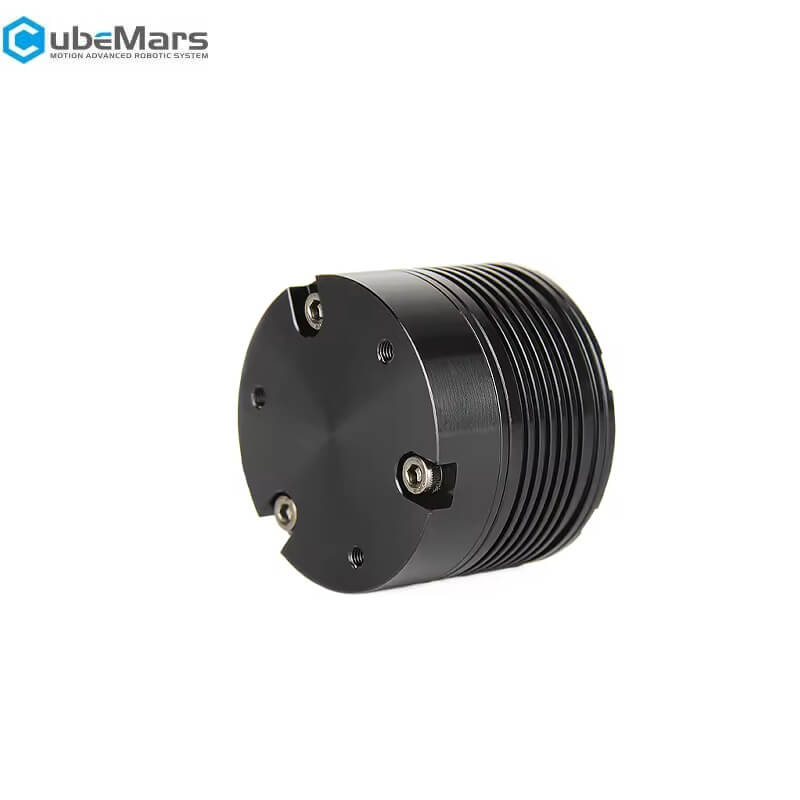

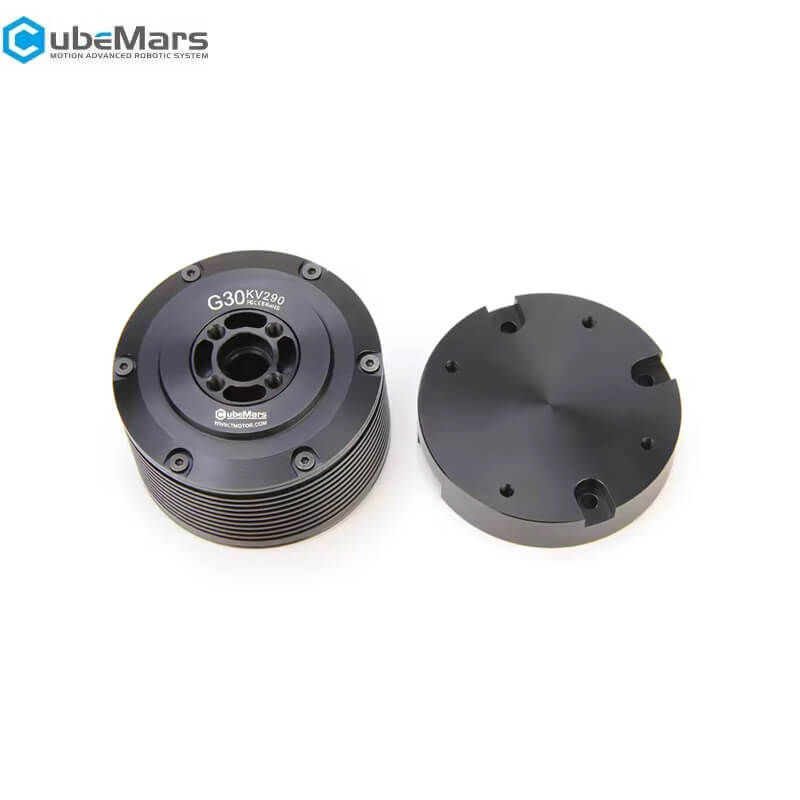

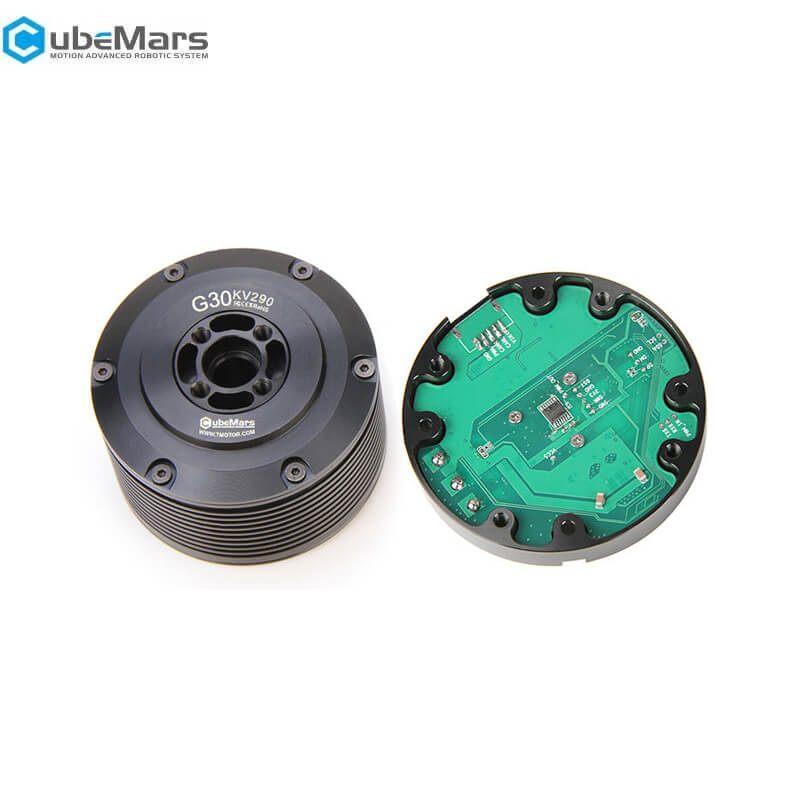

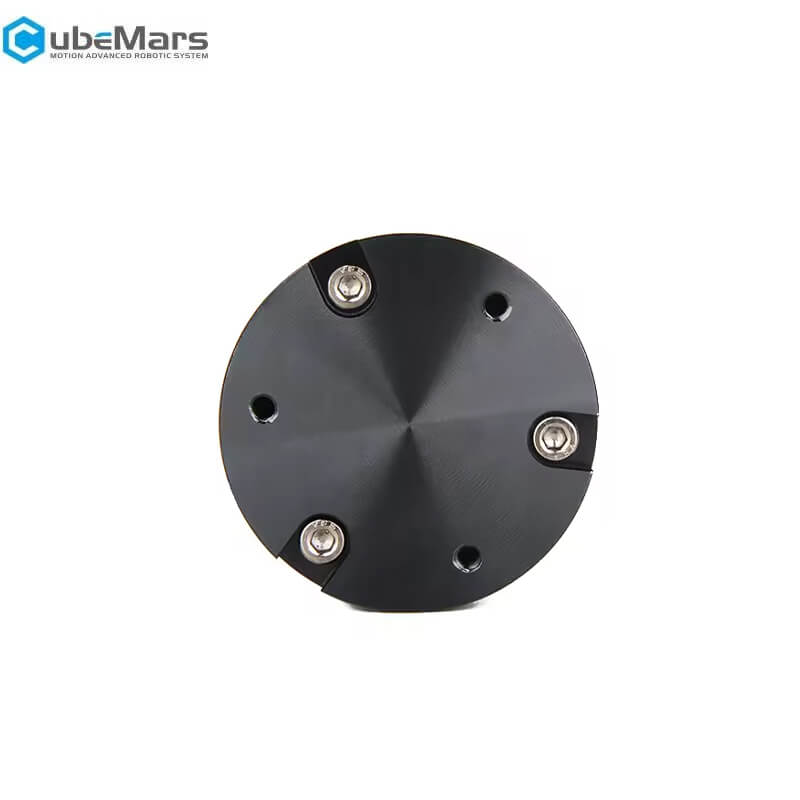

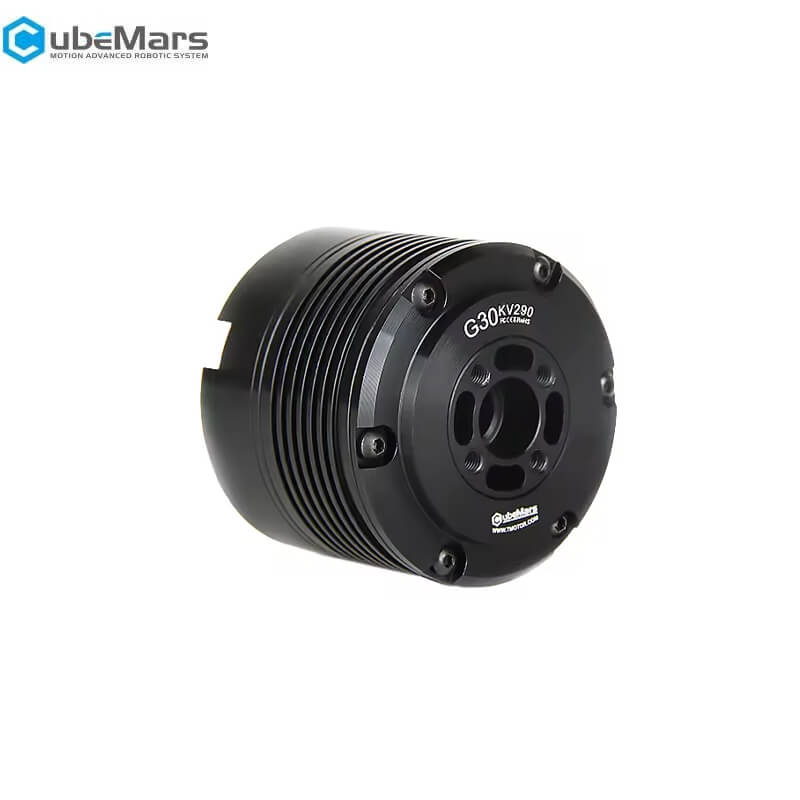

Cubemars G30 Motor
Regular price
$90.00
Unit price
Cubemars G30 Motor - G30 KV290 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Cubemars G30 Motor
Regular price
$90.00
Unit price
Cubemars G30 Motor - G30 KV290 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage (V) | 12 |
| Rated Current (A) | 2.3 |
| Rated Torque (Nm) | 0.08 |
| Rated Speed (rpm) | 2200 |
| Maximum No-Load Speed (rpm) | 3480 |
| Stall / Peak Torque (Nm) | 0.28 |
| Stall / Peak Current (A) | 8.5 |
| Line Resistance (Ω) | 1.53 |
| Line Inductance (mH) | 0.33 |
| Speed Constant (rpm/V) | 290 |
| Torque Constant (Nm/A) | 0.033 |
| Rotor Inertia (g.cm²) | 24.2 |
| Number of Pole Pairs | 7 |
| Motor Weight (g) | 83 |
