Benewake | SKU:
Benewake TR Series LiDAR
Regular price
$275.00
Unit price
Benewake TR Series LiDAR - TR10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

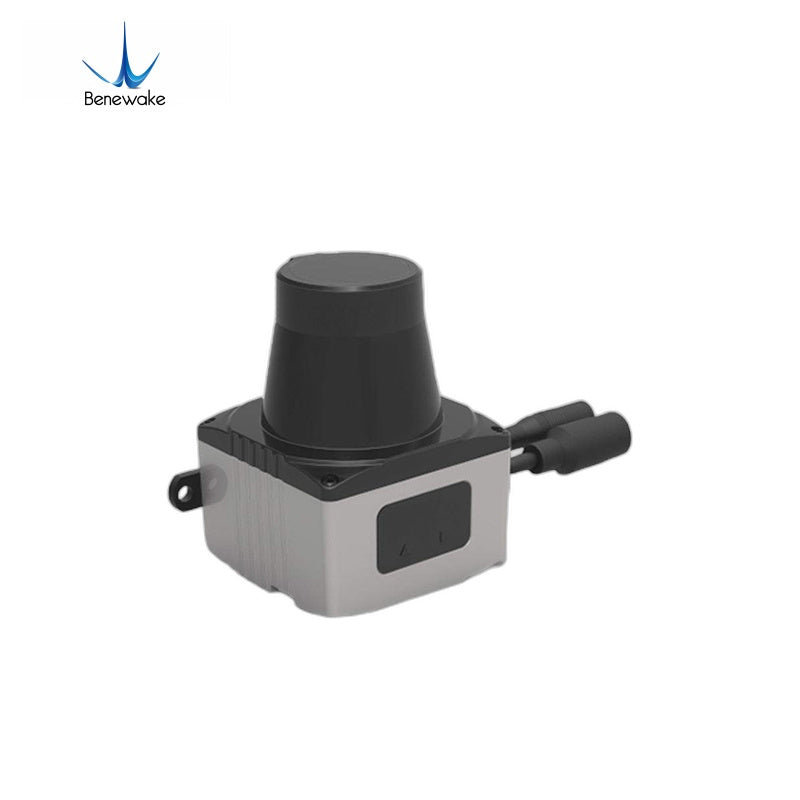

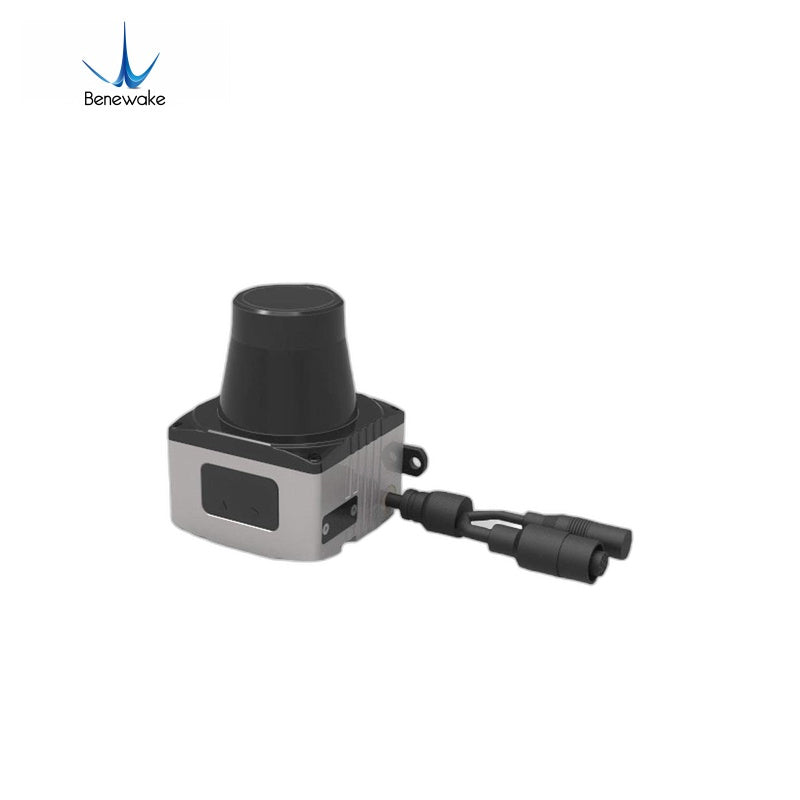

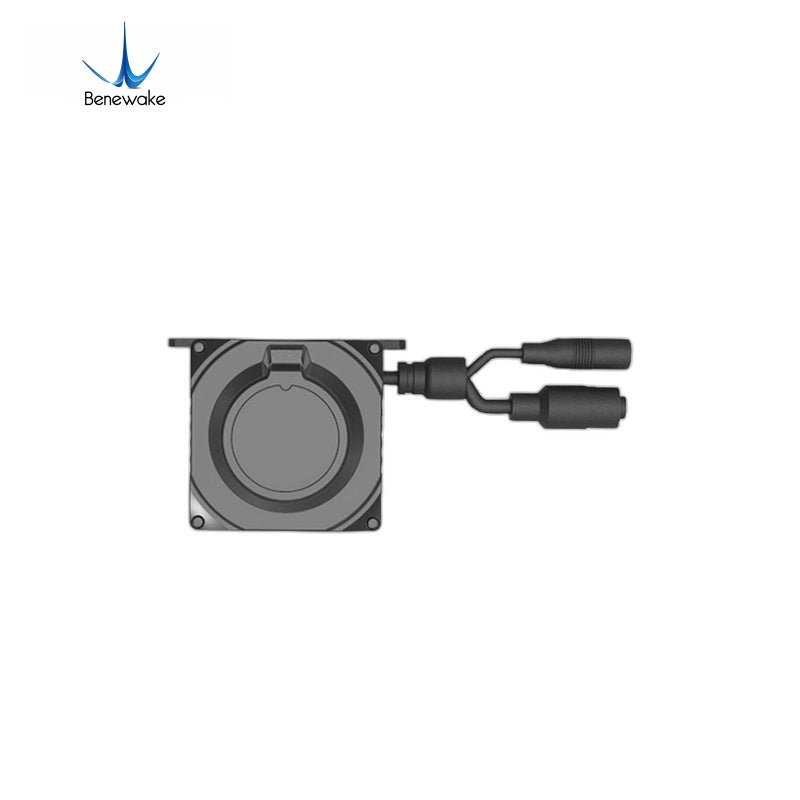

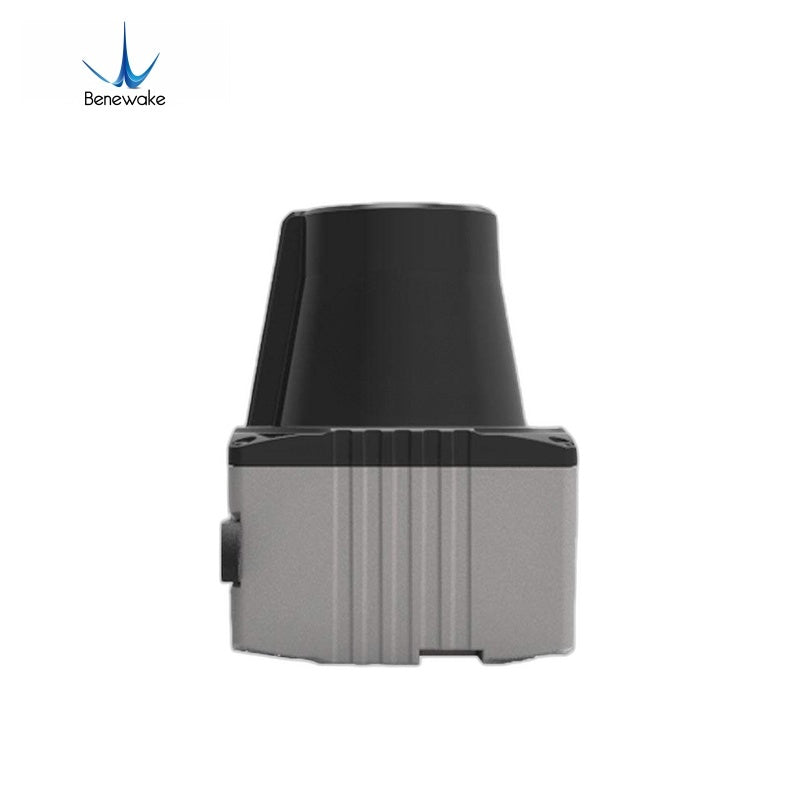

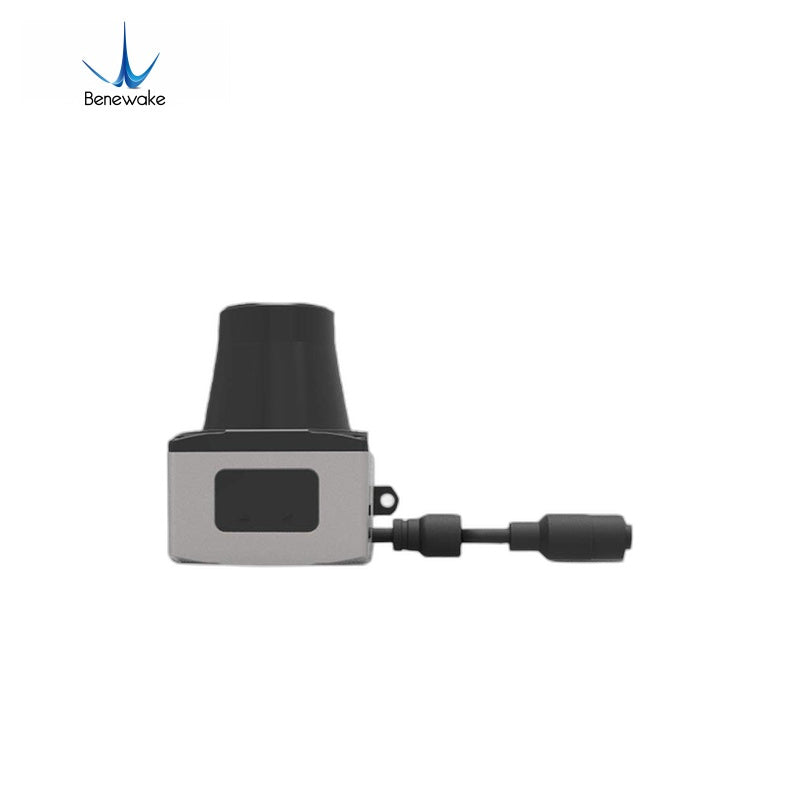

Benewake TR Series LiDAR
Regular priceFrom
$275.00
Unit price
Benewake TR Series LiDAR - TR10 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | TR20 | TR10-S | TR10 |
|---|---|---|---|
| Range | ≥40m (70% reflectivity) ≥20m (10% reflectivity) |
≥25m (70% reflectivity) ≥10m (10% reflectivity) |
≥40m (70% reflectivity) ≥20m (10% reflectivity) |
| Horizontal FOV | 270° | 270° | 270° |
| Point Rate | 43.2 KHz | 43.2 KHz | 18 KHz (10Hz) / 14.4 kHz (20Hz) |
| Horizontal Resolution | 0.1° / 0.25° | 0.1° / 0.25° | 0.2° / 0.5° |
| Scan Frequency | 10Hz / 20Hz / 25Hz / 30Hz | 10Hz / 20Hz / 25Hz / 30Hz | 10Hz / 20Hz |
| Accuracy | ±2 cm | ±2 cm | - |
