Benewake

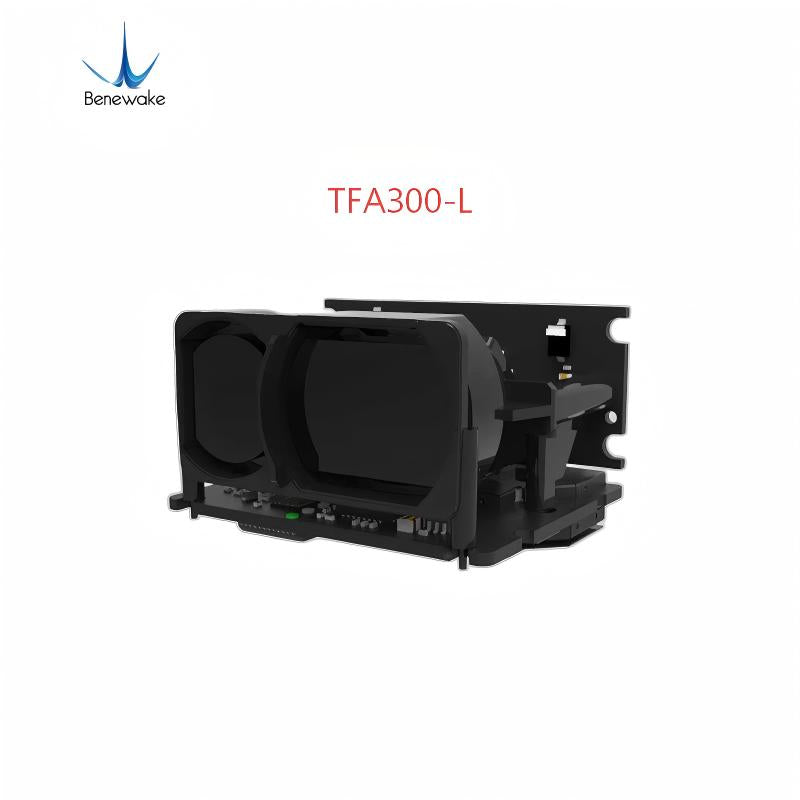

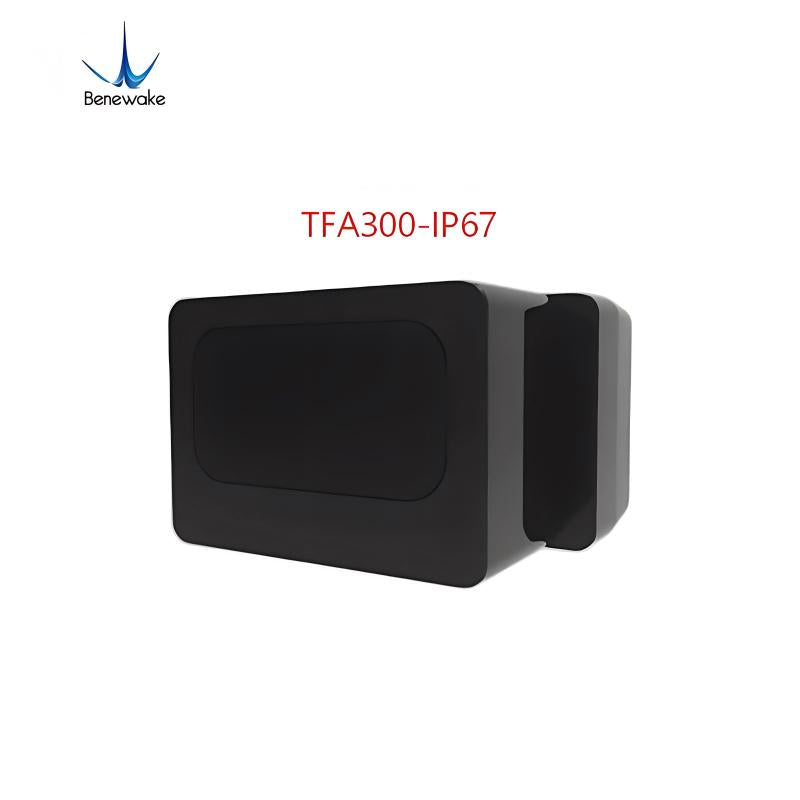

Benewake TFA300 LiDAR

$369.00

Version

TFA300-L TFA300-IP67

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	TFA300	TFA300-L
Detection range	270m@90%ref.100KLux	290m@90%ref.100KLux
Detection range	150m@30%ref.100KLux	170m@30%ref.100KLux
Detection range	90m@10%ref.100KLux	100m@10%ref.100KLux
Blind zone	≤ 0.1 m
Accuracy	±10 cm (< 10 m), 1% (≥ 10 m)
Repeatability	< 3 cm @ 1σ
Distance resolution	1 cm
Default frame rate	Up to 10,000 Hz (1 ~ 10,000 Hz configurable, default 50 Hz)
Ambient light resistance	100 KLux
Light source	EEL
Central wavelength	905 nm
Field of View (FoV)	< 0.5°
Eye safety	Class 1 (IEC 60825-1:2014; EN 60825-1:2014+A11:2021)
Average power consumption	≤ 0.45 W
Peak current	< 0.75 A
Power supply	DC 5 V ± 10%
Logical voltage	3.3 V TTL
Connector	JST GH 1.25 mm 6 pin
Operating temperature	-20 °C ~ +60 °C
Storage temperature	-40 °C ~ +80 °C
Protection level	IP67	NA
Typ. Dimensions	49.4 mm × 37.0 mm × 28.6 mm	32.0mm×30.2mm×20.2mm
Typ. Weight	34.5 g	10.5g
Communication Interface	UART / CAN (switchable by command)
Baud rate	Default 115200 (configurable)
Data bit	8
Stop bit	1
Parity	None
