Benewake | SKU:

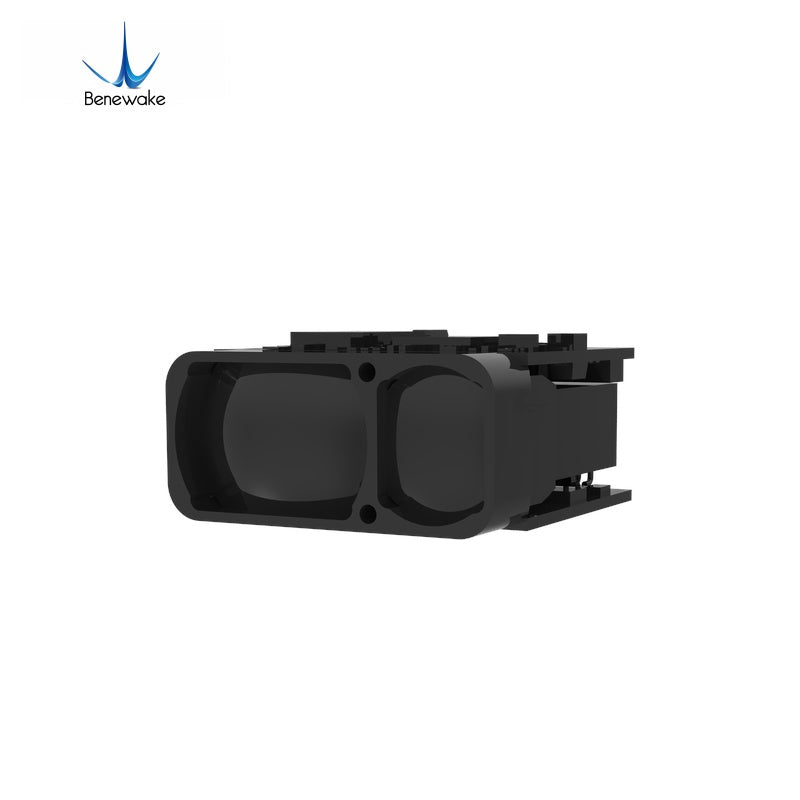

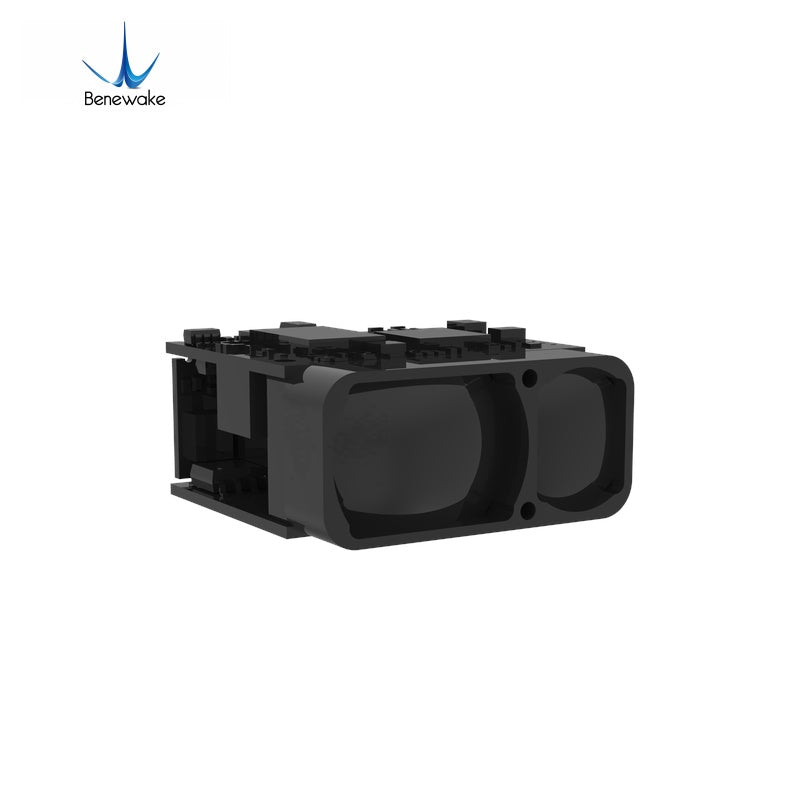

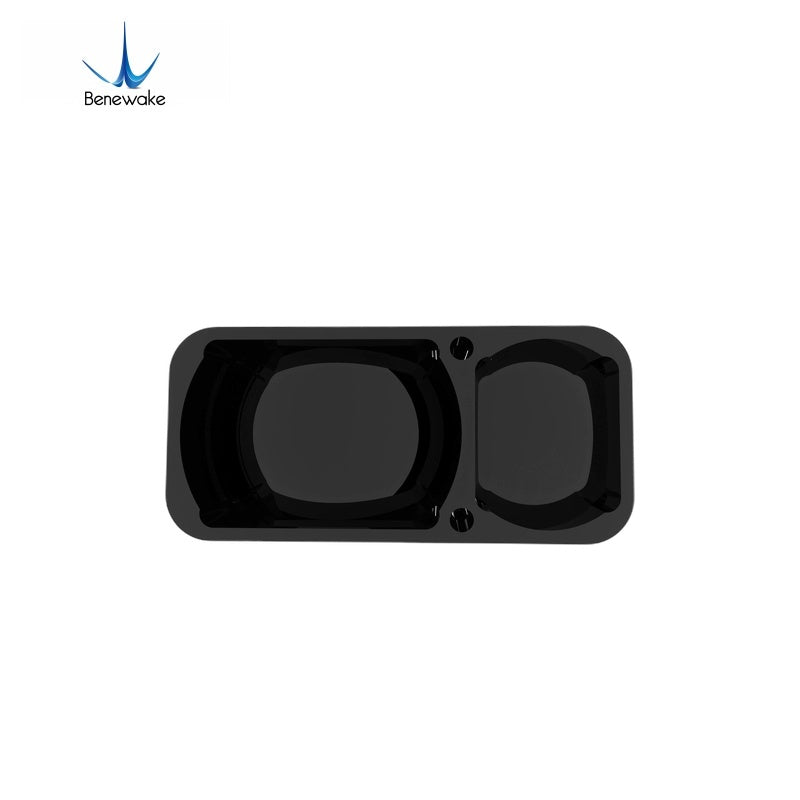

Benewake TFA1500-L LiDAR
Regular price
$499.00
Unit price
Benewake TFA1500-L LiDAR - TFA1500-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TFA1500-L LiDAR
Regular price
$499.00
Unit price
Benewake TFA1500-L LiDAR - TFA1500-L is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Ranging capability | 0.5 ~ 1500 m |
| Precision | ±0.5m (≤80m), ±1.0m (>80m) |
| Distance resolution | 1 cm |
| Default frame rate | 60 ~ 800Hz (adaptive) |
| Beam divergence | ~6 mrad |
| False detection rate | ≤1% |
| Target discrimination | ≤30 m |
| Central wavelength | 905 ± 5 nm |
| Size (L × W × H) | ≤25 mm × 26 mm × 13 mm |
| Weight | 11 ± 0.5 g |
| Operating temperature | -20 ~ +60 °C |
| Storage temperature | -45 ~ +70 °C |
| Supply voltage | DC 3.0 ~ 5.0 V |
| Shock resistance | 1000 g, 20 ms |
| Vibration resistance | 5 to 50 to 5 Hz, 1 oct/min, 2.5 g |
| Operating power consumption | ≤1.8W |
| Standby power consumption | ≤0.8W |
| Communication Interface | UART |
| Baud rate | 500000 bps |
BENEWAKE-TFA1500-L_Datasheet_and_Manual.pdf
