Benewake | SKU:

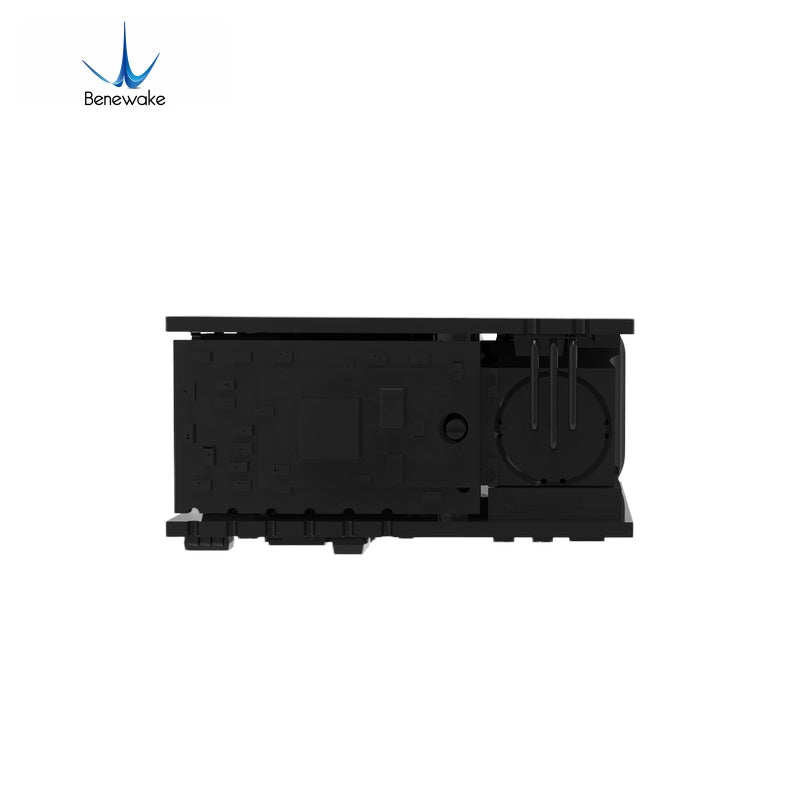

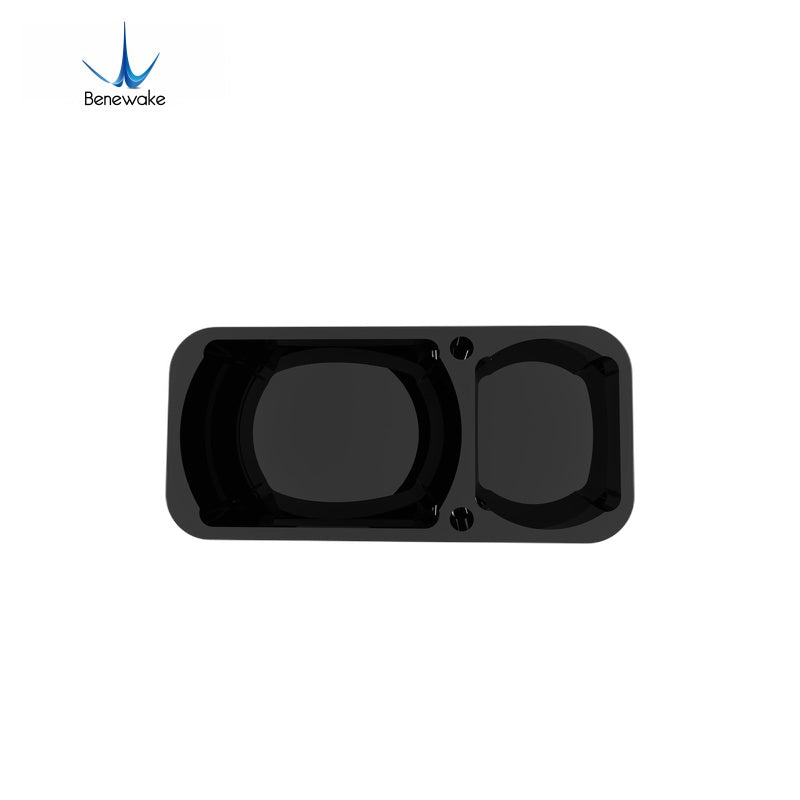

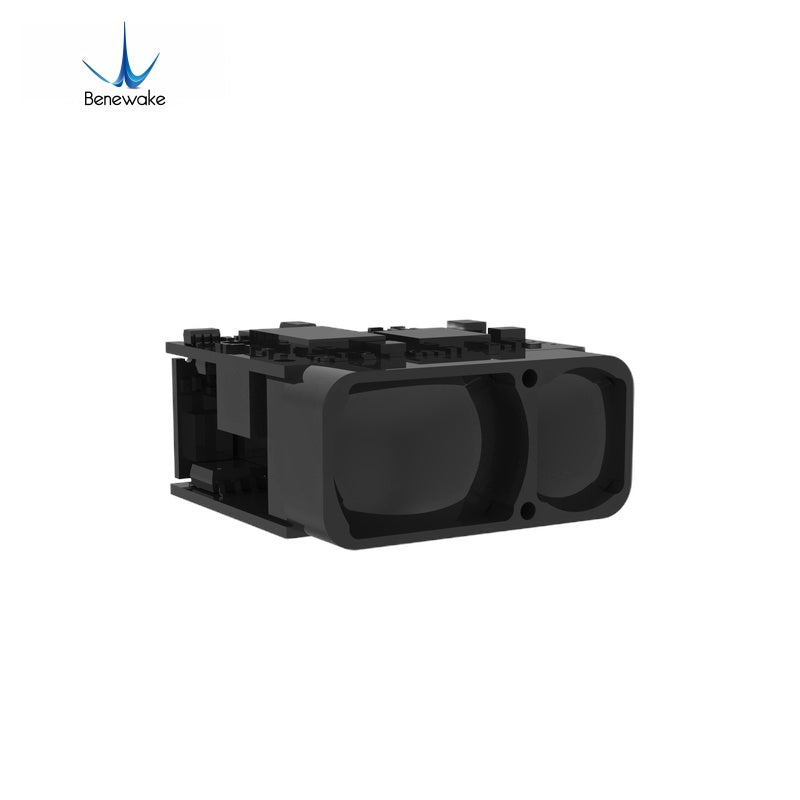

Benewake TFA1200-L LiDAR
Regular price
$169.00
Unit price
Benewake TFA1200-L LiDAR - TFA1200-L is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TFA1200-L LiDAR
Regular price
$169.00
Unit price
Benewake TFA1200-L LiDAR - TFA1200-L is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Detection range① | 3 m ~ 1200 m |
| Accuracy① | 1% @ ≤200 m |
| Repeatability① | 6 cm @ <200 m |
| Distance resolution | 10 cm |
| Frame rate | 3 Hz |
| Light source | EEL |
| Central wavelength | 905 nm |
| Field of View (FoV) | < 0.5° |
| Eye safety | Class 1 [EN60825] |
| Ambient light resistance | 100 KLux |
| Average power consumption② | < 1.1 W |
| Power supply | DC 2.7 V ~ 5.0 V |
| Data output | 3.3V TTL |
| Operating temperature | -40℃ ~ +65℃ |
| Storage temperature | -40℃ ~ +70℃ |
| Operating humidity | ≤70% |
| Dimensions | TYP. 25 × 25 × 13 mm³ |
| Weight | 11 g ± 0.5 g |
| Communication interface | UART |
| Baud rate | Default 115200 |
| Data bit | 8 |
| Stop bit | 1 |
| Parity | None |
BENEWAKE-TFA1200-L_Datasheet.pdf
