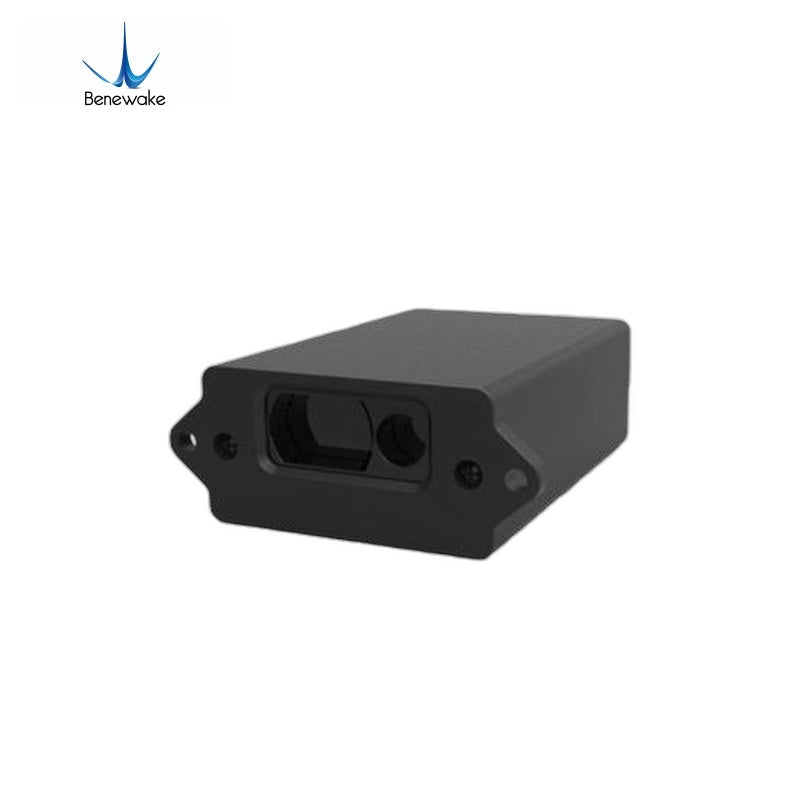

Benewake TF40 LiDAR
Regular price
$99.90
Unit price
Benewake TF40 LiDAR - TF40 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TF40 LiDAR
Regular price
$99.90
Unit price
Benewake TF40 LiDAR - TF40 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Range | 0.04-40m @90% reflectivity, 0.04-20m @10% reflectivity |
| Accuracy | ±2mm |
| Distance resolution | 1mm |
| Frame rate | 5Hz |
| Repeatability | 1σ: <2mm |
| Working temperature | -10~50℃ |
| Enclosure rating | / |
| Light source | LD |
| Wavelength | 635nm |
| Laser class | CLASS 2 (EN 60825) |
| Detection angle | <1mrad |
| Supply voltage | 3.3V |
| Average current | ≤180mA |
| Power consumption | ≤0.6W |
| Peak current | ≤180mA |
| Communication voltage level | LVTTL (3.3V) |
| Communication protocol | UART |
| Dimension (L×W×H) | 44mm × 64.5mm × 23mm |
| Enclosure Material | Aluminum alloy + ABS |
| Storage temperature | -30~70°C |
| Weight | 57g ± 3g |
| Cable length | 35cm |
