Benewake | SKU:

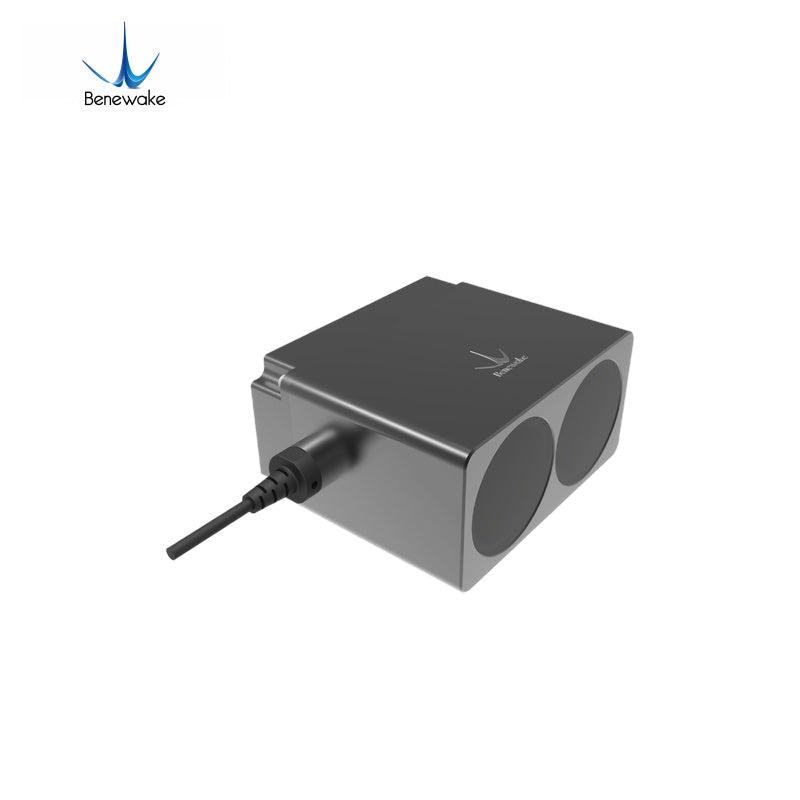

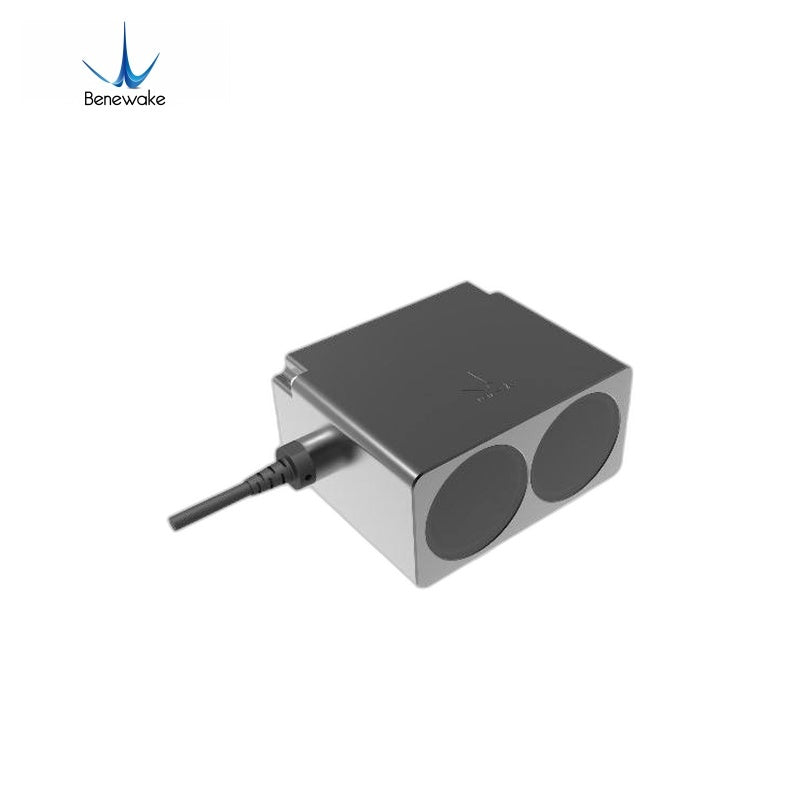

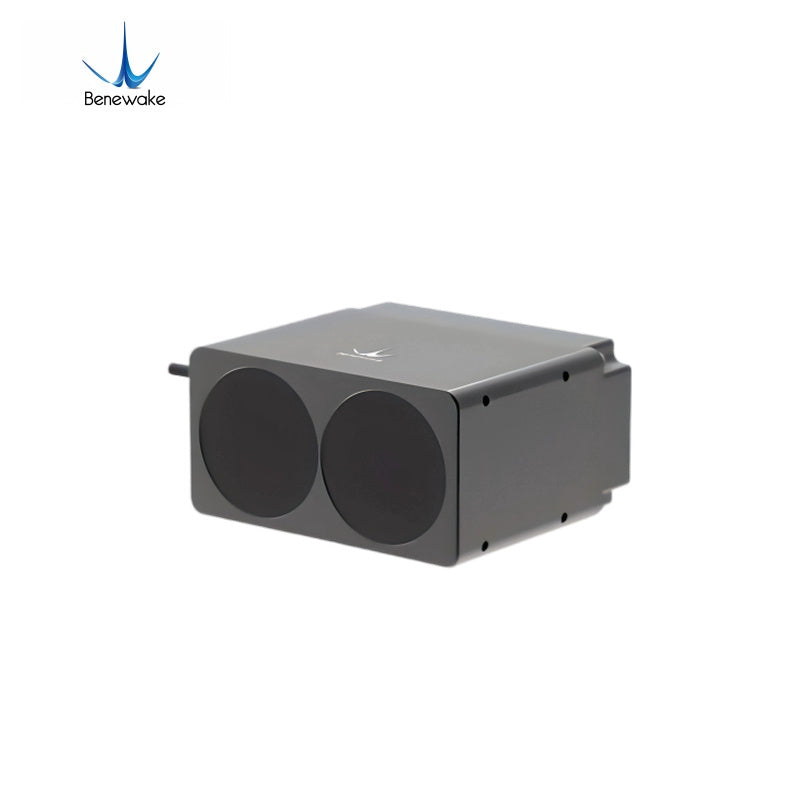

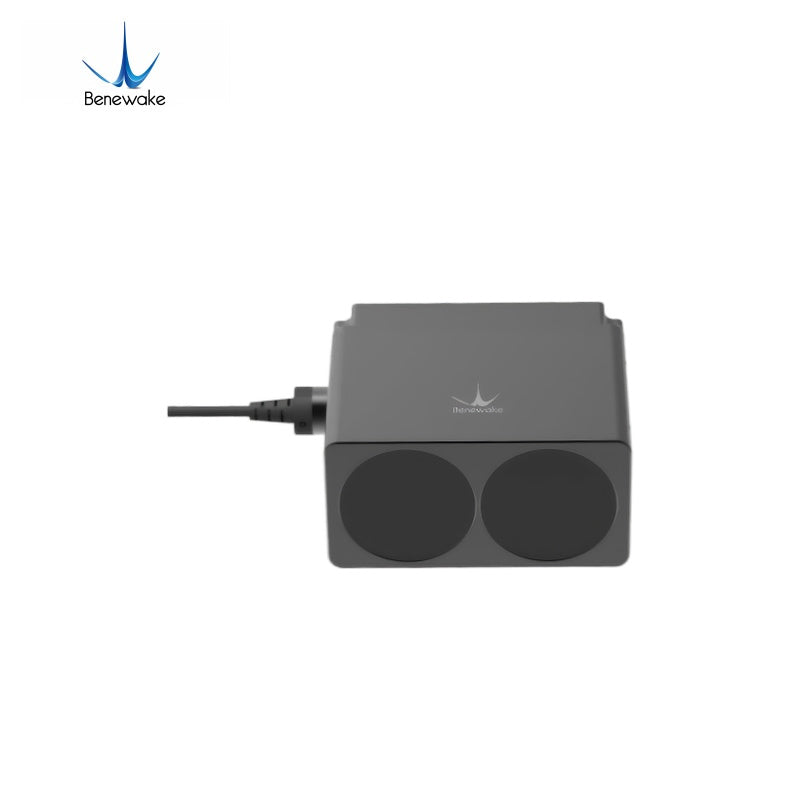

Benewake TF350 LiDAR
Regular price
$659.90
Unit price
Benewake TF350 LiDAR - TF350 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TF350 LiDAR
Regular price
$659.90
Unit price
Benewake TF350 LiDAR - TF350 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Range (Indoor, no ambient light) | 0.2~350m @90% reflectivity 0.2-110m @10% reflectivity |
| Range (Outdoor @100Klux) | 0.2-300m @90% reflectivity 0.2-100m @10% reflectivity |
| Accuracy | ±10cm (within 10m), 1% (10m and further) |
| Distance resolution | 1cm |
| Frame rate | 1Hz~1000Hz adjustable (default 100Hz) |
| Repeatability | 1σ: <3cm |
| Ambient light immunity | 100Klux |
| Enclosure rating | IP67 |
| Light source | LD |
| Central wavelength | 905nm |
| Photobiological safety | Class1 (EN60825) |
| Field of View (FOV) | 0.35° |
| Supply voltage | 5V~24V |
| Average current | ≤150mA @5V, ≤80mA @12V, ≤50mA @24V |
| Power consumption | ≤1W |
| Communication interface level | LVTTL (3.3V) |
| Communication interface | UART/CAN |
| Dimension (L×W×H) | 78mm × 67mm × 40mm |
| Enclosure material | Aluminum alloy |
| Operation temperature | -25~60℃ |
| Storage temperature | -40~85℃ |
| Weight | 222g ± 3g |
| Cable length | 70cm |
BENEWAKE-TF350-Drawing.pdf
