Benewake | SKU:

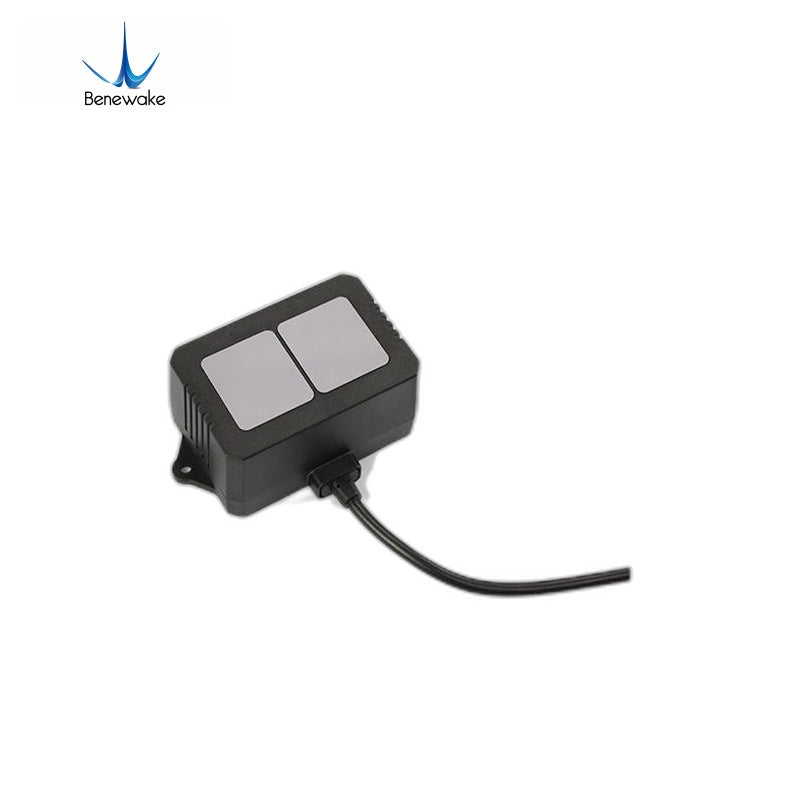

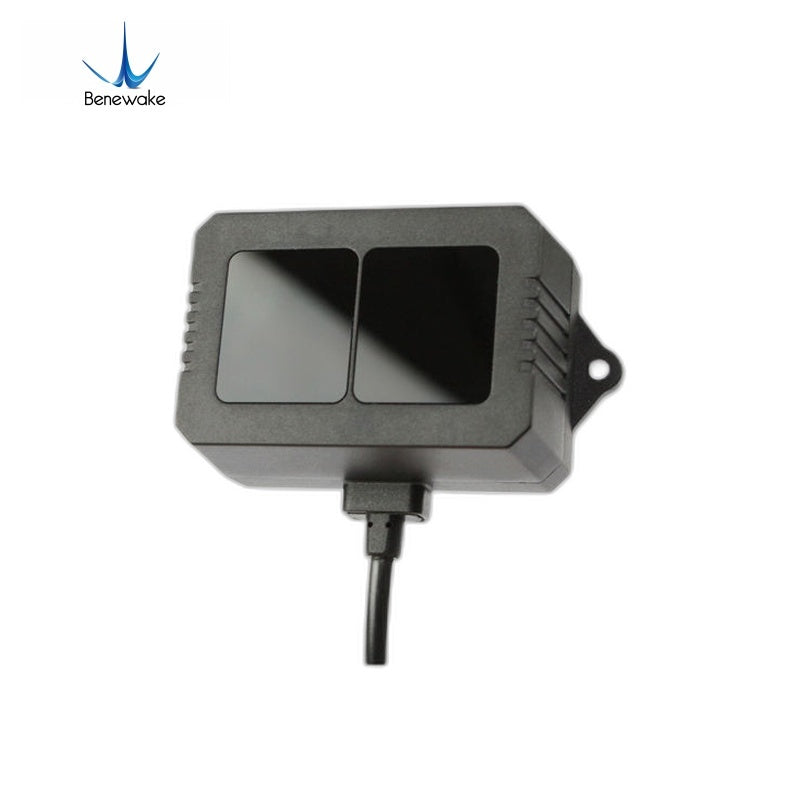

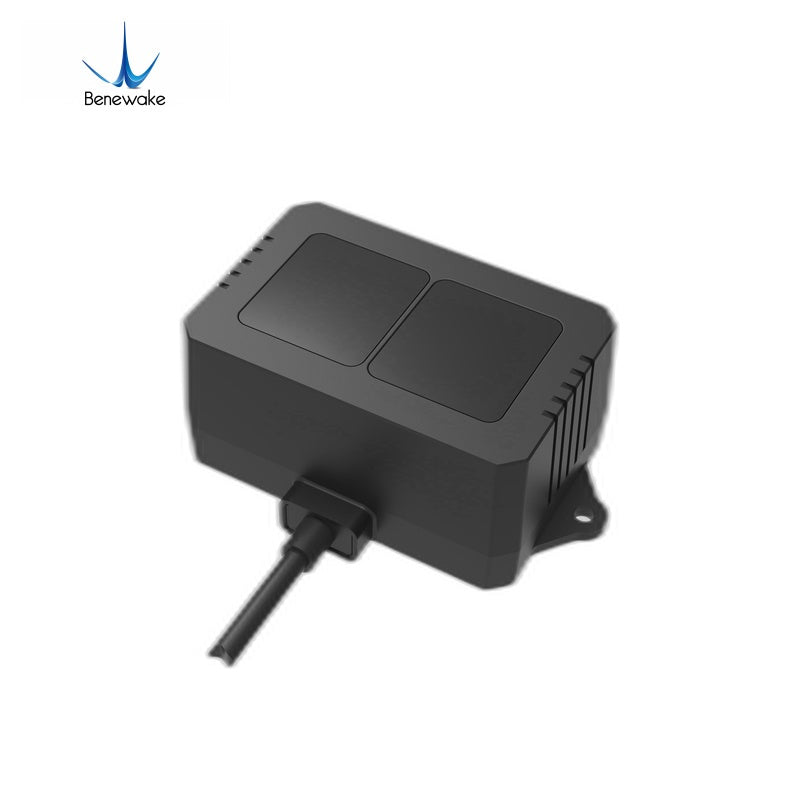

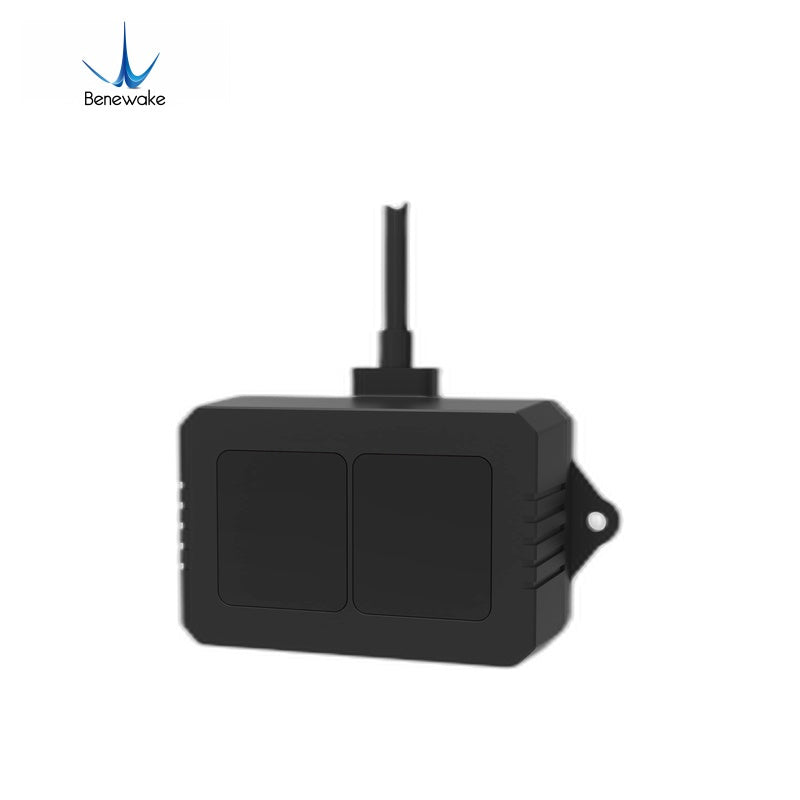

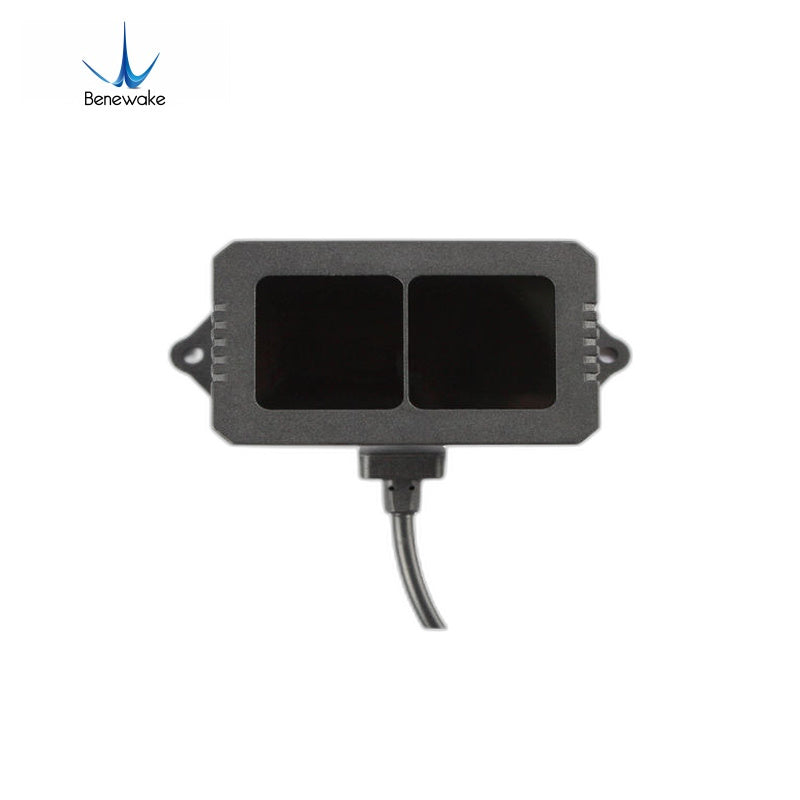

Benewake TF02-Pro LiDAR
Regular price
$87.90
Unit price
Benewake TF02-Pro LiDAR - TF02-Pro is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TF02-Pro LiDAR
Regular price
$87.90
Unit price
Benewake TF02-Pro LiDAR - TF02-Pro is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating range (indoor 0Klux / outdoor 100Klux) | 0.1m~40m @90% reflectivity 0.1m~13.5m @10% reflectivity |
| Accuracy | ±5cm @ (0.1m~5m) ; ±1% @ (5m~40m) |
| Distance resolution | 1cm |
| Frame rate | 1Hz~1000Hz (adjustable, default 100Hz) |
| Repeatability | 1σ：<2cm (0.1m~35m @90% reflectivity) |
| Ambient light immunity | 100 Klux |
| Enclosure rating | IP65 |
| Photobiological safety | Class 1 (IEC60825) |
| Central wavelength | 850nm |
| Light source | VCSEL |
| Field of View (FoV) | 3° |
| Supply voltage | DC 5V~12V |
| Average current | ≤200mA |
| Power consumption | ≤1W |
| Peak current | 300mA |
| Communication level | LVTTL (3.3V) |
| Dimension (L×H×W) | 69mm × 41.5mm × 26mm |
| Enclosure material | ABS/PC |
| Operating temperature | -20°C ~ 60°C |
| Storage temperature | -30°C ~ 80°C |
| Weight (with cables) | 50g |
| Cable length | 80 cm |
| Communication interface | UART / I²C |
| UART default baud rate | 115200 |
| UART data bit | 8 |
| UART stop bit | 1 |
| UART parity | None |
| I²C max transmission rate | 400kbps |
| I²C master/slave mode | Slave |
| I²C default address | 0x10 |
| I²C address range | 0x10 ~ 0x7F |
BENEWAKE-TF02-Pro_Datasheet.pdf
BENEWAKE-TF02-Pro_User_Manual.pdf
