Benewake | SKU:

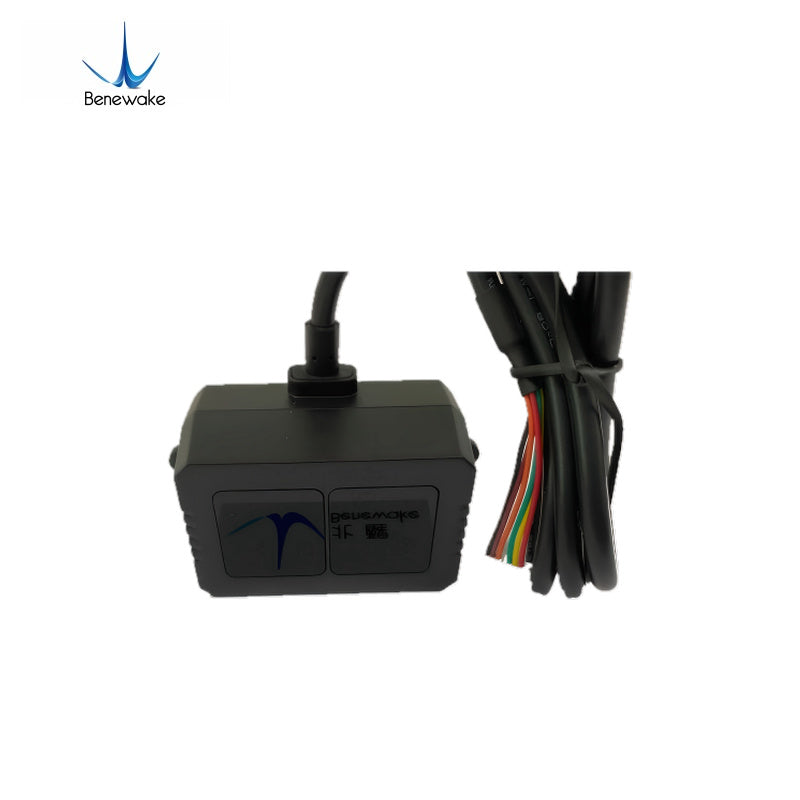

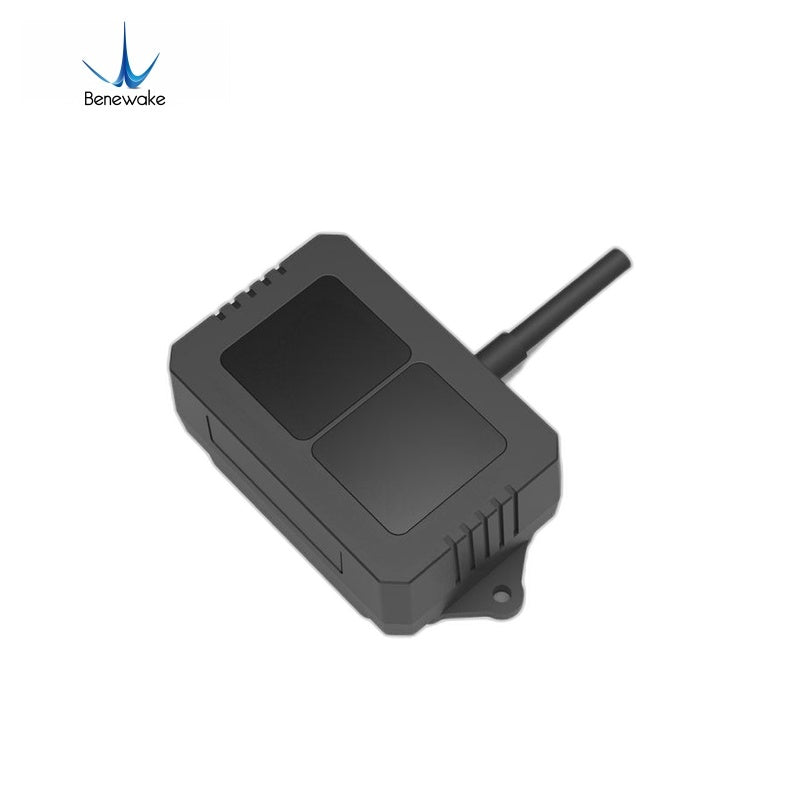

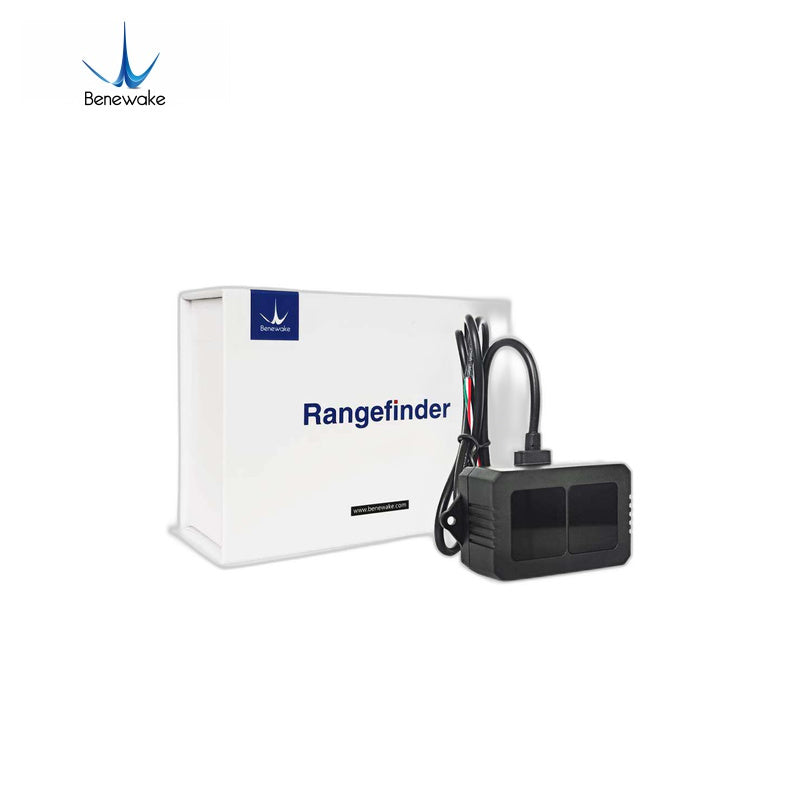

Benewake TF02-i LiDAR
Regular price
$175.00
Unit price
Benewake TF02-i LiDAR - TF02-i / CAN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TF02-i LiDAR
Regular price
$175.00
Unit price
Benewake TF02-i LiDAR - TF02-i / CAN is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Usage | Vehicle testing |
| Theory | TOF |
| Interface | RS-485 |
| Resolution (Bits) | 1cm |
| Amplifier Type | VCSEL |
| Manufacturer Part Number | TF02-i |
| Operating Temperature | -20~60°C |
| Brand Name | Benewake |
| Place of Origin | Beijing, China |
| Brand | Benewake tf02-i lidar |
| Voltage - Supply | 7~30V |
| Current - Supply | ≤70mA@12V |
| Package / Case | PC/ABS/PMMA |
| Frequency | 100Hz |
| Size / Dimension | 69mm x 41.5mm x 31.5mm (L*W*H) |
| Measuring Range | 0.1~40m @90% reflectivity |
| Cross Reference | no |
| Product name | Pedestrian detection benewake tf02-i lidar medium range sensor |
| Distance resolution | 1cm |
| Frame rate | 100Hz |
| Ambient light immunity | 100Klux |
| Operation temperature | -20~60°C |
| Enclosure rating | IP65 |
| Light source | VCSEL |
| Central wavelength | 850nm |
| FOV | 3° |
| Supply voltage | 7~30V |
| Selling Units | Single item |
| Single package size | 12.5 x 9.5 x 5 cm |
| Single gross weight | 0.500 kg |
BENEWAKE-TF02-i_User_Manual.pdf
