Benewake | SKU:

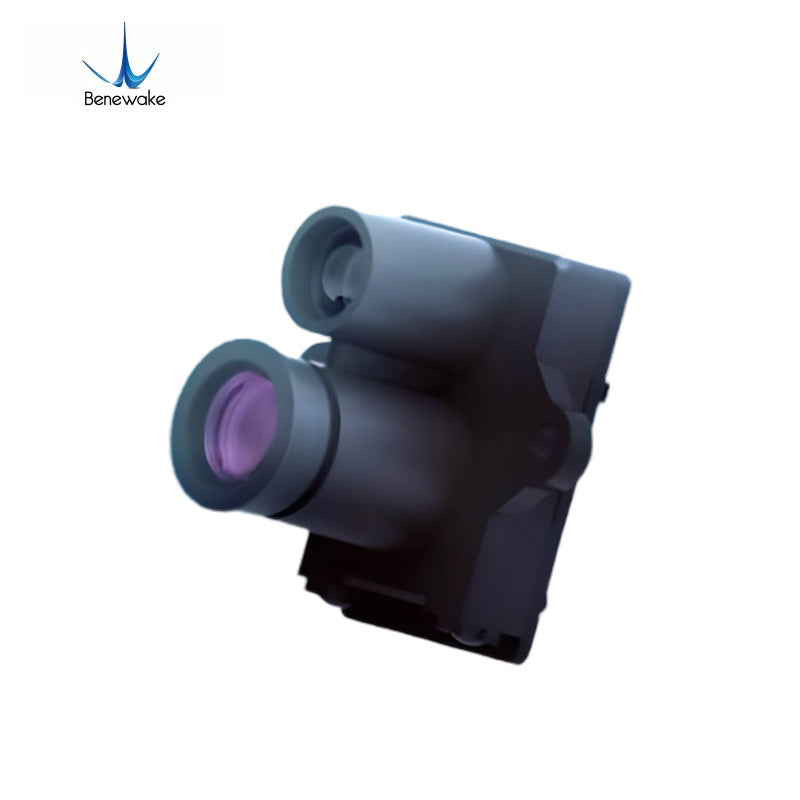

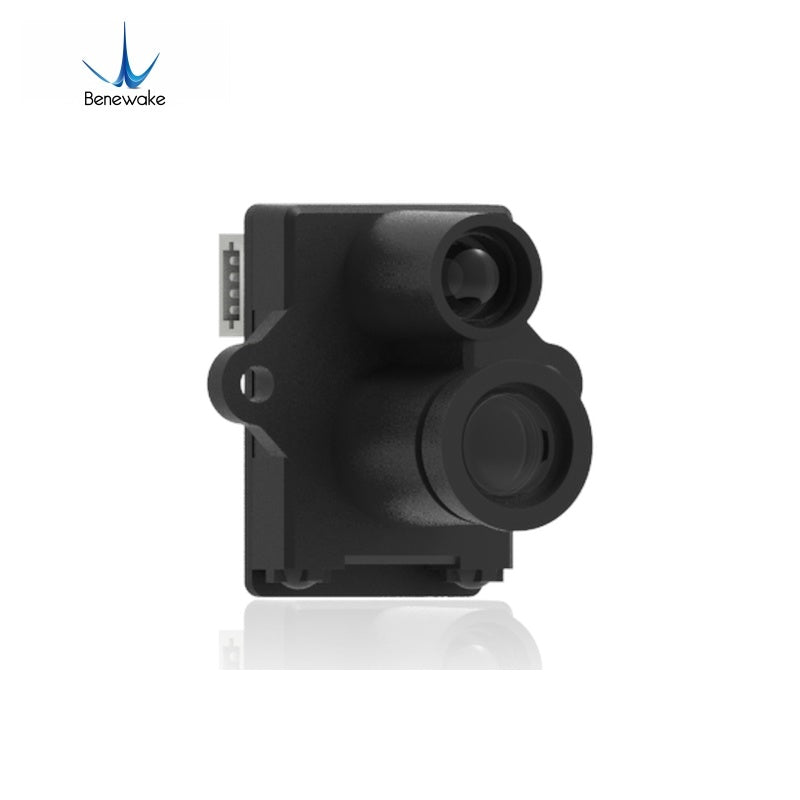

Benewake TF-UW500 LiDAR
Regular price
$49.90
Unit price
Benewake TF-UW500 LiDAR - TF-UW500 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TF-UW500 LiDAR
Regular price
$49.90
Unit price
Benewake TF-UW500 LiDAR - TF-UW500 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Detection range under water | >5 m Indoor, NTU<0.5, 30% reflectivity, the light beam is perpendicular to the target surface |
| Blind zone | ≤ 0.1 m |
| Accuracy | < 3 cm (0.1 ~ 2m) |
| Repeatability | < 1 cm @ 1σ (0.1 ~ 2m) |
| Distance resolution | 1 mm |
| Default frame rate | Default 20 Hz |
| Ambient light resistance | 100 KLux |
| Light source | Laser |
| Central wavelength | Red |
| Field of View (FoV) | < 0.5° |
| Eye safety | Class 1 (IEC 60825-1:2014; EN 60825-1:2014+A11:2021) |
| Average power consumption | < 5V × 100mA |
| Peak current at start up | < 700mA |
| Power supply | DC 5 ± 0.2 V |
| Logical voltage | 3.3 V TTL |
| Connector | 1.0mm-4P, model is HC-1.0-4PWT |
| Operating temperature | 0 ℃ ~ +50 ℃ |
| Storage temperature | -20 ℃ ~ +70 ℃ |
| Protection level | NA |
| Typ. Dimensions | 24.0 mm × 16.0 mm × 20.4 mm |
| Typ. Weight (excluding cables) | < 5 g |
| Communication Interface | UART / I2C (Can be switched by command) |
| Baud rate | Default 115200 (Configurable) |
| Data bit | 8 |
| Stop bit | 1 |
| Parity | None |
BENEWAKE-TF-UW500_Datasheet.pdf
BENEWAKE-TF-UW500_User_Manual.pdf
