Benewake

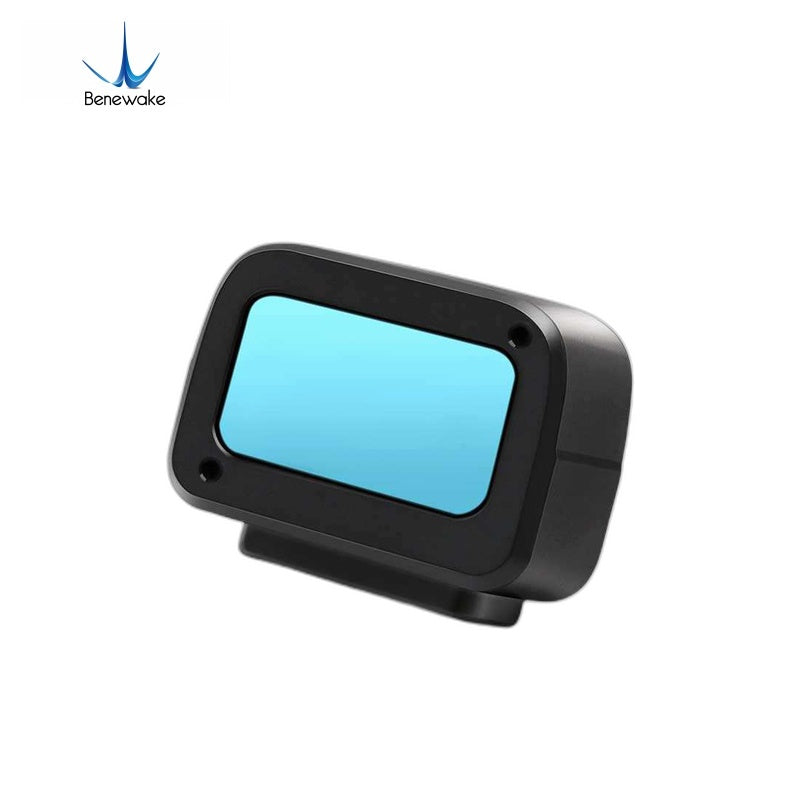

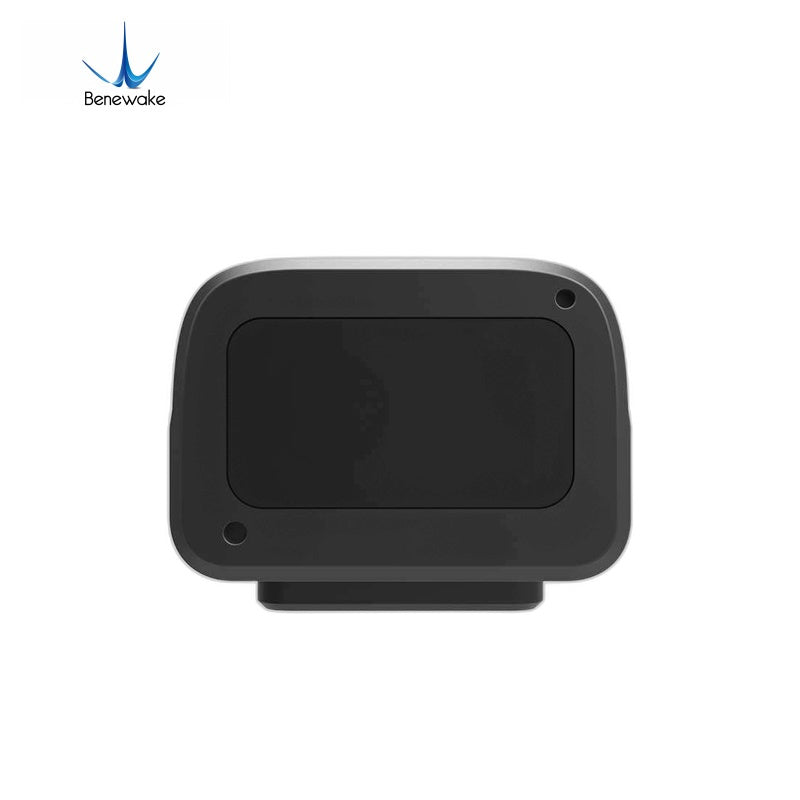

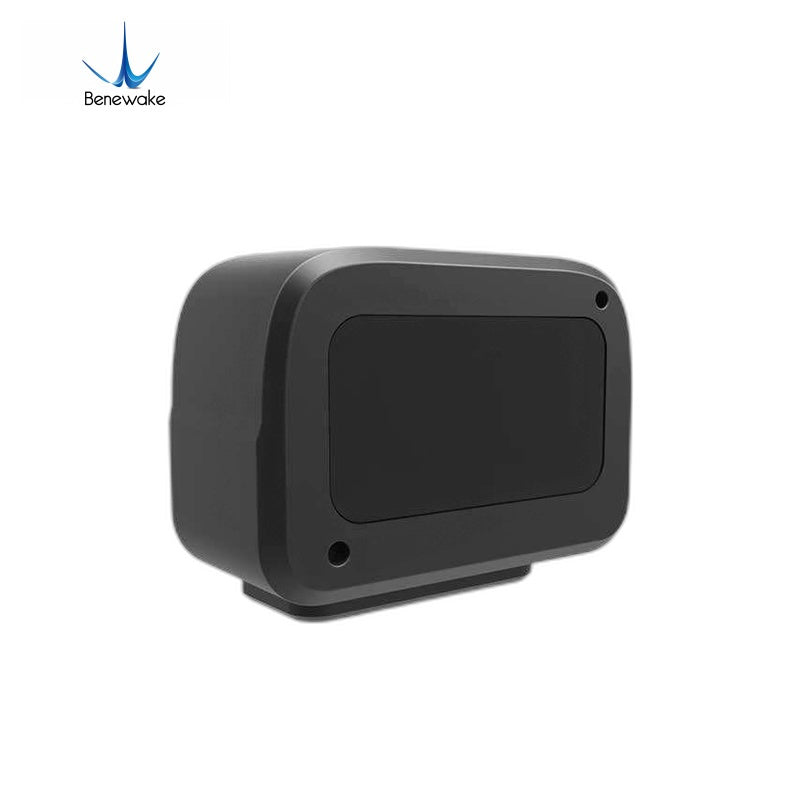

Benewake TF-NOVA LiDAR

$34.90

Version

TF-NOVA

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Detection range	≥14m @90% reflectivity, 0Klux ≥13m @10% reflectivity, 0Klux ≥7m @90% reflectivity, 100Klux ≥4m @10% reflectivity, 100Klux
Blind zone	≤ 0.1m
Accuracy	±5cm @ 0.1–4m
Repeatability	< 1cm (1 sigma) @ 0.1–4m
Distance resolution	1cm
Default frame rate	Default 100Hz, 1–900Hz customizable
Light source	VCSEL
Central wavelength	905nm
FoV of laser emission	Typ. 14°×1°
Eye safety	Class 1 Eye-safe [EN60825]
Average power consumption	< 500mW
Peak current when starting	< 850mA
Start-up time	< 1s
Power supply	DC 5±5%V
Operating temperature	-25℃ ~ +70℃
Storage temperature	-30℃ ~ +80℃
Dimensions	TYP. 26.5 × 21.05 × 12.0 mm³
Weight	<5g

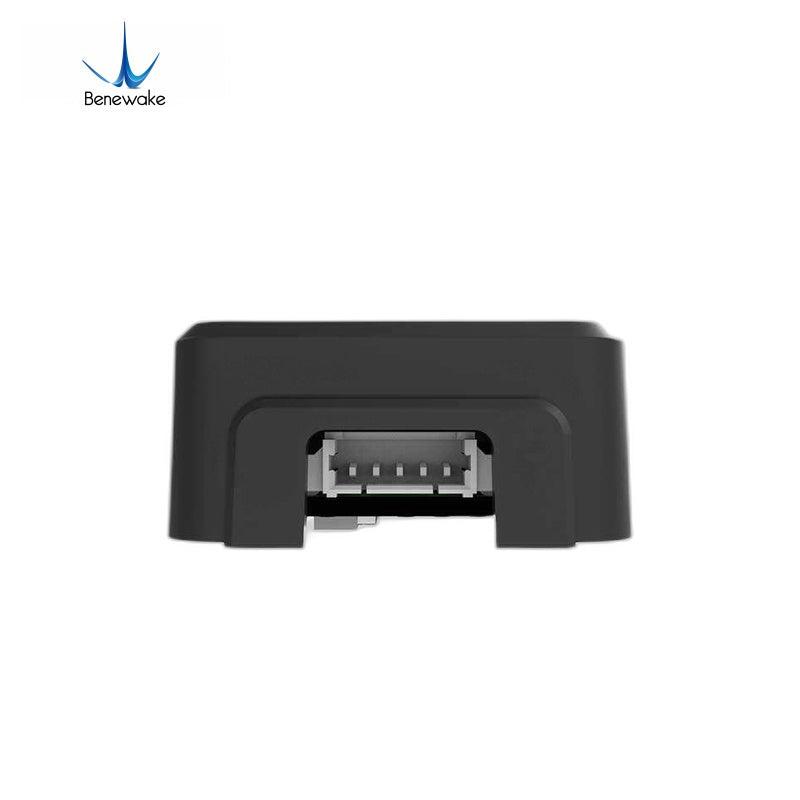

Connector	1.25mm-5P
Protection Level	N.A.
Front window protection level	IP65
Cable length	10cm
Communication Interface	UART, IIC, I/O
Baud rate	Default 115200
Data bit	8
Stop bit	1
Parity	None
