Benewake | SKU:

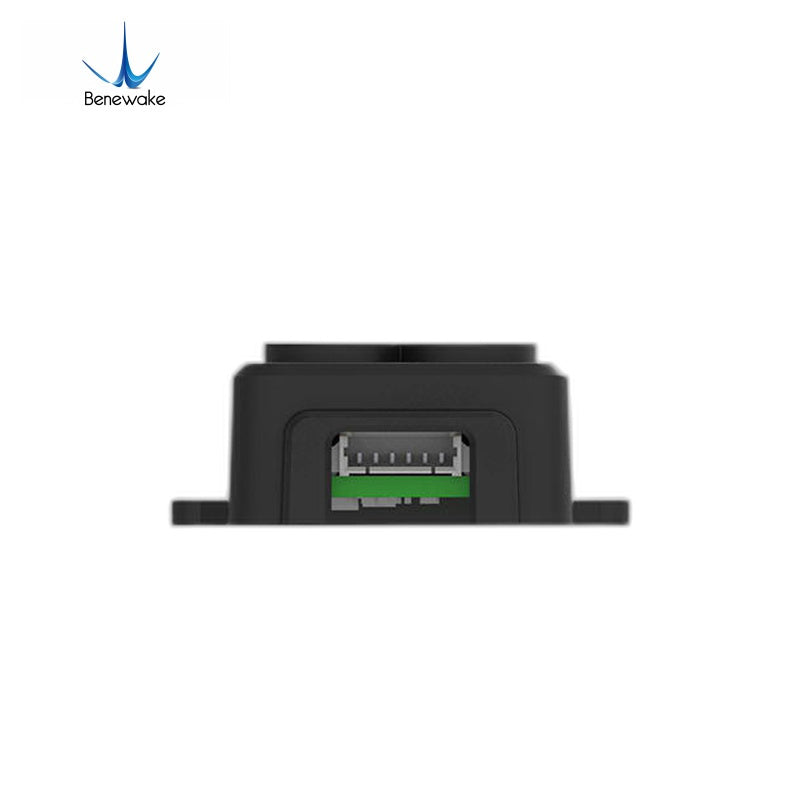

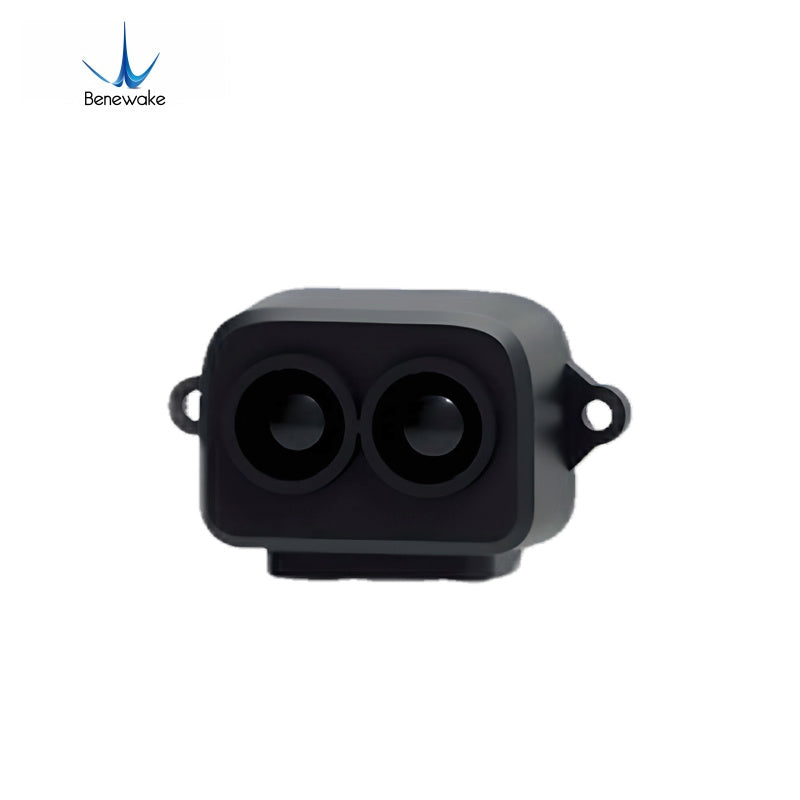

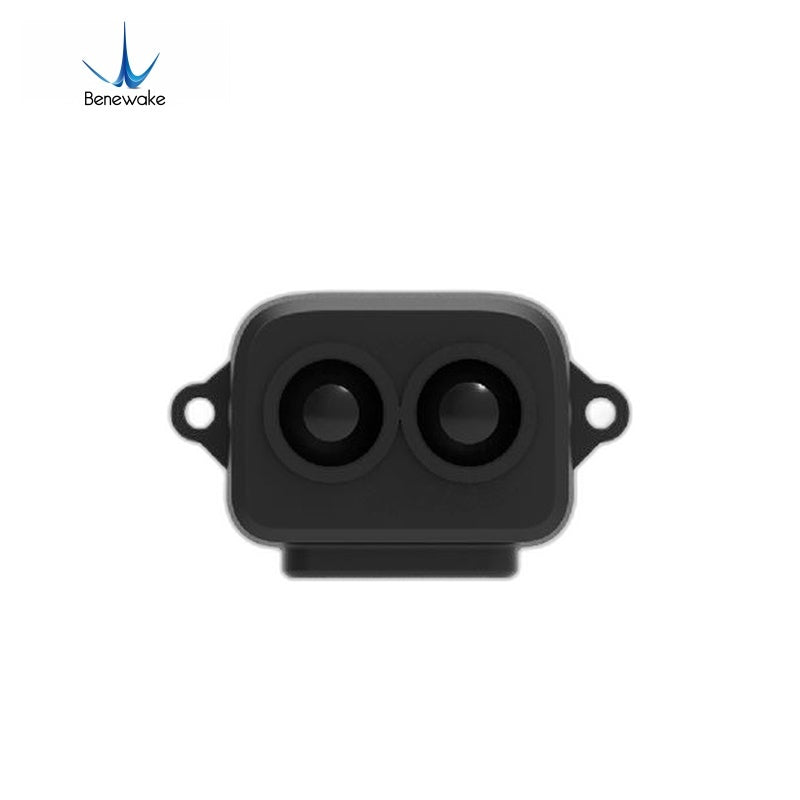

Benewake TF-Luna LiDAR
Regular price
$24.90
Unit price
Benewake TF-Luna LiDAR - TF-Luna is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TF-Luna LiDAR
Regular price
$24.90
Unit price
Benewake TF-Luna LiDAR - TF-Luna is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating range | 0.2m ~ 8m@90% reflectivity (indoor 0klux) ; 0.2m ~ 2.5m@10% reflectivity (indoor 0klux) ; 0.2m ~ 8m@90% reflectivity (outdoor 90klux) ; 0.2m ~ 2.5m@10% reflectivity (outdoor 90klux) |
| Accuracy | ±6cm @(0.2m-3m), ±2% @(3m-8m) |
| Distance resolution | 1cm |
| Frame rate | 1-250Hz |
| Ambient light immunity | 70Klux |
| Operation temperature | -10℃ ~ 60℃ |
| Enclosure rating | / |
| Light source | VCSEL |
| Central wavelength | 850nm |
| Photobiological safety | Class 1 (IEC60825) |
| Field of View (FOV) | 2^5° |
| Supply voltage | 3.7V - 5.2V |
| Average current | ≤70mA |
| Power consumption | ≤0.35W |
| Peak current | 150mA |
| Communication level | LVTTL (3.3V) |
| Communication interface | UART, I²C, I/O |
| Dimension (L×W×H) | 35mm × 21.25mm × 12.5mm |
| Housing | ABS+PC |
| Storage temperature | -20℃ ~ 75℃ |
| Weight | <5g |
| UART default baud rate | 115200 (adjustable) |
| UART max transmission rate | 400kbps |
| UART data bit | 8 |
| UART stop bit | 1 |
| UART parity | None |
| I²C master/slave mode | Slave |
| I²C default address | 0x10 |
| I²C address range | 0x08 ~ 0x77 |
BENEWAKE-TF-Luna_Datasheet.pdf
BENEWAKE-TF-Luna_User_Manual.pdf
