Benewake | SKU:

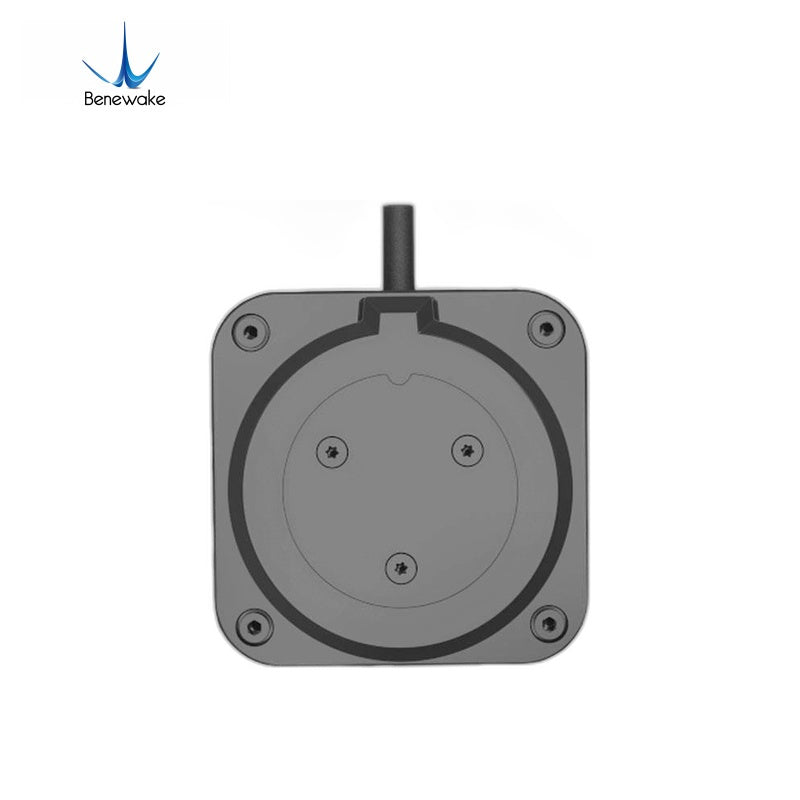

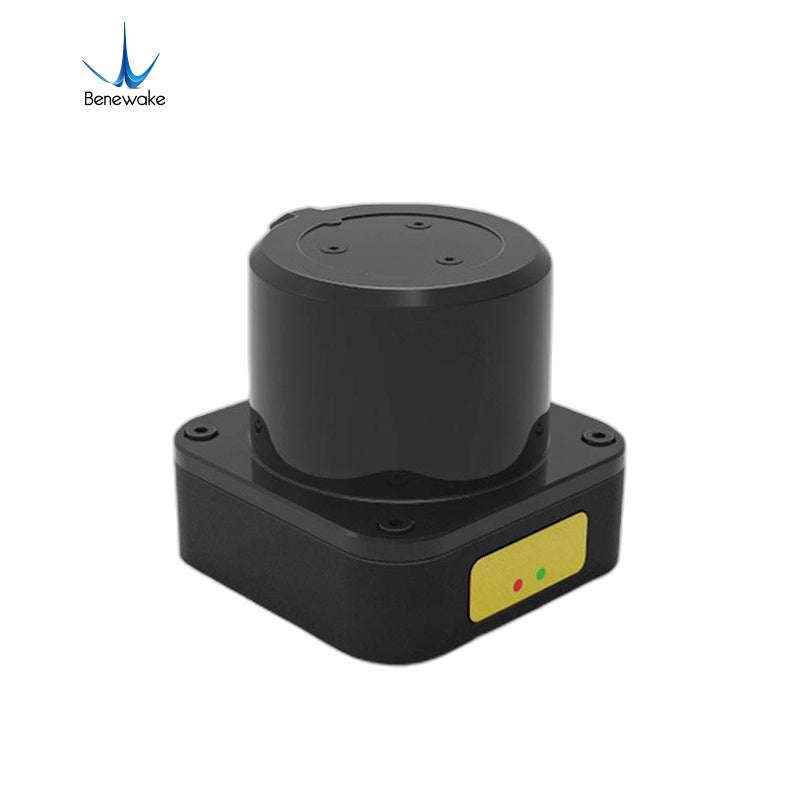

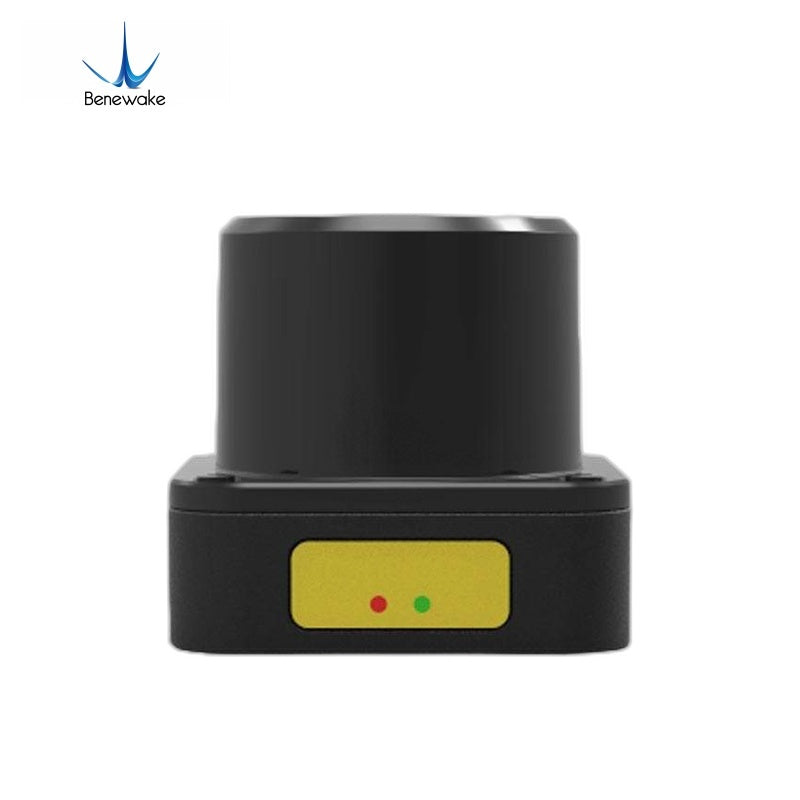

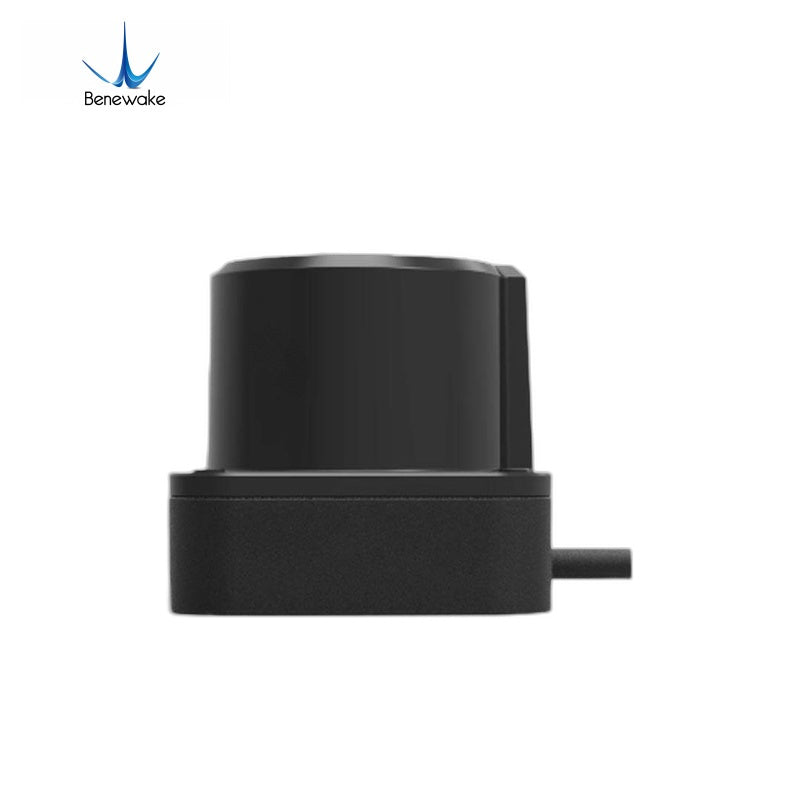

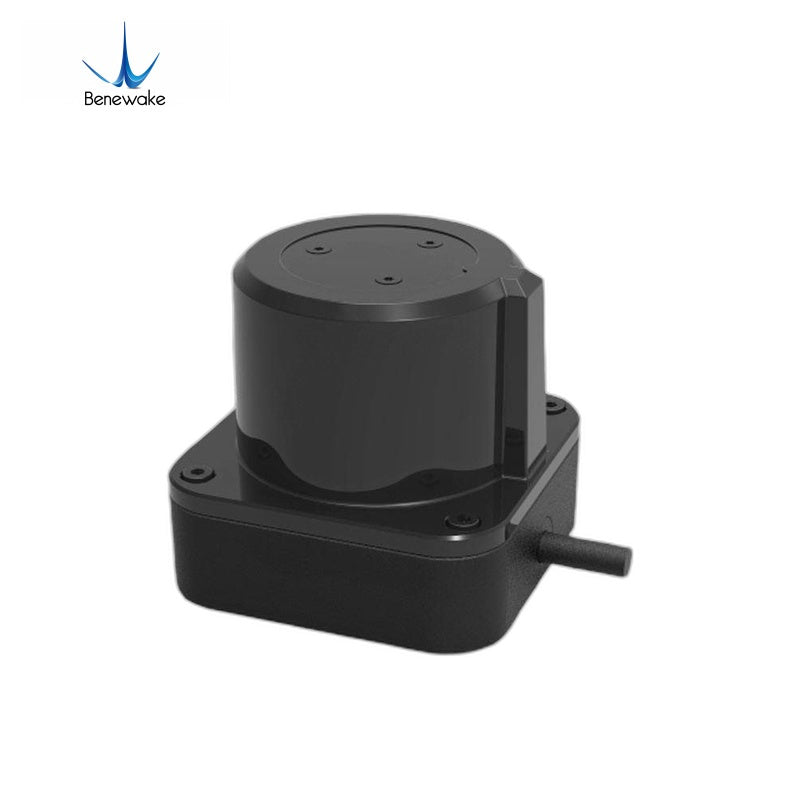

Benewake TE05 LiDAR
Regular price
$275.00
Unit price
Benewake TE05 LiDAR - TE05 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake TE05 LiDAR
Regular priceFrom
$275.00
Unit price
Benewake TE05 LiDAR - TE05 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Ranging Principle | dToF |
| Wavelength | 905nm |
| Horizontal Field of View | 270° |
| Measurement Range | ≥10m@70%reflectivity ≥5m@10%reflectivity |
| Scan Frequency | 10Hz; 15Hz; 20Hz; 25Hz; 30Hz |
| Data Sample Rate | 22.5kHz |
| Horizontal Resolution | 0.16°(10Hz) / 0.24°(15Hz) / 0.32°(20Hz) / 0.4°(25Hz) / 0.48°(30Hz) |
| Accuracy (Typical) | ±2cm |
| Data Protocol | RS485-MODBUS |
| Digital Channels | 4 Digital Inputs, 4 Digital Outputs |
| Digital Outputs | 4 NPN (or PNP), Iout ≤ 100mA |
| Response Time | 33ms (30Hz) |
| Start Time | <15s |
| Detection Output Time | 0 ~ 1000ms |
| Detection Holding Time | 0 ~ 1000ms |
| Laser Safety | Class 1 Eye safe |
| Ambient Light Immunity | < 100 Klux |
| Rated Voltage Range | 9~36V |
| Power Consumption (Typical) | 2.5W |
| Dimension (D × W × H) | 55mm × 55mm × 51mm |
| Operating Temperature | -25°C ~ 60°C |
| Storage Temperature | -40°C ~ 75°C |
| Ingress Protection | IP67 |
