Benewake | SKU:

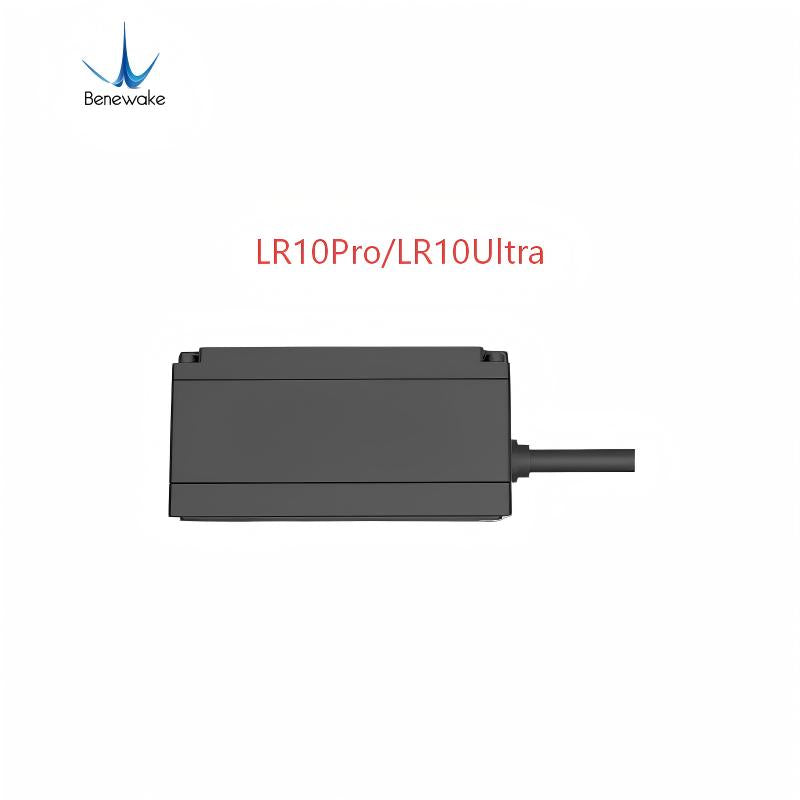

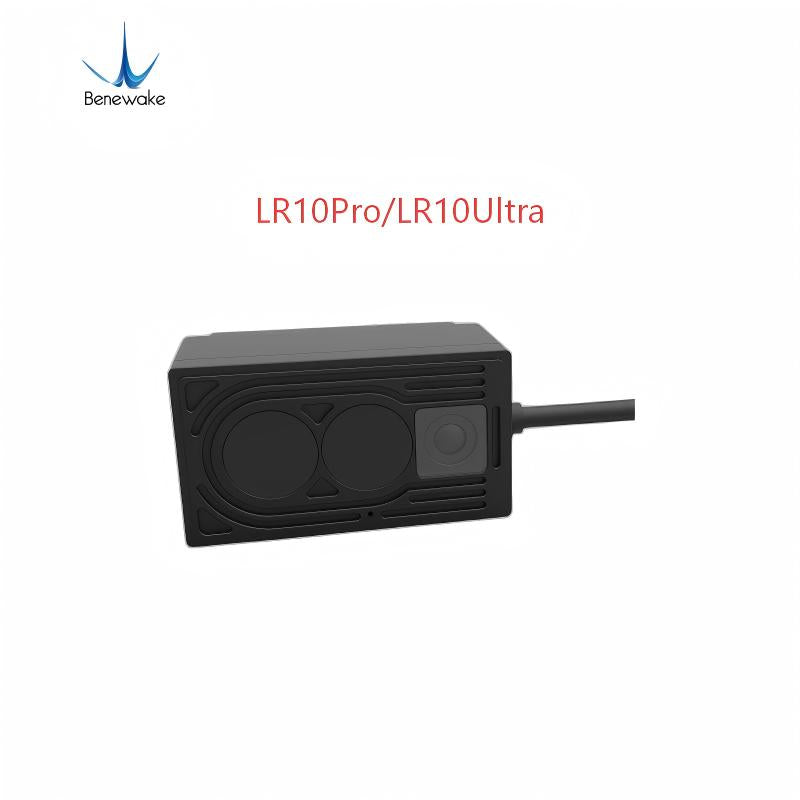

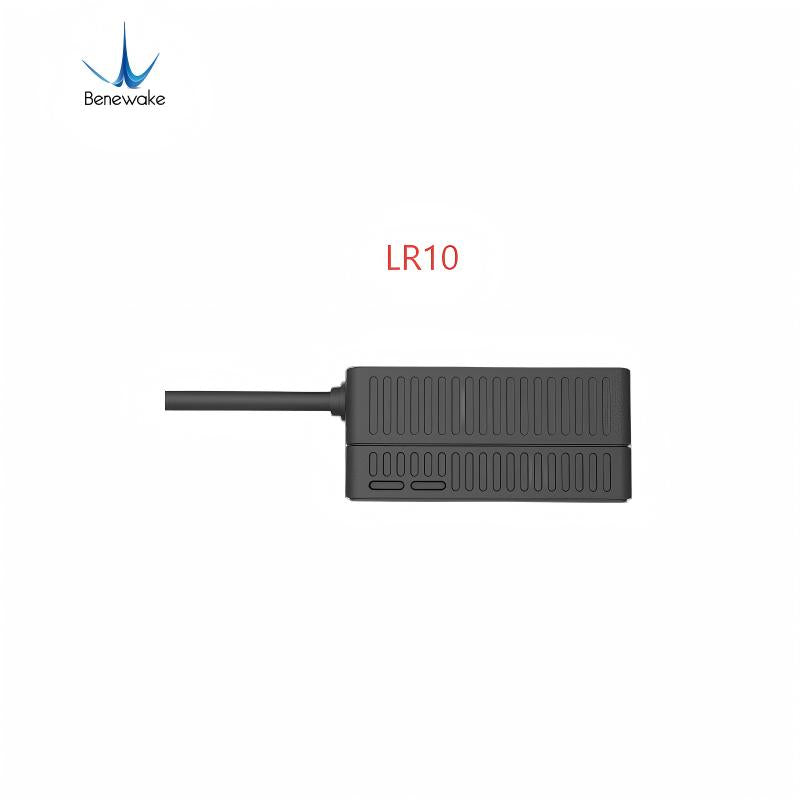

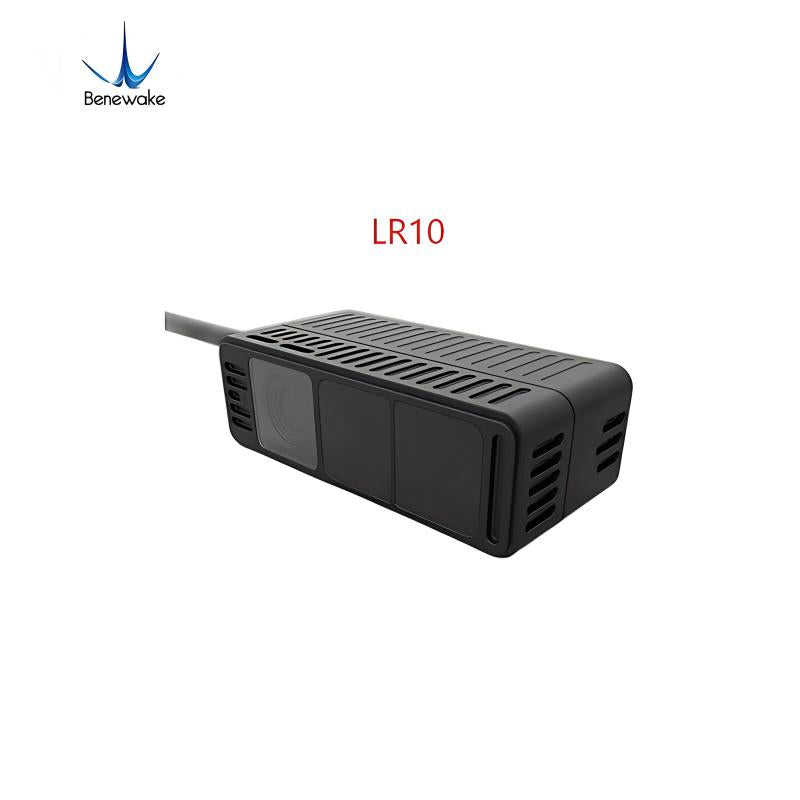

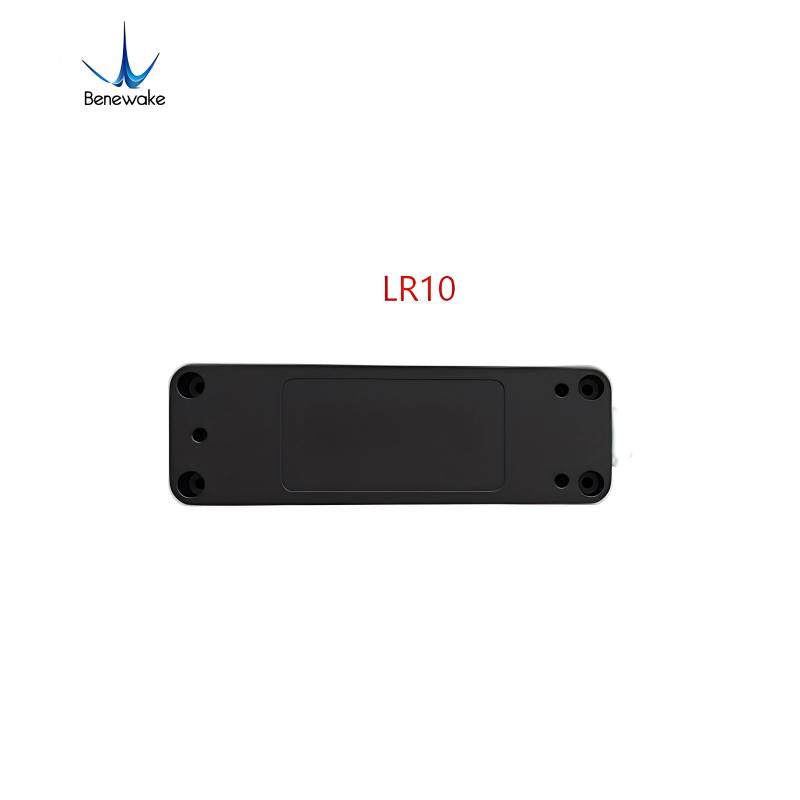

Benewake LR10 LiDAR
Regular price
$599.00
Unit price
Benewake LR10 LiDAR - LR10(8m) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Benewake LR10 LiDAR
Regular priceFrom
$599.00
Unit price
Benewake LR10 LiDAR - LR10(8m) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | LR10 | LR10 Pro | LR10 Ultra |
|---|---|---|---|
| Sensor type | dToF & RGB-D | dToF & RGB-D | dToF & RGB-D |
| Output data | Point cloud & RGB | Point cloud & RGB | Point cloud & RGB |
| TOF resolution and frame rate | 240×160 @ Max.20fps (Typical 15fps) | 240×160 @ Max.10fps (Typical 10fps) | 240×160 @ Max.10fps (Typical 10fps) |
| TOF field of view | 90°×61° / 120°×80° | 70°×90° / 70°×120° | 120°×80° |
| RGB resolution and frame rate | 1920×1080 @ Max.20fps (Typical 15fps) | 1920×1080 @ Max.10fps (Typical 15fps) | 1920×1080 @ Max.10fps (Typical 10fps) |
| RGB angle of view | 120°×90° | 61°×90° | 120°×80° |
| Distance ranges | 0.05-8m (90% reflectivity) 0.05-5m (10% reflectivity) |
0.05-18m (90% reflectivity) 0.05-10m (10% reflectivity) |
0.05-30m (90% reflectivity) 0.05-30m (10% reflectivity) |
| Accuracy | ≤3cm | ≤3cm | ≤4cm |
| Average and peak power consumption | ≤4W & 28W | ≤7W | ≤9W |
| Laser wavelength | 940 nm | 940 nm | 940 nm |
| Size (length × width × height) | 80mm×37mm×25mm | 92mm×47mm×51mm | 92mm×57mm×51mm |
| Weight | 190g | 460g | 500g |
| Power supply | 12-28V | 24V | 24V-28V |
| Communication interface | Ethernet/GMSL/IO | Ethernet/GMSL/IO | Ethernet/GMSL/IO |
| Level of protection | IP54 | IP67 | IP67 |
| Working temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| Storage temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Software environment | C/C++/ROS SDK | C/C++/ROS SDK | C/C++/ROS SDK |
| Support operating system | Windows 7/8/10/11, Linux, ARM, Linux/ROS | Windows 7/8/10/11, Linux, ARM, Linux/ROS | Windows 7/8/9/10/11, Linux, ARM, Linux/ROS |
| Ambient light resistance | 100Klux | 100Klux | 100Klux |
